2018 PEUGEOT 5008 adblue

3
.
bit.ly/helpPSA
.
Driving recommendations 155
Anti-theft protection 1 56
Starting/Switching off the engine with
the key

1
56
Starting/Switching off the engine with
K

eyless Entry and Starting
1
58
Electric parking brake

1
61
Manual gearbox
1

64
Automatic gearbox

1
65
Hill start assist

1
69
Dynamic pack
1

70
Gear shift indicator

1
70
Stop & Start

1
71
Under-inflation detection
1

74
Memorising speeds

1
75
Recognition of speed limit signs and
recommendation
1

76
Speed limiter
1

79
Cruise control

1
81
Adaptive cruise control

1
84
Distance Alert and Active Safety Brake

1
92
Fatigue detection system

1
96
Lane Departure Warning System
1

98
Active Lane Departure Warning System

1
98
Blind Spot Monitoring System

2
03
Parking sensors
2

05
Visiopark 1 - Visiopark 2

2
07
Park Assist

2
12Fuel
220
Misfuel prevention (Diesel) 2 21
Compatibility of fuels
2

22
Towing device

2
23
Towbar with quickly detachable towball
2

24
Load reduction mode

2
27
Energy economy mode
2

27
Very cold climate screen

2
28
Snow chains

2
28
Fitting roof bars

2
29
Bonnet
23

0
Engine compartment
2

31
Checking levels
23

2
Checks


235
AdBlue
® (BlueHDi engines) 2 37
Warning triangle
2
40
Running out of fuel (Diesel)

2
40
Tool kit

2
41
Temporary puncture repair kit
2

43
Spare wheel

2
46
Changing a


bulb
2
52
Changing a


wiper blade
2
57
Changing a


fuse
2
57
12

V battery
2
62
Towing the vehicle

2
65Engine technical data and towed loads

2
67
Petrol engines and towed loads
2
68
Diesel engines and towed loads
2
69
Dimensions

272
Identification markings
2
73
Driving
Practical information Technical data
Alphabetical index
In the event of a
breakdownAudio equipment and telematics
PEUGEOT Connect Nav
PEUGEOT Connect Radio
Bluetooth audio system
Access to additional videos
.
Contents

20

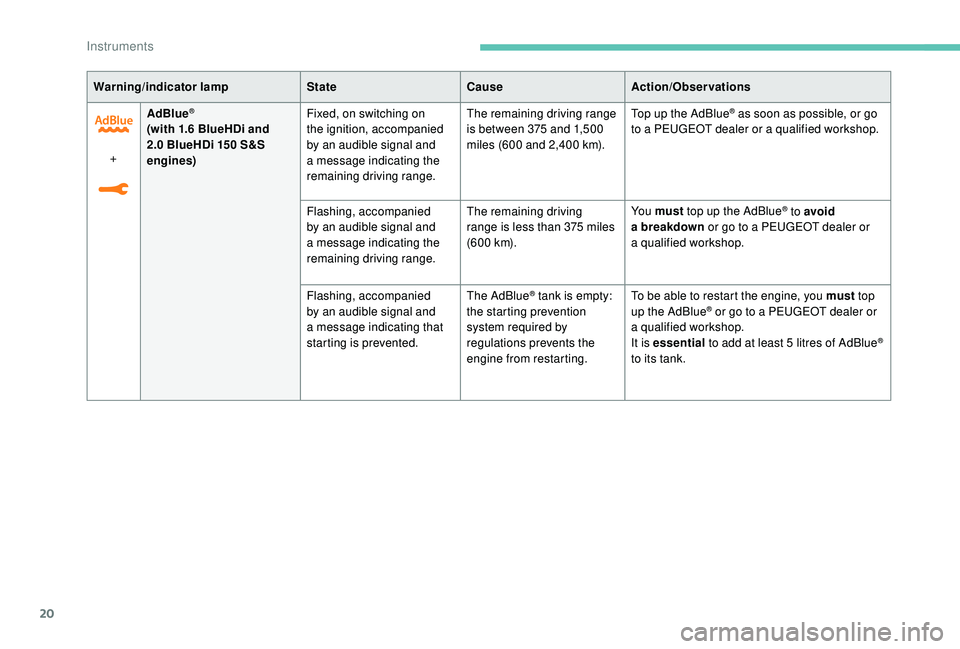

Warning/indicator lampStateCause Action/Observations
+ AdBlue
®
(with 1.6 BlueHDi and
2 .0 BlueHDi 150 S&S
engines) Fixed, on switching on
the ignition, accompanied
by an audible signal and
a
message indicating the
remaining driving range. The remaining driving range
is between 375 and 1,500
miles (600 and 2,400 km).
Top up the AdBlue
® as soon as possible, or go
to a

PEUGEOT dealer or a qualified workshop.
Flashing, accompanied
by an audible signal and
a

message indicating the
remaining driving range. The remaining driving
range is less than 375

miles
(6 0 0


k m). Yo u must
top up the AdBlue
® to avoid
a
breakdown or go to a

PEUGEOT dealer or
a


qualified workshop.
Flashing, accompanied
by an audible signal and
a

message indicating that
starting is prevented. The AdBlue
® tank is empty:
the starting prevention
system required by
regulations prevents the
engine from restarting. To be able to restart the engine, you must
top
up the AdBlue® or go to a PEUGEOT dealer or
a
qualified workshop.
It is essential to add at least 5
litres of AdBlue
®
to its tank.
Instruments

21

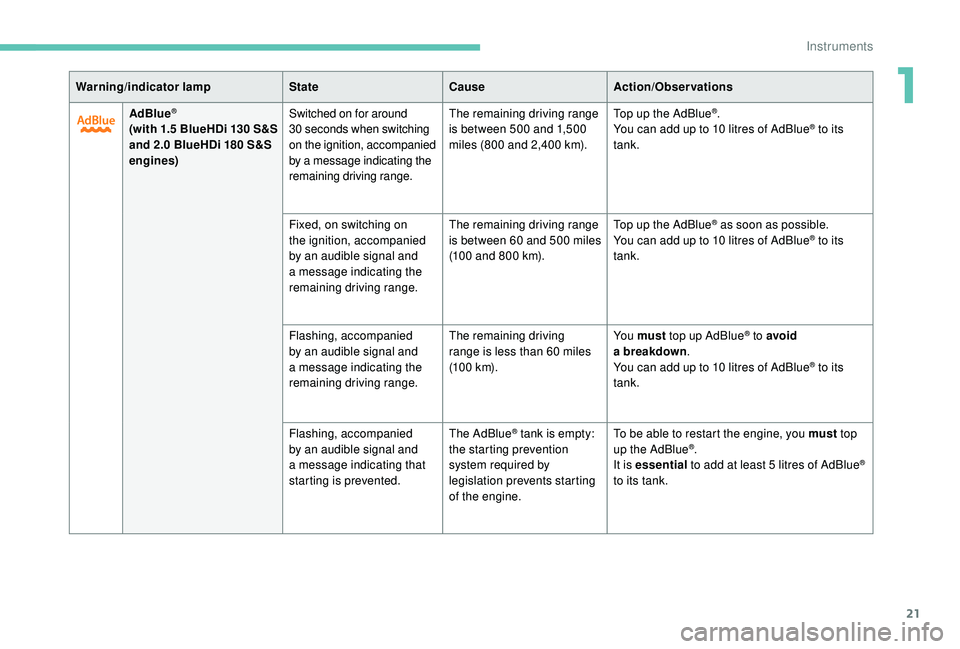

Warning/indicator lampStateCause Action/Observations
AdBlue
®
(with 1.5 B lueHDi 130 S &S
and 2.0 BlueHDi 180 S&S
engines) Switched on for around
30
seconds when switching
on the ignition, accompanied
by a
message indicating the
remaining driving range. The remaining driving range
is between 500 and 1,500
miles (800 and 2,400 km).
Top up the AdBlue
®.
You can add up to 10 litres of AdBlue® to its
tank.
Fixed, on switching on
the ignition, accompanied
by an audible signal and
a

message indicating the
remaining driving range. The remaining driving range
is between 60 and 500 miles
(100 and 800 km).
Top up the AdBlue
® as soon as possible.
You can add up to 10 litres of AdBlue® to its
tank.
Flashing, accompanied
by an audible signal and
a

message indicating the
remaining driving range. The remaining driving
range is less than 60

miles
(10 0


k m). Yo u must
top up AdBlue
® to avoid
a
breakdown .
You can add up to 10

litres of AdBlue
® to its
tank.
Flashing, accompanied
by an audible signal and
a

message indicating that
starting is prevented. The AdBlue
® tank is empty:
the starting prevention
system required by
legislation prevents starting
of the engine. To be able to restart the engine, you must
top
up the AdBlue®.
It is essential to add at least 5
litres of AdBlue®
to its tank.
1
Instruments

22

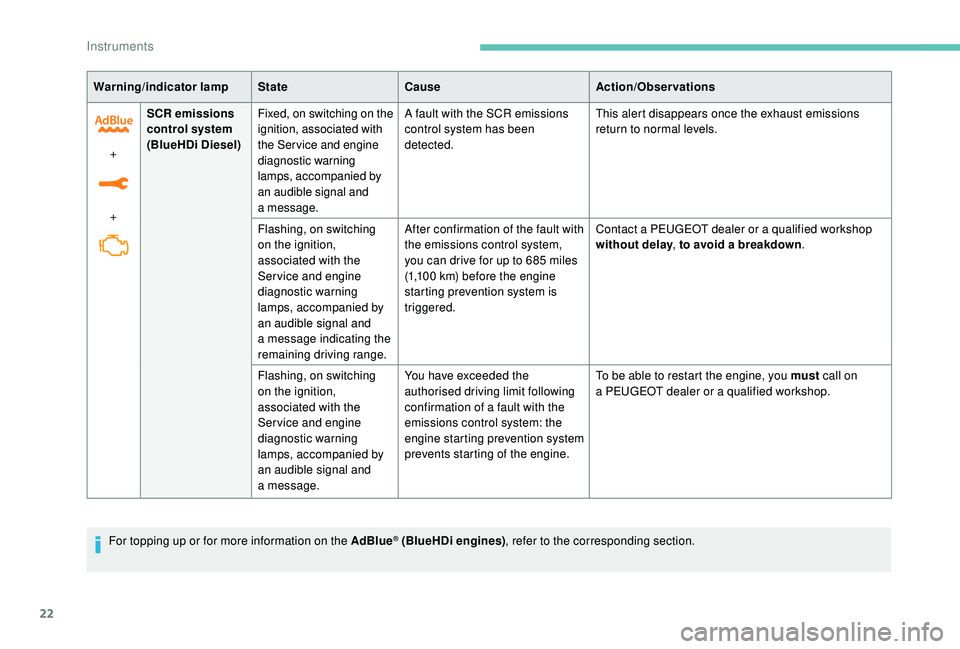

Warning/indicator lampStateCause Action/Observations
+

+ SCR emissions
control system
(BlueHDi Diesel)
Fixed, on switching on the
ignition, associated with
the Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a


message.A fault with the SCR emissions
control system has been
detected.
This alert disappears once the exhaust emissions
return to normal levels.
Flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a
message indicating the
remaining driving range. After confirmation of the fault with
the emissions control system,
you can drive for up to 685
miles
(1,100
km) before the engine
starting prevention system is
triggered. Contact a
PEUGEOT dealer or a qualified workshop
without delay , to avoid a
breakdown.
Flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a


message.You have exceeded the
authorised driving limit following
confirmation of a
fault with the
emissions control system: the
engine starting prevention system
prevents starting of the engine. To be able to restart the engine, you must
call on
a
PEUGEOT dealer or a qualified workshop.
For topping up or for more information on the AdBlue
® (BlueHDi engines) , refer to the corresponding section.
Instruments

32
If the low oil level is confirmed by a check using
t he dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels ,
refer to the corresponding section.
Oil level indicator fault
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a
PEUGEOT dealer or a qualified
workshop.
In the event of a
fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels ,
refer to the corresponding section.
Engine coolant temperature
gauge
With the engine running:
- i n zone A , the temperature is correct,
-

i
n zone B , the temperature is too high; this
warning lamp and the central STOP warning
lamp come on in the instrument panel,
accompanied by the display of a
message
and an audible signal.
You MUST stop as soon as it is safe to do
so.
Wait a
few minutes before switching off the
engine.
After first switching off the ignition, open
the bonnet cautiously and check the
coolant level. For more information on Checking levels
,
refer to the corresponding section.
AdBlue® range indicators
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
® tank is on reser ve or after
detection of a

fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, (the range)
before engine starting is prevented.
In the event of the risk of non-
starting related to a lack of
AdBlue
®
The engine starting prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
Range greater than 1,500

miles (2,400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
Instruments

33

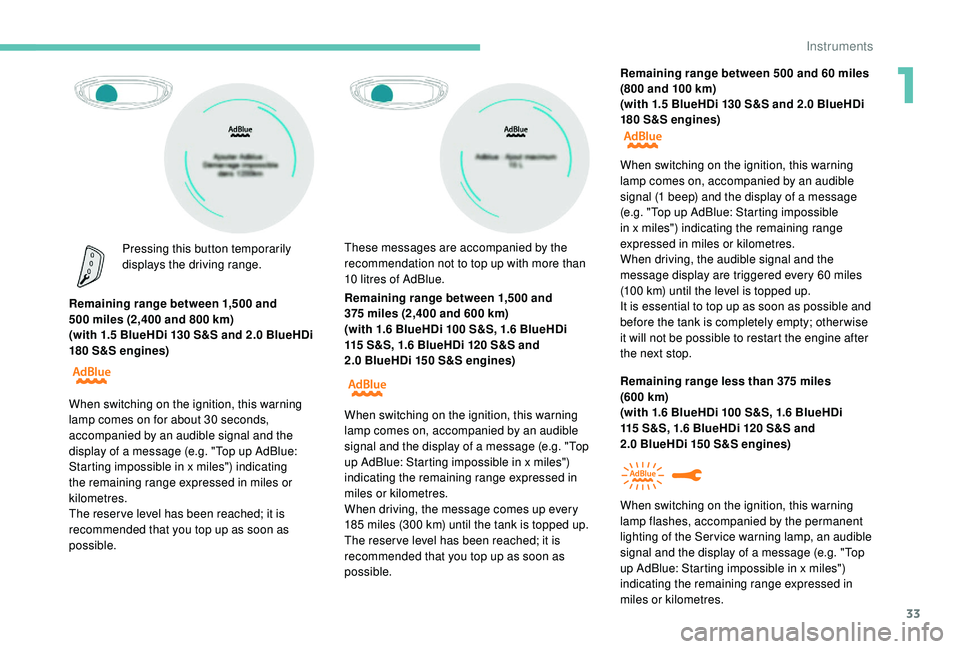

Pressing this button temporarily
displays the driving range.
Remaining range between 1,500
and
500

miles (2,400 and 800 km)
(with 1.5

BlueHDi 130 S&S and 2.0 BlueHDi
180

S&S engines) Remaining range between 1,500
and
375
miles (2,400 and 600 km)
(with 1.6
BlueHDi 100 S&S, 1.6 BlueHDi
115
S&S, 1.6 BlueHDi 120 S&S and
2.0
BlueHDi 150 S&S engines)
When switching on the ignition, this warning
lamp comes on for about 30
seconds,
accompanied by an audible signal and the
display of a
message (e.g. "Top up AdBlue:
Starting impossible in x miles") indicating
the remaining range expressed in miles or
kilometres.
The reser ve level has been reached; it is
recommended that you top up as soon as
possible. These messages are accompanied by the
recommendation not to top up with more than
10
litres of AdBlue.
When switching on the ignition, this warning
lamp comes on, accompanied by an audible
signal and the display of a
message (e.g. "Top
up AdBlue: Starting impossible in x miles")
indicating the remaining range expressed in
miles or kilometres.
When driving, the message comes up every
185
miles (300 km) until the tank is topped up.
The reser ve level has been reached; it is
recommended that you top up as soon as
possible. Remaining range between 500
and 60 miles
(800 and 100 km)
(with 1.5 BlueHDi 130 S&S and 2.0 BlueHDi
180 S&S engines)
Remaining range less than 375 miles
(600
km)
(with 1.6
BlueHDi 100 S&S, 1.6 BlueHDi
115
S&S, 1.6 BlueHDi 120 S&S and
2.0
BlueHDi 150 S&S engines)
When switching on the ignition, this warning
lamp comes on, accompanied by an audible
signal (1
beep) and the display of a message
(e.g. "Top up AdBlue: Starting impossible
in x miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the audible signal and the
message display are triggered every 60
miles
(100
km) until the level is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop.
When switching on the ignition, this warning
lamp flashes, accompanied by the permanent
lighting of the Ser vice warning lamp, an audible
signal and the display of a
message (e.g. "Top
up AdBlue: Starting impossible in x miles")
indicating the remaining range expressed in
miles or kilometres.
1
Instruments

34
When driving, this message is displayed every
30 seconds until the AdBlue level has been
topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop.
Remaining range less than 60
miles
(100
km)
(with 1.5
BlueHDi 130 S&S and 2.0 BlueHDi
180
S&S engines)
When driving, the audible signal and the
message display are triggered every 6
miles
(10
km) until the AdBlue tank is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop. Breakdown due to a
lack of AdBlue®
The AdBlue® tank is empty: the starting
prevention system required by legislation
prevents starting of the engine.
To be able to restart the engine, it is
essential to add at least 5
litres of AdBlue
®
to its tank.
For more information on AdBlue
®
(BlueHDi engines) , and, in particular,
on topping up, refer to the corresponding
section.
When switching on the ignition, this warning
lamp flashes, accompanied by an audible
signal (1

beep) and the display of a

message
(e.g. "Top up AdBlue: Starting impossible
in x miles") indicating the remaining range
expressed in miles or kilometres. When switching on the ignition, this warning
lamp flashes, accompanied by an audible
signal and the display of the message "Top up
AdBlue: Starting impossible".
In the event of a fault with the
S CR emissions control system
A system that prevents engine starting is
activated automatically from 685
miles
(1,100
km) after confirmation of a fault with
the SCR emissions control system.
Have the system checked by a
PEUGEOT
dealer or a
qualified workshop as soon as
possible.
In the event of the detection of a
fault
If it is a
temporary fault, the alert
disappears during the next journey,
after self-diagnostic checks of the SCR
emissions control system.
These warning lamps come on, accompanied
by an audible signal and the display of the
"Emissions fault" message.
The alert is triggered while driving as soon
as the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.
Instruments

35
During the permitted driving phase
(between 685 and 0 miles (1,100 and 0 km))
While driving, the message is displayed every
30
seconds while the fault with the SCR
emissions control system persists.
The alert is repeated when switching on the
ignition.
You should contact a
PEUGEOT dealer or
a
qualified workshop as soon as possible.
Other wise you will not be able to restart the
vehicle. If a
fault with the SCR emissions control system
is confirmed (after 31
miles (50 km) covered
with the permanent display of the message
signalling a


fault), these warning lamps come
on and the AdBlue warning lamp flashes,
associated with an audible signal and the
display of a
message (e.g. "Emissions fault:
Starting prevented in 200
miles") indicating
the remaining range expressed in miles or
kilometres.
Starting prevented You have exceeded the authorised driving
limit: the starting prevention system does
not allow the engine to be started.
To be able to restart the engine, you must call
on a
PEUGEOT dealer or a qualified workshop.
Each time the ignition is switched on, these
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Emissions fault: Starting prevented".
Manual test in the
instrument panel
This function allows you, at any time, to check
certain indicators and display the alerts log. F

W
ith the engine running, briefly press this
button.
The following information is displayed in the
instrument panel:
-
t
he engine oil level,
-
w
hen the next ser vice is due,
-
t
he driving range for the AdBlue and the
SCR system for BlueHDi Diesel versions,
-
c
urrent alerts.
This information is also displayed
automatically every time the ignition is
switched on.
Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
When travelling abroad, you may have to
change the distance unit: the display of
road speed must be in the of ficial units
(miles or km) for the country.
The change of units is done via the screen
configuration menu, with the vehicle
stationary.
1
Instruments
