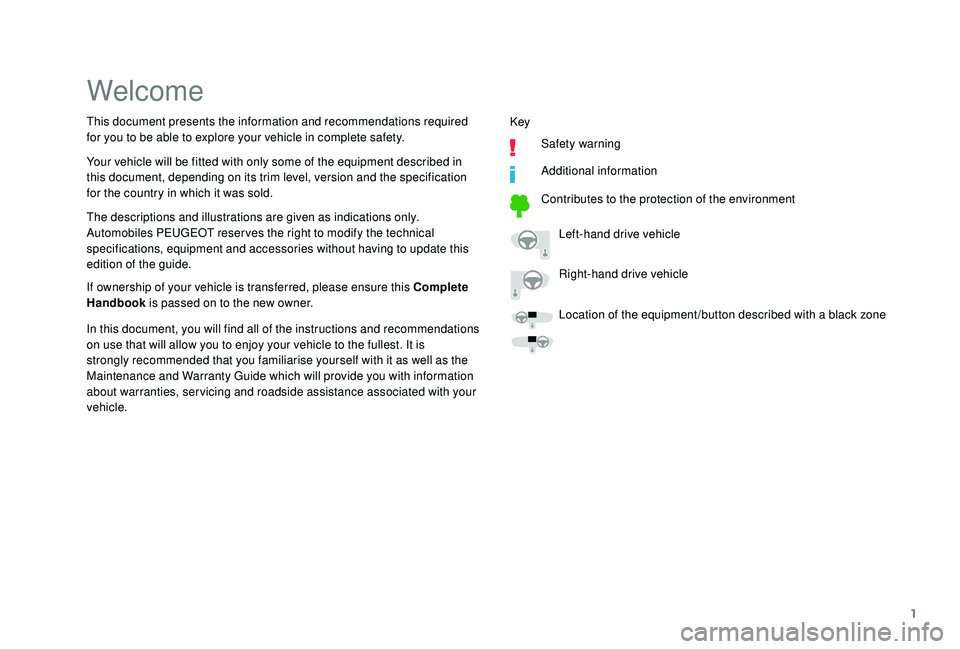

Welcome
The descriptions and illustrations are given as indications only.
Automobiles PEUGEOT reser ves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the guide.
In this document, you will find all of the instructions and recommendations
on use that will allow you to enjoy your vehicle to the fullest. It is
strongly recommended that you familiarise yourself with it as well as the
Maintenance and Warranty Guide which will provide you with information
about warranties, ser vicing and roadside assistance associated with your
vehicle. This document presents the information and recommendations required
for you to be able to explore your vehicle in complete safety.
Your vehicle will be fitted with only some of the equipment described in
this document, depending on its trim level, version and the specification
for the country in which it was sold.
If ownership of your vehicle is transferred, please ensure this Complete
Handbook is passed on to the new owner. Key
Safety warning
Additional information
Contributes to the protection of the environment
Left-hand drive vehicle
Right-hand drive vehicle
Location of the equipment /button described with a
black zone

2
.
.
Instrument panels 8
D isplays 9
Warning and indicator lamps
9
I

ndic ators

18
Trip computer

1
8
Adjusting the time
2

0Keys


22
"
K
eyless Entry and Starting" system
2
3
Doors 26
Boot

27
Front electric windows
2
8
Quarter windows
2
9
Electric fabric roof
2
9
Advice on care
3
1
Front seats
3
2
Rear seats
3

4
Mirrors


35
Steering wheel adjustment
3

6
Ventilation
3

6
Heating
3

7
Manual air conditioning
3

7
Automatic air conditioning

3
8
Front demist – defrost

4
0
Rear screen demist – defrost

4
1
Courtesy lamp

4
1
Boot lighting

4
1
Interior fittings

4
2
Rear shelf
4

4
Boot fittings

4
5Lighting control stalk

4
6
Automatic headlamp illumination
4
8
Direction indicators
4
8
Headlamp adjustment
4
9
Wiper control stalk
4
9
Changing a

wiper blade
5
0
General safety recommendations 5 1
H o r n 51
Hazard warning lamps
5

2
ESC system

5
2
Seat belts
5

4
Airbags


56
Child seats

5
9
Deactivating the front passenger airbag
6

0
ISOFIX mountings and child seats
6

6
i-Size child seats

7
0
Child lock

7
1
InstrumentsAccess
Over view
Ease of use and comfort Lighting and visibility
Safety
Eco-driving
Instruments and controls 4
E co-driving

6
Contents

3
.
bit.ly/helpPSA
.
Starting/Switching off the engine with the
key 73
Starting/Switching off the engine with the
system

K
eyless Entry and Starting
7
3
Manual parking brake
7

6
5-speed manual gearbox
7

6
ETG gearbox

7
6
Gear shift indicator

7
9
Hill start assist

8
0
Stop & Start

8
1
Speed Limit recognition and
recommendation


82
Speed limiter
8

4
Active City Brake

8
6
Lane departure warning system

9
0
Reversing camera
9

1
Under-inflation detection
9

2
Fuel tank

9
6
Compatibility of fuels
9

7
Snow chains

9
7
Energy economy mode
9

8
Fitting roof bars

9
8
Bonnet
98
Engine compartment
9

9
Checking levels

9
9
Checks
10

2Temporary puncture repair kit 1
04
Spare wheel

1
07
Changing a


bulb
1
11
Changing a


fuse
1
14
12
V battery
1
21
Towing the vehicle

1
23
Engine specifications

1
25
Engines
1

25
Dimensions


126
Identification markings
1

27
Driving
Practical information In the event of a
breakdown
Technical data Alphabetical index
Audio equipment and telematics
Radio
7-inch touch screen tablet
Access to additional videos
.
Contents

4
Instruments and controls1
Door mirrors
Electric windows
Central locking
2
Bonnet release
3
Dashboard fuses
4
Instrument panel
Rev counter
Central display
Warning and indicator lamps
Indicators
Trip computer
5
Courtesy lamp
Fabric electric roof opening control
Speed Limit recognition and
recommendation
Active City Brake
Rear view mirror
Sun visor
6
Touch screen
Radio
Setting the time
7
Heating, ventilation
Manual air conditioning
Automatic air conditioning
Front demist/defrost
Rear screen demisting/defrosting
8
12 V accessory socket
USB port
Auxiliary Jack socket
9
Manual gearbox
ETG gearbox
Gear efficiency indicator
Hill start assist
10
Manual parking brake
11
Front passenger airbag
12
Side vents
13
Glove box
Deactivating the front passenger airbag
Reinitialisation of the under-inflation
detection system
Over view

5
Instruments and controls (continued)1
Lighting controls
Direction indicators
2
Stop & Start
Active City Brake
Electric mirrors adjustment
Headlamp adjustment
Deactivating the DSC/TRC systems.
Front foglamps (accessory)
3
Opening the fuel filler flap
4
ETG gearbox steering mounted control
paddles
5
Steering wheel height adjustment
Horn
Driver front airbag
6
Steering mounted controls
-
T
ouch screen, Radio
-
L

ane Departure Warning System
7
Speed limiter
8
Wiper control stalk
9
Ignition, starting/switching off (key)
Ignition, starting/switching off ("Keyless
Entry and Starting" system)
10
Hazard warning lamps
.
Over view

9

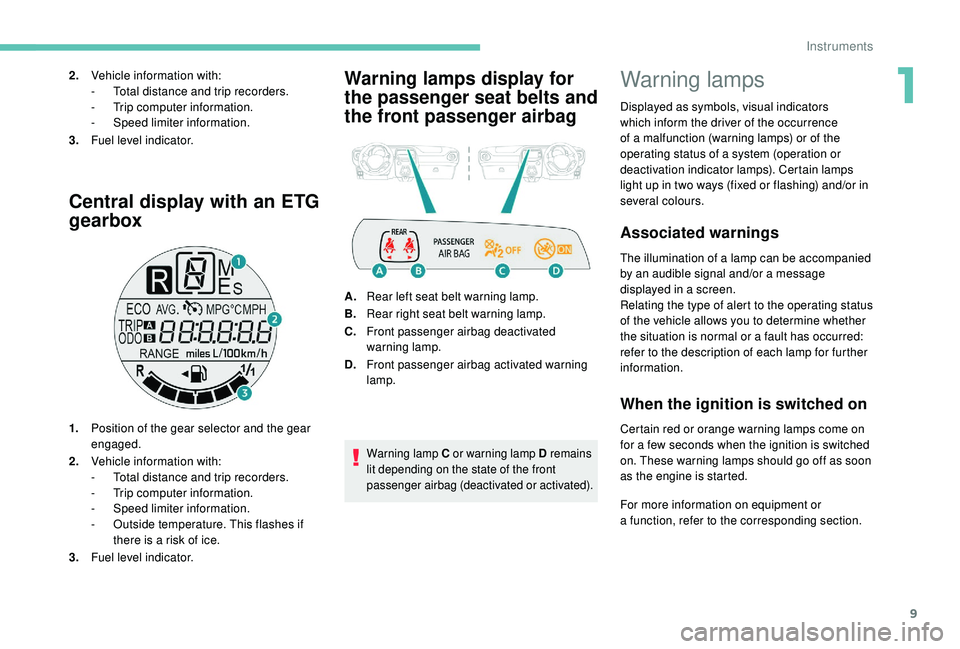

Central display with an ETG
gearbox
1.Position of the gear selector and the gear
engaged.
2. Vehicle information with:
-

T
otal distance and trip recorders.
-

T
rip computer information.
-
S

peed limiter information.
-

O
utside temperature. This flashes if
there is a
risk of ice.
3. Fuel level indicator.
Warning lamps display for
the passenger seat belts and
the front passenger airbag2.Vehicle information with:
-
T otal distance and trip recorders.
-

T
rip computer information.
-
S

peed limiter information.
3. Fuel level indicator.
A.Rear left seat belt warning lamp.
B. Rear right seat belt warning lamp.
C. Front passenger airbag deactivated
warning lamp.
D. Front passenger airbag activated warning
lamp.
Warning lamp C or warning lamp D remains
lit depending on the state of the front
passenger airbag (deactivated or activated).
Warning lamps
Displayed as symbols, visual indicators
which inform the driver of the occurrence
of a
malfunction (warning lamps) or of the
operating status of a
system (operation or
deactivation indicator lamps). Certain lamps
light up in two ways (fixed or flashing) and/or in
several colours.
Associated warnings
The illumination of a lamp can be accompanied
b y an audible signal and/or a message
displayed in a
screen.
Relating the type of alert to the operating status
of the vehicle allows you to determine whether
the situation is normal or a
fault has occurred:
refer to the description of each lamp for further
information.
When the ignition is switched on
Certain red or orange warning lamps come on
for a few seconds when the ignition is switched
on. These warning lamps should go off as soon
as the engine is started.
For more information on equipment or
a
function, refer to the corresponding section.
1
Instruments

10
Persistent warning lamp
When the engine is running or the vehicle is
being driven, the illumination of a red or orange
warning lamp indicates a
fault that needs
further investigation, using any associated
message and the description of the warning
lamp in the documentation.
Where a warning lamp remains lit
The references (1) (2) and (3) in the warning
and indicator lamp description indicate whether
you should contact a
qualified professional
in addition to the immediate recommended
actions.
(1 ) : You must stop as soon as it is safe to
do so and switch off the ignition.
(2): Contact a
PEUGEOT dealer or a qualified
workshop.
(3) : Go to a
PEUGEOT dealer or a qualified
workshop.
Instruments

11
List of warning and indicator lamps
Warning/indicator lampStateCause Actions/Observations
Red warning/indicator lamps
STOPFlashing, together
with another warning
lamp. Together with the engine oil pressure
or the engine coolant temperature.
Carry out (1) and then (2).
Brakes Fixed. The brake fluid level has dropped
significantly. Top up with brake fluid approved by PEUGEOT.
If the problem persists, carry out (3).
The braking system is faulty. Carry out (1) then (2).
Parking brake Fixed, accompanied
by an audible signal. The parking brake is applied or not
properly released.
+ Engine oil
pressure
Fixed.
The engine oil pressure is too low. Carry out (1) and then (2).
Maximum
engine coolant
temperature Flashing.
The temperature of the engine
coolant is rising. Drive carefully.
Fixed. The temperature of the cooling
system is too high. Carry out (1), then wait until the engine has cooled
down before topping up to the required level if
necessary. If the problem persists, carry out (2).
1
