13
Warning/indicator lampStateCause Actions/Observations
Orange warning/indicator lamps
Anti-lock
braking system
(ABS)Fixed.
The anti-lock braking system has
a
fault.The vehicle retains conventional braking.
Drive carefully at moderate speed, then carry out (3).
Emission
control system Fixed.
The emission control system is
faulty. Quickly carry out (3).
Engine fault Fixed.
A major fault that does not have a specific
w arning lamp has been detected.Carry out (2) without fail.
Low fuel level Fixed, accompanied
by an audible signal. When it first comes on there remains
approximately 5

litres of fuel in the
tank (reserve). Refuel without delay to avoid running out of fuel.
Never drive until completely empty
, this could
damage the emissions and injection systems.
Under-inflation Fixed. The pressure in one or more tyres is
too low. Check the pressure of the tyres as soon as possible.
Reinitialise the detection system after adjusting the
pressure.
Dynamic
stability control
(DSC)/Traction
control (TRC) Flashing.
DSC/ TRC is activated if there is
a

loss of grip or trajectory.
Fixed. The DSC/ TRC systems are faulty. Carry out (3).
1
Instruments

92
Under-inflation detection
The system monitors the pressure in all four
tyres, once the vehicle is moving.
It compares the information given by the
wheel speed sensors with reference values,
which must be reinitialised after ever y tyre
pressure adjustment or wheel change.
The system triggers an alert as soon as it
detects a
drop in the pressure of one or more
tyres. The tyre under-inflation detection system
does not replace the need for vigilance on
the part of the driver.
This system still requires you to check the
tyre inflation pressure (including the spare
wheel) every month as well as before
a


long journey.
Driving with under-inflated tyres impairs
handling, extends braking distances and
causes early tyre wear, particularly in
adverse conditions (heavy loads, high
speeds, long journeys).
Driving with under-inflated tyres
increases fuel consumption. The tyre pressure specifications for your
vehicle can be found on the tyre pressure
label.
For more information on the
Identification markings
, refer to the
corresponding section.
Tyre pressures should be checked when
the tyres are "cold" (vehicle stopped for
1 hour or after a journey of less than
6 miles (10 km) at moderate speeds).
Other wise (when hot), add 0.3 bar to the
pressures shown on the label.Under-inflation alert
This is shown by the warning lamp
coming on, fixed, accompanied by
an audible signal.
F

R

educe speed immediately, avoid excessive
steering movements and sudden braking.
F

S

top as soon as it is safe to do so.
This system automatically monitors the tyre
pressure while driving.
Detection of loss of pressure does not
always bring about a visible deformation
of the tyre. Do not make do with just
a

visual check.
Driving

103

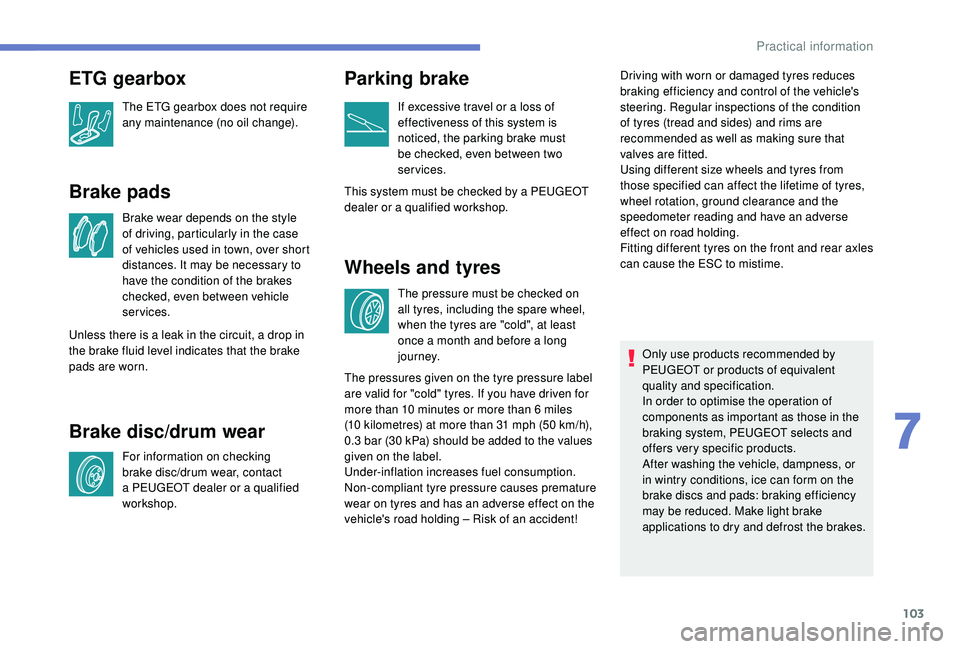

Brake pads
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to
have the condition of the brakes
checked, even between vehicle
services.
Unless there is a
leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Brake disc/drum wear
For information on checking
brake disc/drum wear, contact
a
PEUGEOT dealer or a qualified
workshop.
Parking brake
If excessive travel or a loss of
e ffectiveness of this system is
noticed, the parking brake must
be checked, even between two
services.
This system must be checked by a
PEUGEOT
dealer or a
qualified workshop.
Wheels and tyres
The pressure must be checked on
all tyres, including the spare wheel,
when the tyres are "cold", at least
once a month and before a long
j o u r n ey. Driving with worn or damaged tyres reduces
braking efficiency and control of the vehicle's
steering. Regular inspections of the condition
of tyres (tread and sides) and rims are
recommended as well as making sure that
valves are fitted.
Using different size wheels and tyres from
those specified can affect the lifetime of tyres,
wheel rotation, ground clearance and the
speedometer reading and have an adverse
effect on road holding.
Fitting different tyres on the front and rear axles
can cause the ESC to mistime.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
components as important as those in the
braking system, PEUGEOT selects and
offers very specific products.
After washing the vehicle, dampness, or
in wintry conditions, ice can form on the
brake discs and pads: braking efficiency
may be reduced. Make light brake
applications to dry and defrost the brakes.
ETG gearbox
The ETG gearbox does not require
any maintenance (no oil change).
The pressures given on the tyre pressure label
are valid for "cold" tyres. If you have driven for
more than 10
minutes or more than 6 miles
(10
kilometres) at more than 31 mph (50 km/h),
0.3
bar (30 kPa) should be added to the values
given on the label.
Under-inflation increases fuel consumption.
Non-compliant tyre pressure causes premature
wear on tyres and has an adverse effect on the
vehicle's road holding – Risk of an accident!
7
Practical information

170

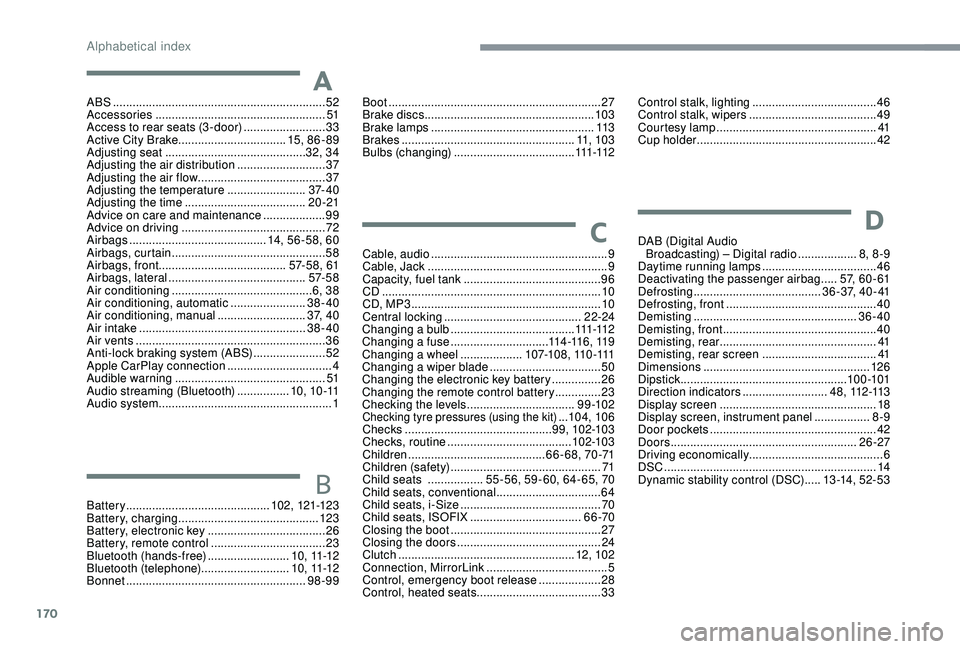

ABS .................................................................52
Accessories .................................................... 51
Access to rear seats (3 -door)
.........................33
Active City Brake

...............................
..15, 8 6 - 89
Adjusting seat


........................................... 32, 34
Adjusting the air distribution


...........................37
Adjusting the air flow
....................................... 37
A

djusting the temperature

........................37- 4 0
Adjusting the time


..................................... 20 -21
Advice on care and maintenance


...................99
Advice on driving


............................................ 72
Airbags
...............................

...........14, 56 -58, 60
Airbags, curtain


............................................... 58
Airbags, front ....................................... 57- 5 8 , 61
Airbags, lateral


.......................................... 57- 5 8
Air conditioning


........................................... 6, 38
Air conditioning, automatic


.......................38-40
Air conditioning, manual
........................... 3

7, 4 0
Air intake


................................................... 38-40
Air vents


.......................................................... 36
Anti-lock braking system (ABS)
......................52
Apple CarPlay connection


................................4
Audible warning
.............................................. 51
A

udio streaming (Bluetooth)

................10, 10 -11
Audio system
..................................................... 1Boot
.................................................................27
Brake discs
....................................................103
Brake lamps
...............................

...................113
Brakes


.....................................................11, 1 0 3
Bulbs (changing)


.....................................111 -112
Battery


............................................ 102, 121-123
Battery, charging


........................................... 123
Battery, electronic key


....................................26
Battery, remote control


...................................23
Bluetooth (hands-free)
......................... 1

0 , 11 -12
Bluetooth (telephone)
........................... 1

0 , 11 -12
Bonnet


....................................................... 98-99 Control stalk, lighting
......................................46
Control stalk, wipers
.......................................49
C
ourtesy lamp .................................................41
Cup holder
.......................................................42
DAB (Digital Audio Broadcasting) – Digital radio


..................8, 8 -9
Daytime running lamps


...................................46
Deactivating the passenger airbag


.....5 7, 6 0 - 6 1
Defrosting


.......................................36-37, 40-41
Defrosting, front


..............................................40
Demisting


..................................................36-40
Demisting, front
............................................... 40
D

emisting, rear

................................................41
Demisting, rear screen


...................................41
Dimensions
..............................

.....................126
Dipstick
................

...................................10 0 -101
Direction indicators


..........................4 8 , 112 -113
Display screen


................................................18
Display screen, instrument panel


.................8-9
Door pockets
...............................

....................42
Doors


.........................................................26-27
Driving economically ......................................... 6
DSC


.................................................................14
Dynamic stability control (DSC)


.....13 -14, 52- 5 3
Cable, audio


......................................................9
Cable, Jack


.......................................................9
Capacity, fuel tank


..........................................96
CD


...................................................................10
CD, MP3


..........................................................10
Central locking
.......................................... 2

2-24
Changing a


bulb
......................................111

-112
Changing a


fuse
..............................11

4 -11 6 , 11 9
Changing a


wheel
...................1

0 7-1 0 8 , 11 0 -111
Changing a


wiper blade
..................................50
C

hanging the electronic key battery
...............26
C

hanging the remote control battery

..............23
Checking the levels


.................................9 9 -10 2
Checking tyre pressures (using the kit) ...104, 10 6
Checks
............................................. 99, 102-103
Checks, routine


...................................... 102-103
Children


.......................................... 66-68, 70-71
Children (safety)


.............................................. 71
Child seats

................. 5

5 -56, 59 - 60, 64- 65, 70
Child seats, conventional


................................ 64
Child seats, i-Size

........................................... 70
Child seats, ISOFIX

.................................. 66 -70
Closing the boot

.............................................. 27
Closing the doors


............................................ 24
Clutch


...................................................... 12, 102
Connection, MirrorLink


..................................... 5
Control, emergency boot release


................... 28
Control, heated seats


...................................... 33
A
B
DC
Alphabetical index

172
Safety, children ......57, 59 - 61, 64, 66 - 68, 70 -71
Screen, colour ............................................... 3-
4
Screenwash


.................................................... 49
Screenwash, rear


............................................ 50
Seat belts


................................ 12, 34, 54-56, 64
Seats, front
...............................

.......................32
Seats, heated


.................................................. 33
Seats, rear


................................................. 33-34
Selector, gear


............................................ 76 -79
Servicing
........................................................... 6
M

aintenance, routine


........................................
6
Manual mode


............................................
76 -79
Mat


..................................................................
44
Mirror, rear view

..............................................
35
Mirror, vanity


...................................................
42
Mirrors, door .................................................... 35
Mode, driving
............................................
76 -79
Mode, Easy (automatic mode)

.................. 76 -79
Mountings, ISOFIX


................................... 66, 69
Lamp, boot


......................................................
41
Lamps, front


..................................................
112
Lamps, rear


...................................................
113
Lane Departure Warning System (LDWS)


...........................
15 -16 , 9 0 - 91
Level, brake fluid

...........................................
101
Level, engine coolant


....................................
101
Level, engine oil

.....................................
10 0 -101
Level, screenwash fluid

.........................
10

1-102
Levels and checks

..............................

....
9 9 -10 2
Lighting


..........................................................
112
Lighting, guide-me home


................................
48
Lighting dimmer


.........................................
18 -19
Loading


.............................................................
6
Locating your vehicle


......................................
23
Locking/unlocking a door from the inside...26-27
Low fuel level
............................................ 18
, 9 6 OIl, engine
...............................

...............10 0 -101
Oil change
.............................................. 10
0 -101
Oil consumption

.....................................
10 0 -101
Opening the bonnet

..................................
98-99
Opening the boot

................................
23 -24, 27
Opening the doors

....................................
23 -24
Number plate lamps

......................................
113
Pads, brake

................................................... 103
Parcel shelf, rear


.............................................44
Parking brake


..........................................76, 103
Pedal, clutch.................................................. 102
Plates, identification ...................................... 127
Player, USB
................................................... 9, 9
Port, USB
.......................................... 42- 43, 9, 9
Power steering
...............................

.................12
Pressures, tyres


............................103, 107, 127
Pre-tensioning seat belts


..........................55-56
Protecting children


.......57, 59 - 61, 64, 66 - 68, 70
Puncture


..........................104, 10 6 -108, 110 -111 Radio


.......................................................
7, 7, 1 0
Radio, digital (Digital Audio Broadcasting – DAB) ..............................
8, 8 -9
RDS
................
...................................................
8
Rear screen, demisting

...................................
41
Recharging the battery

.................................
123
Recirculation, air

.......................................
38-40
Reinitialisation of the under- inflation detection system

.............................
93
Reminder, lighting on
...................................... 47
R
emote control

....................................
22-23, 26
Removing and fitting a fuse
............
11
4 -11 6 , 11 9
Removing a wheel ..................
1 0 7-1 0 8 , 11 0 -111
Removing the mat

...........................................
44
Replacing bulbs ...................................... 111 -112
Replacing the air filter ................................... 10
2
Replacing the oil filter ................................... 10
2
Replacing the passenger compartment filter ...102
Reservoir, screenwash
.......................... 101-102
Reversing camera
...............................

............ 91
Reversing lamps
..............................

............. 113
Roof, electric fabric


......................................... 29
Roof bars


......................................................... 98
S
M
L
O
N
P
R
Alphabetical index
