2018 NISSAN VERSA Owners Manual

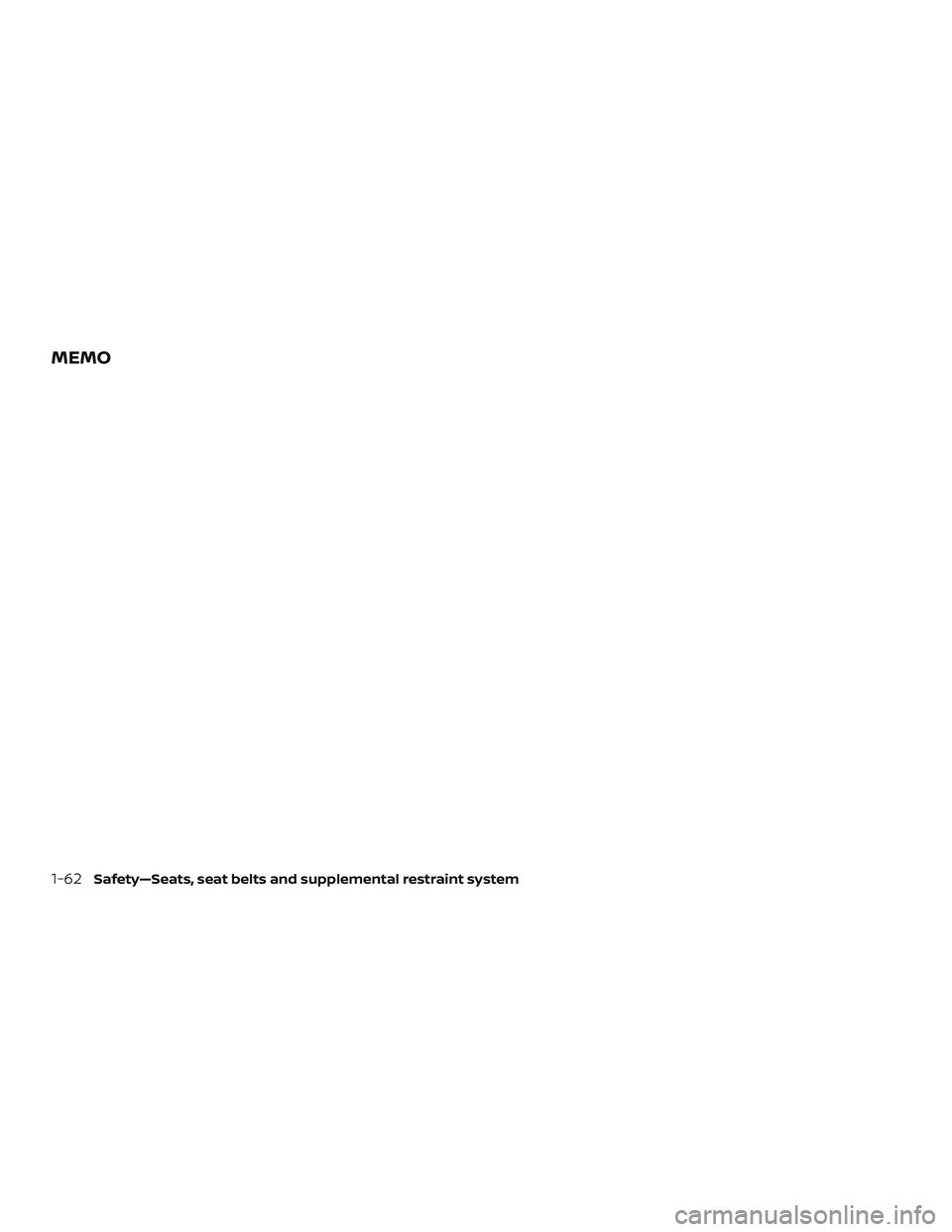

MEMO
1-62Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel................................2-2
Meters and gauges..............................2-3
Speedometer and odometer.................2-5
Tachometer..................................2-8
Engine coolant temperature gauge
(if so equipped)...............................2-8
Fuel gauge...................................2-9
Trip computer...............................2-10
Warning lights, indicator lights and audible
reminders......................................2-12
Checking lights..............................2-12
Warning lights...............................2-13
Indicator lights..............................2-18
Audible reminders...........................2-20
Wiper and washer switch.......................2-21
Switch operation............................2-21
Rear window defroster switch..................2-22
Headlight and turn signal switch...............2-22
Headlight control switch.....................2-22Instrument brightness control...............2-23
Turn signal switch...........................2-24
Fog light switch (if so equipped).............2-25
Horn...........................................2-25
Vehicle Dynamic Control (VDC) OFF switch......2-25
Power outlets..................................2-26
Storage ........................................2-27
Front-door pockets..........................2-27
Seatback pocket (if so equipped)............2-27
Storagetray.................................2-28
Glovebox....................................2-28
Cup holders.................................2-29
Windows.......................................2-30
Power windows (if so equipped).............2-30
Manual windows (if so equipped)............2-32
Interior lights...................................2-32
Map light (if so equipped)....................2-33
Trunk light......................................2-34

1. Headlight/turn signal switch/fog
light switch (if so equipped)
(P. 2-22)
2. Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-25)
3. Meters and gauges (P. 2-3)
Warning and indicator lights
(P. 2-12)
4. Wiper and washer switch (P. 2-21)
5. Vents (P. 4-9)
6. Rear window defroster switch
(P. 2-22)
7. Front passenger air bag status
light (P. 1-42)
8. Hazard warning flasher switch
(P. 6-2)
9. Climate controls (P. 4-9)
10. Audio system (P. 4-17)
11. Passenger’s supplemental air bag
(P. 1-42)
12. Glove box (P. 2-27)
13. Power outlet (P. 2-26)
14. USB connection port and AUX IN
jack (P. 4-42)
15. Shif t lever (P. 5-11)
16. Cup holders (P. 2-27)
17. Ignition switch (P. 5-8)
LII2542
INSTRUMENT PANEL
2-2Instruments and controls

18. Cruise control switches
(if so equipped) (P. 5-19)
19. Tilt steering (P. 3-15)
20. Audio control switches (P. 4-48)
Bluetooth® Hands-Free Phone
System switches (P. 4-50)
21. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-25)
21. Fuel-filler door release lever (P. 3-13)
Hood release lever (P. 3-10)
23. Electronic outside rearview mirror
control switch (P. 3-17)
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Odometer
Twin trip odometer
Trip computer5. Continuously Variable Transmission
(CVT) position indicator
6. Instrument brightness control
knob
7. Change/reset button
Type A (if so equipped)
LIC3131
METERS AND GAUGES
Instruments and controls2-3

CAUTION
∙ To clean the meter lens, use a sof t
cloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water
on the meter lens. Spraying liquid
may cause the systems to
malfunction.
1. Tachometer
2. Temperature gauge
3. Odometer
Twin trip odometer
Trip computerOutside air temperature (if so
equipped)
4. Fuel gauge
5. Speedometer
6. Change/reset button
Type B (if so equipped)
LIC2146
2-4Instruments and controls

7. Continuously Variable Transmis-
sion (CVT) position indicator
8. Instrument brightness control
CAUTION
∙ To clean the meter lens, use a sof t
cloth, dampened with water. Never
use a rough cloth, alcohol, benzine,
thinner or any kind of solvent or paper
towel with a chemical cleaning agent.
They will scratch or cause discolor-
ation to the lens.
∙ Do not spray any liquid such as water
on the meter lens. Spraying liquid
may cause the systems to
malfunction.
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedom-
eter and odometer. The speedometer is
located on the right side or in the center of
the meter cluster. The odometer is located
within the trip computer.
Speedometer
The speedometer indicates vehicle speed.
Type A (if so equipped)
LIC2118
Type B (if so equipped)
LIC2136
Instruments and controls2-5

Odometer/Twin trip odometer
The odometer/twin trip odometer is dis-
played when the ignition switch is placed in
the ON position.
The odometer
1records the total dis-
tance the vehicle has been driven.
The twin trip odometer
2records the dis-
tance of individual trips.
Changing the display
Press the change/reset button
3to
change the display as follows:Odometer (ODO)→Trip
→Trip→Instant fuel consumption→Average fuel
consumption→DTE (cruising range)→
Odometer (ODO)
Resetting the trip odometer
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently dis-
played trip odometer to zero.
Average fuel economy and distance to
empty information is also available. For ad-
ditional information, refer to “Trip com-
puter” in this section.
Loose fuel cap warning message
Push the reset buttonAfor more than
1 second to reset the LOOSE FUEL CAP
warning message af ter the fuel cap has
been tightened. For additional information,
refer to “Fuel-filler cap” in the “Pre-driving
checks and adjustments” section of this
manual.
Type A (if so equipped)
LIC3305
Type B (if so equipped)
LIC2139
Type A (if so equipped)
LIC3306
2-6Instruments and controls

Check tire pressure warning
message (if so equipped)
The CHECK TIRE PRES warning message is
displayed when the low tire pressure warn-
ing light is illuminated and low tire pressure
is detected. Check and adjust the tire pres-
sure to the recommended COLD tire pres-
sure shown on the Tire and Loading Infor-
mation label. The CHECK TIRE PRES
warning message can be turned off using
the reset button
Aon the meter, the low
tire pressure warning light will not be
turned off.The low tire pressure warning light remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The
CHECK TIRE PRES warning message is dis-
played each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated. For additional information, refer to
“Low tire pressure warning light” in this sec-
tion, “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section,
and “Wheels and tires” in the “Do-it-yourself ”
section of this manual.
Type B (if so equipped)
LPD2025
Type A (if so equipped)
LIC3307
Type B (if so equipped)
LPD2128
Instruments and controls2-7
