2018 NISSAN SENTRA Owner´s Manual

The hazard warning lights will flash once
and the horn will sound once to confirm
that the horn beep feature has been reac-
tivated.
Deactivating the horn beep feature does
not silence the horn if the alarm is trig-
gered.
1P (Park) position selecting warning
light
2NISSAN Intelligent Key® warning
light
WARNING LIGHTS AND AUDIBLE
REMINDERS
The Intelligent Key is equipped with a func-
tion that is designed to minimize improper
operations and to help prevent the vehicle
from being stolen. The warning buzzer
sounds and the warning light illuminates
when improper operations are detected.
CAUTION
When the buzzer sounds and the warn-
ing light illuminates, be sure to check
both the vehicle and the Intelligent Key.
WARNING SIGNALS
To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key or to help prevent the
vehicle from being stolen, a chime or
buzzer sounds from inside and outside the
vehicle and a warning light comes on in the
instrument panel.
When a chime or beep sounds or the warn-
ing light comes on, be sure to check the
vehicle and the Intelligent Key.
LPD2572
Pre-driving checks and adjustments3-21

Audible reminder and warning
when locking the doors (if so
equipped)
When the chime or buzzer sounds from
inside and outside the vehicle, check for
the following:∙ The ignition switch is placed in the LOCK position.
∙ The Intelligent Key is not lef t inside the vehicle.
∙ The shif t lever is in the P (Park) position.
Audible reminder and warning
when the engine stops (if so
equipped)
When the P position selecting warning light
(
) in the instrument panel blinks in red:
∙ Make sure the shif t lever is in the P (Park) position.
When the chime sounds intermittently:
∙ Make sure the shif t lever is in the P (Park) position and the ignition switch is
placed in the LOCK position. If the chime sounds continuously when the
driver’s door is opened, check the following:
∙ The shif t lever is placed in the P (Park) position and the ignition switch is
placed in the LOCK position.
∙ The warning chime may stop when one of the following is performed:
– Returning the ignition switch to the LOCK position.
– Closing the doors.
Alarm and warning when the
engine starts
When the Intelligent Key system warning
light (
) blinks red and the outside
buzzer sounds, make sure the Intelligent
Key is inside the vehicle.
Warning for low battery power
When the Intelligent Key battery is low, the
Intelligent Key system warning light (
)
will blink green for about 30 seconds af ter
the ignition switch is placed in the ON po-
sition. This warning is to let you know that
the battery of the Intelligent Key will run
down soon. Replace it with a new one. For additional information, refer to “Battery re-
placement” in the “Do-it-yourself ” section
of this manual.
It is recommended that you visit a NISSAN
dealer for battery replacement.
Preventing the Intelligent Key
from being lef t in the vehicle
If you lock all doors using the power door
lock switch with the Intelligent Key in the
vehicle, all of the doors unlock immediately
and the buzzer will warn you when the door
is closed.
3-22Pre-driving checks and adjustments

TROUBLESHOOTING GUIDE
(Continuously Variable
Transmission only)
SymptomPossible CauseRemedy
When pushing the ignition switch to
stop the engine The P (Park) warning light in the instru-
ment panel illuminates and the inside
chime sounds continuously. The shif t lever is not in the P (Park)
position.
Make sure that the shif t lever is in the
P (Park) position.
When opening the driver’s door A warning chime sounds continuously. The ignition switch is in the ACC
position.Place the ignition switch in the OFF
position.
When pushing the door handle re-
quest switch to lock the door The outside chime sounds for a few
seconds. The Intelligent Key is inside the trunk. Be sure to carry the Intelligent Key
with you.
The Intelligent Key is inside the vehicle. Be sure to carry the Intelligent Key with you.
When closing the doors The P (Park) warning light in the instru-
ment panel illuminates and the out-
side chime sounds continuously. The ignition switch is in the ACC or
OFF position and the shif t lever is not
in the P (Park) position.Make sure that the shif t lever is in the
P (Park) position and place the ignition
switch in the OFF position.
The outside chime sounds for approxi-
mately 3 seconds and all doors unlock. The Intelligent Key is in the vehicle or
trunk.Be sure to carry the Intelligent Key
with you.
When opening the driver’s door A warning chime sounds continuously. The ignition switch is in the ACC
position.Place the ignition switch in the OFF
position.
When closing the trunk lid The outside chime sounds for approxi-
mately 10 seconds and the trunk lid
opens. The Intelligent Key is inside the trunk.Be sure to carry the Intelligent Key
with you.
When pressing the
button on
the Intelligent Key to the lock the door The outside chime sounds for a few
seconds and all the doors unlock.
The Intelligent Key is inside the trunk. Be sure to carry the Intelligent Key
with you.
The Intelligent Key is inside the vehicle. Be sure to carry the Intelligent Key with you.
A door is not closed securely. Close the doors securely.
Pre-driving checks and adjustments3-23

TROUBLESHOOTING GUIDE
(manual transmission only)
SymptomPossible CauseRemedy
When the parking brake is fully applied The inside warning chime sounds continuously. The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When opening the driver’s door A warning chime sounds continuously. The ignition switch is in the ON
position.Place the ignition switch in the OFF
position.
When pushing the door handle re-
quest switch to lock the door The outside chime sounds for a few
seconds. The Intelligent Key is inside the trunk. Be sure to carry the Intelligent Key
with you.
The Intelligent Key is inside the vehicle. Be sure to carry the Intelligent Key with you.
When closing the doors The key warning light in the instru-
ment panel blinks in yellow, the out-
side chime sounds three times and
the inside warning chime sounds for
approximately 3 seconds. The ignition switch is in the ACC
position.
Place the ignition switch in the OFF
position.
The outside chime sounds for approxi-
mately 3 seconds and all doors unlock. The Intelligent Key is in the vehicle or
trunk.Be sure to carry the Intelligent Key
with you.
When pushing the ignition switch to
start the engine The key warning light in the instru-
ment panel blinks in green. The battery charge is low.
Replace the battery with a new one.
For additional information, refer to
“Battery replacement” in the “Do-it-
yourself ” section of this manual.
3-24Pre-driving checks and adjustments

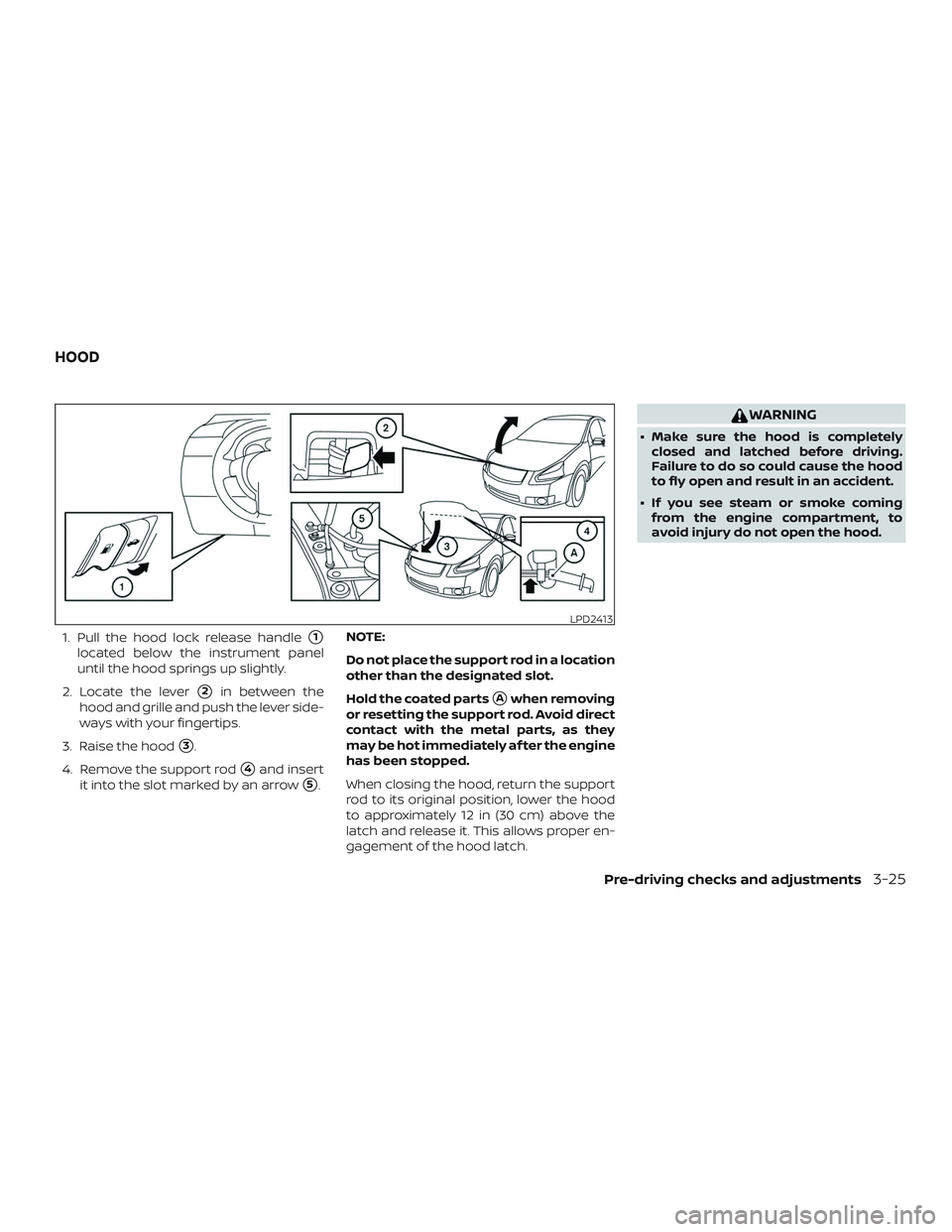

1. Pull the hood lock release handle1
located below the instrument panel
until the hood springs up slightly.
2. Locate the lever
2in between the
hood and grille and push the lever side-
ways with your fingertips.
3. Raise the hood
3.
4. Remove the support rod
4and insert
it into the slot marked by an arrow
5. NOTE:
Do not place the support rod in a location
other than the designated slot.
Hold the coated parts
Awhen removing
or resetting the support rod. Avoid direct
contact with the metal parts, as they
may be hot immediately af ter the engine
has been stopped.
When closing the hood, return the support
rod to its original position, lower the hood
to approximately 12 in (30 cm) above the
latch and release it. This allows proper en-
gagement of the hood latch.
WARNING
∙ Make sure the hood is completely closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.
∙ If you see steam or smoke coming from the engine compartment, to
avoid injury do not open the hood.
LPD2413
HOOD
Pre-driving checks and adjustments3-25

TRUNK LID RELEASE SWITCH
WARNING
∙ Do not drive with the trunk lid open.This could allow dangerous exhaust
gases to be drawn into the vehicle. For
additional information, refer to “Ex-
haust gas (carbon monoxide)” in the
“Starting and driving” section of this
manual. ∙ Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely
latched when not in use, and prevent
children’s access to car keys.
To open the trunk lid, push the opener
switch down in the direction of the arrow
as illustrated.
To close the trunk lid, lower and push the
trunk lid down securely.
NOTE:
You can open the trunk lid with the Intel-
ligent Key. For additional information,
refer to “NISSAN Intelligent Key®” in this
section.
INTERIOR TRUNK LID RELEASE
WARNING
Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously in-
jured. Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children’s
access to car keys.
Instrument panel
LPD2119LPD2558
TRUNK LID
3-26Pre-driving checks and adjustments

The interior trunk lid release mechanism
provides a means of escape for children
and adults in the event they become
locked inside the trunk.
To open the trunk from the inside, pull the
illuminated release handle until the lock re-
leases and push up on the trunk lid. The
release handle is made of a material that
glows in the dark af ter a brief exposure to
ambient light.
The handle is located inside the trunk com-
partment on the interior of the trunk lid.
INTERIOR TRUNK ACCESS
The trunk can be accessed from the pas-
senger side of the rear seat.1. Move the front passenger seat to the most forward position.
2. Open the access cover on the rear par- cel shelf.
3. Push down on the button on the rear parcel shelf.
4. Fold down the passenger’s side seat- back.
WARNING
∙ Never allow anyone to ride in thecargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury or death in an accident or
sudden stop.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
∙ Closely supervise children when they are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely
latched when not in use, and prevent
children’s access to car keys.
OPENER OPERATION
The fuel-filler door release is located below
the instrument panel. To open the fuel-filler
door, pull the release. To lock, close the fuel-
filler door securely.
LPD2658
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-27

FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable andhighly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames or
sparks near the vehicle when
refueling.
∙ Do not attempt to top off the fuel tank af ter the fuel pump nozzle shuts off
automatically. Continued refueling
may cause fuel overflow, resulting in
fuel spray and possibly a fire.
∙ Use only an original equipment type fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the
Malfunction Indi-
cator Light (MIL) to come on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle. ∙ Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are
filling it.
– Use only approved portable fuel containers for flammable liquid.
CAUTION
∙ Do not use a fuel containing morethan 15% ethanol in your vehicle. For
additional information, refer to “Fuel
recommendation” in the “Technical
and consumer information” section of
this manual.
∙ The LOOSE FUEL CAP warning mes- sage will appear if the fuel-filler cap is
not properly tightened. It may take a
few driving trips for the message to
be displayed. Failure to tighten the
fuel-filler cap properly af ter the
LOOSE FUEL CAP warning message
appears may cause the
Mal-
function Indicator Light (MIL) to
illuminate.
3-28Pre-driving checks and adjustments
