2018 NISSAN SENTRA airbag

11. Front passenger supplemental airbag (P. 1-44)
12. Glove box (P. 2-50)
13. Shif t lever (P. 5-17)
14. Climate controls (P. 4-23, 4-31)
15. Ignition switch (if so equipped)
(P. 5-9)
Push-button ignition switch
(if so equipped) (P. 5-11)
16. Tilt/Telescopic steering (P. 3-30)
17. Hood release (P. 3-25) Fuel filler door release (P. 3-27)
18. ECO mode switch (if so equipped)
(P. 5-26)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-48)
SPORT mode switch
(if so equipped) (P. 5-26)
19. Instrument brightness control
(P. 2-41)
Power mirror switch (P. 3-32)
Trunk release (P. 3-26)
* Refer to the separate NissanConnect®
Owner’s Manual (if so equipped).
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

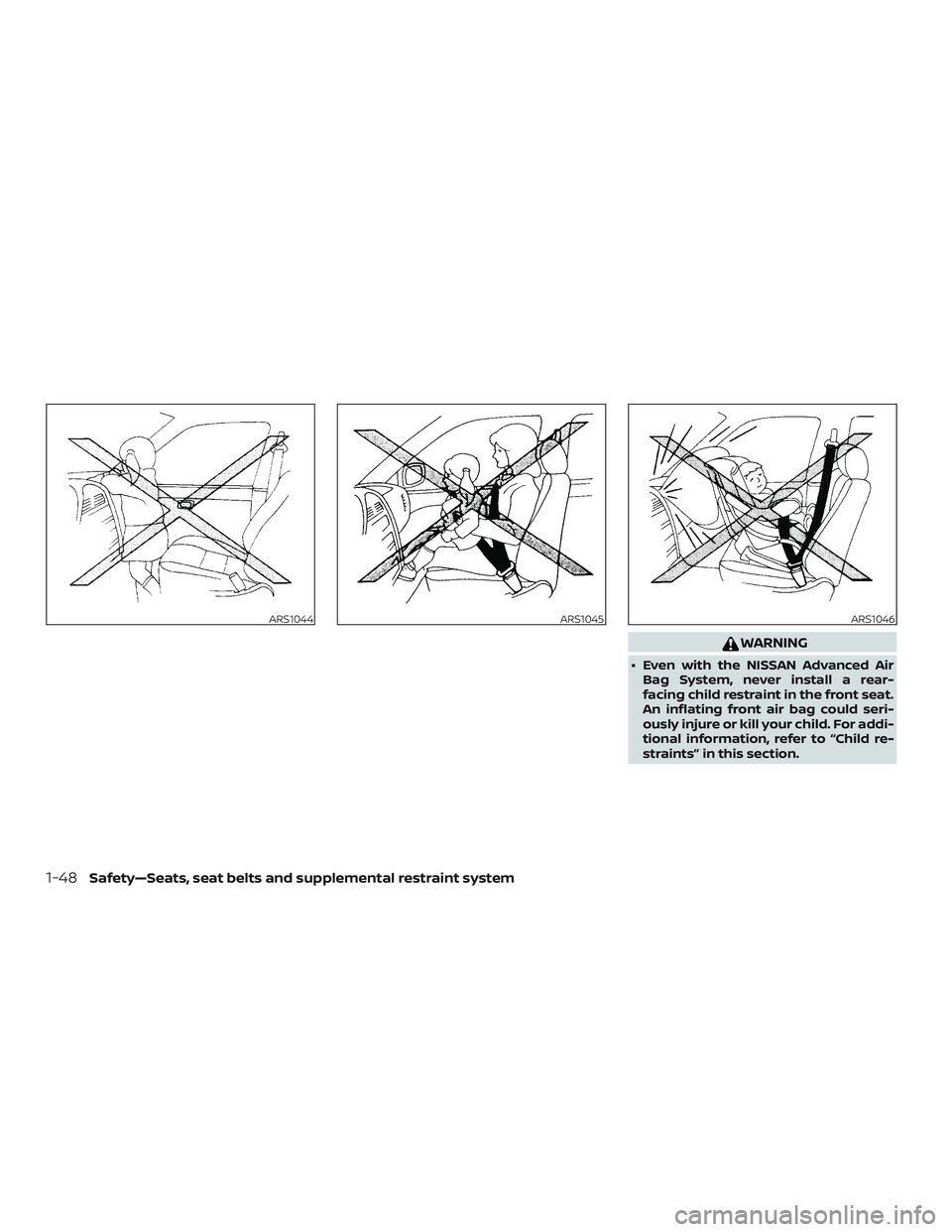

WARNING
∙ Even with the NISSAN Advanced AirBag System, never install a rear-
facing child restraint in the front seat.
An inflating front air bag could seri-
ously injure or kill your child. For addi-
tional information, refer to “Child re-
straints” in this section.
ARS1044ARS1045ARS1046
1-48Safety—Seats, seat belts and supplemental restraint system

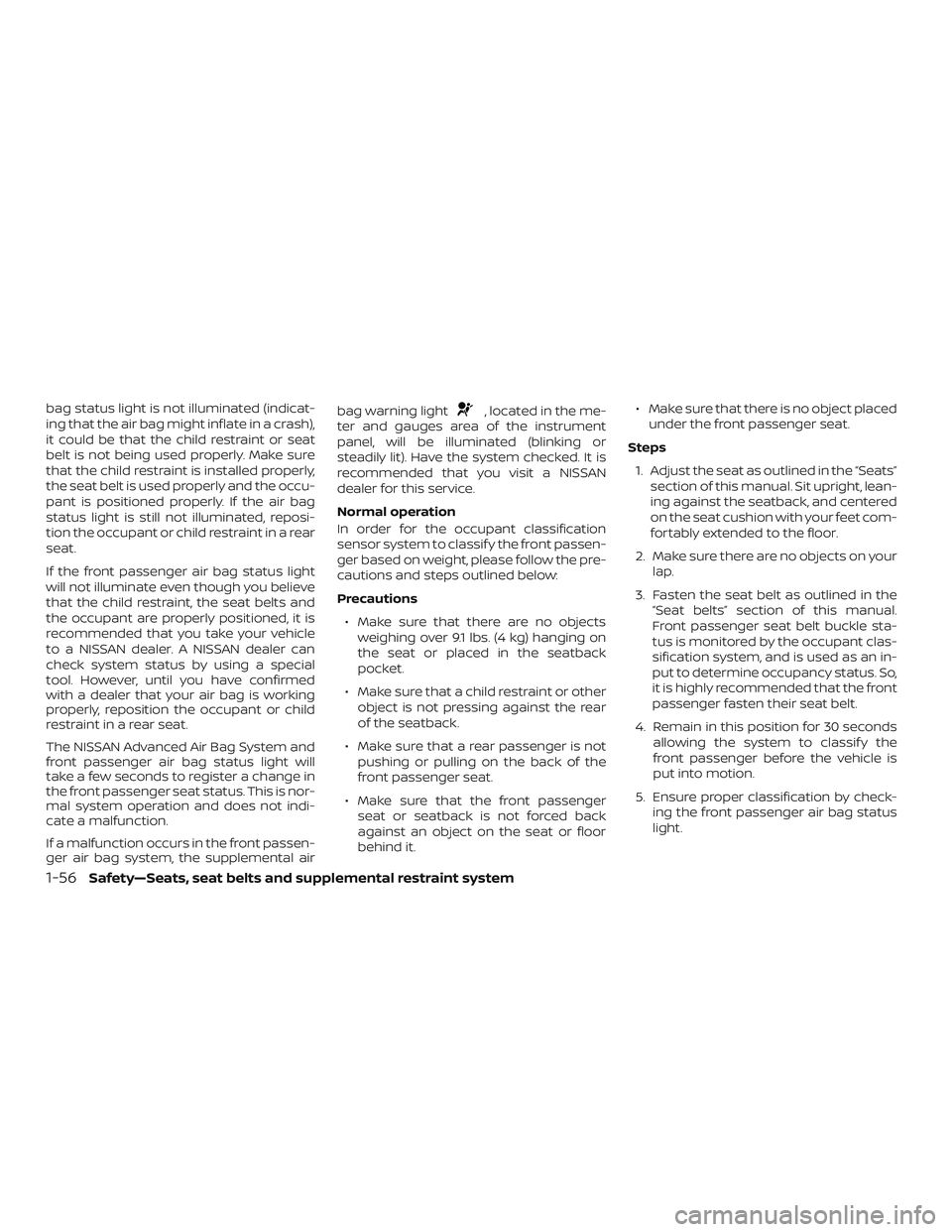

bag status light is not illuminated (indicat-
ing that the air bag might inflate in a crash),
it could be that the child restraint or seat
belt is not being used properly. Make sure
that the child restraint is installed properly,
the seat belt is used properly and the occu-
pant is positioned properly. If the air bag
status light is still not illuminated, reposi-
tion the occupant or child restraint in a rear
seat.
If the front passenger air bag status light
will not illuminate even though you believe
that the child restraint, the seat belts and
the occupant are properly positioned, it is
recommended that you take your vehicle
to a NISSAN dealer. A NISSAN dealer can
check system status by using a special
tool. However, until you have confirmed
with a dealer that your air bag is working
properly, reposition the occupant or child
restraint in a rear seat.
The NISSAN Advanced Air Bag System and
front passenger air bag status light will
take a few seconds to register a change in
the front passenger seat status. This is nor-
mal system operation and does not indi-
cate a malfunction.
If a malfunction occurs in the front passen-
ger air bag system, the supplemental airbag warning light, located in the me-
ter and gauges area of the instrument
panel, will be illuminated (blinking or
steadily lit). Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.
Normal operation
In order for the occupant classification
sensor system to classif y the front passen-
ger based on weight, please follow the pre-
cautions and steps outlined below:
Precautions
∙ Make sure that there are no objects weighing over 9.1 lbs. (4 kg) hanging on
the seat or placed in the seatback
pocket.
∙ Make sure that a child restraint or other object is not pressing against the rear
of the seatback.
∙ Make sure that a rear passenger is not pushing or pulling on the back of the
front passenger seat.
∙ Make sure that the front passenger seat or seatback is not forced back
against an object on the seat or floor
behind it. ∙ Make sure that there is no object placed
under the front passenger seat.
Steps 1. Adjust the seat as outlined in the “Seats” section of this manual. Sit upright, lean-
ing against the seatback, and centered
on the seat cushion with your feet com-
fortably extended to the floor.
2. Make sure there are no objects on your lap.
3. Fasten the seat belt as outlined in the “Seat belts” section of this manual.
Front passenger seat belt buckle sta-
tus is monitored by the occupant clas-
sification system, and is used as an in-
put to determine occupancy status. So,
it is highly recommended that the front
passenger fasten their seat belt.
4. Remain in this position for 30 seconds allowing the system to classif y the
front passenger before the vehicle is
put into motion.
5. Ensure proper classification by check- ing the front passenger air bag status
light.
1-56Safety—Seats, seat belts and supplemental restraint system

11. Front passenger supplemental airbag (P. 1-44)
12. Glove box (P. 2-50)
13. Shif t lever (P. 5-17)
14. Climate controls (P. 4-23, 4-31)
15. Ignition switch (if so equipped)
(P. 5-9)
Push-button ignition switch
(if so equipped) (P. 5-11)
16. Tilt/Telescopic steering (P. 3-30)
17. Hood release (P. 3-25) Fuel filler door release (P. 3-27)
18. ECO mode switch (if so equipped)
(P. 5-26)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-48)
SPORT mode switch
(if so equipped) (P. 5-26)
19. Instrument brightness control
(P. 2-41)
Power mirror switch (P. 3-32)
Trunk release (P. 3-26)
* Refer to the separate NissanConnect®
Owner’s Manual (if so equipped).
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Coolant temperature gauge
3. Warning and indicator lights
4. Fuel gauge
5. Speedometer 6. Odometer
Twin trip odometer
Trip computer
Fuel Economy
ECO mode indicator (if so equipped)
Outside temperature display
Type A (if so equipped)
LIC3415
METERS AND GAUGES
Instruments and controls2-3

11 Index
A
Air bag (See supplemental restraint
system) .................... .1-44
Air bag system Front (See supplemental front impact air
bagsystem)................1-51
Side and curtain (See supplemental side
air bag and curtain side-impact
airbagsystem)..............1-59
Air bag warning labels ............1-62
Airbagwarninglight..........1-63, 2-19
Air bag warning light,
supplemental ..............1-63, 2-19
Air cleaner ...................8-18
Air cleaner housing filter ..........8-18
Air conditioner Air conditioner operation ....4-26,4-32
Air conditioner service ..........4-34
Air conditioner specification label . .10-13
Air conditioner system refrigerant and oil
recommendations ............10-8
Air conditioner system refrigerant
recommendations ............10-8
Heater and air conditioner (automatic)
(if so equipped) ..............4-31
Heater and air conditioner
controls...............4-24,4-32
Heater and air conditioner
(manual) ..................4-23
Servicing air conditioner ........4-34
Air flow charts .............4-20,4-27 Alarm system
(See vehicle security system)
.......2-36
Anchor point locations ...........1-28
Antenna ....................4-73
Antifreeze ...................5-77
Anti-lock brake warning light ........2-14
Anti-lock Braking System (ABS) ......5-73
Apps .......................4-74
APPS button ...................4-7
Armrests.................... .1-7
Audible reminders ..............2-22
Audiosystem.................4-34 AMradioreception............4-35
Bluetooth® audio .........4-69,4-70
Bluetooth® streaming audio ......4-70
Compact disc (CD)
player.............4-46,4-51,4-58
FM/AM radio with compact disc (CD)
player....................4-43
FM/AM/SAT radio with compact disc (CD)
player ................4-48,4-53
FMradioreception............4-35
iPod®Player.............4-63,4-66
iPod® player operation ......4-63,4-66
Radio ....................4-34
Steering wheel audio control
switch....................4-72
USBinterface............4-59,4-61
USB (Universal Serial Bus) Connection
Port..................4-59,4-61
Autolightswitch ...............2-42
Automatic Automatic power window switch . . .2-58 Automatic anti-glare inside mirror
....3-32
Automatic door locks .............3-7
Automatic Emergency Braking
(AEB) ...................2-14,5-62
AUXjack....................4-59
B
Back button ...................4-7
Battery..................5-77,8-14 Charge warning light ...........2-15
Battery replacement ............8-25
Keyfob................8-25,8-26
NISSAN Intelligent Key® .........8-27
Before starting the engine .........5-14
Belt(Seedrivebelt)..............8-16
Blind Spot Warning (BSW) ..........5-27
Bluetooth® audio ...........4-69,4-70
Bluetooth® hands-free phone
system .....................4-79
Bluetooth® Hands-Free Phone System with
N
avigationSystem..............4-91
Bluetooth® streaming audio with
NavigationSystem..............4-70
Bluetooth® streaming audio without
Navigation System (if so equipped) . . .4-69
Booster seats .................1-41
Brake Anti-lock Braking System (ABS) ....5-73
Brakefluid.................8-12
Brakelight(Seestoplight).......8-33
Brakesystem...............5-72

Heated seat switches.............2-47
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-31
Heater and air conditioner
controls................4-24,4-32
Heater and air conditioner
(manual) ...................4-23
Heater operation ....4-17,4-19,4-25,4-33
Heater and air conditioner (automatic) . .4-31
HomeLink® Universal
Transceiver . .2-63, 2-64, 2-65, 2-66, 2-66, 2-67
Hood .......................3-25
Horn.......................2-47
I
Ignition switch ..................5-9
Push-button ignition switch .......5-11
Immobilizer system ........2-38,5-11, 5-14
Important vehicle information label . . .10-12
In-cabinmicrofilter ..............8-19
Increasing fuel economy ...........5-70
Indicator NISSAN Intelligent Key® battery discharge
indicator...................5-13
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) .................2-19,3-21
Inside automatic anti-glare mirror .....3-32
Instrument brightness control .......2-45
Instrument panel .............0-6,2-2
Instrument panel dimmer switch .....2-45Intelligent cruise control (ICC) system
Brake assist .................5-47
Intelligent Key system Key operating range ............3-13
Key operation ................3-14
Mechanical key ...............3-4
Remote keyless entry operation . .3-9, 3-18
Troubleshooting guide .......3-23,3-24
Warning signals ...........3-23,3-24
Interiorlight...............2-60,2-62
Interiortrunklidrelease...........3-26
iPod®Player...............4-63,4-66
ISOFIX child restraints .............1-26
J
Jumpstarting...............6-9,8-15
K
Key.........................3-2
Key fob battery replacement .....8-25,8-26
Keyless entry With Intelligent Key system
(See Intelligent Key system) .....3-9,3-18
Without Intelligent Key system
(See remote keyless entry system) . . .3-8
Keys NISSAN Intelligent Key® ........3-2,3-11
NISSAN Vehicle Immobilizer System
keys......................3-4 L
Labels Air conditioner specification label . . .10-13
C.M.V.S.S. certification label .......10-12
Emission control information label . .10-12
Engine serial number ..........10-12
F.M.V.S.S. certification label .......10-12
Tire and Loading Information label . .10-13
Vehicle identification number (VIN) . .10-11
Vehicle identification number (VIN)
plate.....................10-11
Warning labels (for SRS) ..........1-62
LATCH (Lower Anchors and Tethers for
CHildren)System................1-26
License plate Installing the license plate .......10-13
Light Airbagwarninglight........1-63, 2-19
Brakelight(Seestoplight)........8-33
Bulb check/instrument panel ......2-14
Bulb replacement .............8-33
Charge warning light ...........2-15
Console light ................2-61
ExteriorandInteriorlights........8-33
Foglights..................8-31
Foglightswitch..............2-46
Headlight and turn signal switch ....2-41
Headlightcontrolswitch.........2-41
Headlights .................8-29
Interiorlight.............2-60,2-62
Lightbulbs.................8-29
Low tire pressure warning light .....2-16
Low windshield-washer fluid warning
light ..................2-18,2-34
11-4

StartingBefore starting the engine ........5-14
Jumpstarting.............6-9,8-15
Precautions when starting and
driving.....................5-2
Push starting ................6-11
Starting the engine ............5-15
Starting the engine ..............5-15
Starting the engine (models with NISSAN
Intelligent Key® system) ...........5-16
Steering Power steering system ..........5-71
Steering wheel .................3-30
Steering wheel audio control switch . . .4-72
Stoplight....................8-33
Storage.....................2-50
Storagetray ..................2-52
Sunglasses case ................2-54
Sunglasses holder ..............2-54
Sunroof .....................2-59
Sunroof (see Moonroof ) ...........2-59
Sunvisors....................3-30
Supplemental air bag warning labels . . .1-62
Supplemental air bag warning
light.................... .1-63, 2-19
Supplemental front impact air bag
system ..................... .1-51
Supplemental restraint system Information and warning labels . . . .1-62
Precautions on supplemental restraint
system ....................1-44
Supplemental restraint system
(Supplemental air bag system) .......1-44
Supplemental side and curtain side-impact
airbagsystem................ .1-59Switch
Autolightswitch..............2-42
Automatic power window switch . . .2-58
Foglightswitch..............2-46
Hazard warning flasher switch ......6-2
Headlight and turn signal switch ....2-41
Headlightcontrolswitch.........2-41
Ignition switch ................5-9
Instrument brightness control .....2-45
Power door lock switch ..........3-6
Rear window and outside mirror
defrosterswitch..............2-40
Turn signal switch .............2-45
T
Tachometer ...................2-7
Temperature gauge Engine coolant temperature gauge. . .2-7
Thef t (NISSAN Vehicle Immobilizer System),
engine start ............2-38,5 -11, 5-14
Three-waycatalyst...............5-2
Tilt Telescopicsteering............3-30
Tire Flattire..................6-3,6-3
Spare tire ...............6-4,8-46
Tire and Loading Information label . .10-13
Tire chains .................8-42
Tire pressure ................8-35
Tirerotation ................8-43
Types of tires ................8-41
Uniform tire quality grading ......10-18
Wheels and tires ..............8-35
Wheel/tire size ...............10-10 Tire pressure
Lowtirepressurewarninglight.....2-16
Tire Pressure Monitoring System
(TPMS)....................2-6,5-3
Towing 2-wheel drive models ...........6-14
4-wheel drive models ...........6-13
Flattowing.................10-18
Trailertowing...............10-18
Towingatrailer................10-18
Towingyourvehicle..............6-12
Transceiver HomeLink® Universal Transceiver . . .2-63, 2-64, 2-65, 2-66, 2-66, 2-67
Transmission Continuously Variable Transmission (CVT)
fluid......................8-11
Driving with Continuously Variable
Transmission (CVT) ..........5-9,5-17
Driving with manual
transmission.............5-10, 5-23
Travel (See registering a vehicle in another
country) .....................10-11
Trip computer ..................2-9
Trip odometer ...............2-4,2-5
T

roubleshooting guide
(NISSAN voice recognition system) ....4-106
Trunk access through the rear seat ....3-27
Trunklid.....................3-26
Trunk lid lock opener lever ..........3-26
Trunklight....................2-63
Turn signal switch ...............2-45
11-7

U
Uniform tire quality grading ........10-18
USBinterface ..............4-59,4-61 Audio file operation ........4-60,4-62
V
Vanitymirror..................3-31
Variable voltage control system ......8-16
Vehicle dimensions and weights .....10-10
Vehicle Dynamic Control (VDC)
OFFswitch...................2-48
Vehicle dynamic control (VDC) system . .5-74
Vehicle Dynamic Control (VDC) system . .5-74
Vehicle identification .............10-11
Vehicle identification number (VIN) . . . .10-11
Vehicle identification number (VIN)
(Chassis number) ...............10-11
Vehicle identification number (VIN)
plate.......................10-11
Vehicle immobilizer system . . .2-38, 5-11, 5-14
Vehicleinformationdisplay.........2-23
Vehicle loading information ........10-14
Vehiclerecovery................6-14
Vehicle security system ........2-36,2-36
Vehicle security system (NISSAN
Vehicle Immobilizer System),
engine start ............2-38,5 -11, 5-14
Vents.......................4-17
Visors ......................3-30
Voice Prompt Interrupt ........4-83,4-94
Voice Recognition System .........4-101 W
Warning Airbagwarninglight........1-63, 2-19
Anti-lock brake warning light ......2-14
Battery charge warning light ......2-15
Brakewarninglight............2-14
Door open warning light .........2-15
Engine oil pressure warning light ....2-15
Hazard warning flasher switch ......6-2
Loose fuel cap warning .......2-6,2-33
Lowfuelwarninglight....2-16,2-18,2-33
Low tire pressure warning light .....2-16
Low windshield-washer fluid
warninglight.............2-18,2-34
Passenger air bag and status light. . .1-54
Seatbeltwarninglight.......1-15, 2-18
Supplemental air bag
warninglight.............1-63, 2-19
Vehicle security system ......2-36,2-36
Warning/indicator lights and
audible reminders ..........2-19,3-21
Warning labels (for SRS) ..........1-62
Warning/indicator lights and
audible reminders ............2-19,3-21
Audible reminders ..........2-19,3-21
Indicatorlights............2-19,3-21
Warninglights ............2-19,3-21
Warninglights ..............2-19,3-21
Warning lights, indicator lights
and audible reminders ............2-13
Weights (See dimensions
andweights)..................10-10
Wheels and tires ................8-35
Wheel/tire size .................10-10 When traveling or registering
in another country
..............10-11
Windows ....................2-56 Locking passengers' windows .....2-57
Powerrearwindows ...........2-57
Powerwindows..............2-56
Rearpowerwindows...........2-57
Windshield-washer fluid ...........8-13
Windshield wiper blades ...........8-19
Wiper Wiper blades ................8-19
Wiper and washer switch ..........2-39
11-8
