2018 NISSAN SENTRA Owner´s Manual

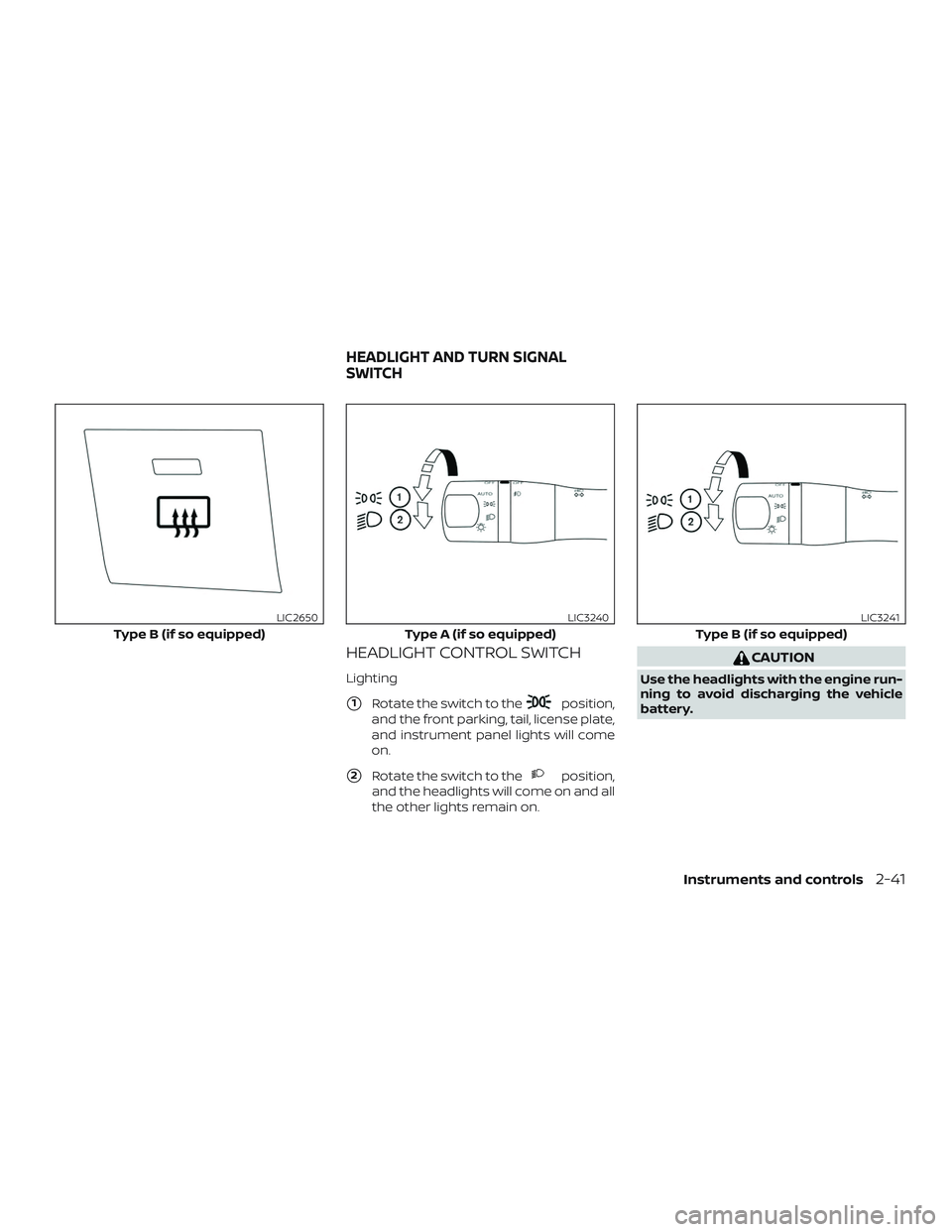

HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the front parking, tail, license plate,
and instrument panel lights will come
on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
CAUTION
Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.
Type B (if so equipped)
LIC2650
Type A (if so equipped)
LIC3240
Type B (if so equipped)
LIC3241
HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls2-41

Autolight system (if so equipped)
The autolight system allows the headlights
to be set so they turn on and off automati-
cally. The autolight system can:∙ Turn on the headlights, front parking, tail, license plate and instrument panel
lights automatically when it is dark.
∙ Turn off all the lights when it is light.
∙ Keep all the lights on a period of time af ter you place the ignition switch in the
OFF position and all doors are closed. NOTE:
Autolight activation sensitivity is adjust-
able for vehicles with navigation system.
For additional information, refer to “Ve-
hicle settings” in this section.
To turn on the autolight system:
1. Place the headlight switch in the AUTO position
1.
2. Place the ignition switch in the ON po- sition.
3. The autolight system automatically turns the headlights on and off.
Initially, if the ignition switch is placed in the
OFF position and a door is opened and lef t
open, the headlights remain on for a period
of time. If another door is opened while the
headlights are on, then the timer is reset.
To turn the autolight system off, place the
switch in the OFF,
,orposition.
Type C (if so equipped)
LIC2127WIC1437
2-42Instruments and controls

Be sure you do not put anything on top
of the autolight sensor located in the top
side
1of the instrument panel. The au-
tolight sensor controls the autolight; if it
is covered, the autolight sensor reacts as
if it is dark out and the headlights will
illuminate. If this occurs while parked
with the engine off and the ignition
switch placed in the ON position, your
vehicle’s battery could become dis-
charged.
Headlight beam select
1To select the high beam function, en-
sure the low beams are engaged, and
push the lever forward. The high beam
lights come on and the blue
indi-
cator light illuminates.
2Pull the lever back to return to the low
beam.
3Pulling and releasing the lever flashes
the headlight high and low beams on
and off. The low beams need not be
engaged for this function.
Battery saver system
The battery saver system automatically
turns off the ignition af ter a period of time
when the ignition switch is lef t in the ACC or
ON position.
The battery saver system automatically
turns off the following lights af ter a period
of time when the ignition switch is placed in
the OFF position and the doors are closed:
∙ Headlights, when the headlight switch is in the
orposition
∙ Interior lights, when lef t in the ON posi- tion
CAUTION
Even though the battery saver feature
automatically turns off the headlights
af ter a period of time, you should turn
the headlight switch to the OFF position
when the engine is not running to avoid
discharging the vehicle battery.
LIC3578LIC3250
Instruments and controls2-43

DAYTIME RUNNING LIGHTS (DRL)
SYSTEM (Type A) (if so equipped)
The headlights automatically illuminate at
100% intensity (low beam is used for the
Daytime Running Lights (DRL) system)
when the engine is started with the parking
brake released. The DRL operate with the
headlight switch in the OFF position. When
the DRL system is active, the clearance
lights, tail lights, front side marker lights,
and rear side marker lights are off. To turn
the DRL system off, turn the switch to
the
position.
When the headlight switch is placed in
the
position for full illumination when
driving at night there will be no difference in
the low beam intensity.
If the parking brake is applied before the
engine is started, the DRL do not illuminate.
The DRL illuminate once the parking brake
is released. The DRL will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
DAYTIME RUNNING LIGHTS (DRL)
SYSTEM (Type B) (if so equipped)
The headlights automatically illuminate at
100% intensity (low beam is used for the
Daytime Running Lights (DRL) system)
when the engine is started and the parking
brake released. The DRL operate with the
headlight switch in the OFF position. When
the DRL system is active, the clearance
lights, tail lights, front side marker lights,
and rear side marker lights are off. To turn
the DRL system off, turn the switch to
the
position.
If the parking brake is applied before the
engine is started, the DRL do not illuminate.
The DRL illuminate when the parking brake
is released. The DRL will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause and
accident injuring yourself and others.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM (Type C — NISMO) (if
so equipped)
The LED Daytime Running Lights (DRL) au-
tomatically illuminate at 100% intensity
when the engine is started and the parking
brake released. The LED DRL operate with
the headlight switch in the OFF position. To
turn off the LED DRL system, turn the head-
light switch to the
position.
If the parking brake is applied before the
engine is started, the LED DRL do not illumi-
nate. The LED DRL illuminate when the
parking brake is released. The LED DRL will
remain on until the ignition switch is placed
in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
2-44Instruments and controls

WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

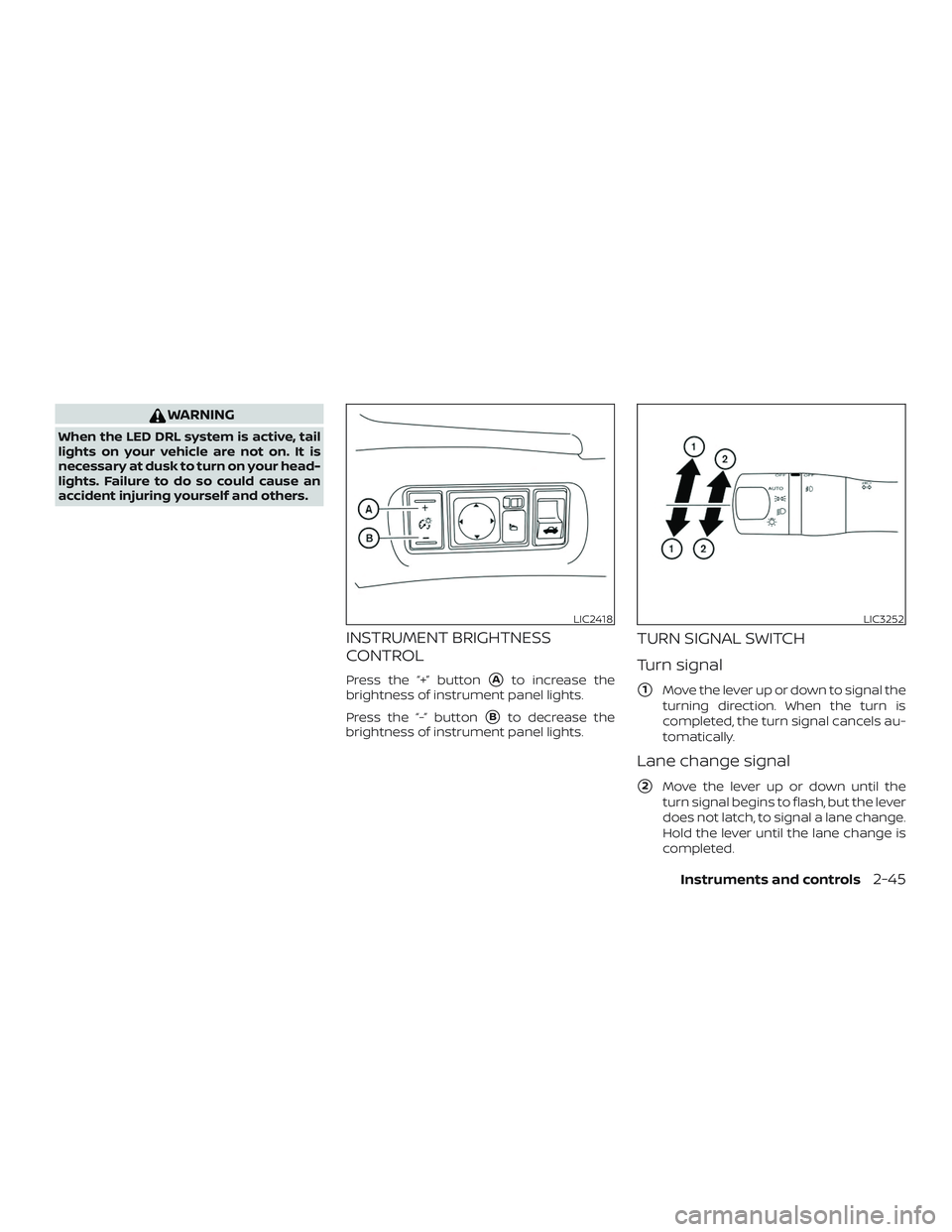

INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” buttonAto increase the
brightness of instrument panel lights.
Press the “-” button
Bto decrease the
brightness of instrument panel lights.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is
completed, the turn signal cancels au-
tomatically.
Lane change signal
2Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.
LIC2418LIC3252
Instruments and controls2-45

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, and release the lever.
The turn signal will automatically flash
three times.
Choose the appropriate method to signal
a lane change based on road and traffic
conditions.
NOTE:
If the turn signal light bulb malfunctions,
the turn signal indicator will flash at a
higher frequency when the turn signal is
activated.
FOG LIGHT SWITCH (if so
equipped)
To turn the fog lights on, turn the headlight
switch to the
position, then turn the
fog light switch to the
position.
To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then turn the fog light switch to
the
position.
To turn the fog lights off, turn the fog light
switch to the OFF position. The headlights must be on and the low
beams selected for the fog lights to oper-
ate. The fog lights automatically turn off
when the high beam headlights are se-
lected.
LIC3256
2-46Instruments and controls

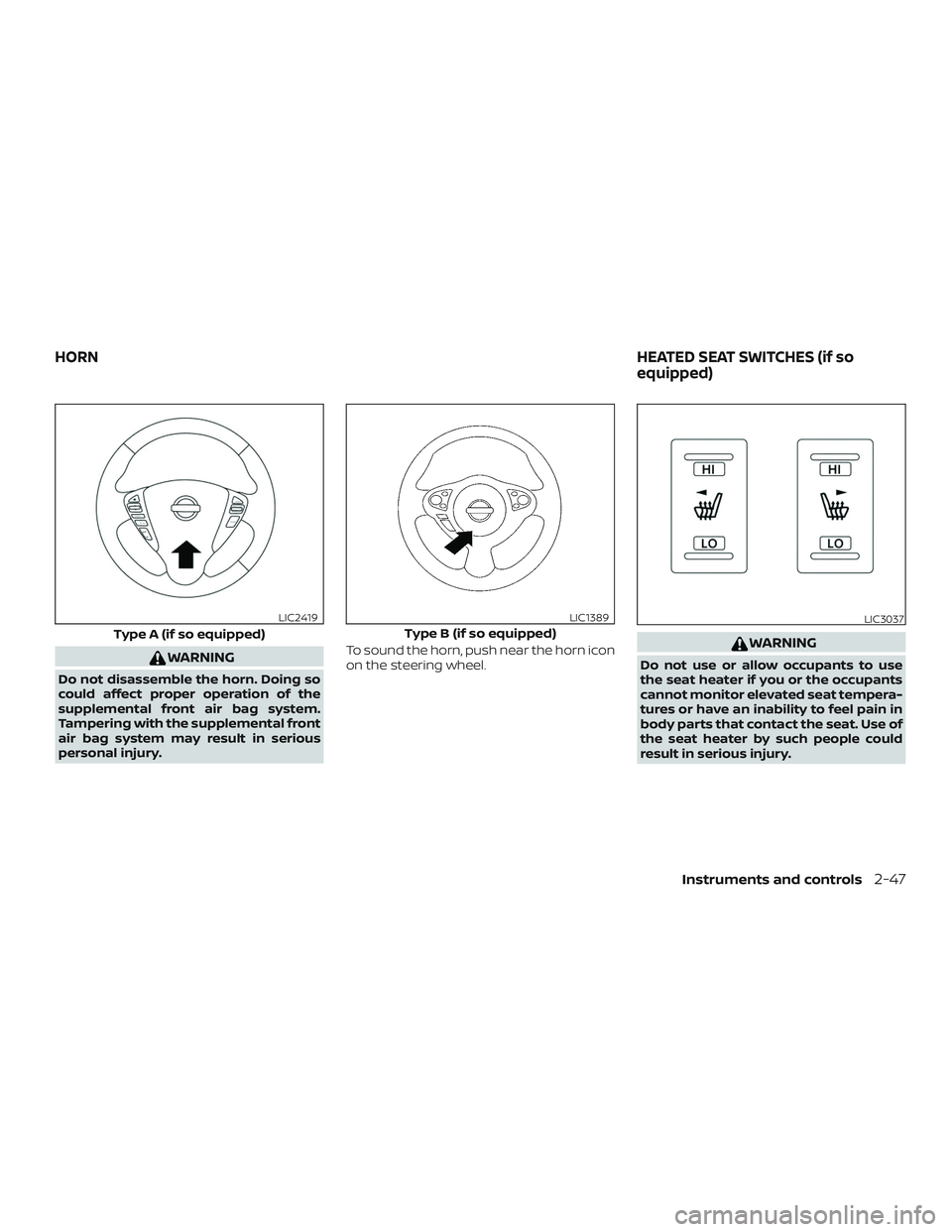

WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.To sound the horn, push near the horn icon
on the steering wheel.
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.
Type A (if so equipped)
LIC2419
Type B (if so equipped)
LIC1389LIC3037
HORN
HEATED SEAT SWITCHES (if so
equipped)
Instruments and controls2-47

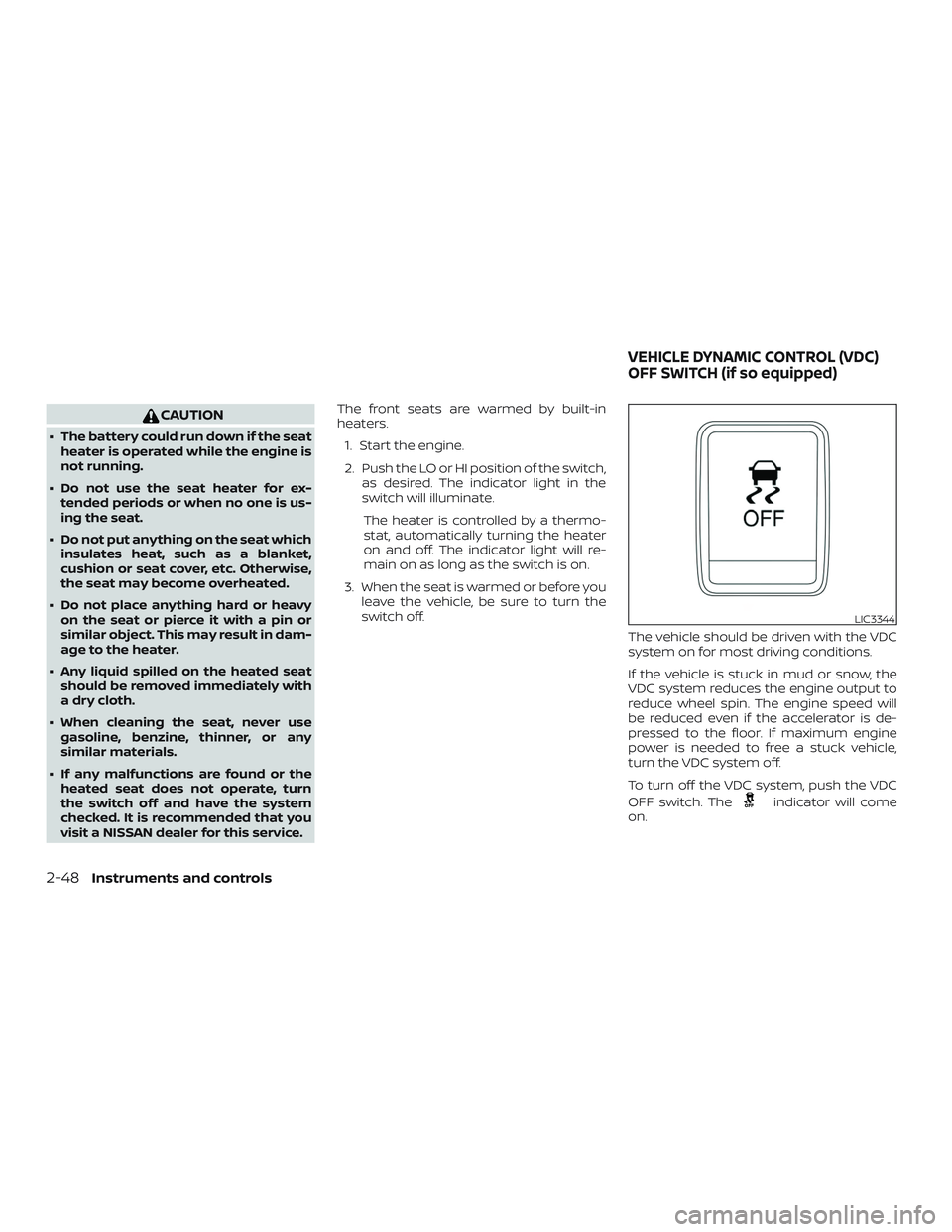

CAUTION
∙ The battery could run down if the seatheater is operated while the engine is
not running.
∙ Do not use the seat heater for ex- tended periods or when no one is us-
ing the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket,
cushion or seat cover, etc. Otherwise,
the seat may become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or
similar object. This may result in dam-
age to the heater.
∙ Any liquid spilled on the heated seat should be removed immediately with
a dry cloth.
∙ When cleaning the seat, never use gasoline, benzine, thinner, or any
similar materials.
∙ If any malfunctions are found or the heated seat does not operate, turn
the switch off and have the system
checked. It is recommended that you
visit a NISSAN dealer for this service. The front seats are warmed by built-in
heaters.
1. Start the engine.
2. Push the LO or HI position of the switch, as desired. The indicator light in the
switch will illuminate.
The heater is controlled by a thermo-
stat, automatically turning the heater
on and off. The indicator light will re-
main on as long as the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to turn the
switch off.
The vehicle should be driven with the VDC
system on for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is de-
pressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will come
on.
LIC3344
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH (if so equipped)
2-48Instruments and controls
