2018 MITSUBISHI OUTLANDER III maintenance

Table of contents
123456789101112
OverviewQuick indexGeneral informationSeat and restraint systemsFeatures and controlsDriving safetyComfort controlsFor emergenciesVehicle care a
nd maintenance
Customer assistance/
Reporting Safety Defects
SpecificationsAlphabetical index
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Modifications to and racing of your vehicle3-6 General information
3
VEHICLE ARE NOT COVEREDUNDER WARRANTY.Examples of modifica
tions to your vehicle
that can cause damage or performance prob-lems include the following:Failure to use
Mitsubishi Motors genuine
partsFailure to use required fuel and fluidsFailure to use proper
size tires and wheels
Modification of the fuel, intake, exhaust,emission, suspension, engine, drive trainor electrical wiring systemsModification of any onboard com-puter/control module, including repro-gramming, or replacing/adding chips toany onboard computer/control module
Review the Warranty and Maintenance Man-ual for further details
regarding warranty cov-
erage.
N00301701251
The installation of ac
cessories, optional
parts, etc., shoul
d only be performed
within the limits prescribed by law, and inaccordance with the
guidelines and warn-
ings contained within the documentsaccompanying this vehicle.Only Mitsubishi Motors approved acces-sories should be fitted to your vehicle.Improper installation of electrical partscould cause a fire. Re
fer to the “Modifica-
tion/alterations to the electrical or fuelsystems” section with
in this owner’s man-
ual.Using a cellular phone or radio set insidethe vehicle without an
external antenna
may cause electrical system interference,which could lead to unsafe vehicle opera-tion.Tires and wheels whic
h do not meet spec-
ifications must not be used.
Refer to the “Specifi
cations” section for
information regarding wheel and tiresizes.
Due to the large number of accessory andreplacement parts provided by different man-ufacturers in the market, it is not always pos-sible for an authorized Mitsubishi Motorsdealer to check whether the attachment orinstallation of a non-Mitsubishi Motors genu-ine parts affects the driving safety of yourMitsubishi-vehicle.
Installation of accessories
CAUTIONBefore any electrical or electronic accesso-ries are installed, cons
ult an authorized Mit-
subishi Motors dealer.
Your vehicle is equi
pped with a diagnosis
connector (data link c
onnector) for checking
and servicing the elec
tronic control system.
Mitsubishi Motors does not recommend con-necting a device other than the Scan Tool forinspections and servic
e to this connector
because an unexpected
problem could result.
In addition, malfuncti
ons caused by connect-
ing a device other than the Scan Tool maynot be covere
d under warranty.
CAUTION
WA R N I N GWhile driving, do not use a cellular phonein a way that hinders safe driving. Any-thing, including cellu
lar phone usage, that
distracts you from the safe operation ofyour vehicle increases you
r risk of an acci-
dent.Refer to and follow al
l state and local laws
in your area regarding cellular phoneusage while driving.
Important point!
BK0249100US.book 6 ページ ２０１７年５月１０日　水曜日　午前８時４９分

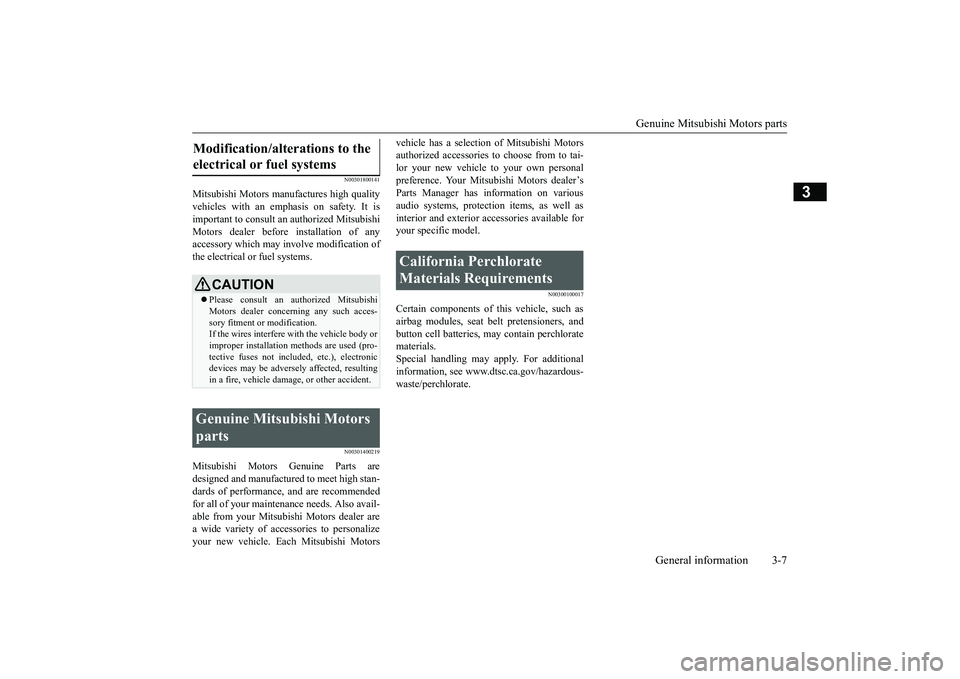

Genuine Mitsubishi Motors parts
General information 3-7
3
N00301800141
Mitsubishi Motors manufactures high qualityvehicles with an em
phasis on safety. It is
important to consult an
authorized Mitsubishi
Motors dealer before installation of anyaccessory which may i
nvolve modification of
the electrical or fuel systems.
N00301400219
Mitsubishi Motors Genuine Parts aredesigned and manufacture
d to meet high stan-
dards of performance, and are recommendedfor all of your maintenance needs. Also avail-able from your Mitsubish
i Motors dealer are
a wide variety of acce
ssories to personalize
your new vehicle. Each Mitsubishi Motors
vehicle has a selection of Mitsubishi Motorsauthorized accessories to choose from to tai-lor your new vehicle to your own personalpreference. Your Mitsubishi Motors dealer’sParts Manager has information on variousaudio systems, protecti
on items, as well as
interior and exterior ac
cessories available for
your specific model.
N00300100017
Certain components of this vehicle, such asairbag modules, seat belt pretensioners, andbutton cell batteries,
may contain perchlorate
materials.Special handling may a
pply. For additional
information, see www.d
tsc.ca.gov/hazardous-
waste/perchlorate.
Modification/alterations to the electrical or fuel systems
CAUTIONPlease consult an au
thorized Mitsubishi
Motors dealer concerning any such acces-sory fitment or modification.If the wires interfere with the vehicle body orimproper installation me
thods are used (pro-
tective fuses not included, etc.), electronicdevices may be advers
ely affected, resulting
in a fire, vehicle dama
ge, or other accident.
Genuine Mitsubishi Motors parts
California Perchlorate Materials Requirements
BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

4

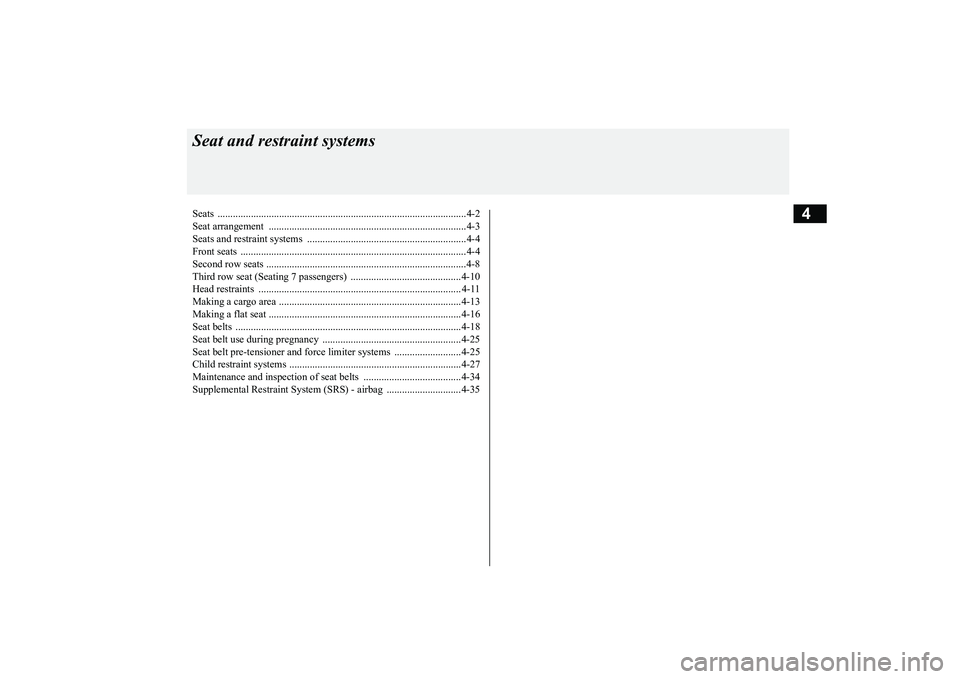

Seat and restraint systemsSeats .................................................................................................4-2Seat arrangement .............................................................................4-3Seats and restraint systems ..............................................................4-4Front seats ........................................................................................4-4Second row seats .........
...........
...........
...........
...........
...........
.........
.....4-8
Third row seat (Seating 7 passengers) ...........................................4-10Head restraints ............................................................................... 4-11Making a cargo area .......................................................................4-13Making a flat seat ...........................................................................4-16Seat belts ........................................................................................4-18Seat belt use during pregnancy ......................................................4-25Seat belt pre-tensioner and force limiter systems ..........................4-25Child restraint systems ...................................................................4-27Maintenance and inspection of seat belts ......................................4-34Supplemental Restraint Syst
em (SRS) - airbag ......
.........
.........
.....4-35
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

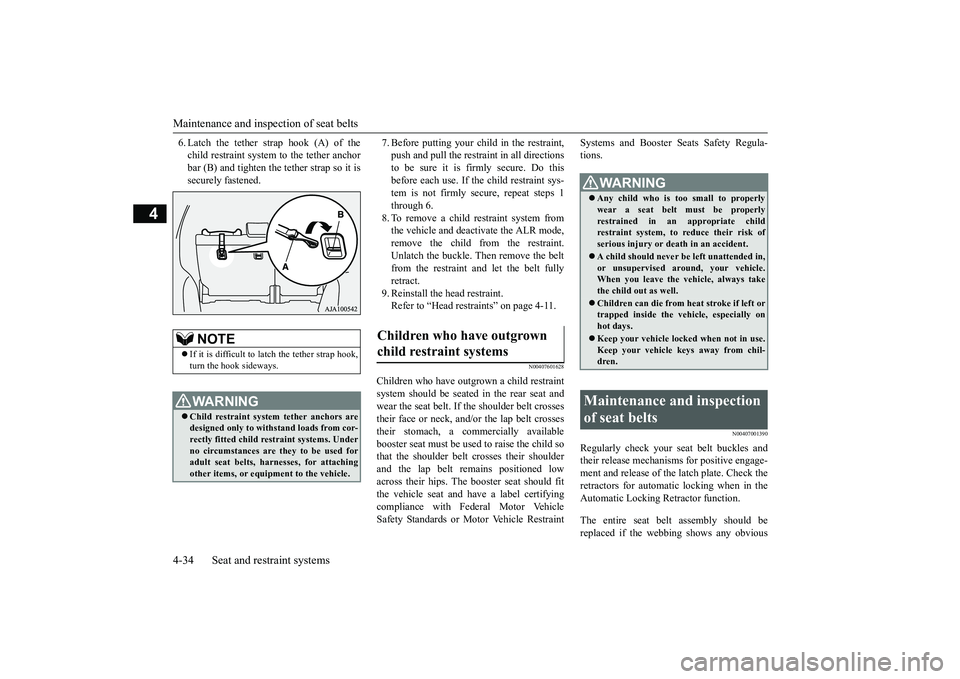

Maintenance and inspection of seat belts4-34 Seat and restraint systems
4
6. Latch the tether strap hook (A) of thechild restraint system to the tether anchorbar (B) and tighten the tether strap so it issecurely fastened.
7. Before putting your child in the restraint,push and pull the restraint in all directionsto be sure it is firmly secure. Do thisbefore each use. If the child restraint sys-tem is not firmly s
ecure, repeat steps 1
through 6.8. To remove a child restraint system fromthe vehicle and deac
tivate the ALR mode,
remove the child from the restraint.Unlatch the buckle. Th
en remove the belt
from the restraint and let the belt fullyretract.9. Reinstall the head restraint.Refer to “Head restraints” on page 4-11.
N00407601628
Children who have outgrown a child restraintsystem should be seated in the rear seat andwear the seat belt. If the shoulder belt crossestheir face or neck, and/
or the lap belt crosses
their stomach, a commercially availablebooster seat must be used to raise the child sothat the shoulder belt
crosses their shoulder
and the lap belt remains positioned lowacross their hips. The booster seat should fitthe vehicle seat and ha
ve a label certifying
compliance with Federal Motor VehicleSafety Standards or Mo
tor Vehicle Restraint
Systems and Booster Se
ats Safety Regula-
tions.
N00407001390
Regularly check your seat belt buckles andtheir release mechanisms for positive engage-ment and release of the latch plate. Check theretractors for automatic locking when in theAutomatic Locking Retractor function.The entire seat belt assembly should bereplaced if the webbing shows any obvious
NOTE
If it is difficult to la
tch the tether strap hook,
turn the hook sideways.WA R N I N GChild restraint system tether anchors aredesigned only to with
stand loads from cor-
rectly fitted child restraint systems. Underno circumstances are they to be used foradult seat belts, harnesses, for attachingother items, or equipment to the vehicle.
Children who have outgrown child restraint systems
WA R N I N GAny child who is too small to properlywear a seat belt
must be properly
restrained in an appropriate childrestraint system, to reduce their risk ofserious injury or de
ath in an
accident.
A child should never be
left unattended in,
or unsupervised around, your vehicle.When you leave the ve
hicle, always take
the child out as well.Children can die from heat stroke if left ortrapped inside the vehicle, especially onhot days.Keep your vehicle locked when not in use.Keep your vehicle keys away from chil-dren.
Maintenance and inspection of seat belts
BK0249100US.book 34 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Supplemental Restraint System (SRS) - airbag4-50 Seat and restraint systems
4
Since the side airbags and curtain airbags donot protect the occupant
in all types of colli-
sions, be sure to always
wear your seat belts
properly.
N00408500669
Head-on collisionRear end collision to your vehiclePitch end over end
SRS servicing
WA R N I N GAny maintenance performed on or nearthe components of the SRS should be per-formed only by an
authorized Mitsubishi
Motors dealer. Do not permit anyone elseto do any service, inspection, maintenanceor repair on any SR
S components or wir-
ing. Similarly, no part of the SRS shouldever be handled, removed or disposed byanyone except an au
thorized Mitsubishi
Motors dealer.Improper work meth
ods on the SRS com-
ponents or wiring could result in an acci-dental airbag deployment or could makethe SRS inoperable. Ei
ther of these situa-
tions could result in serious injury ordeath.Do not modify your steering wheel or anyother SRS component or related vehiclepart. For example, replacement of thesteering wheel, or modifications to thefront bumper or body structure canadversely affect SR
S performance and
may lead to injury.If your vehicle has received any damage,you should have the
SRS inspected by an
authorized Mitsubishi
Motors dealer to
make sure it is in proper working order.
Do not modify your front seats, center pil-lar or center console. Such modificationscan adversely affect
SRS performance and
may lead to injury.Also, if you discove
r any tear or open
seam in the seat fabr
ic near the side air-
bag, have the seat in
spected by an autho-
rized Mitsubishi Motors dealer.If you have found an
y scratch, crack or
damage to the portion of the front andrear pillars and roof
side rail, you should
have the SRS inspected by an authorizedMitsubishi Motors dealer.NOTE
When you transfer ownership of the vehicleto another person, we
urge you to alert the
new owner that it is
equipped with the SRS
and refer that owner to the applicable sec-tions in this owner’s manual.If you decide to junk or
scrap your vehicle,
we urge you to first take it to an authorizedMitsubishi Motors dealer so that the SRS canbe made safe for disposal.If any of the following parts needs to bemodified for use by a handicapped person,the advanced airbag system will be greatlyaffected. Please consult an authorized Mit-subishi Motors dealer.• Driver’s seat• Front passenger seat• Front seat beltWA R N I N G
BK0249100US.book 50 ページ ２０１７年５月１０日　水曜日　午前８時４９分

5
Features and controlsBreak-in recommendations ..............................................................5-3Keys .................................................................................................5-3Electronic immobilizer (Anti-theft starting system) ........................5-4Keyless entry system (if so equipped) ..............................................5-7Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ..........................................................................5-13Door locks ......................................................................................5-34Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-36
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-37
Liftgate (except for vehi
cles equipped with the
power liftgate) ....5-38
Power liftgate (if so equipped) .......................................................5-39Inside liftgate release .....................................................................5-46Theft-alarm system ........................................................................5-46Power window control ...................................................................5-49Sunroof (if so equipped) .................................................................5-51Parking brake .................................................................................5-53Steering wheel height and reach adjustment ..................................5-57Inside rearview mirror ...................................................................5-57Outside rearview mirrors ...............................................................5-60Ignition switch (if so equipped) ......................................................5-63Steering wheel lock (if so equipped) ..............................................5-65Starting the engine .........................................................................5-66Automatic transaxle (if so equipped)..............................................5-68Continuously variable transmission
(CVT) (if so equipped)..........5-75
Electronically controlled
4WD system (if so equipped).................5-82
S-AWC (Super-All Wheel Control) (if
so equipped) .....................5-85
4-wheel drive operation .................................................................5-88Inspection and maintenance followi
ng rough road operation ........5-91
Cautions on the handling of 4-wheel dr
ive vehicles ..................... 5-91
Service brake ................................................................................. 5-92Brake auto hold (if so equipped) .................................................... 5-93Hill start assist (if so equipped) ...................................................... 5-95Brake assist system ........................................................................ 5-96Anti-lock braking system .............................................................. 5-97Electric power steering system (EPS) ........................................... 5-99Active stability control (ASC) ..................................................... 5-100Cruise control (if so equipped) ..................................................... 5-103Adaptive Cruise Control System (ACC)
(if so equipped) ............ 5-107
Forward Collision Mitigation System
(FCM) (if so equipped) .... 5-118
Blind Spot Warning (BSW) (w
ith Lane Change Assist)
(if so equipped) ........................................................................ 5-126Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-131Lane Departure Warning System (LDW
) (if so equipped)........... 5-134
Tire pressure monitoring system ................................................. 5-137Rear-view camera (if so equipped)............................................... 5-142Multi Around Monitor (if so
equipped)..................
...........
........... 5-144
Instrument cluster ........................................................................ 5-154Multi Information display - Type 1 ............................................. 5-155Multi Information display - Type 2 ............................................. 5-173Indicator light, warning light, and information screen display list (multi informati
on display - Type 1) .......... 5-181
Indicator and warning light package (multi information display - Type 2) ....................................... 5-201Indicators ..................................................................................... 5-202Warning lights .............................................................................. 5-203
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

4-wheel drive operation
Features and controls 5-89
5
When turning a sharp corner in “4WDLOCK” (Electronically
controlled 4WD) or
“LOCK” (S-AWC) position at low speed, a
slight difference in
steering may be experi-
enced similar to feeling as if the brakes wereapplied. This is called tight corner brakingand results from each of the four tires being ata different distance from the corner. The phe-nomenon is typical of 4-wheel drive vehicles.If this occurs, either straighten out the steer-ing wheel or change to another mode.Set the drive mode-selector to “4WDAUTO”, “4WD LOCK” (Electronically con-trolled 4WD) or “SNOW” (S-AWC) in accor-dance with the road conditions, and thengradually depress the ac
celerator pedal for a
smooth start.
WA R N I N GDo not over-rely on th
e 4-wheel drive vehi-
cles. Even 4-wheel drive vehicles have lim-its to the system and ability to maintaincontrol and traction.
Reckless driving may
lead to accidents. Always drive carefully,taking account of the road conditions.Improperly operating
this vehicle on or
off-pavement can cause an accident orrollover in which you
and your passengers
could be seriously
injured or killed.
• Follow all instructions and guidelines inthe owner’s manual.• Keep your speed low and do not drivefaster than conditions.NOTE
Driving on rough roads can be hard on avehicle. Before you le
ave the pavement, be
sure all scheduled ma
intenance and service
has been done, and that
you have inspected
your vehicle. Pay spec
ial attention to the
condition of the ti
res, and check the tire pres-
sures.Mitsubishi Motors is not responsible to theoperator for any damage or injury caused orliability incurred by improper and negligentoperation of a vehicl
e. All techniques of
vehicle operation depend on the skill andexperience of the opera
tor and other partici-
pating parties. Any de
viation from the rec-
ommended operating instru
ctions above is at
their own risk.
Note that the stopping distance required ofthe 4-wheel drive vehicl
e differs very little
from that of the front-wheel drive vehicle.When driving on a snow-covered road or aslippery, muddy surface,
make sure that you
keep a sufficient dist
ance between your vehi-
cle and the one ahead of you.The driving posture should be more upright;adjust the seat to a good position for easysteering and pedal operati
on. Be sure to wear
the seat belt.After driving on rough roads, check eachpart of the vehicle and wash it thoroughlywith water. Refer to the “Inspection andmaintenance following rough road opera-tion” section and “Vehic
le care and Mainte-
nance” sections.CAUTIONSetting the drive mode-selector to “4WDLOCK” (Electronically
controlled 4WD) or
“LOCK” (S-AWC) position to drive on drypaved road will increa
se fuel consumption,
with possible noise generation.
Turning sharp corners
NOTE
On snowy or icy roads
NOTE
The use of snow tires is recommended.Maintain a safe distan
ce between
vehicles,
avoid sudden braking, and use engine brak-ing (downshifting).CAUTIONAvoid sudden braking,
sudden acceleration
and sharp turning. Sk
idding occurs and con-
trol of the vehicle could be lost.
BK0249100US.book 89 ページ ２０１７年５月１０日　水曜日　午前８時４９分
