Supplemental Restraint System (SRS) - airbag4-50 Seat and restraint systems
4
Since the side airbags and curtain airbags donot protect the occupant
in all types of colli-
sions, be sure to always
wear your seat belts
properly.
N00408500669
Head-on collisionRear end collision to your vehiclePitch end over end
SRS servicing
WA R N I N GAny maintenance performed on or nearthe components of the SRS should be per-formed only by an
authorized Mitsubishi
Motors dealer. Do not permit anyone elseto do any service, inspection, maintenanceor repair on any SR
S components or wir-
ing. Similarly, no part of the SRS shouldever be handled, removed or disposed byanyone except an au
thorized Mitsubishi
Motors dealer.Improper work meth
ods on the SRS com-
ponents or wiring could result in an acci-dental airbag deployment or could makethe SRS inoperable. Ei
ther of these situa-
tions could result in serious injury ordeath.Do not modify your steering wheel or anyother SRS component or related vehiclepart. For example, replacement of thesteering wheel, or modifications to thefront bumper or body structure canadversely affect SR
S performance and
may lead to injury.If your vehicle has received any damage,you should have the
SRS inspected by an
authorized Mitsubishi
Motors dealer to
make sure it is in proper working order.
Do not modify your front seats, center pil-lar or center console. Such modificationscan adversely affect
SRS performance and
may lead to injury.Also, if you discove
r any tear or open
seam in the seat fabr
ic near the side air-
bag, have the seat in
spected by an autho-
rized Mitsubishi Motors dealer.If you have found an
y scratch, crack or
damage to the portion of the front andrear pillars and roof
side rail, you should
have the SRS inspected by an authorizedMitsubishi Motors dealer.NOTE
When you transfer ownership of the vehicleto another person, we
urge you to alert the
new owner that it is
equipped with the SRS
and refer that owner to the applicable sec-tions in this owner’s manual.If you decide to junk or
scrap your vehicle,
we urge you to first take it to an authorizedMitsubishi Motors dealer so that the SRS canbe made safe for disposal.If any of the following parts needs to bemodified for use by a handicapped person,the advanced airbag system will be greatlyaffected. Please consult an authorized Mit-subishi Motors dealer.• Driver’s seat• Front passenger seat• Front seat beltWA R N I N G
BK0249100US.book 50 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Forward Collision Mitigation System (FCM) (if so equipped)5-122 Features and controls
5
N00577800090
This switch is used to turn on or off the FCM,and also to select the distance which will trig-ger the forward colli
sion warning function.
• When a vehicle in the next lane becomespositioned directly in
front of your vehi-
cle due to winding road conditions.• When passing through an area thatobjects may contact th
e vehicle, such as
thick grass, tree br
anches, or a banner.
• When there are patterns on the road thatmay be mistaken for
a vehicle or a pedes-
trian.• When a vehicle cuts into your path in thedetecting range of the sensor.• When an oncoming vehicle is positionedstraight ahead of your vehicle on acurved road.• When the FCM detects a long object car-ried on your vehicle,
such as skies or a
roof carrier.• When driving through fog, steam, smokeor dust.
The FCM should be tuned off if any of fol-lowing situations occur:• When using an automatic car wash.• When the tires are not properly inflated. • When the emergency spare tire is used.WA R N I N G
• When your vehicle is
towed or
your vehi-
cle tows another vehicle.• When your vehicle is
carried on a truck.
• When your vehicle is on a chassis dyna-mometer or free rollers.• If the windshield on or surrounding thesensor is cracked or scratched.NOTE
When depressing the brake pedal while auto-matic braking is applie
d, the brake pedal will
feel firm. This is normal. Depress the brakepedal harder to apply
greater braking force.
During the automatic
braking, operating
sounds may be heard.
This is normal.
WA R N I N G
FCM ON/OFF switch

BK0249100US.book 122 ページ ２０１７年５月１０日　水曜日　午前８時４９分

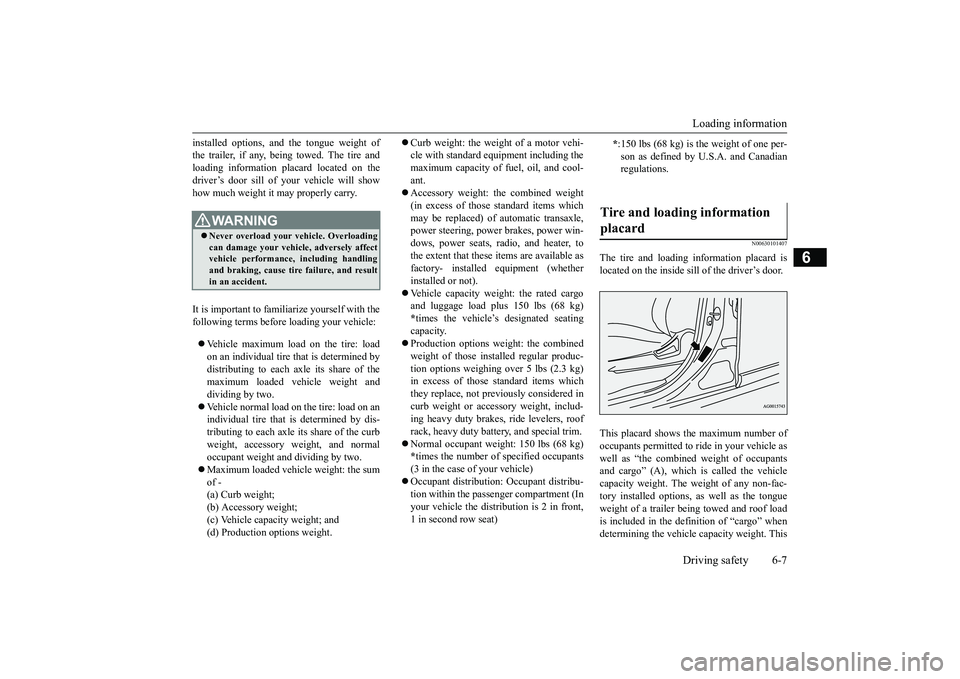

Loading informationDriving safety 6-7
6
installed options, and
the tongue weight of
the trailer, if any, being towed. The tire andloading information placard located on thedriver’s door sill of your vehicle will showhow much weight it may properly carry.It is important to famil
iarize yourself with the
following terms before loading your vehicle:Vehicle maximum load on the tire: loadon an individual tire that is determined bydistributing to each axle its share of themaximum loaded vehicle weight anddividing by two.Vehicle normal load on the tire: load on anindividual tire that is determined by dis-tributing to each axle its share of the curbweight, accessory weight, and normaloccupant weight and dividing by two.Maximum loaded vehicle weight: the sumof -(a) Curb weight;(b) Accessory weight;(c) Vehicle capacity weight; and(d) Production options weight.
Curb weight: the weight of a motor vehi-cle with standard equipment including themaximum capacity of
fuel, oil, and cool-
ant.Accessory weight: the combined weight(in excess of those st
andard items which
may be replaced) of automatic transaxle,power steering, power brakes, power win-dows, power seats, radio, and heater, tothe extent that these items are available asfactory- installed equipment (whetherinstalled or not).Vehicle capacity weight: the rated cargoand luggage load plus 150 lbs (68 kg)*times the vehicle’s designated seatingcapacity.Production options weight: the combinedweight of those installed regular produc-tion options weighing over 5 lbs (2.3 kg)in excess of those standard items whichthey replace, not prev
iously considered in
curb weight or accessory weight, includ-ing heavy duty brakes,
ride levelers, roof
rack, heavy duty battery, and special trim.Normal occupant weight: 150 lbs (68 kg)*times the number of
specified occupants
(3 in the case of your vehicle)Occupant distribution:
Occupant distribu-
tion within the passenger compartment (Inyour vehicle the distribution is 2 in front,1 in second row seat)
N00630101407
The tire and loading information placard islocated on the inside sill of the driver’s door.This placard shows the maximum number ofoccupants permitted to
ride in your vehicle as
well as “the combined
weight of occupants
and cargo” (A), which
is called the vehicle
capacity weight. The weight of any non-fac-tory installed options, as well as the tongueweight of a trailer being towed and roof loadis included in the defi
nition of “cargo” when
determining the vehicle
capacity weight. This
WA R N I N GNever overload your ve
hicle. Overloading
can damage your vehicl
e, adversely affect
vehicle performance, including handlingand braking, cause tire failure, and resultin an accident.
*:150 lbs (68 kg) is the weight of one per-son as defined by U.
S.A. and Canadian
regulations.
Tire and loading information placard
BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

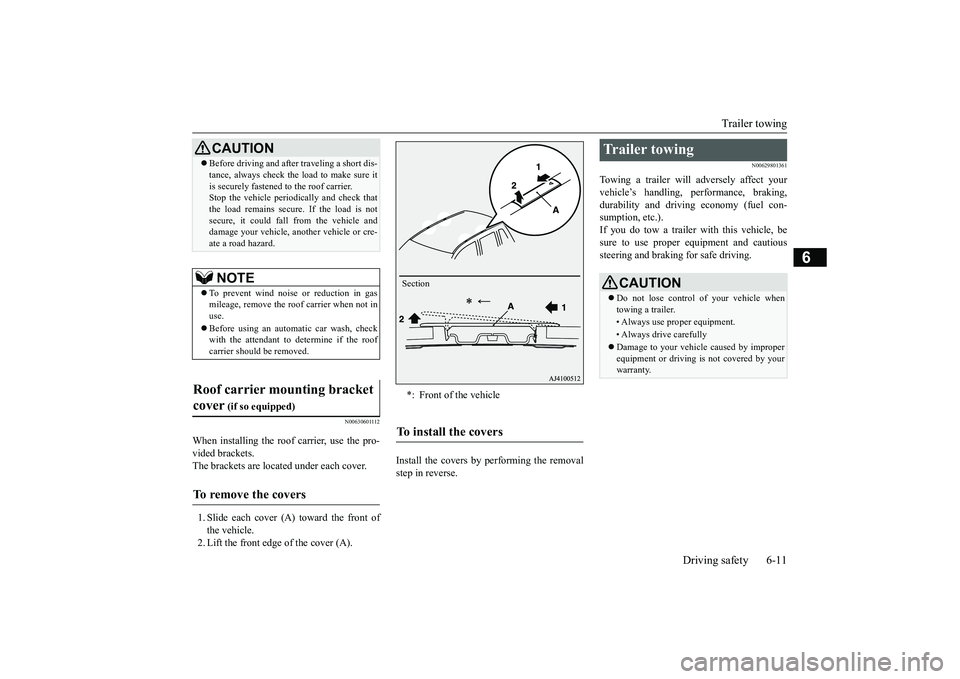

Trailer towing
Driving safety 6-11
6
N00630601112
When installing the roof carrier, use the pro-vided brackets.The brackets are located under each cover.1. Slide each cover (A) toward the front ofthe vehicle.2. Lift the front edge of the cover (A).
Install the covers by performing the removalstep in reverse.
N00629801361
Towing a trailer will adversely affect yourvehicle’s handling, performance, braking,durability and driving economy (fuel con-sumption, etc.).If you do tow a trailer
with this vehicle, be
sure to use proper e
quipment and cautious
steering and braking for safe driving.
Before driving and after traveling a short dis-tance, always check the load to make sure itis securely fastened to the roof carrier.Stop the vehicle periodi
cally and check that
the load remains secure. If the load is notsecure, it could fall from the vehicle anddamage your vehicle,
another vehicle or cre-
ate a road hazard.NOTE
To prevent wind noise or reduction in gasmileage, remove the roof carrier when not inuse.Before using an automatic car wash, checkwith the attendant to determine if the roofcarrier should be removed.
Roof carrier mounting bracket cover
(if so equipped)
To remove the covers

CAUTION
*: Front of the vehicleTo install the covers

Section
Trailer towing
CAUTIONDo not lose control of your vehicle whentowing a trailer.• Always use proper equipment.• Always drive carefullyDamage to your vehicle caused by improperequipment or driving is not covered by yourwarranty.
BK0249100US.book 11 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Cleaning the outside of your vehicle9-42 Vehicle care and maintenance
9
Salt and other chemicals used on winter roadsin some geographical areas can have a detri-mental effect on the vehicle underbody. Youshould flush the underbody with a high pres-sure hose every time you wash the outside ofyour vehicle.Take special care to remove mud or otherdebris which could trap and hold salt andmoisture.After washing your vehicle, wipe off allwaterdrops from the rubber parts around thedoors to prevent the doors from freezing.
N00946000205
Wax your vehicle once or twice a year, orwhen water does not bead up on the paint.Use a soft cloth to put a small amount of waxon the painted surfaces.
After the wax has
dried, polish with
a dry soft cloth.
Do not wax your vehicle in direct sunlight.You should wax when the painted surfacesare cool.
Never spray or splash water on the electricalparts in the engine compartment. This maydamage them. Be careful also when washingthe underbody to ensure that water does notenter the engine compartment.Avoid automatic car washers that use rotat-ing brushes. These br
ushes may scratch the
paint surface a
nd make it dull.
Scratches are more not
iceable on darker col-
ored vehicles.Some hot water wash
ing equipment uses
high pressure and heat
to clean your vehicle.
Because hot water can da
mage plastics parts
and seep inside your ve
hicle, make sure you
do the following when using such equip-ment:• Keep the washing nozzle at least 28 inches(70 cm) away from the vehicle body.• When washing around the door glass, holdthe nozzle at a distance of more than 28inches (70 cm) and at a right angle to theglass surface.
Make sure to do the following when using anautomatic car wash, with help from eitherthis manual or the car wash operator, toavoid damaging your vehicle:• Fold the outside
rearview mirrors.
• Tape or remove the rear wiper arm assem-bly.• If your vehicle is equi
pped with a roof rails,
check with the car wash operator beforeusing the car wash.CAUTION
• If your vehicle is e
quipped with the rain
sensor, place th
e wiper switch lever in the
“OFF” position to deac
tivate the rain sen-
sor.
During cold weather
NOTE
When the door is frozen, opening it by forcemay tear off or crack the rubber gasketinstalled around the door. Pour warm waterto melt the ice. Be
sure to thoroughly wipe
off the water after opening the door. To pre-vent freezing of the
weatherstripping on the
doors, hood, etc., treat
with silicone lubri-
cant.CAUTION
Waxing
CAUTIONWaxes containing high abrasive compoundsshould not be used. Th
ese waxes remove rust
and stain effectively fr
om the paintwork, but
are harmful to the finish of the paint, becausethey also remove
paint/clearcoat.
They are also harmful to other glossy sur-faces such as the grille, trim, moldings, etc.Do not use gasoline, benzine, kerosene orpaint thinners to remove
road tar or other dirt
from the vehicle surface.Do not put wax on the areas having blackmatte coating because
it can cause uneven
discoloration, patches, bl
urs, etc. If these get
wax on them, wipe the wax off right awaywith a soft clot
h and warm water.
BK0249100US.book 42 ページ ２０１７年５月１０日　水曜日　午前８時４９分

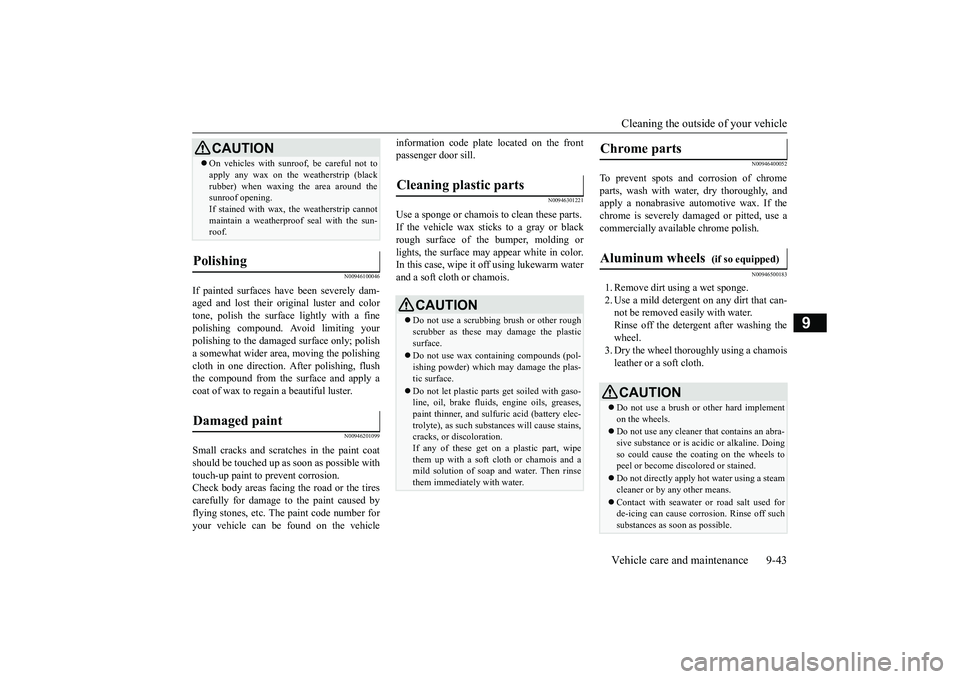

Cleaning the outside of your vehicleVehicle care and maintenance 9-43
9
N00946100046
If painted surfaces ha
ve been severely dam-
aged and lost their original luster and colortone, polish the surface lightly with a finepolishing compound. Avoid limiting yourpolishing to the damage
d surface only; polish
a somewhat wider area, moving the polishingcloth in one direction.
After polishing, flush
the compound from the surface and apply acoat of wax to regain a beautiful luster.
N00946201099
Small cracks and scratches in the paint coatshould be touched up as
soon as possible with
touch-up paint to prevent corrosion.Check body areas facing the road or the tirescarefully for damage to the paint caused byflying stones, etc. The
paint code number for
your vehicle can be found on the vehicle
information code plate located on the frontpassenger door sill.
N00946301221
Use a sponge or chamoi
s to clean these parts.
If the vehicle wax sticks to a gray or blackrough surface of the bumper, molding orlights, the surface may appear white in color.In this case, wipe it off using lukewarm waterand a soft cloth or chamois.
N00946400052
To prevent spots and corrosion of chromeparts, wash with water, dry thoroughly, andapply a nonabrasive automotive wax. If thechrome is severely damaged or pitted, use acommercially available chrome polish.
N00946500183
1. Remove dirt using a wet sponge.2. Use a mild detergent
on any dirt that can-
not be removed easily with water.Rinse off the detergent after washing thewheel.3. Dry the wheel thoroughly using a chamoisleather or a soft cloth.
On vehicles with sunr
oof, be careful not to
apply any wax on the
weatherstrip (black
rubber) when waxing the area around thesunroof opening.If stained with wax,
the weatherstrip cannot
maintain a weatherproof seal with the sun-roof.
Polishing Damaged paint
CAUTION
Cleaning plastic parts
CAUTIONDo not use a scrubbing brush or other roughscrubber as these may damage the plasticsurface.Do not use wax containing compounds (pol-ishing powder) which ma
y damage the plas-
tic surface.Do not let plastic parts get soiled with gaso-line, oil, brake fluids
, engine oils, greases,
paint thinner, and sulfur
ic acid (battery elec-
trolyte), as such substa
nces will cause stains,
cracks, or discoloration.If any of these get on a plastic part, wipethem up with a soft cloth or chamois and amild solution of soap and water. Then rinsethem immediately with water.
Chrome parts Aluminum wheels
(if so equipped)
CAUTIONDo not use a brush or
other hard implement
on the wheels.Do not use any cleaner th
at contains an abra-
sive substance or is ac
idic or alkaline. Doing
so could cause the coating on the wheels topeel or become disc
olored or stained.
Do not directly apply
hot water using a steam
cleaner or by any other means.Contact with seawater or road salt used forde-icing can cause corr
osion. Rinse off such
substances as soon as possible.
BK0249100US.book 43 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Cleaning the outside of your vehicle9-44 Vehicle care and maintenance
9
N00946600054
The window glass can
usually be cleaned
using only a sponge and
water. Glass cleaner
can be used to remove
wax, oil, grease, dead
insects, etc. After washing the glass, wipe itdry with a clean, dry, soft cloth.
N00946700068
Use a soft cloth and glass cleaner to removegrease, dead insects,
etc., from the wiper
blades.Replace the wiper blades when they no longerclean the windshield a
nd rear window prop-
erly.
N00946800069
Clean the inside of the sunroof with a softcloth. Hard deposits
should be wiped away
with a cloth dipped in
warm, neutral deter-
gent solution. Wipe away the solution with asponge dipped in fresh water.
N00947000071
Never spray or splash
water on the electrical
accessories in the engine compartment. Thisputs the engine at ri
sk of being damaged.
Do not bring the circum
ferential parts, the
plastic parts and so on in
to contact with sulfu-
ric acid (battery electrolyte) which maycrack, stain or discolor them.If they are in contact, wipe off with soft cloth,chamois or the like and an aqueous solutionof neutral detergent then immediately rinsethe affected parts with plenty of water.
Window glass Wiper blades Cleaning the sunroof (if so equipped)
NOTE
The surface treatment on the inside of theglass may be removed
if a hard cloth or
organic solvent is used.
Engine compartment
BK0249100US.book 44 ページ ２０１７年５月１０日　水曜日　午前８時４９分
