2018 MITSUBISHI OUTLANDER III high beam

Instruments and controls1-1
1
Overview
N00100202788
Instruments and controls
Combination headlights an
d dimmer switch P.5-207
Automatic high beam system switch (if so equipped) P.5-211Turn signal lever P.5-217 Front fog light switc
h (if so equipped)
P.5-218
Steering wheel remote control switches[Refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-101
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-35, 4-42Horn switch P.5-227
Instrument clusterP.5-154
Windshield wiper and washer switch P.5-219Rear window wiper and washer switch P.5-223
Cruise control switches P.5-103, 5-107
Steering wheel height and reach adjustment lever P.5-57
Engine switch (if so equipped) P.5-18
Driver’s ventsP. 7 - 2
Sportronic steering wheel paddle shifter (if so equipped) P.5-72, 5-80
Driver’s vents P.7-2
Multi information display switch (if so equipped)
Headlight leveling switch (if so equipped) P.5-216
Driver’s side power liftgate switch (if so equipped) P.5-41Fuse box P.9-26
Lane Departure Warning (LDW) switch (if so equipped)Forward Collision Mitigation system (FCM) ON/OFF switch (if so equipped)P.5-122
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-35, 4-42
Ignition switch (if so equipped) P.5-63
Camera switch (if so equipped) P. 5-144
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Outside (Front)
1
N00100602782
Outside (Front)
Sunroof (if so equipped) P.5-51
Windshield wipers P.5-219
Engine hood P.9-3
Front fog lights (if so equipped) P.5-218, 9-32, 9-36
Outside rearview mirrors P.5-60Side turn-signal lights (if so equipped) P.5-217, 9-32, 9-36Side-view camera (if so equipped)Fuel tank filler P.3-3
Power window P.5-49
Front turn-s
ignal lights
P.5-217, 9-32, 9-36
Front turn signal lightsP.5-217, 9-32, 9-36
Headlights, low beamP.5-207, 9-32, 9-34
Parking lights P.5-207, 9-32, 9-36Daytime running lights P.5-207, 9-32, 9-36
Headlights, low beamP.5-207, 9-32, 9-34
Parking lights P.5-207, 9-32, 9-36Daytime running lights P.5-207, 9-32, 9-36
Headlights, high beamP.5-207, 9-32, 9-35
Headlights, high beamP.5-207, 9-32, 9-35
Halogen headlights type LED headlights type
Front side-marker lights P.5-207, 9-32, 9-35
Front side-marker lights P.5-207, 9-32, 9-35
Sensor (if so equipped) [for Fo
rward Collision Mitigation System
(FCM), Lane Departure Warning System (LDW) and Automatic high beam system] P. 5-118, 5-134, 5-211Rain sensor (if so equipped) P.5-219Front-view camera (if so equipped) P.5-144BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Forward Collision Mitigation System (FCM) (if so equipped)
Features and controls 5-125
5
If the FCM detects a malfunction in the sys-tem, either of the following messages willappear, the indicator
will appear on the
information screen of
the multi-information
display and the FCM will automatically beturned off.If the message remains even after the opera-tion mode is put in “OFF” and then turnedback to “ON”, please contact your authorizedMitsubishi Motors dealer.
N00593400049
The sensor (A) is lo
cated inside the wind-
shield as shown in the illustration.The sensor is shared in the following sys-tems:FCMLane Departure Warning (LDW)Automatic high beam system
NOTE
If the sensor or its surrounding area becomesextremely high temperature when parkingthe vehicle under a blazing sun, the “FCMSERVICE REQUIRED” message mayappear.After the temperature of the sensor or its sur-rounding area has been in range, if the mes-sage remains even afte
r restarting the engine,
please contact an au
thorized Mitsubishi
Motors dealer.
Handling of the sensor

CAUTIONTo maintain proper performance of the FCM,LDW and Automatic high beam system;• Always keep clea
n the windshield.
If the inside of the windshield where thesensor is installed be
comes dirty or fogged,
contact an authorized Mitsubishi Motorsdealer.• Do not apply an impact or load on the sen-sor or its surrounding area.
BK0249100US.book 125 ページ ２０１７年５月１０日　水曜日　午前８時４９分

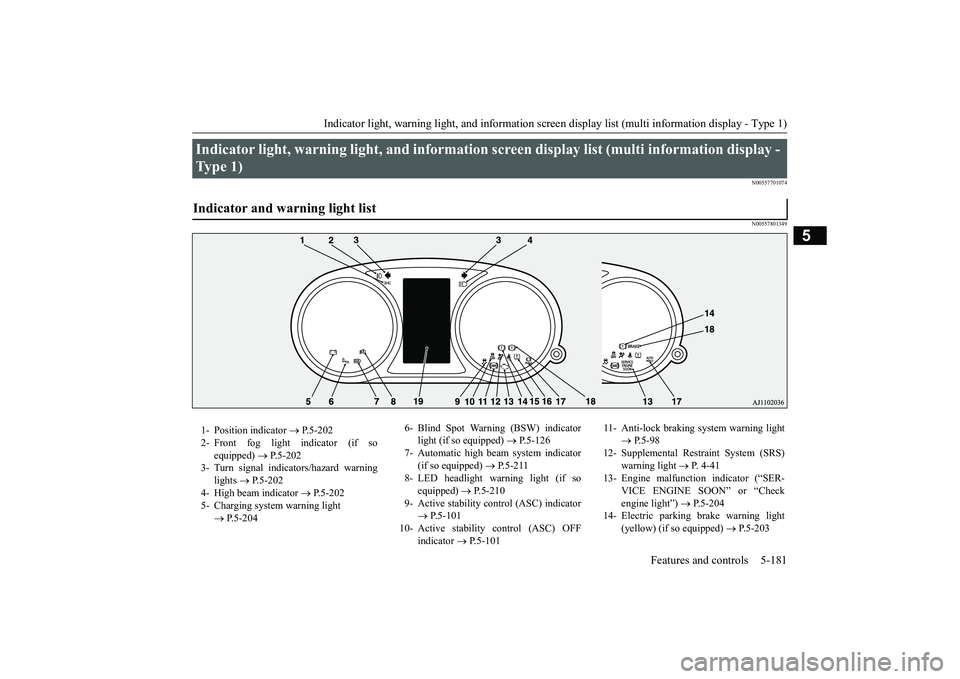

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-181
5
N00557701074N00557801349
Indicator light, warning light, and information
screen display list (multi information display -
Type 1) Indicator and warning light list 1- Position indicator
 P.5-202
2- Front fog light indicator (if so
equipped)
 P.5-202
3- Turn signal indicators/hazard warning
lights
 P.5-202
4- High beam indicator
 P.5-202
5- Charging system warning light
 P.5-204
6- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-126
7- Automatic high beam system indicator
(if so equipped)
 P.5-211
8- LED headlight warning light (if so
equipped)
 P.5-210
9- Active stability control (ASC) indicator
 P.5-101
10- Active stability
control (ASC) OFF
indicator
 P.5-101
11- Anti-lock braking
system warning light
 P.5-98
12- Supplemental Restra
int System (SRS)
warning light
 P. 4 - 4 1
13- Engine malfuncti
on indicator (“SER-
VICE ENGINE SOON” or “Checkengine light”)
 P.5-204
14- Electric parking
brake warning light
(yellow) (if so equipped)
 P.5-203
BK0249100US.book 181 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
5
The Forward Collision Mi
tigation System (FCM),
Lane Departure Warning system (LDW) and auto-matic high beam system is
temporarily unavailable
due to the high or low temperature of the sensor.
After the temperature of the sensor has been in range, the system will automatically return to opera-tion.Refer to “Forward Coll
ision Mitigation System
(FCM): When a problem is detected” on page 5-123.Refer to “Lane Departure Warning System (LDW): System problem warning” on page 5-136.Refer to “Automatic high
beam system: System
problem warning” on page 5-214.
The sensor is temporarily
unavailable due to condi-
tions such as the adhesion of contaminants to the sensor or windshield.This is not a malfunction.
Refer to “Lane Departure Wa
rning System (LDW): Sys-
tem problem warning”
on page 5-136.
Refer to “Automatic high be
am system: System problem
warning” on page 5-214.
There is a fault in the system of automatic high beam.
Contact an authorized Mitsubishi Motors dealer.Refer to “Automatic high
beam system: System
problem warning” on page 5-214.
Screen
Cause
Do this (Reference)
BK0249100US.book 196 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Indicator and warning light package (multi information display - Type 2)
Features and controls 5-201
5
N00519801921
Indicator and warning light package (mu
lti information display - Type 2)
1- Washer fluid level warning light
 P.5-206
2- Position indicator
 P. 5-202
3- Front fog light indicator (if so
equipped)
 P. 5-202
4- Turn signal indicators/hazard warning
lights
 P. 5-202
5- Cruise control indicator
 P. 5-103
6- Door-ajar warning light
 P. 5-205
7- For details, refer to “Steering wheel
lock” on page 5-24. (if so equipped)
8- For details, refer to “Warning activa-
tion” on page 5-20. (if so equipped)
9- Electric power steering system warning
light
 P.5-99
10- 4WD ECO mode indicator (if so
equipped)
 P.5-84
11- 4WD LOCK mode indicator (if so
equipped)
 P.5-84
12- LED headlight warning light (if so
equipped)
 P.5-210
13- High beam indicator
 P. 5-202
14- ECO mode indicator
 P.5-218
15- ECO Drive Assist
 P. 5-202
16- Oil pressure warning light
 P. 5-205
17- Charging system warning light
 P. 5-204
18- High coolant temperature warning light
(red)
 P. 5-205
19- Low coolant temp
erature indicator
(blue)
 P. 5-202
20- Active stability control (ASC) indicator
 P. 5-101
21- Active stability control (ASC) OFF
indicator
 P. 5-101
22- Anti-lock braking system warning light
 P. 5-98
23- Supplemental Restra
int System (SRS)
warning light
 P. 4 - 4 1
BK0249100US.book 201 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Indicators5-202 Features and controls
5
N00519900127N00520000216
The arrows will flash in time with the corre-sponding exterior turn signals when the turnsignal lever is used.Both arrows will flash
when the hazard warn-
ing flasher swit
ch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520200175
This indicator comes on while the front foglights are on.
N00551301078
This indicator light illuminates while theparking lights are on.
N00575601020
This indicator comes on in blue while thecoolant temperature is low.
N00579200030
This function displays
how fuel-efficiently
you are driving under different driving condi-tions.The ECO drive assist di
splay will change as
follows if you do fuel-efficient driving usingthe accelerator in a way well matched withthe vehicle speed.
24- Engine malfuncti
on indicator (“SER-
VICE ENGINE SOON” or “Checkengine light”)
 P. 5-204
25- Seat belt remi
nder/warning light
 P. 4-23
26- Tire pressure moni
toring system warn-
ing light
 P. 5-138
27- Brake warning light (red)
 P. 5-203
28- Multi information display
 P. 5-173
Indicators Turn signal indicators/Hazard warning lights
NOTE
If the indicator flashes faster than usual or ifthe indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb orturn signal connection.
High beam indicator Front fog light indicator
(if so
equipped)Position indicator Low coolant temperature indi-cator - blue (Vehicle equipped with the multi information dis-play - Type 2)
NOTE
When the indicator go
es out, this should be
used as a rough indication of when the heat-ing starts working.
ECO Drive Assist (Vehicle equipped with the multi infor-mation display - Type 2)
ECO drive levelLow High
BK0249100US.book 202 ページ ２０１７年５月１０日　水曜日　午前８時４９分

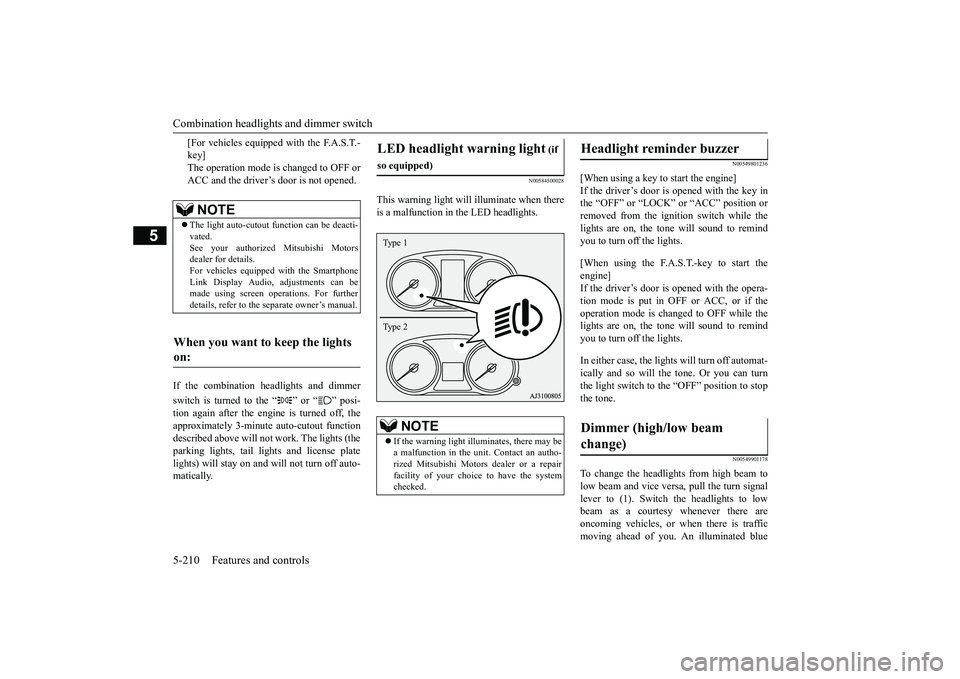

Combination headlights and dimmer switch5-210 Features and controls
5
[For vehicles equipped
with the F.A.S.T.-
key]The operation mode is changed to OFF orACC and the driver’s door is not opened.
If the combination headlights and dimmerswitch is turned to the “ ” or “ ” posi-tion again after the engine is turned off, theapproximately 3-minute
auto-cutout function
described above will not
work. The lights (the
parking lights, tail li
ghts and license plate
lights) will stay on and will not turn off auto-matically.
N00584500028
This warning light will illuminate when thereis a malfunction in the LED headlights.
N00549801236
[When using a key to start the engine]If the driver’s door is opened with the key inthe “OFF” or “LOCK” or “ACC” position orremoved from the ignition switch while thelights are on, the tone
will sound to remind
you to turn off the lights.[When using the F.A.S.T.-key to start theengine]If the driver’s door is opened with the opera-tion mode is put in OFF or ACC, or if theoperation mode is changed to OFF while thelights are on, the tone
will sound to remind
you to turn off the lights.In either case, the lights will turn off automat-ically and so will the tone. Or you can turnthe light switch to the “OFF” position to stopthe tone.
N00549901178
To change the headlights from high beam tolow beam and vice vers
a, pull the turn signal
lever to (1). Switch the headlights to lowbeam as a courtesy whenever there areoncoming vehicles, or when there is trafficmoving ahead of you. An illuminated blue
NOTE
The light auto-cutout
function can be deacti-
vated.See your authorized Mitsubishi Motorsdealer for details.For vehicles equipped with the SmartphoneLink Display Audio, adjustments can bemade using screen ope
rations. For further
details, refer to the se
parate owner’s manual.
When you want to keep the lights on:
LED headlight warning light
(if
so equipped)If the warning light il
luminates, there may be
a malfunction in the unit. Contact an autho-rized Mitsubishi Motors dealer or a repairfacility of your choice to have the systemchecked.Type 1Type 2
Headlight reminder buzzer Dimmer (high/low beam change)
BK0249100US.book 210 ページ ２０１７年５月１０日　水曜日　午前８時４９分
