2018 MITSUBISHI OUTLANDER III engine overheat

If this problem occurs...
Quick index 2-7
2
Problem
Do this
Ref. Page
The information screen in the multi information display will be interrupted and the engine coolant temperature warning display will appear. Also “ ” will blink. (Type 1: Color liquid crystal display type)The high coolant temperature warning light will illuminate. (Type 2: Mono-color liquid crystal display type)Steam comes out of the engine compartment.
The engine is overheated.Carefully stop the vehicle in a safe place.
P. 8 - 4
Ty p e 1Ty p e 2
and
BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

If this problem occurs...2-8 Quick index
2
If your vehicle becomes stuck in sand, mud or snow
1. Slowly press down on the accelerator pedal to
get your vehicle moving again. For an all-
wheel drive vehicle, set the drive mode-sel
ector to the “4WD AUTO” or “4WD LOCK”
position (Electronically cont
rolled 4WD), “SNOW” or “L
then slowly press down on the accelera
tor pedal to get your vehicle moving.
2. If there is nothing to stop your tires from sli
pping, rock your vehicle out of the stuck posi-
tion.
P. 8-15
WA R N I N GWhen attempting to rock your vehi
cle out of a stuck position, be su
re that no one is near the ve
hicle. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders.Avoid revving the engine or spinning the wh
eels. Prolonged efforts to free a stuck ve
hicle may result in
overheating and transa
xle failure.
If the vehicle remains stuck after
several rocking attempts
, have a towing service pull the vehicle out.
Problem
Do this
Ref. Page
The brakes are not functioning properly after crossing a puddle or stream.
Dry out the brakes by driving slowly
while lightly pressing the brake pedal.
P. 5-90,6-5
The automatic transaxle makes no gear change when accelerat-ing. The initial movement of the vehicle is slow when the vehicle starts moving.(for vehicles with automatic transaxle)
There may be a problem in the automatic transaxle.Have the system inspected by your
authorized Mitsubishi Motors de
aler or a repair facility of
your choice.
P. 5-74
Problem
Do this
Ref. Page
BK0249100US.book 8 ページ ２０１７年５月１０日　水曜日　午前８時４９分

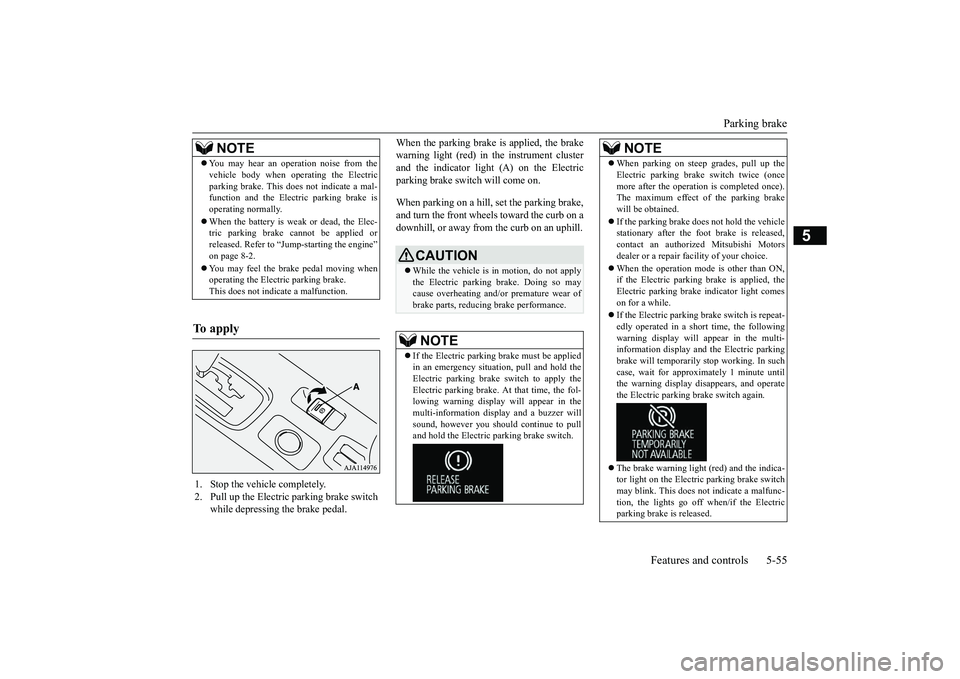

Parking brake
Features and controls 5-55
5
When the parking brake is applied, the brakewarning light (red) in
the instrument cluster
and the indicator light (A) on the Electricparking brake switch will come on.When parking on a hill, set the parking brake,and turn the front wheels toward the curb on adownhill, or away from
the curb on an uphill.
NOTE
You may hear an operation noise from thevehicle body when operating the Electricparking brake. This do
es not indicate a mal-
function and the Elec
tric parking brake is
operating normally.When the battery is weak or dead, the Elec-tric parking brake cannot be applied orreleased. Refer to “Jum
p-starting the engine”
on page 8-2.You may feel the brake pedal moving whenoperating the Electr
ic parking brake.
This does not indi
cate a malfunction.
To apply

1. Stop the vehicle completely.2. Pull up the Electric parking brake switch
while depressing the brake pedal.
CAUTIONWhile the vehicle is in motion, do not applythe Electric parking
brake. Doing so may
cause overheating and/or
premature wear of
brake parts, reducing brake performance. NOTE
If the Electric parking
brake must be applied
in an emergency situa
tion, pull and hold the
Electric parking brake
switch to apply the
Electric parking brake. At that time, the fol-lowing warning display
will appear in the
multi-information disp
lay and a buzzer will
sound, however you should continue to pulland hold the Electric
parking brake switch.
When parking on stee
p grades, pull up the
Electric parking brak
e switch twice (once
more after the operati
on is completed once).
The maximum effect of the parking brakewill be obtained.If the parking brake does not hold the vehiclestationary after the f
oot brake is released,
contact an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
When the operation mode is other than ON,if the Electric parking brake is applied, theElectric parking brake
indicator light comes
on for a while.If the Electric parking brake switch is repeat-edly operated in a short time, the followingwarning display will appear in the multi-information display and the Electric parkingbrake will temporarily stop working. In suchcase, wait for approxima
tely 1 minute until
the warning display di
sappears, and operate
the Electric parking
brake switch again.
The brake warning light (red) and the indica-tor light on the Electric
parking brake switch
may blink. This does no
t indicate a malfunc-
tion, the lights go off when/if the Electricparking brake is released.NOTE
BK0249100US.book 55 ページ ２０１７年５月１０日　水曜日　午前８時４９分

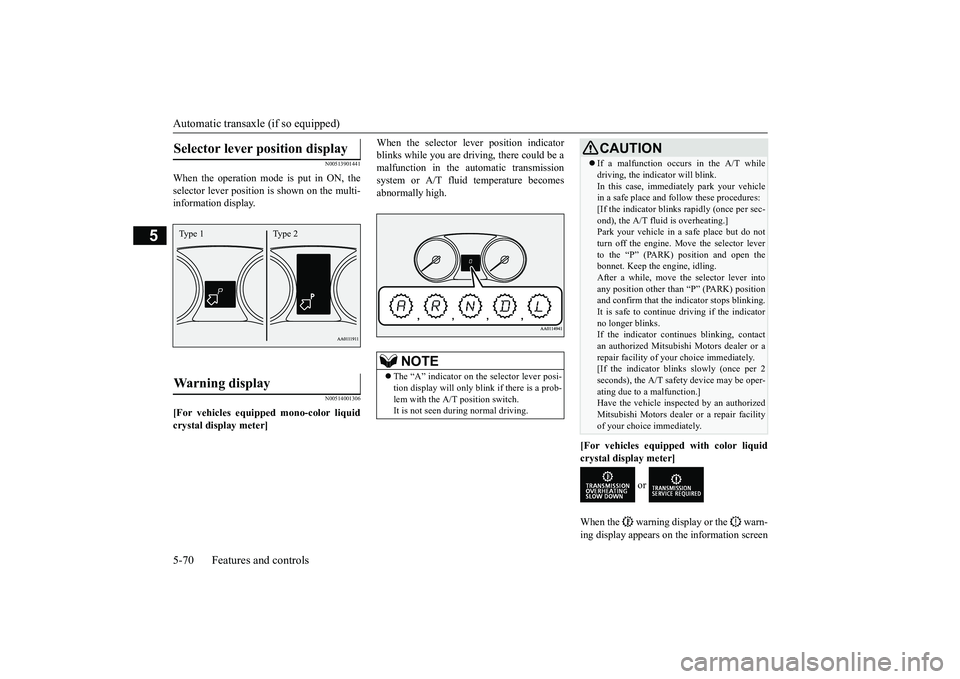

Automatic transaxle (if so equipped)5-70 Features and controls
5
N00513901441
When the operation mode is put in ON, theselector lever position
is shown on the multi-
information display.
N00514001306
[For vehicles equipped mono-color liquidcrystal display meter]
When the selector le
ver position indicator
blinks while you are driv
ing, there could be a
malfunction in the automatic transmissionsystem or A/T fluid temperature becomesabnormally high.
[For vehicles equipped with color liquidcrystal display meter]
or
When the warning display or the warn-ing display appears on the information screen
Selector lever position display

Warning display

Type 1 Type 2
NOTE
The “A” indicator on the selector lever posi-tion display will only blink if there is a prob-lem with the A/T position switch.It is not seen during normal driving.
CAUTIONIf a malfunction occurs in the A/T whiledriving, the indicator will blink.In this case, immediat
ely park your vehicle
in a safe place and fo
llow these procedures:
[If the indicator blinks
rapidly (once per sec-
ond), the A/T fluid is overheating.]Park your vehicle in a safe place but do notturn off the engine. M
ove the selector lever
to the “P” (PARK) position and open thebonnet. Keep the engine, idling.After a while, move the selector lever intoany position other than “P” (PARK) positionand confirm that the i
ndicator stops blinking.
It is safe to continue driving if the indicatorno longer blinks.If the indicator contin
ues blinking, contact
an authorized Mitsubish
i Motors dealer or a
repair facility of your
choice i
mmediately.
[If the indicator blinks slowly (once per 2seconds), the A/T safety
device may be oper-
ating due to a malfunction.]Have the vehicle inspected by an authorizedMitsubishi Motors dealer
or a repair facility
of your choice immediately.
BK0249100US.book 70 ページ ２０１７年５月１０日　水曜日　午前８時４９分

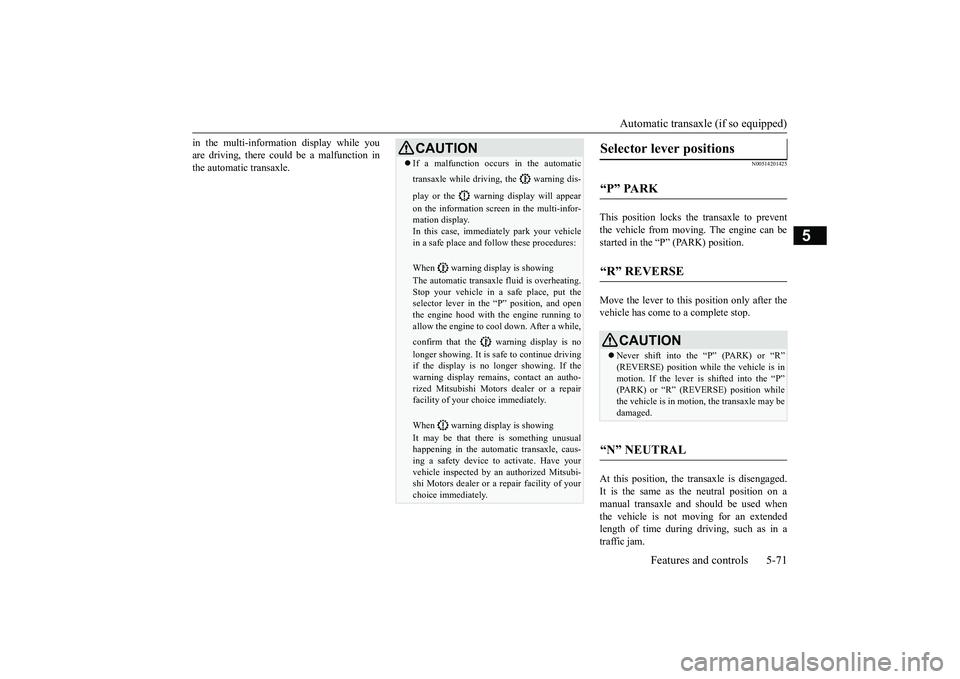

Automatic transaxle (if so equipped)
Features and controls 5-71
5
in the multi-information display while youare driving, there could be a malfunction inthe automatic transaxle.
N00514201425
This position locks the transaxle to preventthe vehicle from moving.
The engine can be
started in the “P” (PARK) position.Move the lever to this position only after thevehicle has come to a complete stop.At this position, the
transaxle is disengaged.
It is the same as th
e neutral position on a
manual transaxle and should be used whenthe vehicle is not moving for an extendedlength of time during driving, such as in atraffic jam.
CAUTIONIf a malfunction occurs in the automatictransaxle while driving, the warning dis-play or the warni
ng display will appear
on the information screen in the multi-infor-mation display. In this case, immediat
ely park your vehicle
in a safe place and fo
llow these procedures:
When warning display is showingThe automatic transaxle fluid is overheating.Stop your vehicle in a
safe place, put the
selector lever in the
“P” position, and open
the engine hood with the engine running toallow the engine to c
ool down. After a while,
confirm that the warning display is nolonger showing. It is safe to continue drivingif the display is no longer showing. If thewarning display remain
s, contact an autho-
rized Mitsubishi Motors
dealer or a repair
facility of your c
hoice immediately.
When warning display is showingIt may be that there is something unusualhappening in the automa
tic transaxle, caus-
ing a safety device to
activate. Have your
vehicle inspected by an
authorized Mitsubi-
shi Motors dealer or a
repair facility of your
choice immediately.
Selector lever positions

“P” PARK

“R” REVERSE

CAUTIONNever shift into the “P” (PARK) or “R”motion. If the lever is shifted into the “P”the vehicle is in moti
on, the transaxle may be
damaged.
“N” NEUTRAL

BK0249100US.book 71 ページ ２０１７年５月１０日　水曜日　午前８時４９分

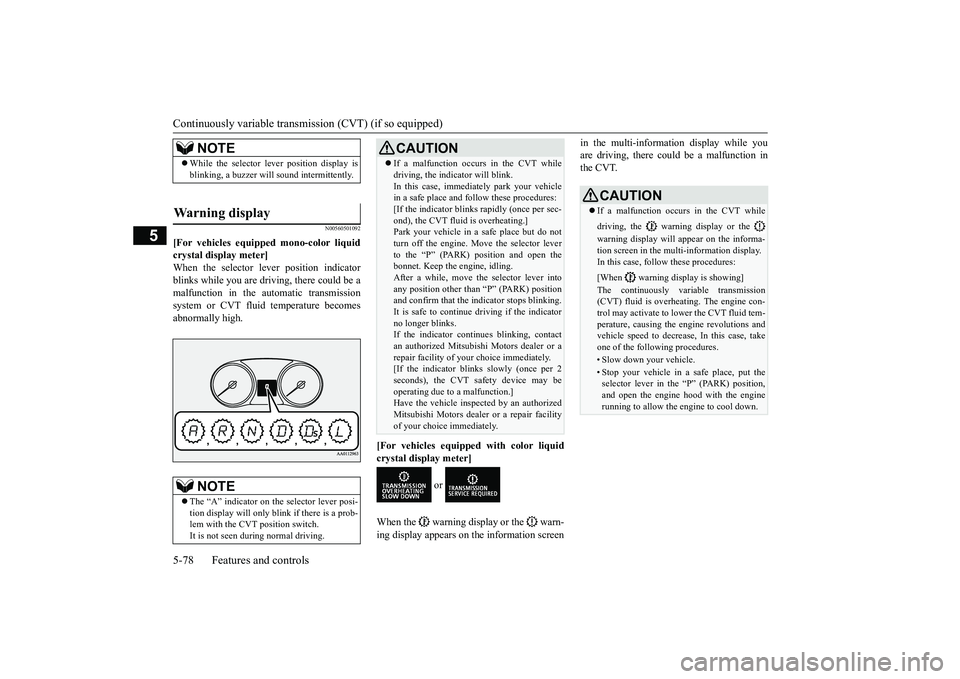

Continuously variable transmission (CVT) (if so equipped)5-78 Features and controls
5
N00560501092
[For vehicles equipped mono-color liquidcrystal display meter]When the selector le
ver position indicator
blinks while you are driving, there could be amalfunction in the automatic transmissionsystem or CVT fluid temperature becomesabnormally high.
[For vehicles equipped with color liquidcrystal display meter]
or
When the warning display or the warn-ing display appears on
the information screen
in the multi-information display while youare driving, there could be a malfunction inthe CVT.
NOTE
While the selector le
ver position display is
blinking, a buzzer will
sound intermittently.
Warning display

NOTE
The “A” indicator on th
e selector lever posi-
tion display will only blink if there is a prob-lem with the CVT position switch.It is not seen during normal driving.
CAUTIONIf a malfunction occurs in the CVT whiledriving, the indicator will blink.In this case, immediat
ely park your vehicle
in a safe place and follow these procedures:[If the indicator blinks
rapidly (once per sec-
ond), the CVT fluid is overheating.]Park your vehicle in
a safe place but do not
turn off the engine. M
ove the selector lever
to the

Electric power steering system (EPS)
Features and controls 5-99
5
The anti-lock braking system and brake forcedistribution function ma
y not work, so hard
braking could make the vehicle unstable.Avoid hard braking and high-speed driving.Stop the vehicle in a safe place and contact anauthorized Mitsubishi Mo
tors dealer or repair
facility of your choice.
N00529201090
After driving on snow or icy roads, removeany snow and ice which may have be leftaround the wheels. On vehicles that have ananti-lock braking syst
em, be careful not to
damage the wheel spee
d sensors (A) or the
cables located at each wheel.
N00568401084
The power steering system operates while theengine is running. It helps reduce the effortneeded to turn the steering wheel.The power steering sy
stem has mechanical
steering capability in case the power assist islost. If the power assist is lost for some rea-son, you will still be able to steer your vehi-cle, but you will notice it takes much moreeffort to steer. If this happens, have your vehi-cle inspected at an authorized MitsubishiMotors dealer or a repair facility of yourchoice.
Warning lamp
NOTE
The anti-lock braking
system warning light
and brake warning light illuminate at thesame time and the wa
rning displays appear
alternately on the information screen in themulti-information display.
After driving on icy roads
Electric power steering sys-tem (EPS) Front Rear
WA R N I N GDo not stop the engine while the vehicle ismoving. Stopping the engine would makethe steering wheel extremely hard to turn,possibly resulting
in an accident.
NOTE
During repeated full-lock turning of thesteering wheel (for example, while you aremanoeuvring the vehicle into a parkingspace), a protection f
unction may be acti-
vated to prevent overheating of the powersteering system. This f
unction will make the
steering wheel graduall
y harder to turn. In
this event, limit your turning of the steeringwheel for a while. When the system hascooled down, the steering effort will returnto normal.If you turn the steering wheel while the vehi-cle is stationary with the headlights on, theheadlights may become
dim. This behavior
is not abnormal. The he
adlights will return to
their original brightness after a short while.
Electric power steering system warning display
BK0249100US.book 99 ページ ２０１７年５月１０日　水曜日　午前８時４９分

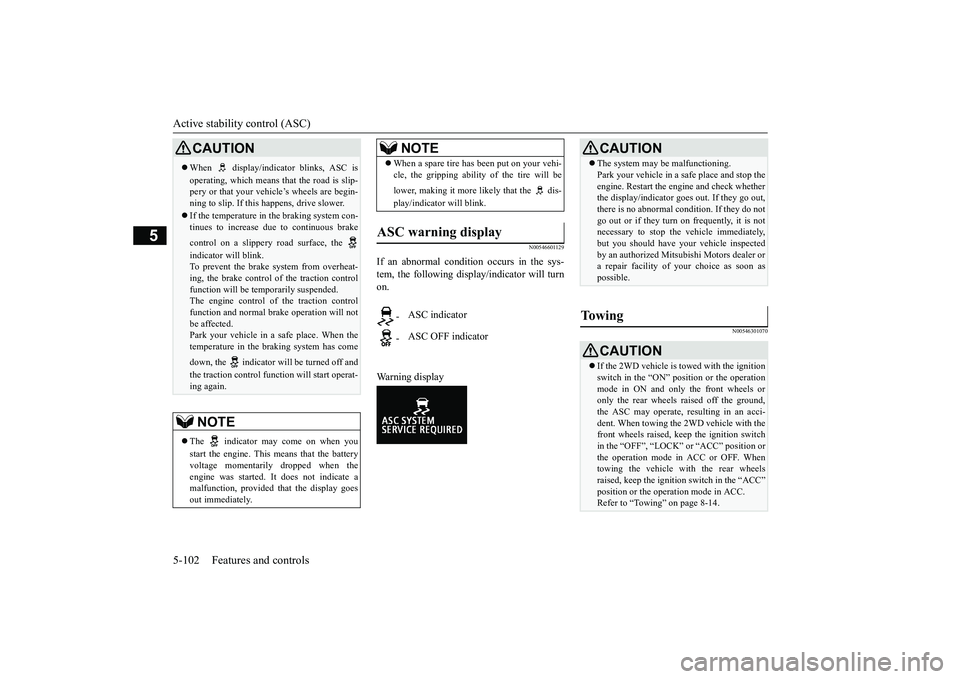

Active stability control (ASC)
5
N00546601129
If an abnormal condition occurs in the sys-tem, the following disp
lay/indicator will turn
on.Warning display
N00546301070
CAUTIONWhen display/indicator blinks, ASC isoperating, which means that the road is slip-pery or that your vehi
cle’s wheels are begin-
ning to slip. If this happens, drive slower.If the temperature in the braking system con-tinues to increase due
to continuous brake
control on a slippery
road surface, the
indicator will blink.To prevent the brake system from overheat-ing, the brake control
of the traction control
function will be tem
porarily suspended.
The engine control of the traction controlfunction and normal brake operation will notbe affected.Park your vehicle in a safe place. When thetemperature in the braking system has comedown, the indicator will be turned off andthe traction control func
tion will start operat-
ing again.NOTE
The indicator may come on when youstart the engine. This means that the batteryvoltage momentarily dropped when theengine was started. It
does not indicate a
malfunction, provided th
at the display goes
out immediately.
When a spare tire has been put on your vehi-cle, the gripping ability of the tire will belower, making it more likely that the dis-play/indicator will blink.
ASC warning display
-
ASC indicator
-
ASC OFF indicatorNOTE
CAUTIONThe system may be malfunctioning.Park your vehicle in a
safe place and stop the
engine. Restart the engi
ne and check whether
the display/indicator goe
s out. If they go out,
there is no abnormal condition. If they do notgo out or if they turn on frequently, it is notnecessary to stop the
vehicle immediately,
but you should have your vehicle inspectedby an authorized Mitsubishi Motors dealer ora repair facility of
your choice as soon as
possible.
To w i n g
CAUTIONIf the 2WD vehicle is to
wed with the ignition
switch in the “ON” pos
ition or the operation
mode in ON and only the front wheels oronly the rear wheels raised off the ground,the ASC may operate, resulting in an acci-dent. When towing the 2WD vehicle with thefront wheels raised, keep the ignition switchin the “OFF”, “LOCK” or “ACC” position orthe operation mode in ACC or OFF. Whentowing the vehicle with the rear wheelsraised, keep the ignition switch in the “ACC”Refer to “Towing” on page 8-14.
BK0249100US.book 102 ページ ２０１７年５月１０日　水曜日　午前８時４９分
