2018 MERCEDES-BENZ S-CLASS SEDAN Owner's Manual

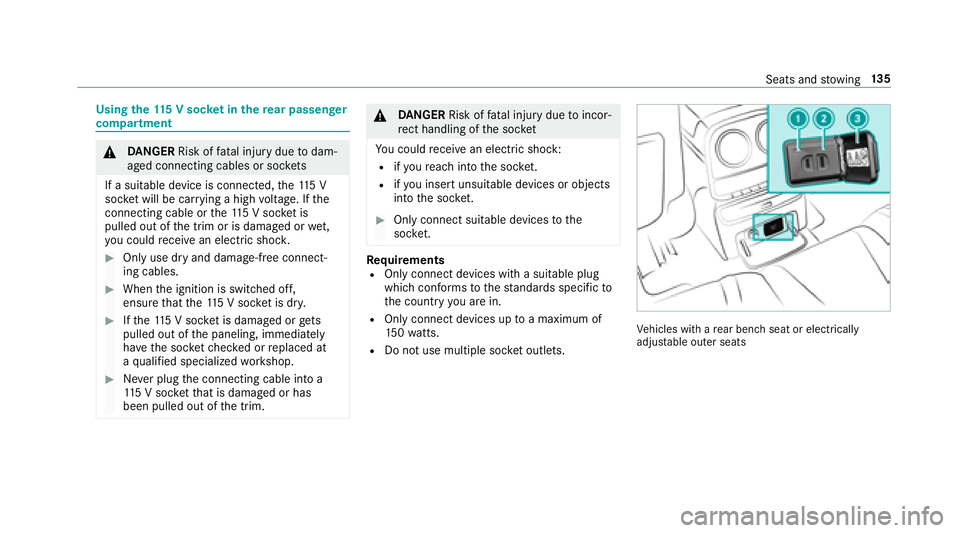

Usingthe11 5 V soc ket in the rear passenger
co mp artment
&
DANG ER Risk of fata l injury due todam‐
aged connecting cables or soc kets
If a suitable device is connected, the11 5 V
soc ket will be car rying a high voltage. If the
connecting cable or the11 5 V soc ket is
pulled out of the trim or is damaged or wet,
yo u could receive an electric shoc k.
#Only use dry and damage-free connect‐
ing cables.
#Whenthe ignition is switched off,
ensure that the11 5 V soc ket is dr y.
#Ifth e11 5 V soc ket is damage d orgets
pulled out of the paneling, immediately
ha ve the soc ketch ecked or replaced at
a qu alified specialized workshop.
#Ne ver plug the connecting cable into a
11 5 V soc ketth at is damaged or has
been pulled out of the trim.
&
DANG ER Risk of fata l injury due toincor‐
re ct handling of the soc ket
Yo u could receive an electric shock:
Rifyo ure ach into the soc ket.
Rifyo u insert unsuitable devices or objects
into the soc ket.
#Only connect suitable devices tothe
soc ket.
Re quirementsROnly connect devices with a suitable plug
which con form sto thest andards specific to
th e country you are in.
ROnly connect device s uptoa maximum of
15 0wa tts.
RDo not use multiple soc ket outlets.
Ve hicles with a rear bench seat or electrically
adjus table outer seats
Seats and stowing 13
5

Vehicles with individual rear seats
#Open flap 3.
#Insert the plug of the device into 115 V
soc ket2.
When the on-board electrical sy stem voltage
is suf ficient, indicator la mp1lights up.
Using the12 V sock etinthe trunk
Re quirements:ROnly connect devices up toa maximum of
18 0wa tts (15 A).
#Lift up cap 1ofthe soc ket and insert the
plug of the device.
USB port in there ar passenger co mpartment
Vehicles with a rear bench seat or electrically
adjus table outer seats
13 6
Seats and stowing

Vehicles with individual rear seats
Yo u can charge a USB device, e.g. a mobile
phone, at USB ports 1using a suitable charg‐
ing cable. The devices can be charge d with 5 V
(2.1 A) and when the ignition is switched on.
Re frigerator box
Using there frigerator box
&
WARNING Risk offire due toa co vered
ve nt grille on there frigerator box
If yo u co verth eve nt grille forth ere frigerator
box, it may overheat.
#Alw ays make sure that theve nt grille is
not co vered.
The vent grille forth ere frigerator box is in the
trunk.
The refrigerator box can bear a maximum load of
7. 7 lb (3.5 kg).
St ore only plastic bottles in the upper compart‐
ment of there frigerator box. The contents of the
bottle must be no more than 17 fl. oz. (0.5 l).
If yo u do not need touse there frigerator box for
an extended pe riod you should switch it off,
defrost it and clean it. Af ter doing so, lea vethe
lid open for a time. The
refrigerator box reduces its cooling capacity
or switches off in thefo llowing cases:
Rto o many electrical consumers are turned on
Rth est ar ter battery is not suf ficiently charge d
If th is is the case, the indicator lamps flash in
th e button toswitch there frigerator box on and
off. The cooling function will au tomatically
switch back on as soon as there is suf ficient
vo ltage.
Seats and stowing 13
7

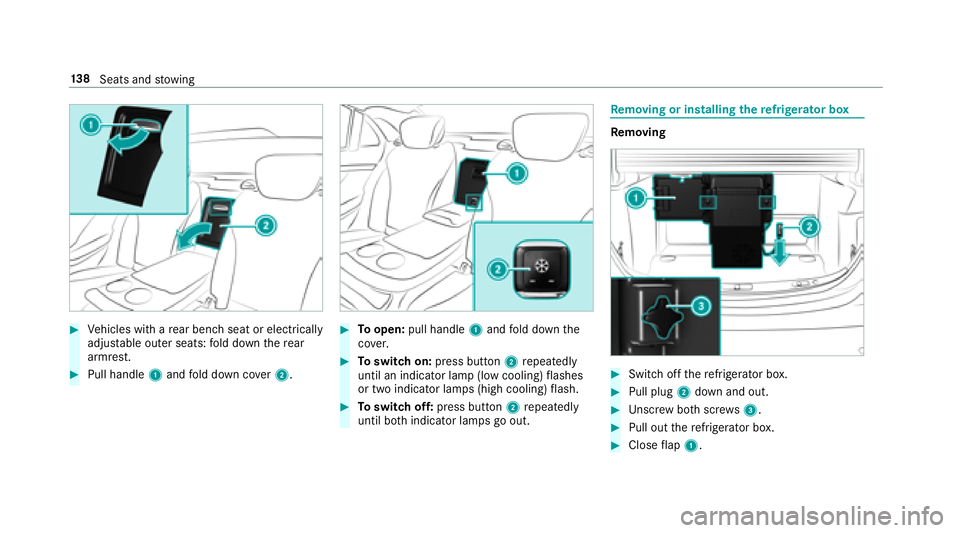

#Vehicles with a rear bench seat or electrically
adjus table outer seats: fold down there ar
armrest.
#Pull handle 1and fold down co ver2.
#To open: pull handle 1and fold down the
co ver.
#To switch on: press button 2repeatedly
until an indicator lamp (low cooling) flashes
or two indicator lamps (high cooling) flash.
#To switch off: press button 2repeatedly
until bo thindicator lamps go out.
Re moving or in stalling there frigerator box
Re moving
#Switch off there frigerator box.
#Pull plug 2down and out.
#Unscr ew both scr ews3.
#Pull out there frigerator box.
#Close flap 1.
138
Seats and stowing

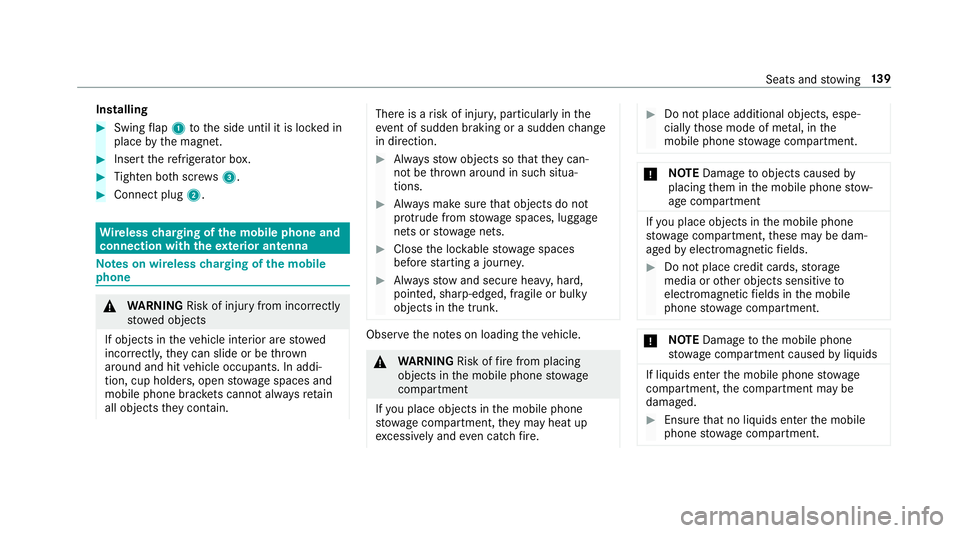

Installing
#Swingflap 1 tothe side until it is loc ked in
place bythe magnet.
#Insert there frigerator box.
#Tighten bo thscr ews3.
#Connect plug 2.
Wirelesscharging of the mobile phone and
connection with theex terior antenna
Note s on wireless charging of the mobile
phone
& WARNING Risk of injury from incorrectly
stowe d objects
If objects in theve hicle interior are stowed
incor rectly, they can slide or be throw n
around and hit vehicle occupants. In addi‐
tion, cup holders, open stowage spaces and
mobile phone brac kets cann otalw aysre tain
all objects they contain.
There is arisk of injur y,particularly in the
ev ent of sudden braking or a sudden change
in direction.
#Alw aysstow objects so that they can‐
not be throw n around in such situa‐
tions.
#Alw ays make sure that objects do not
pr otru de from stowage spaces, luggage
nets or stowage nets.
#Close the loc kable stow age spaces
before starting a journe y.
#Alwaysstow and secure heavy, hard,
pointe d, sharp-edged, fragile or bulky
objects in the trunk.
Obser vethe no tes on loading theve hicle.
&
WARNING Risk offire from placing
objects in the mobile phone stowage
compartment
If yo u place objects in the mobile phone
stow age compartment, they may heat up
exc essively and even catch fire .
#Do not place additional objects, espe‐
cially those mode of me tal, in the
mobile phone stowage compartment.
* NO
TEDama getoobjects caused by
placing them in the mobile phone stow‐
age compartment
If yo u place objects in the mobile phone
stow age compartment, these may be dam‐
aged byelectromagnetic fields.
#Do not place credit cards, storage
media or other objects sensitive to
electromagnetic fields in the mobile
phone stowage compartment.
* NO
TEDama getothe mobile phone
stow age compartment caused byliquids
If liquids enter the mobile phone stowage
compartment, the compartment may be
damaged.
#Ensure that no liquids enter the mobile
phone stowage compartment.
Seats and stowing 13
9

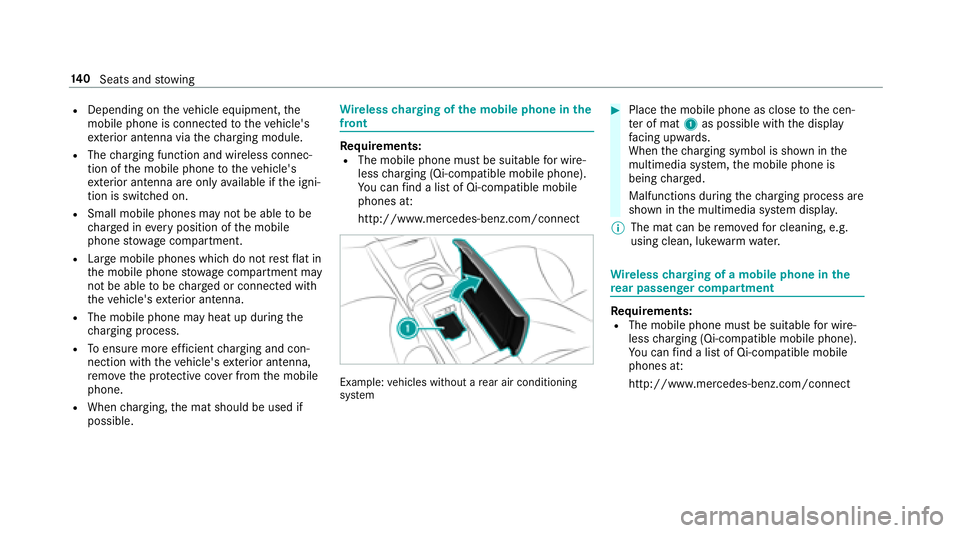

RDepending ontheve hicle equipment, the
mobile phone is connected totheve hicle's
ex terior antenna via thech arging module.
RThe charging function and wireless connec‐
tion of the mobile phone totheve hicle's
ex terior antenna are only available if the igni‐
tion is switched on.
RSmall mobile phones may not be able tobe
ch arge d in every position of the mobile
phone stowage compartment.
RLargemobile phones which do not rest flat in
th e mobile phone stowage compartment may
not be able tobe charge d or connec ted with
th eve hicle's exterior antenna.
RThe mobile phone may heat up during the
ch arging process.
RTo ensure more ef ficient charging and con‐
nection with theve hicle's exterior antenna,
re mo vethe pr otective co ver from the mobile
phone.
RWhen charging, the mat should be used if
possible.
Wire lesscharging of the mobile phone in the
front
Re quirements:RThe mobile phone must be suitable for wire‐
less charging (Qi-compatible mobile phone).
Yo u can find a li stof Qi-compatible mobile
phones at:
http://www.mercedes-benz.com/connect
Example: vehicles without a rear air conditioning
sy stem
#Place the mobile phone as close tothe cen‐
te r of mat 1as possible with the display
fa cing up wards.
When thech arging symbol is shown in the
multimedia sy stem, the mobile phone is
being charge d.
Malfunctions during thech arging process are
shown in the multimedia sy stem displa y.
% The mat can be remo vedfo r cleaning, e.g.
using clean, luk ewarmwate r.
Wire lesscharging of a mobile phone in the
re ar passenger co mpartment
Requirements:RThe mobile phone must be suitable for wire‐
less charging (Qi-compatible mobile phone).
Yo u can find a li stof Qi-compatible mobile
phones at:
http://www.mercedes-benz.com/connect
14 0
Seats and stowing

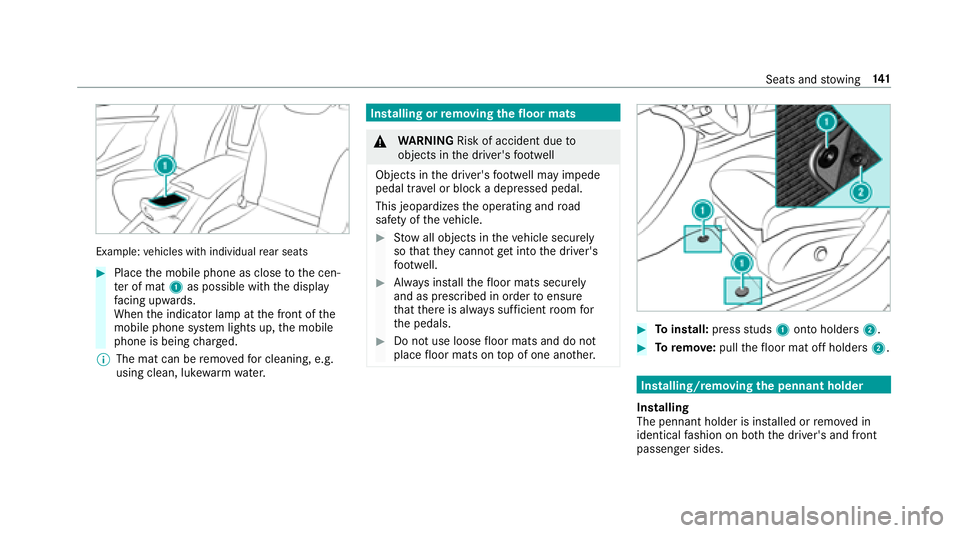

Example:vehicles with individual rear seats
#Place the mobile phone as close tothe cen‐
te r of mat 1as possible with the display
fa cing up wards.
When the indicator lamp at the front of the
mobile phone sy stem lights up, the mobile
phone is being charge d.
% The mat can be remo vedfo r cleaning, e.g.
using clean, luk ewarmwate r.
Installing or removing the floor mats
&
WARNING Risk of accident due to
objects in the driver's foot we ll
Objects in the driver's foot we ll may impede
pedal tr avel or block a depressed pedal.
This jeopardizes the operating and road
saf etyof theve hicle.
#Stow all objects in theve hicle securely
so that they cannot getinto the driver's
fo ot we ll.
#Alw ays ins tallth efloor mats securely
and as prescribed in order toensure
th at there is alw ays suf ficient room for
th e pedals.
#Do not use loose floor mats and do not
place floor mats on top of one ano ther.#To install: pressstuds 1onto holders 2.
#Toremo ve:pull thefloor mat off holders 2.
Installing/removing the pennant holder
Installing
The pennant holder is ins talled or remo ved in
identical fashion on bo th the driver's and front
passenger sides.
Seats and stowing 14
1

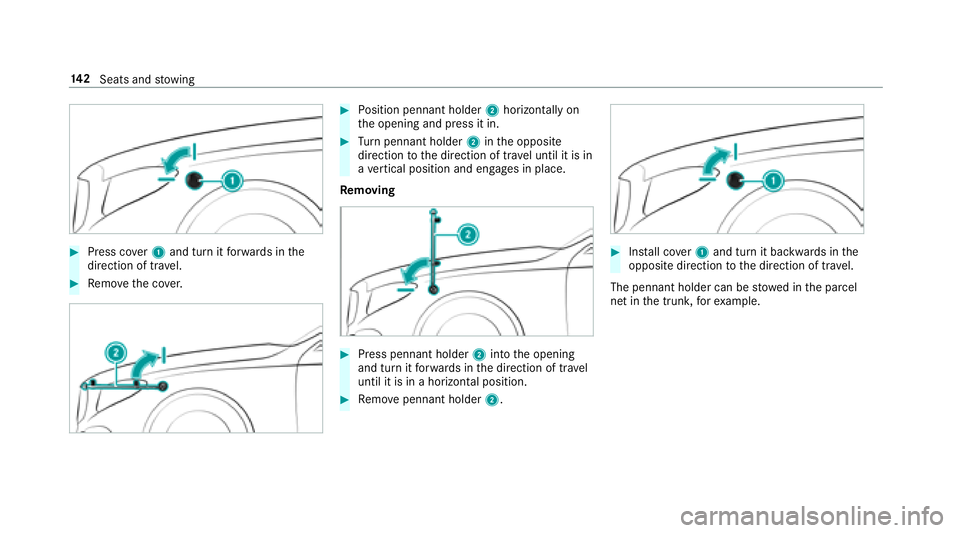

#Press cover1 and turn it forw ards in the
direction of tra vel.
#Re mo vethe co ver.
#Po sition pennant holder 2horizontally on
th e opening and press it in.
#Tu rn pennant holder 2inthe opposite
direction tothe direction of tra vel until it is in
a ve rtical position and engages in place.
Re moving
#Press pennant holder 2into the opening
and turn it forw ards in the direction of tr avel
until it isin a horizontal position.
#Re mo vepennant holder 2.
#Install co ver1 and turn it backwards in the
opposite direction tothe direction of tra vel.
The pennant holder can be stowed inthe parcel
net in the trunk, forex ample.
