2018 MERCEDES-BENZ CLA ESP

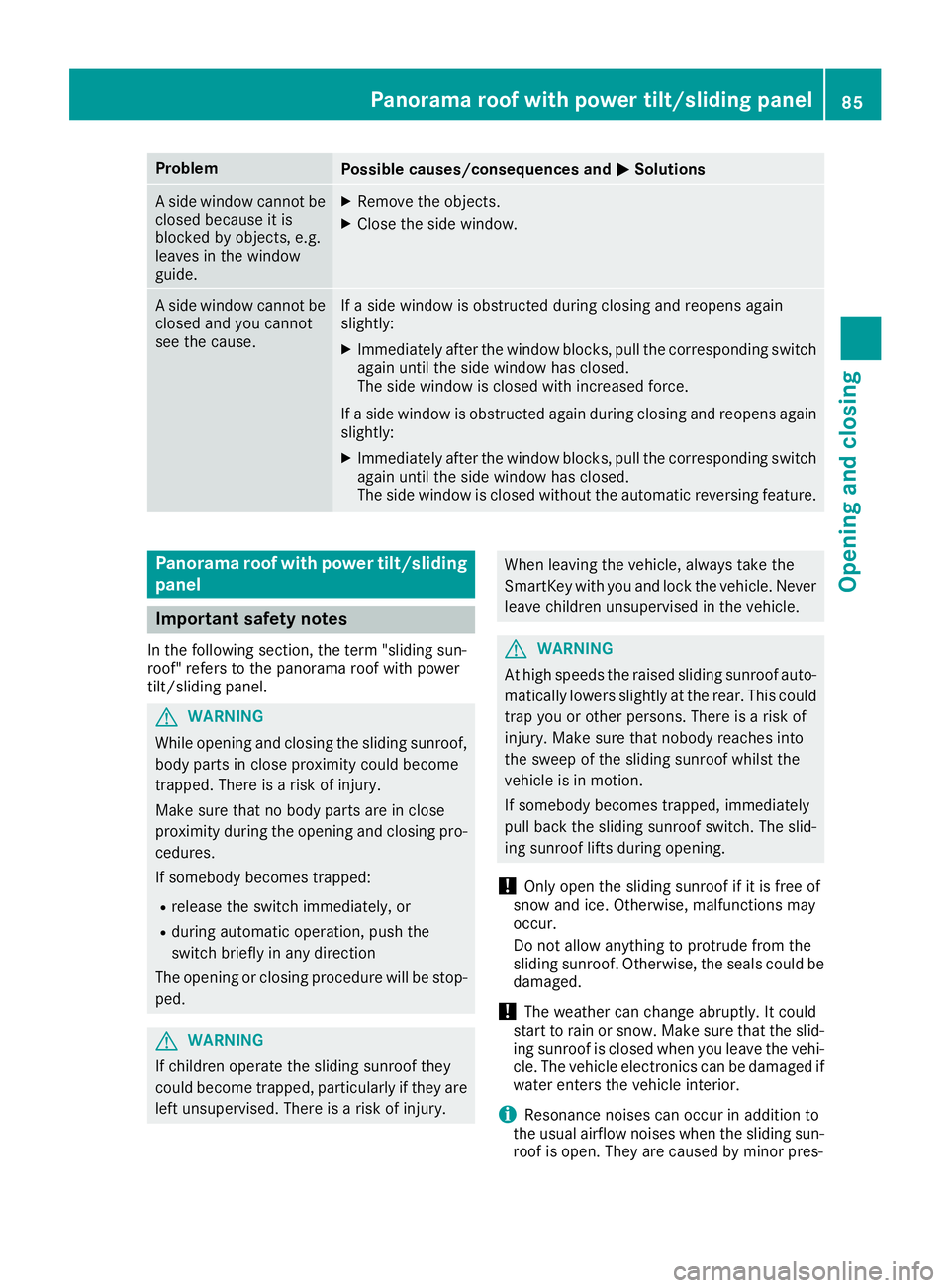

Problem
Possible causes/consequences and P Solutions
As ide window cannot be
closed because it is
blocked by objects, e.g.
leaves in the window
guide. X
Remove the objects. X
Close the side window.
As ide window cannot be
closed and you cannot
see the cause. If as ide window is obstructed during closing and reopens again
slightly: X
Immediately after the window blocks, pull the correspondin gs witch
again until the side window has closed.
The side window is closed with increased force.
If as ide window is obstructed again during closing and reopens again
slightly: X
Immediately after the window blocks, pull the correspondin gs witch
again until the side window has closed.
The side window is closed without the automatic reversing feature.
Panoram ar oof with power tilt/sliding
panel
Important safety notes In the following section, the term "sliding sun-
roof" refers to the panorama roof with power
tilt/sliding panel.
G WARNING
While opening and closing the sliding sunroof,
body parts in close proximity could become
trapped. There is ar isk of injury.
Make sure that no body parts are in close
proximity during the opening and closing pro-
cedures.
If somebody becomes trapped: R
release the switch immediately, or R
during automatic operation, push the
switch briefly in any direction
The opening or closing procedure will be stop-
ped.
G WARNING
If children operate the sliding sunroof they
could become trapped, particularly if they are
left unsupervised. There is ar isk of injury. When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
G WARNING
At high speeds the raised sliding sunroof auto-
matically lowers slightly at the rear. This could
trap you or other persons. There is ar isk of
injury. Make sure that nobody reaches into
the sweep of the sliding sunroof whilst the
vehicle is in motion.
If somebody becomes trapped, immediately
pull back the sliding sunroof switch. The slid-
ing sunroof lifts during opening.
! Only open the sliding sunroof if it is free of
snow and ice. Otherwise, malfunctions may
occur.
Do not allow anything to protrude from the
sliding sunroof. Otherwise, the seals could be
damaged.
! The weather can change abruptly. It could
start to rain or snow. Make sure that the slid-
ing sunroof is closed when you leave the vehi-
cle. The vehicle electronics can be damaged if
water enters the vehicle interior.
i Resonance noises can occur in addition to
the usual airflow noises when the sliding sun-
roof is open. They are caused by minor pres-Panoram ar oof with power tilt/sliding panel 85
Opening and closing Z

sure fluctuations in the vehicle interior.
Change the position of the sliding sunroof or
open as ide window slightly to reduce or elim-
inate these noises.
Sliding sunroof reversing feature In the following section, the term "sliding sun-
roof" refers to the panorama roof with power
tilt/sliding panel.
The sliding sunroof is equipped with an auto-
matic reversing feature. If as olid object blocks
or restrict st he sliding sunroof during the closing
process, the sliding sunroof opens agai na uto-
matically .H owever, the automatic reversing
feature is only an aid and does not relieve you of
the responsibility of paying attention when clos-
ing the sliding sunroof.
G WARNING
The reversing feature does not react: R
to soft, light and thin objects, e.g. small fin-
gers R
over the last 1/6 in (4 mm) of the closing
movement R
during resetting R
when closing the sliding sunroof agai nm an-
ually immediately after automatic reversing
This means that the reversing feature cannot
prevent someone being trapped in these sit-
uations. There is ar isk of injury.
Make sure that no body parts are in close
proximity during the closing procedure.
If somebody becomes trapped: R
release the switch immediately ,o rR
press the switch in any direction during the
automatic closing process
The closing process is stopped. Operating the panoram ar oof with
power tilt/sliding panel
Opening and closing
C
To raise D
To open

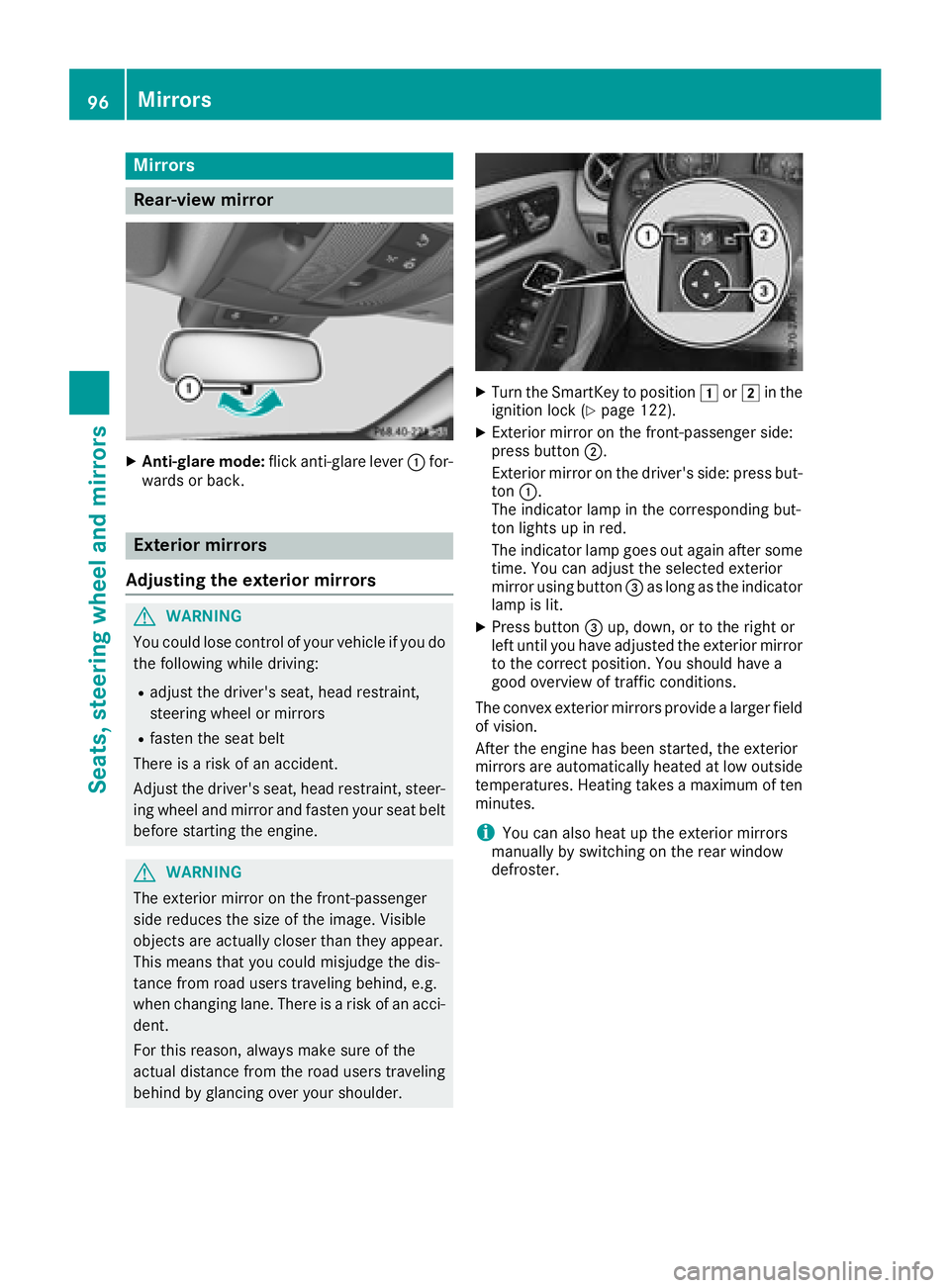

Mirrors
Rear-view mirror X
Anti-glare mode: flick anti-glare lever C for-
wards or back.
Exterior mirrors
Adjusting the exterior mirrors
G WARNING
You coul dl ose control of you rv ehicl eify ou do
the following while driving: R
adjust the driver's seat, hea dr estraint,
steering whee lorm irrorsR
fasten the seat belt
There is ar isk of an accident.
Adjust the driver's seat, hea dr estraint, steer-
ing whee la nd mirror and fasten you rs eat belt
before starting the engine.
G WARNING
The exterior mirror on the front-passenger
side reduces the size of the image. Visible
objects are actually closer than they appear.
This means that you coul dm isjudge the dis-
tance from road users traveling behind, e.g.
when changing lane .T here is ar isk of an acci-
dent.
For this reason, alway sm ake sure of the
actua ld istance from the road users traveling
behind by glancing over you rs houlder. X
Turn the SmartKey to position G or H in the
ignitio nl ock ( Y
pag e1 22).X
Exterior mirror on the front-passenger side:
press button D .
Exterior mirror on the driver's side :p ress but-
ton C .
The indicator lamp in the corresponding but-
ton lights up in red.
The indicator lamp goes out again after some
time. You can adjust the selected exterior
mirror using button

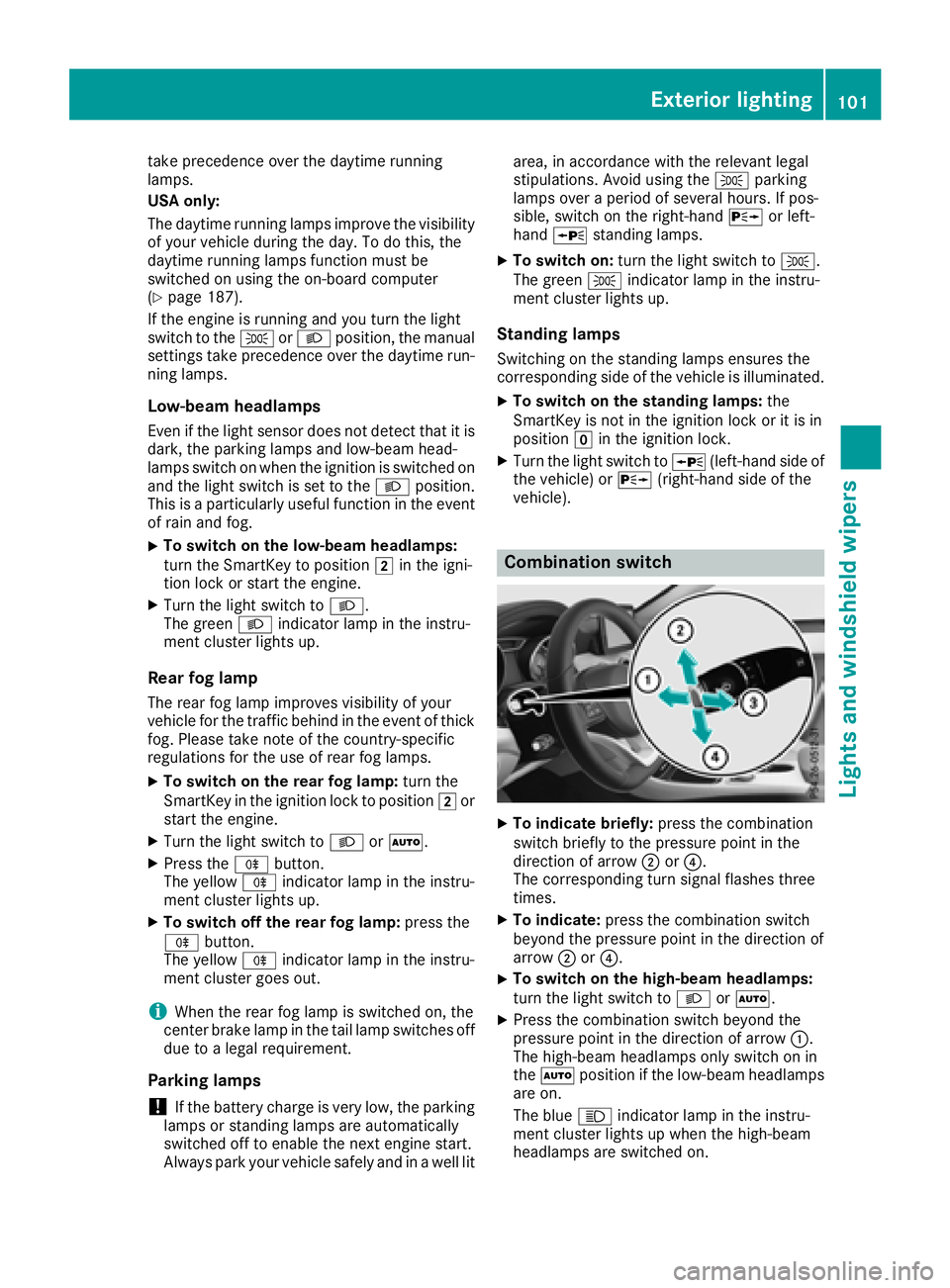

take precedence ove rt he daytime running
lamps.
US Ao nly:
The daytime running lamps improve the visibility
of your vehicl ed ur in gt he day. To do this, the
daytime running lamps functio nm us tb e
switched on using the on-board computer
( Y
page 187).
If the engine is running and yo ut ur nt he light
switch to the ` or X position, the manual
setting st ake precedence ove rt he daytime run-
ning lamps.
Low-beam headlamps Even if the light senso rd oe sn ot detect tha titi s
dark, the parking lamps and low-bea mh ead-
lamps switch on when the ignition is switched on
and the light switch is se ttot he X position.
Thi sisa particularly usefu lf un ctio nint he event
of rain and fog. X
To switc ho nt he low-beam headlamps:
tur nt he SmartKe ytop osit ion H in the igni-
tio nl oc kors tart the engine.X
Turn the light switch to X .
The green X indicator lamp in the instru-
ment cluste rl ig hts up.
Rea rf og lampThe rea rf og lamp improves visibility of your
vehicl ef or the traffi cb ehin dint he event of thick
fog .P leas et ake note of the country-specific
regulations for the us eofr ea rf og lamps.X
To switc ho nt he rear fo gl amp: tur nt he
SmartKe yint he ignition lock to position H or
s tart
the engine.X
Turn the light switch to X or X .X
Press the ^ button.
The yellow ^ indicator lamp in the instru-
ment cluste rl ig hts up.X
To switc ho ff the rear fo gl amp: press the
^ button.
The yellow ^ indicator lamp in the instru-
ment cluste rg oe so ut .
i When the rea rf og lamp is switched on, the
cente rb rake lamp in the tai ll am ps wi tches off
du etoal egal requirement.
Parkin gl amps
! If the battery charge is ver yl ow ,t he parking
lamps or standing lamps ar ea ut omatically
switched off to enabl et he next engine start.
Alway sp ar ky ou rv ehicl es af el ya nd in aw el ll it area ,ina ccordance with the relevant legal
stipulations. Avoi du si ng the ` parking
lamps ove rap er io dofs ev eral hours. If pos-
sible, switch on the right-hand d or left-
hand c standing lamps. X
To switc ho n: tur nt he light switch to ` .
Th eg reen ` indicator lamp in the instru-
ment cluste rl ig hts up.
Standin gl ampsSwitching on the standing lamps ensures the
corresponding side of the vehicl eisi llumin ated.X
To switc ho nt he standin gl amps: the
SmartKe yisn ot in the ignition lock or it is in
position Z in the ignition lock. X
Turn the light switch to c (left-hand side of
the vehi cle) or d (
right-hand side of the
vehicle).
Combination switch
X
To indicate briefly: press the combination
switch briefl ytot he pressure point in the
directio nofa rr ow D or

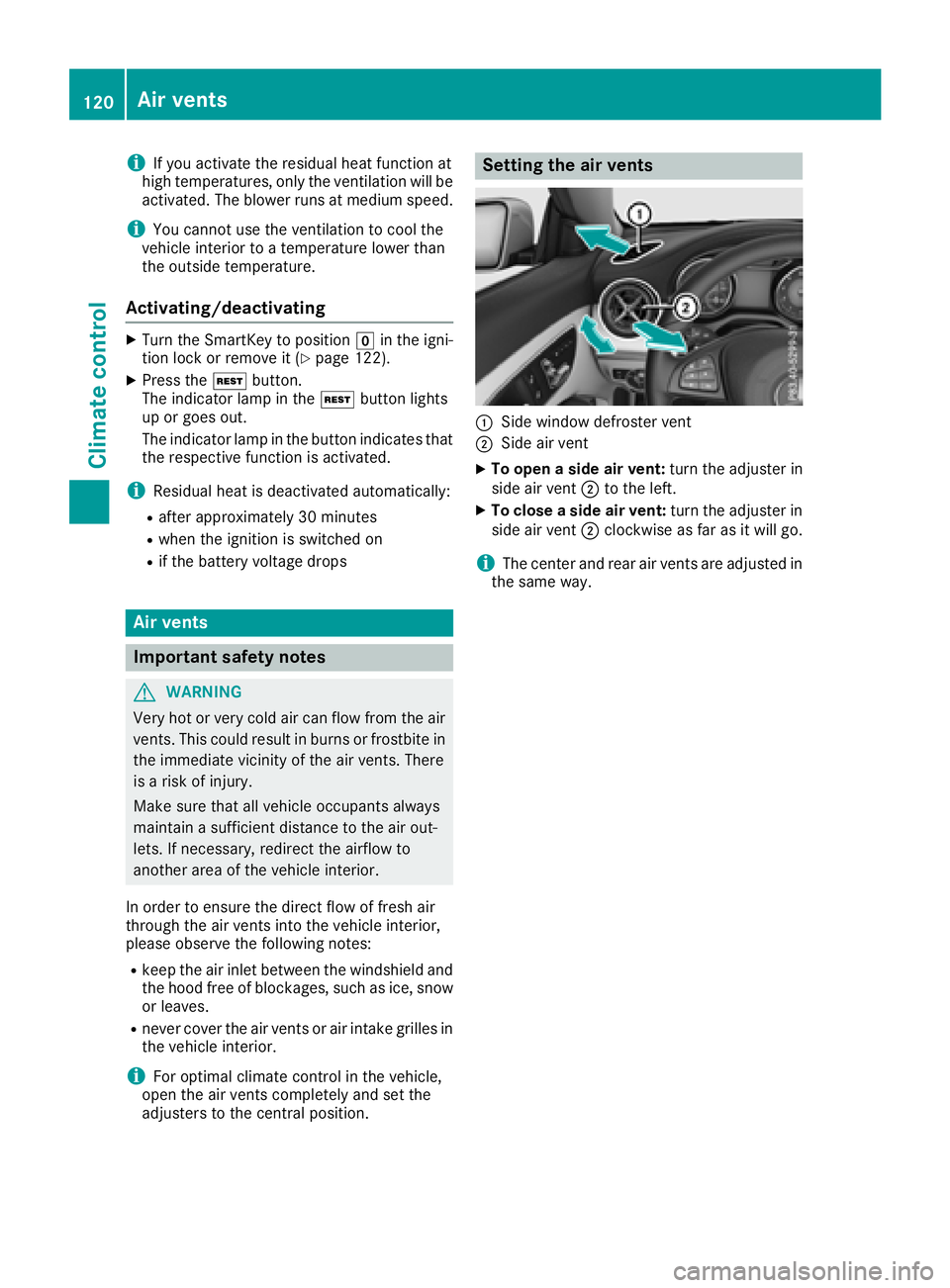

i If you activate the residual heat function at
high temperatures, only the ventilation wil lb e
activated. The blower runs at mediu ms peed.
i You cannot use the ventilation to cool the
vehicle interior to at emperature lowe rt han
the outsid et emperature.
Activating/deactivating X
Turn the SmartKey to position Z in the igni-
tion lock or remove it ( Y
page 122).X
Press the K button.
The indicator lamp in the K button lights
up or goes out.
The indicator lamp in the button indicates that
the respective function is activated.
i Residua lh eat is deactivated automatically:R
after approximately 30 minutes R
when the ignition is switched on R
if the battery voltage drops
Air vents
Important safety notes
G WARNING
Very hot or very cold air can flow from the air
vents. This could resul tinb urns or frostbite in
the immediate vicinity of the air vents. There
is ar isk of injury.
Make sure that all vehicle occupants always
maintain as ufficient distance to the air out-
lets. If necessary ,r edirect the airflow to
another area of the vehicle interior.
In order to ensure the direct flow of fresh air
through the air vents into the vehicle interior,
please observe the following notes: R
keep the air inlet between the windshield and
the hood free of blockages, such as ice, snow
or leaves. R
never cover the air vents or air intake grilles in
the vehicle interior.
i For optimal climate control in the vehicle,
open the air vents completely and set the
adjusters to the central position. Setting the air vents
C
Side window defroster vent D
Side air vent X
To open as ide air vent: turn the adjuster in
side air vent D to the left. X
To close as ide air vent: turn the adjuster in
side air vent D clockwise as far as it wil lg o.
i The center and rear air vents are adjusted in
the same way.120
Ai rv ents
Climate control

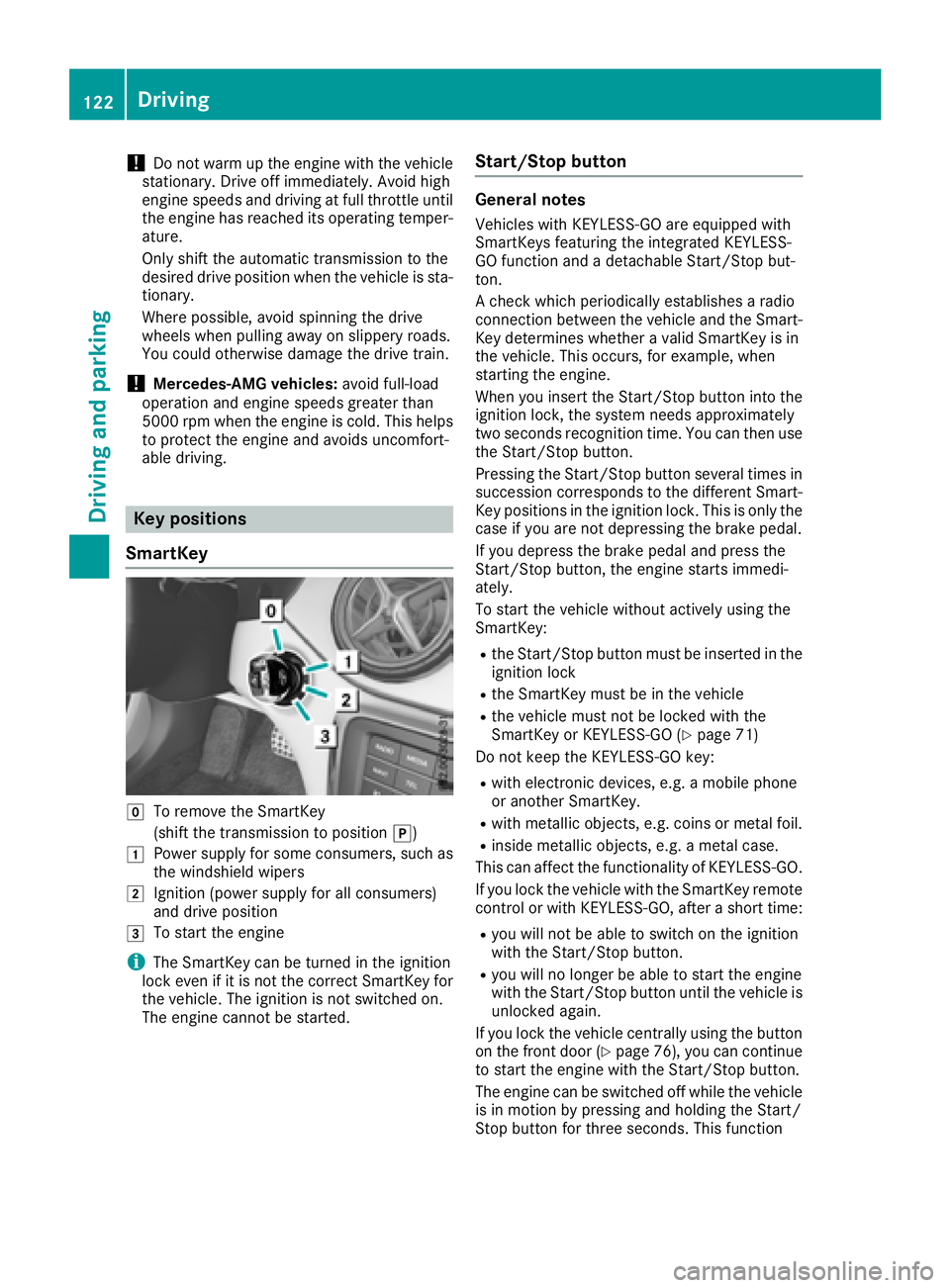

! Do not warm up the engine with the vehicle
stationary. Drive off immediately .A void high
engine speeds and driving at full throttle until
the engine has reached its operating temper-
ature.
Only shift the automatic transmission to the
desired drive position when the vehicle is sta-
tionary.
Where possible ,a void spinning the drive
wheels when pulling awa yons lippery roads.
You could otherwise damage the drive train.
! Mercedes-AMG vehicles: avoid full-load
operation and engine speeds greater than
5000 rpm when the engine is cold. This helps
to protect the engine and avoids uncomfort-
able driving.
Key positions
SmartKey
Z
To remove the SmartKey
(shift the transmission to position ] )G
Power suppl yf or some consumers, such as
the windshiel dw ipersH
Ignition (power suppl yf or all consumers)
and drive position
I
To start the engine
i The SmartKey can be turned in the ignition
lock even if it is not the correct SmartKey for
the vehicle. The ignition is not switched on.
The engine cannot be started. Start/Stop button General notes Vehicles with KEYLESS-GO are equipped with
SmartKeys featuring the integrated KEYLESS-
GO function and ad etachable Start/Stop but-
ton.
Ac heck which periodically establishes ar adio
connection between the vehicle and the Smart-
Key determines whether av alid SmartKey is in
the vehicle. This occurs, for example, when
starting the engine.
When you insert the Start/Stop button into the
ignition lock, the system needs approximately
two seconds recognition time. You can then use
the Start/Stop button.
Pressing the Start/Stop button several times in
succession corresponds to the different Smart-
Key positions in the ignition lock. This is only the
case if you are not depressing the brake pedal.
If you depress the brake pedal and press the
Start/Stop button, the engine starts immedi-
ately.
To start the vehicle without actively using the
SmartKey: R
the Start/Stop button must be inserted in the
ignition lock R
the SmartKey must be in the vehicle R
the vehicle must not be locked with the
SmartKey or KEYLESS-GO ( Y
page 71)
Do not keep the KEYLESS-GO key: R
with electronic devices, e.g. am obile phone
or another SmartKey. R
with metallic objects, e.g. coins or metal foil. R
inside metallic objects, e.g. am etal case.
This can affect the functionality of KEYLESS-GO.
If you lock the vehicle with the SmartKey remote
control or with KEYLESS-GO, after as hort time:R
you will not be able to switch on the ignition
with the Start/Stop button. R
you will no longer be able to start the engine
with the Start/Stop button until the vehicle is
unlocked again.
If you lock the vehicle centrally using the button
on the front door ( Y
page 76), you can continue
to start the engine with the Start/Stop button.
The engine can be switched off while the vehicle
is in motion by pressing and holding the Start/
Stop button for three seconds. This function122
Driving
Driving and parking

Problem
Possible causes/consequences and P Solutions
The engine does not
start. You cannot hear
the starter motor. The on-board voltage is too low because the battery is too weak or
discharged. X
Jump-start the vehicle ( Y
page 278).
If the engine does not start despite attempt stoj ump-start it:X
Consult aq ualified specialist workshop.
The starter motor was exposed to at hermal load that was too high.X
Allow the starter motor to cool down for approximately two minutes. X
Try to start the engine again.
If the engine still does not start: X
Consult aq ualified specialist workshop.
The engine is not running
smoothly and is misfir-
ing. There is am alfunction in the engine electronics or in am echanical
componen toft he engine management system.X
Only depress the accelerator pedal slightly.
Otherwise, non-combusted fuel may get into the catalytic converter
and damage it. X
Have the cause rectified immediately at aq ualified specialist work-
shop.
The coolant temperature
gauge shows av alue
above 248 ‡( 120 †).
The coolant warning
lamp may also be on and
aw arning tone may
sound. The coolant level is too low. The coolant is too hot and the engine is no
longer being cooled sufficiently. X
Stop as soon as possible and allow the engine and the coolant to
cool down. X
Check the coolant level ( Y
page 260). Observe the warning notes
as you do so and add coolant if necessary.
DYNAMIC SELEC Tb utton (all vehicles
except Mercedes-AMG vehicles) Use the DYNAMIC SELECT button to change the
drive program. Depending on the drive program
selected the following vehicle characteristics
will change: R
the drive (engine and transmission manage-
ment) R
the suspension (vehicles with damping sys-
tem or AMG adaptive sport suspension sys-
tem) R
the steering R
the availability of the ECO start/stop function R
the climate control:
Each time you start the engine with the Smart-
Key or the Start/Stop button, drive program C is
activated. For further information about starting
the engine, see ( Y
page 125). X
Press DYNAMIC SELECT button C as many
times as necessary until the desired drive
program is selected.
The selected drive program appears in the
multifunction display .A fter five seconds the
display goes out and the status icon of the
selected drive program appears.128
DYNAMIC SELECT button (all vehicles except Mercedes-AMG vehicles)
Driving and parking

In addition, the current drive program settings
are displaye db riefl yint he multimedia system
display.
i In af ew countries, the ECO start/stop func-
tion is deactivated at the factory due to the
available fuel grade .Int his case, the ECO
start/stop function is not available in any
drive program, regardless of the display in the
multimedia system display.
Available drive programs:
C Comfort Comfortable and economi-
cal driving characteristics
S Sport Sporty driving characteris-
tics
I Individual Individual settings
E Economy Particularly economical
driving characteristics
Additional information for drive programs
( Y
page 134).
You can also change gear yourself using the
steering wheel paddle shifters. For further infor-
mation on the manua ld rive program
( Y
page 136).
DYNAMIC SELECT controller
(Mercedes-AMG vehicles) Use the DYNAMIC SELECT controller to change
the drive program. Depending on the drive pro-
gram selected the following vehicle character-
istics wil lc hange:R
the drive R
the transmission management R
ESP ®
R
the suspension (vehicles with AMG adaptive
sport suspension system) R
the availability of the ECO start/stop function R
the availability of gliding mode
Each time you start the engine with the Smart-
Key or the Start/Stop button, drive program C is
activated. For further information abou ts tarting
the engine, see ( Y
page 125). X
Turn DYNAMIC SELECT controller C as many
times as necessary until the desire dd rive
program is selected.
The selected drive program appears in the
multifunction display. After five seconds the
display goes out and the status icon of the
selected drive program appears.
The drive program indicator on DYNAMIC
SELECT controller C lights up in red.
Available drive programs:
I Individual Individual settings
C Comfort Comfort-oriented, opti-
mum-economy engine and
transmission settings
S Sport Sporty engine and trans-
missio ns ettings
S+ Sport Plus Particularly sporty trans-
missio ns ettings
Race
Maximu ms portiness and
engine and transmission
settings suitable for the
racetrack
Additional information for drive programs
( Y
page 134).
You can also change gear yourself using the
steering wheel paddle shifters. For further infor-
mation on the manua ld rive program
( Y
page 136).DYNAMIC SELEC Tc on trolle r( Mercedes-AMG vehicles) 129
Driving and parking Z
