▼Blind Spot Monitoring (BSM)
Display
Displays the system status.

Refer to Blind Spot Monitoring (BSM) on
page 4-93.
▼Distance Recogn
ition Support
System (DRSS) Display*
Displays the distance between your
vehicle and the vehicle ahead.

Refer to Distance Recognition Support
System (DRSS) on page 4-105.
▼ Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) Display
*
Displays the currently set system status.

Refer to Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop &
Go function) on page 4-112.
When Driving
Instrument Cluster and Display
*Some models.4-25
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

▼Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Display
*
Displays the system status.

Refer to Lane-keep A
ssist System (LAS)
& Lane Departure Warning System
(LDWS) on page 4-125.
▼ Cruise Control Set Vehicle Speed
Display*
The vehicle speed preset using the cruise
control is displayed.

Refer to Cruise Con
trol on page 4-157.
▼Compass Display
The direction the vehicle is moving is
displayed in one of the eight cardinal
directions while the vehicle is being
driven.

Display
Direction
NN orth
SS ou th
EE ast
WW est
NE Northeast
NW Northwest
SE Southeast
SW Southwest
▼Warning (Display Indication)
A message is displayed to notify the user
of the system operation status and
malfunctions or abnormalities.
If the warning light
turns on/flashes
simultaneously or a symbol is indicated in
the display, check the information
regarding the warning light or symbol.
(page 4-30)
When only a message is displayed, refer to
Message Indicated i n Multi-information
Display. (page 7-38)
When Driving
Instrument Cluster and Display
4-26*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Active Driving Display*
Dust-proof sheet
Display
Optical
receiver
WA R N I N G
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as doing
so could distract your attention from the road ahead and lead to an accident.
CAUTION
 Do not place beverages near the active driving display. If water or other liquids are splashed
on the active driving displa y, it could cause damage.
 Do not place objects above the active driving display or apply stickers to the dust-proof
sheet/optical receiver as they will cause interference.
 A sensor is integrated to control the display's luminosity. If the optical receiver is covered,
the display's luminosity will lower making the display difficult to view.
 Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
NOTE
•Wearing polarized sunglasses will reduce the visibility of the active driving display due to
the characteristics of the display.
•If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate.
•The display may be difficult to view or temporarily affected by weather conditions such as
rain, snow, light, and temperature.
•If the audio system is removed, the active driving display cannot be operated.
When Driving
Instrument Cluster and Display
*Some models.4-27
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

The active driving display indicates the following information:
•Blind Spot Monitoring (BSM) Operation Conditions and Warnings
Refer to Blind Spot Monitoring (BSM) on page 4-93.
•Distance Recognition Support Sy stem (DRSS) Operation Conditions and Warnings
Refer to Distance Recognition Support System (DRSS) on page 4-1 05.
•Traffic Sign Recognition System (TSR) traffic signs and Warnings
Refer to Traffic Sign Recognition System (TSR) on page 4-99.
•Mazda Radar Cruise Control with S top & Go function (MRCC with Stop & Go function)
Operation Conditions and Warnings
Refer to Mazda Radar Cruise Con trol with Stop & Go function (MR CC with Stop & Go
function) on page 4-112.
•Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) Operation
Conditions and Warnings
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) on
page 4-125.
•Advanced Smart City Brake Support (Advanced SCBS) Warnings
Refer to Advanced Smart City Brake Support (Advanced SCBS) on p age 4-136.
•Smart City Brake Support (SCBS) Warnings
Refer to Smart City Brake Support (SCBS) on page 4-140.
•Smart Brake Support (SBS) Operation Conditions and Warnings
Refer to Smart Brake Support (SBS) on page 4-144.
•Cruise Control Operation Conditions
Refer to Cruise Control on page 4-157.
•Navigation Guidance (vehicles with navigation system)
•Speed limit indicator (vehicles with navigation system)
•Vehicle Speed
When Driving
Instrument Cluster and Display
4-28
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Each setting/adjustment for the active driving display can be performed on the center
display.
1. Select the
icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.
•Method for adjusting screen brightness (automatically/manually)
•Screen brightness initial settings (automatic adjustment is sel ected)
•Screen brightness adjustment (manual adjustment is selected)
•Display position of active driving display (display height)
•Active driving display angle adjustment (display angle correcti on)
•Active driving display ON/OFF (indication)
•Navigation guidance ON/OFF
•Reset settings (reset)
NOTE
•The desired driving position (display position, brightness level, display information) can
be called up after programming the position.
Refer to Driving Position Memory on page 2-7.
When Driving
Instrument Cluster and Display
4-29
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

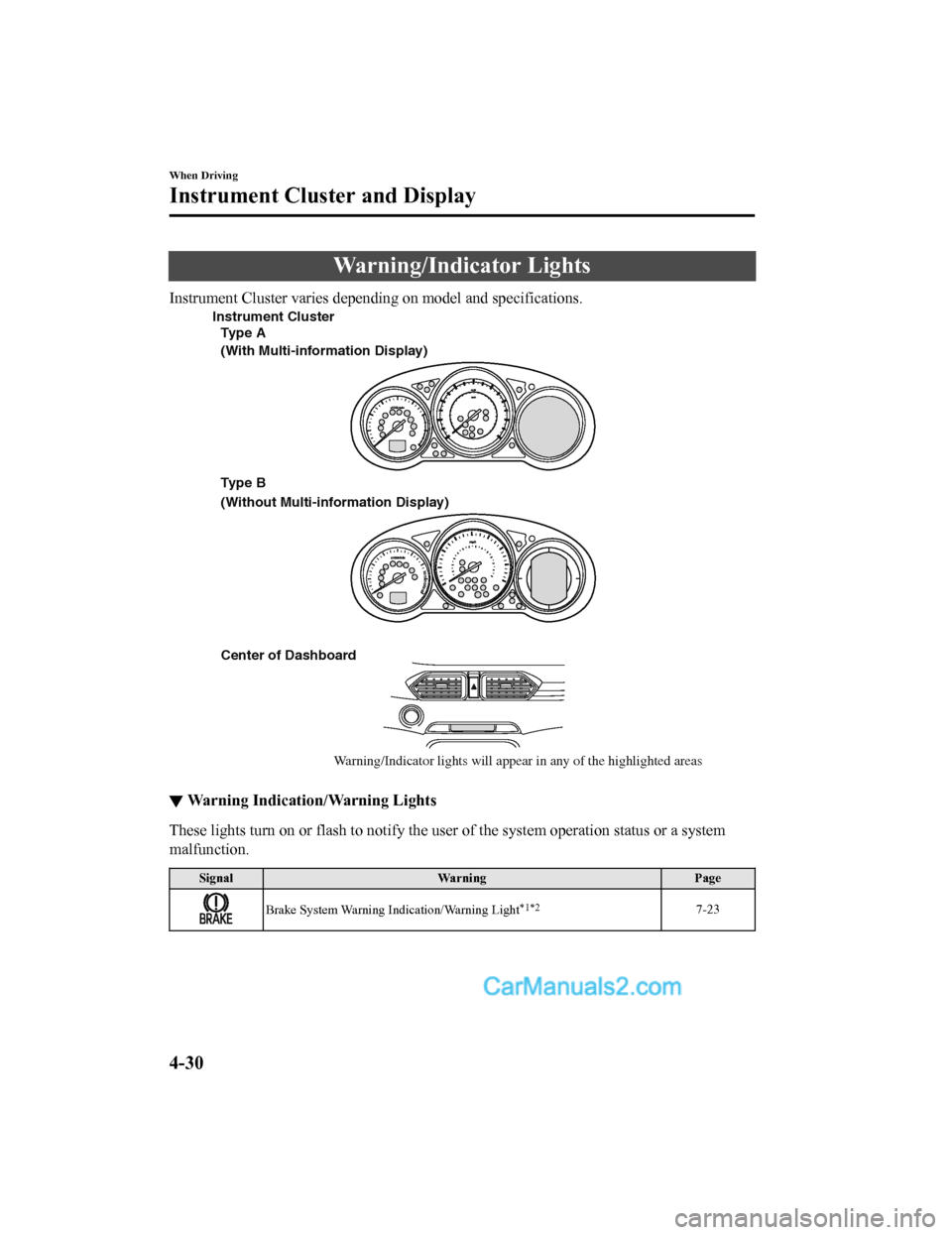

Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Center of Dashboard
Warning/Indicator lights will appear in any of the highlighted areas
Type A
(With Multi-information Display)
(Without Multi-information Display)
Instrument Cluster
Type B
▼ Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Warning Page
Brake System Warning Indication/Warning Light*1*27-23
When Driving
Instrument Cluster and Display
4-30
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

SignalWarning Page
ABS Warning Light*1
Electronic Brake
Force Distribu- tion System
Wa r n i n g 7-23
ABS warning 7-26
Charging System Warning Indication/Warning Light*17-23
Engine Oil Warning Light*17-23
(Red) High Engine Coolant Temperature
Warning Indication/Warning Light
*17-23
Power Steering Malfunction Indication/Malfunction Indicator Light*17-23
Master Warning Indication/Warning Light*17-26
Electric Parking Brake (EPB) Warning Indication/Warning Light*17-26
(Red)
*Brake Pedal Operation Demand Warning Light*1
Flashing
4-69
Buzzer & Flash- ing
7-26
Check Engine Light*17-26
*Engine Oil Level Warning Indication 7-26
Engine Oil Level Warning Light
*17-33
Automatic Transaxle Warning Indication/Warning Light*17-26
*AWD Warning Indication/Warning Light*17-26
Air Bag/Front Seat Belt Pretensioner System Warning Light*17-26
Tire Pressure Monitoring System Warning Light*1
Flashing 7-26
Turns on 7-33
When Driving
Instrument Cluster and Display
*Some models.4-31
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

SignalWarning Page
(Amber/White)
*KEY Warning Indication Amber
7-26
White 7-33
(Red)
*KEY Warning Light*1
Malfunction 7-26
Except malfunc- tion
7-33
(Amber)
*High Beam Control System (HBC) W arning Indication/Warning Light*17-26
*Blind Spot Monitoring (BSM) Warning Indication 7-26
(Amber)
*Mazda Radar Cruise Control with Stop & Go func
tion (MRCC with Stop
& Go function) Warning Indication 7-26
(Amber)
*Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Warning Indication 7-26
LED Headlight Warning Light*17-26
(Amber)
*Smart Brake Support/Sma
rt City Brake Support (SBS/SCBS) Warning In-
dication/Warning Light*17-33
Low Fuel Warning Indication/Warning Light 7-33
*Check Fuel Cap Warning Indication/Warning Light*17-33
Seat Belt Warning Light 7-33
*Low Washer Fluid Level Warning Indication/Warning Light7-33
When Driving
Instrument Cluster and Display
4-32*Some models.
