Interior Equipment (View B)
ƒActive driving display........................................................................................... page 4-27
„ Instrument cluster............................................. ..................................................... page 4-11
… Dashboard illumination knob................................................................................ page 4-15
† Seat warmer switches........................................... ................................................... page 2-6
‡ Heated steering wheel switch................................... ............................................. page 3-33
ˆ Hazard warning flasher switch.............................................................................. page 4-59
‰ Rear window defogger switch.................................... ........................................... page 4-57
Š Audio.......................................................... ................................................. page 5-20, 5-6 5
‹ Glove compartment.............................................. .............................................. page 5-135
ΠClimate control system............................................................................................page 5-4
 Accessory socket............................................... ................................................. page 5-131
Ž Push button start...................................................................................................... page 4-4
 Horn........................................................... ............................................................page 4-59
 Lock release lever................................................................................................. page 3-33
‘ Hood release handle............................................ .................................................. page 6-14
’ Remote fuel-filler lid release................................. ................................................ page 3-31
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-3
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Interior Equipment (View C)
ƒHead restraint........................................................................................................ page 2-1 6
„ Seat belt...................................................... ........................................................... page 2-18
… Bottle holder....................................................................................................... page 5-134
† Overhead lights................................................ ...................................................page 5-129
‡ Overhead console............................................................................................... page 5-135
ˆ Moonroof switch................................................................................................... page 3-40
‰ Vanity mirror...................................................................................................... page 5-128
Š Sunvisor.............................................................................................................. page 5-1 28
‹ Rearview mirror.................................................................................................... page 3-35
ΠVent........................................................... .............................................................. page 5-5
 Selector lever.........................................................................................................page 4- 37
Ž Drive selection switch......................................... .................................................. page 4-82
 Commander switch................................................................................................page 5-65
 Electric parking brake (EPB) switch............................ ......................................... page 4-65
‘ AUTOHOLD switch................................................ ............................................. page 4-71
’ Cup holder.......................................................................................................... page 5-133
“ Front seat................................................................................................................. page 2-5
Pictorial Index
Interior Overview
1-4The equipment and installatio n position varies by vehicle
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Interior Equipment (View D)
ƒSeat belt................................................................................................................. page 2-18
„ Lever.............................................................................................................. page 2-9, 2 -13
… Head restraint........................................................................................................ page 2-1 6
† USB power outlet............................................... ................................................ page 5-132
‡ Child safety locks.................................................................................................. page 3-19
ˆ Armrest box.................................................... .................................................... page 5-136
‰ Seat warmer switches........................................... ................................................. page 2-14
Š Cup holder.......................................................................................................... page 5-133
‹ Rear coat hook....................................................................................................page 5-139
ΠRear map lights.................................................................................................. page 5-129
 Door-lock knob................................................. .................................................... page 3-18
Ž Center console................................................. ................................................... page 5-135
 External input terminal........................................
.................................................. page 5-16
 Accessory socket............................................... ................................................. page 5-131
‘ Power window switch........................................................................................... page 3-37
’ Bottle holder.................................................. ..................................................... page 5-134
“ Armrest..................................................................................................................page 2-15
” Rear seat...................................................... ............................................................ page 2-9
• LATCH lower anchors.......................................................................................... page 2-40
Pictorial Index
Interior Overview
The equipment and installatio n position varies by vehicle1-5
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Interior Equipment (View E)
ƒRemote handles....................................................................................................... page 2-9
„ Anchor brackets................................................ .................................................... page 2-32
… Accessory socket............................................... ................................................. page 5-131
† Cargo Securing Loops........................................... ............................................. page 5-137
Pictorial Index
Interior Overview
1-6The equipment and installation position varies by vehicle
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Front
ƒWindshield wiper blades....................................................................................... page 6-22
„ Moonroof...............................................................................................................page 3- 40
… Window......................................................... ........................................................ page 3-37
† Fuel-filler lid......................................................................................................... page 3 -31
‡ Request switch ..................................................................................................... page 3-13
ˆ Door........................................................... ............................................................page 3-11
Pictorial Index
Exterior Overview
The equipment and installation position varies by vehicle1-7
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Rear
ƒRear window wiper blade........................................ ..............................................page 6-25
„ Liftgate....................................................... ........................................................... page 3-20
… Outside mirror....................................................................................................... page 3-34
† Request switch ..................................................................................................... page 3-13
‡ Electric liftgate opener....................................... ................................................... page 3-21
Pictorial Index
Exterior Overview
1-8The equipment and installation position varies by vehicle
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

2Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats.................................................... 2-2 Seat Precautions............................2-2
Front Seat......................................2-5
Rear Seat.......................................2-9
Head Restraints...........................2-16
Seat Belt Systems...... ....................... 2-18
Seat Belt Precautions.................. 2-18
Seat Belt......................................2-21
Seat Belt Warning Systems.........2-22
Front Seat Belt Pretensioner and
Load Limiting Systems...............2-22
Seat Belt Extender...................... 2-24
Child Restraint................................ 2-26 Child-Restraint Precautions........ 2-26
Child-Restraint System
Installation.................................. 2-31
Installing Child-Restraint
Systems....................................... 2-32
SRS Air Bags....................................2-44
Supplemental Restraint System
(SRS) Precautions.......................2-44
Supplemental Restraint System
Components................................ 2-51
How the SRS Air Bags Work..... 2-52
SRS Air Bag Deployment
Criteria........................................ 2-55
Limitations to SRS Air Bag........2-56
Front Passenger Occupant
Classification System................. 2-58
Constant Monitoring...................2-62
2-1
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

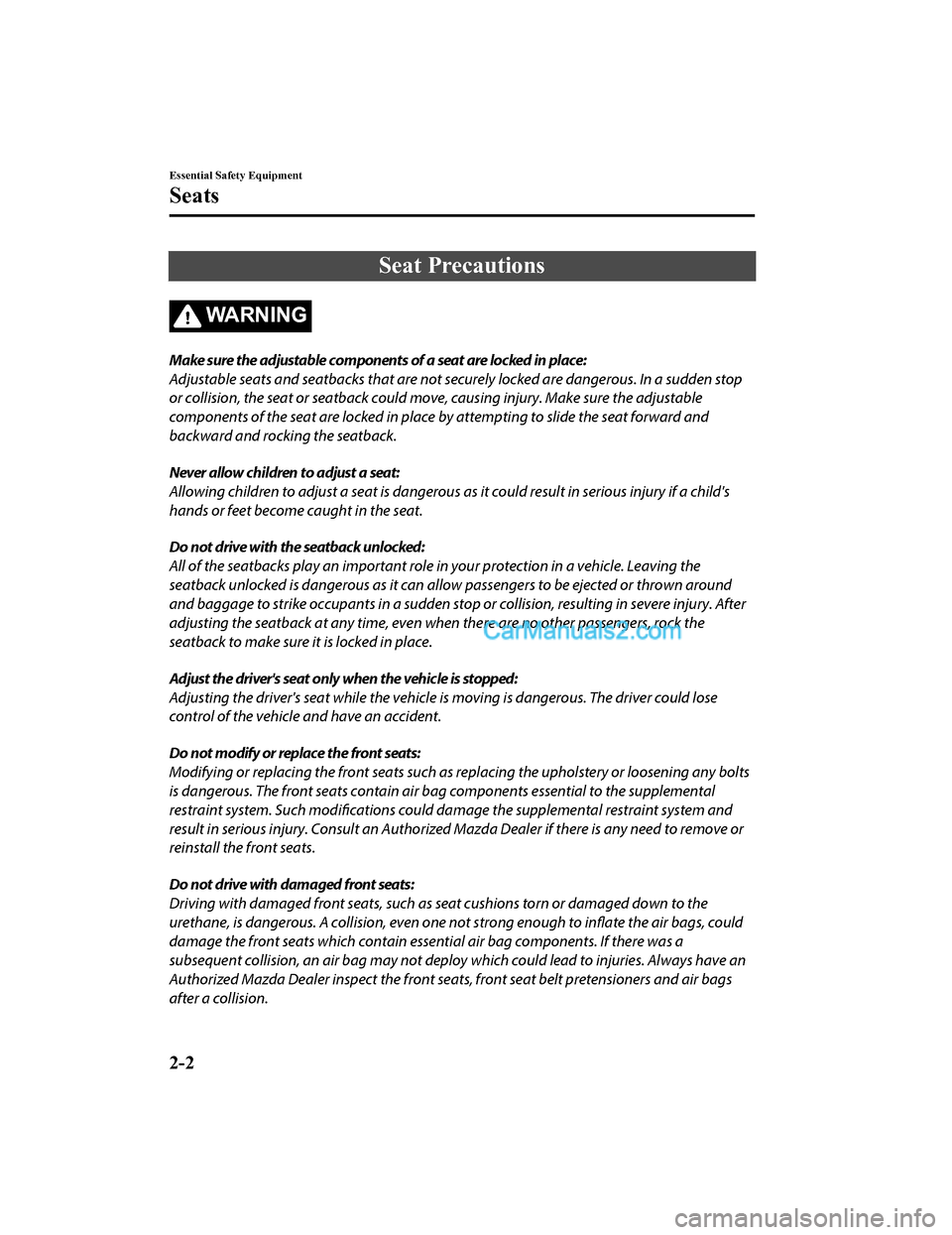

Seat Precautions
WA R N I N G
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop
or collision, the seat or seatback could move, causing injury. Make sure the adjustable
components of the seat are locked in place by attempting to slide the seat forward and
backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's
hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can a llow passengers to be ejected or thrown around
and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After
adjusting the seatback at any time, even when there are no other passengers, rock the
seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts
is dangerous. The front seats contain air bag components essential to the supplemental
restraint system. Such modifications could damage the supplemental restraint system and
result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or
reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as se at cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to
inflate the air bags, could
damage the front seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have an
Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air bags
after a collision.
