Page 73 of 548

731-2. Hybrid system
GS450h_OM_OM30G62U_(U)
1
For safety and security
WARNING
■Hybrid battery (traction battery)
●Never resell, hand over or modify the hybrid battery. To prevent accidents, hybrid
batteries that have been removed from a disposed vehicle are collected through
Lexus dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting in death
or serious injury:
• The hybrid battery may be illegally dispos ed of or dumped, and it is hazardous to
the environment or someone may touch a high voltage part, resulting in an electric
shock.
• The hybrid battery is intended to be used exclusively with your hybrid vehicle. If the hybrid battery is used outside of your vehicle or modified in any way, accidents
such as electric shock, heat generation , smoke generation, an explosion and elec-
trolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident is
extremely high because the person receiving the vehicle may not be aware of these
dangers.
●If your vehicle is disposed of without the hybrid battery having been removed, there is
a danger of serious electric shock if high voltage parts, cables and their connectors
are touched. In the event that your vehicle must be disposed of, the hybrid battery
must be disposed of by your Lexus dealer or a qualified service shop. If the hybrid bat-
tery is not disposed of properly, it may cause electric shock that can result in death or
serious injury.
NOTICE
■Hybrid battery (traction ba ttery) air intake vents
●Do not place objects that will block the air in take vents. When the air intake vents are
blocked, battery operations will be rest ricted, leading to poor fuel economy.
●Clean the air intake vents regularly to prevent the hybrid battery (traction battery)
from overheating.
●Do not get water or foreign materials in the air intake vents as this may cause a short
circuit and damage the hybrid battery (traction battery).
●Do not carry large amounts of water such as water cooler bottles in the vehicle. If
water spills onto the hybrid battery (tract ion battery), the battery may be damaged.
Have the vehicle inspected by your Lexus dealer.
Page 74 of 548

741-3. Theft deterrent system
GS450h_OM_OM30G62U_(U)
Immobilizer system
The indicator light flashes after the
power switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the power switch has been turned to
ACCESSORY or ON mode to indi-
cate that the system has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touchi ng a key to the security system (key with a
built-in transponder ch ip) of another vehicle
The vehicle’s keys have built-in transp onder chips that prevent the hybrid sys-
tem from starting if a key has not been previously registered in the vehicle’s
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guarantee
absolute security against all vehicle thefts.
Page 75 of 548
751-3. Theft deterrent system
GS450h_OM_OM30G62U_(U)
1
For safety and security

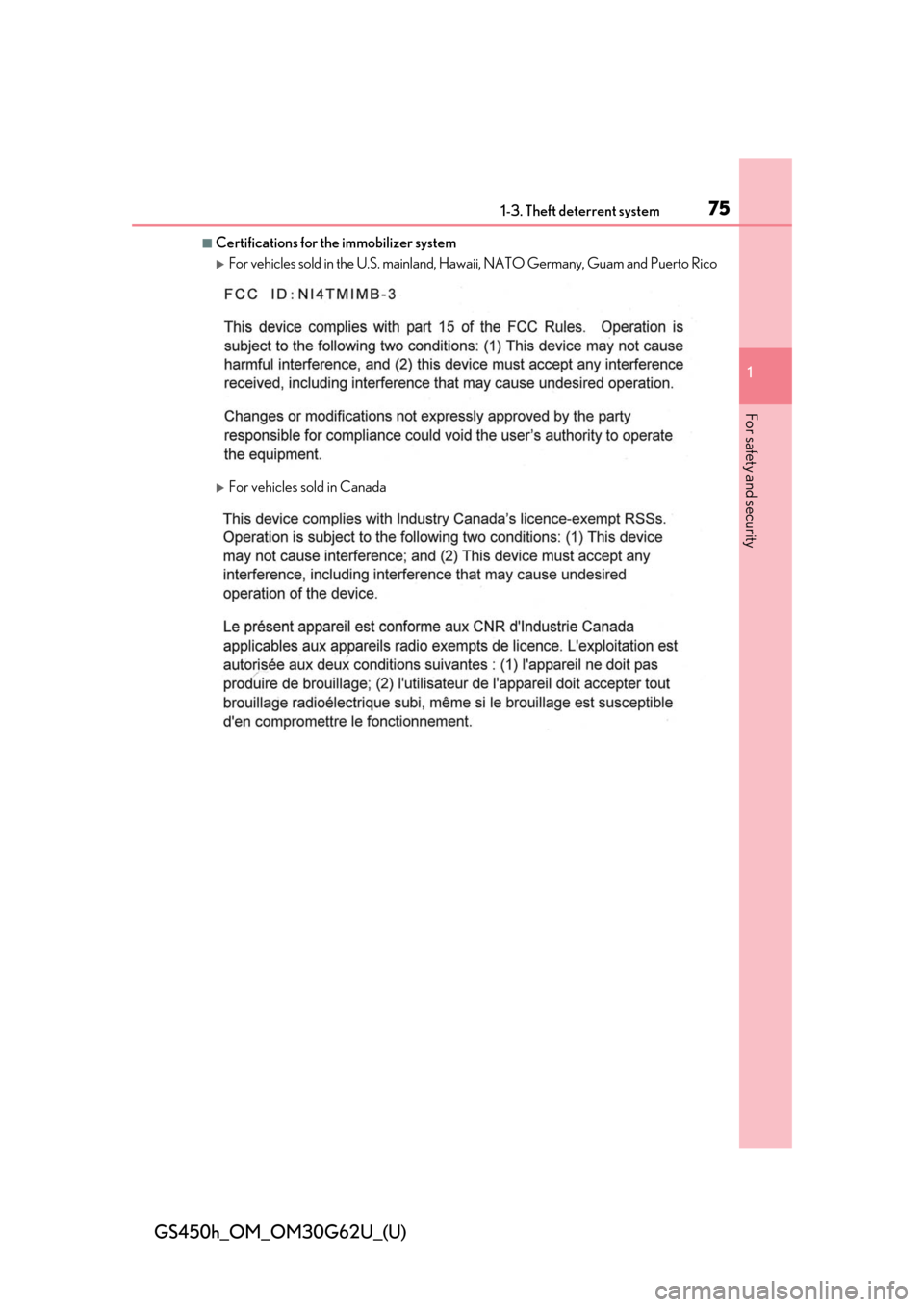

■Certifications for the immobilizer system
For vehicles sold in the U.S. mainland, Hawaii, NATO Germany, Guam and Puerto Rico
For vehicles sold in Canada
Page 76 of 548
761-3. Theft deterrent system
GS450h_OM_OM30G62U_(U)
WARNING
■Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation of
the system cannot be guaranteed.
Page 77 of 548

771-3. Theft deterrent system
GS450h_OM_OM30G62U_(U)
1
For safety and security
Alarm
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door is unlocked or opened in any way other than using the entry
function, wireless remote control or mech anical key. (The doors will lock again
automatically.)
●A locked trunk is unlocked or opened in any way other than using the entry
function or wireless remote control.
●The hood is opened.
Close the doors, trunk and hood, and
lock all the doors. The system will be set
automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:
●Unlock the doors.
●Turn the power switch to ACCESSORY or ON mode, or start the hybrid sys-
tem. (The alarm will be deactivated or stopped after a few seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm
Page 78 of 548

781-3. Theft deterrent system
GS450h_OM_OM30G62U_(U)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, the door may automatically lock:
●When a person remaining in the vehicle un locks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the 12-volt battery.
●The trunk is opened using the mechanical key.
●A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using an
inside lock button.
●The 12-volt battery is recharged or replaced
when the vehicle is locked. ( →P. 457)
Page 79 of 548
791-3. Theft deterrent system
GS450h_OM_OM30G62U_(U)
1
For safety and security
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
Page 80 of 548
801-3. Theft deterrent system
GS450h_OM_OM30G62U_(U)
