2018 KIA K900 engine

Driving your vehicle
5
5-25

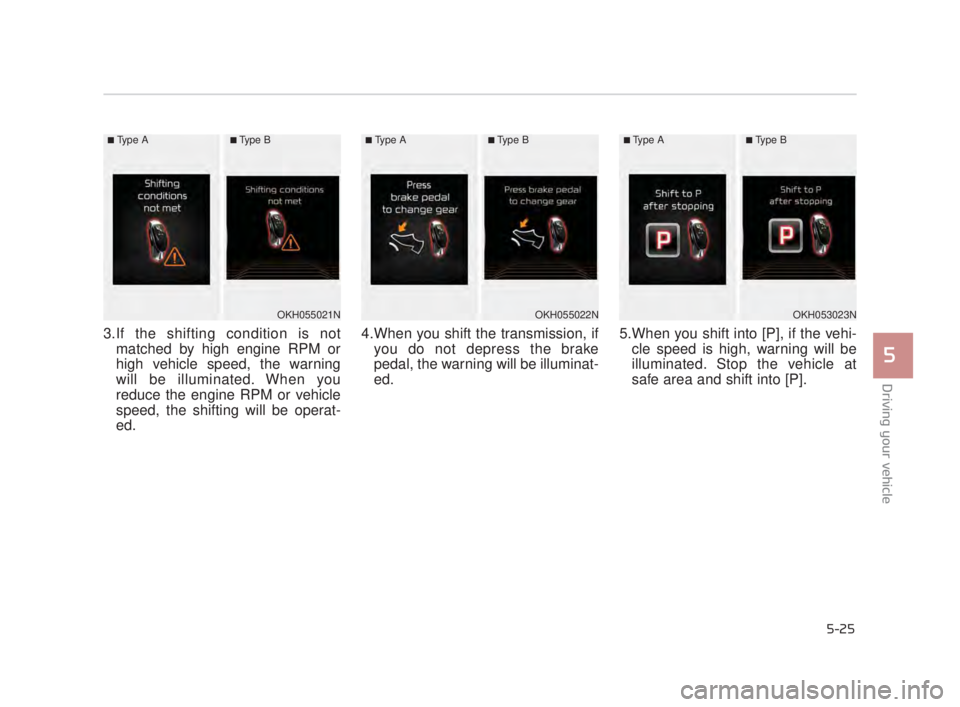

3.If the shifting condition is notmatched by high engine RPM or
high vehicle speed, the warning
will be illuminated. When you
reduce the engine RPM or vehicle
speed, the shifting will be operat-
ed. 4.When you shift the transmission, if
you do not depress the brake
pedal, the warning will be illuminat-
ed. 5.When you shift into [P], if the vehi-
cle speed is high, warning will be
illuminated. Stop the vehicle at
safe area and shift into [P].
OKH053023N
■Type A■Type B
OKH055022N
■Type A■Type B
OKH055021N
■Type A■Type B
KH USA 5:2018 4/12/2017 9:59 AM Page 25

Driving your vehicle
5
5-27
Good driving practices
Never move the shift lever from P(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.
Never move the shift lever into P (Park) when the vehicle is in
motion.
Be sure the car is completely stopped before you attempt to shift
into R (Reverse) or D (Drive).
Do not "ride" the brakes. This can cause them to overheat and mal-
function. Instead, when you are
driving down a long hill, slow down
and shift to a lower gear. When you
do this, engine braking will help
slow the car.
Slow down before shifting to a lower gear. Otherwise, the lower
gear may not be engaged. Always use the parking brake. Do
not depend on placing the trans-
mission in P (Park) to keep the car
from moving.
Optimum vehicle performance and economy is obtained by smoothly
depressing and releasing the
accelerator pedal.
Moving up a steep grade from a
standing start
To move up a steep grade from a
standing start, depress the brake
pedal, shift the shift lever to D (Drive)
or [1st] gear of [M] mode. Select the
appropriate gear depending on load
weight and steepness of the grade,
and release the parking brake.
Depress the accelerator gradually
while releasing the service brakes.
KH USA 5:2018 4/12/2017 9:59 AM Page 27

5-28
Driving your vehicle
Power brakes
Your vehicle has power-assisted
brakes that adjust automatically
through normal usage.
In the event that the power-assisted
brakes lose power because of a
stalled engine or some other reason,
you can still stop your vehicle by
applying greater force to the brake
pedal than you normally would. The
stopping distance, however, will be
longer.
When the engine is not running, the
reserve brake power is partially
depleted each time the brake pedal
is applied. Do not pump the brake
pedal when the power assist has
been interrupted.
Pump the brake pedal only when
necessary to maintain steering con-
trol on slippery surfaces.Wet brakes may impair the vehicle’s
ability to safely slow down; the vehi-
cle may also pull to one side when
the brakes are applied. Applying the
brakes lightly will indicate whether
they have been affected in this way.
To dry the brakes, apply them lightly
while maintaining a safe forward
speed until brake performance
returns to normal.
Always, confirm the position of the
brake and accelerator pedal before
driving. If you don’t check the posi-
tion of the accelerator and brake
pedal before driving, you may
depress the accelerator instead of
the brake pedal. It may cause a seri-
ous accident.
BRAKE SYSTEM
Brake pedal
Do not drive with your foot rest-
ing on the brake pedal. This will
create abnormally high brake
temperatures which can cause
excessive brake lining and pad
wear.
CAUTION
Steep hill braking
Avoid continuous application of
the brakes when descending a
long or steep hill by shifting to a
lower gear. Continuous brake
application will cause the
brakes to overheat and could
result in a temporary loss of
braking performance.
WARNING
KH USA 5:2018 4/12/2017 9:59 AM Page 28

5-30
Driving your vehicle
Check the brake warning light by
placing the Engine Start/Stop button
to the ON position. (do not start the
engine). This light will be illuminated
when the parking brake is applied
with the Engine Start/Stop button in
the START or ON position.
Before driving, be sure the parking
brake is fully released and the brake
warning light is off.
If the brake warning light remains on
after the parking brake is released
while engine is running, there may
be a malfunction in the brake sys-
tem. Immediate attention is neces-
sary.If at all possible, cease driving the
vehicle immediately. If that is not pos-
sible, use extreme caution while
operating the vehicle and only con-
tinue to drive the vehicle until you
can reach a safe location or repair
shop.
WKH-002
Parking Brake Use
Never allow a passenger to
touch the parking brake. If the
parking brake is released
unintentionally, serious injury
may occur.
All vehicles should always have the parking brake fully
engaged when parking to
avoid inadvertent movement
of the vehicle which can injure
occupants or pedestrians.
WARNING
KH USA 5:2018 4/12/2017 9:59 AM Page 30

Driving your vehicle
5
5-31
Electric parking brake (EPB)
Applying the parking brake
To apply the EPB (electric parking
brake):
1.Depress the brake pedal.
2.Pull up the EPB switch. Make sure the warning light comes
on.
Also, the EPB is applied automatical-
ly if the Auto Hold button is on when
the Engine Start/Stop Button is OFF
position. (for shift by cable)
Also, the EPB is applied automatical-
ly when the Engine Start/Stop Button
is OFF position.(for shift by wire)
However, if you press the EPB switch
after the engine is turned off, the
EPB will not be applied.
Releasing the parking brake
To release the EPB (electric parking
brake), press the EPB switch in the
following condition:
Set the Engine Start/Stop Button in
the ON position.
OKH053031N
OKH053032N
OKH053029N
OKH053030N
Do not operate the parking
brake / EPB while the vehicle is
moving except in an emergency
situation. Driving with the EPB
activated can cause excessive
brake wear.
CAUTION
KH USA 5:2018 4/12/2017 9:59 AM Page 31

5-32
Driving your vehicle
Depress the brake pedal.
Make sure the brake warning light
goes off. To release EPB (electric parking
brake) automatically:
Shift lever in P (Park)
With the engine running depress
the brake pedal and shift out of P
(Park) to R (Rear), N (Neutral) or D
(Drive).
Shift lever in N (Neutral) With the engine running depress
the brake pedal and shift out of N
(Neutral) to R (Rear) or D (Drive).
Automatic transaxle vehicle 1. Start the engine.
2. Fasten the driver's seat belt.
3. Close the driver's door, engine hood and trunk.
4. Depress the accelerator pedal while the shift lever is in R
(Rear), D (Drive) or M (Manual)
mode.
Make sure the brake warning light
goes off.✽ NOTICE
• For your safety, you can engage
the EPB even though the Engine
Start/Stop Button is in the OFF
position, but you cannot release it.
• For your safety, depress the brake pedal and release the parking
brake manually with the EPB
switch when you drive downhill or
when backing up the vehicle.
• If the parking brake warning light is still on even though the EPB has
been released, have the system
checked by an authorized K900
Kia dealer.
KH USA 5:2018 4/12/2017 9:59 AM Page 32

Driving your vehicle
5
5-33
EPB (electric parking brake) may be
automatically applied when:
The EPB is overheated
Requested by other systemsSystem warning
If you try to drive off depressing theaccelerator pedal with the EPB
applied, but doesn't release auto-
matically, a warning will sound and
a message will appear.
If the driver's seat belt is not fas- tened and the engine hood in [D]
gear or trunk in [R] gear is opened,
a warning will sound and a mes-
sage will appear.
If there is a problem with the vehi- cle, a warning may sound and a
message may appear. If the above situation occurs,
depress the brake pedal and release
EPB by pressing the EPB switch.
OKH053033N
■Type A■Type B
KH USA 5:2018 4/12/2017 9:59 AM Page 33

Driving your vehicle
5
5-35
EPB malfunction indicator (if equipped)
This warning light illuminates if the
engine start/stop button is changed
to the ON position and goes off in
approximately 3 seconds if the sys-
tem is operation normally.
If the EPB malfunction indicator
remains on, comes on while driving,
or does not come on when the
engine start/stop button is changed
to the ON position, this indicates that
the EPB may have malfunctioned. If this occurs, have your vehicle
checked by an authorized K900 Kia
dealer as soon as possible.
The EPB malfunction indicator may
illuminate when the ESC indicator
comes on to indicate that the ESC is
not working properly, but it does not
indicate a malfunction of the EPB.
The EPB warning light may illumi-
nate if the EPB switch operates
abnormally. Shut the engine off
and turn it on again after a few min-
utes. The warning light will go off
and the EPB switch will operate
normally. However, if the EPB
warning light is still on, have the
system checked by an authorized
K900 Kia dealer.
If the parking brake warning light does not illuminate or blinks even
though the EPB switch was pulled
up, the EPB is not applied. If the parking brake warning light
blinks when the EPB warning light
is on, press the switch, then pull it
up. Once more press it back to its
original position and pull it back up.
If the EPB warning does not go off,
have the system checked by an
authorized K900 Kia dealer.
OKH053034N
■Type A■Type B
KH USA 5:2018 4/12/2017 9:59 AM Page 35
