Page 449 of 478
7-88
Maintenance
Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
Use only UNLEADED FUEL for gasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more). Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
Avoid driving with extremely low fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of
the catalytic converter.
Page 450 of 478
7-89
7
Maintenance
C
CA
A L
LI
IF
F O
O R
RN
N I
IA
A
P
P E
ER
R C
CH
H L
LO
O R
RA
A T
TE
E
N
N O
O T
TI
IC
C E
E
Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).
Page 451 of 478

888
Specifications & Consumer information
8
Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE viscosity number ..........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Refrigerant Label .................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13
Page 452 of 478
D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
N G
GI
IN
N E
E
Itemsin (mm)
Overall length170.86 (4,340)
Overall width70.66 (1,795)
Overall height57.28 (1,455)
Front tread225/45 R1761.14 (1,553)
225/40 R1860.98 (1,549)
Rear tread 225/45 R1761.49 (1,562)
225/40 R1861.53 (1,563)
Wheelbase104.33 (2,650)
Items Gamma 1.6 T-GDINu 2.0 GDI
Displacement
cu. in (cc)97.09 (1,591)121.98 (1,999)
Bore x Stroke in. (mm)3.03x3.36 (77x85.4)3.18x3.82 (81x97)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
Page 453 of 478
B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
8-3
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb TypeWattage
FrontType A
Headlamp
Low H7 55
High HB3 65
Parking lamp LED LED
Turn signal lamp PY28W 28
Side marker W5W 5
Daytime running light LED LED
Type B Headlamp
Low LED LED
High LED LED
Position lamp LED LED
Turn signal lamp LED LED
Side marker LED LED
Daytime running light LED LED
Side repeater lamp LED LED
Rear Type A
Stop/Tail lamp P28/8W 28/8
Turn signal lampPY27W27
Tail lamp W5W 5
Backup lamp W16W 16
Side marker LED LED
Type B Stop/Tail lamp LED LED
Turn signal lamp PY27W 27
Backup lamp LED LED
Side marker LED LED
High mounted stop light LED LED
Page 454 of 478
8-4
Specifications, Consumer information and Reporting safety defects
Light BulbBulb TypeWattage
InteriorMap lamp W10W 10
Room lamp
Type A FESTOON 8
Type B LED LED
Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 10
License plate lamp W5W 5
Page 455 of 478

T
TI
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S
8-5
88
Specifications, Consumer information and Reporting safety defects

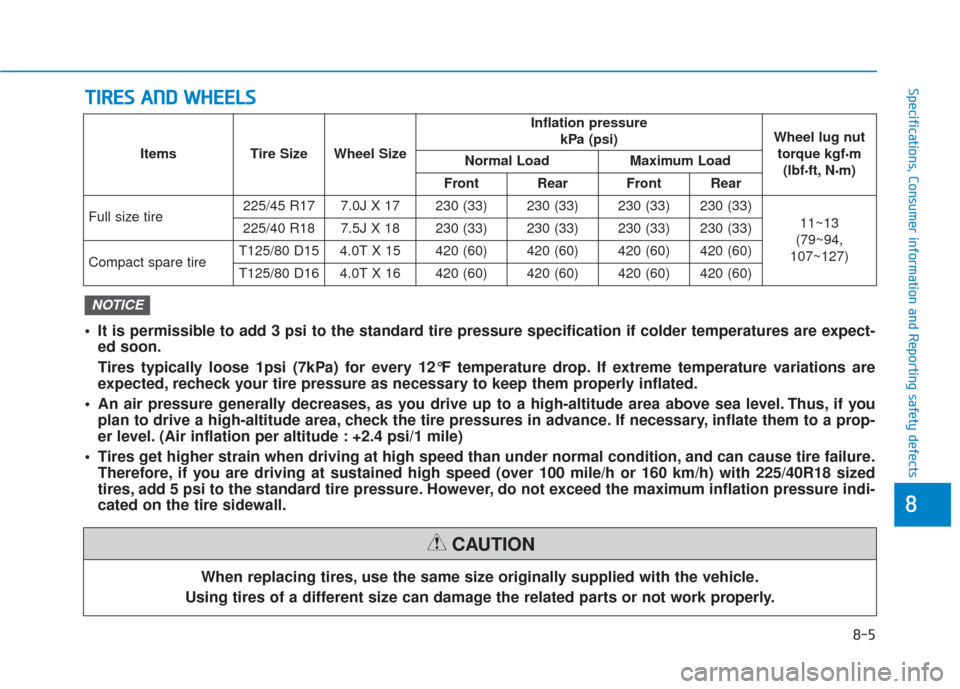

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
Items Tire SizeWheel Size
Inflation pressure kPa (psi)Wheel lug nuttorque kgf
•m
(lbf
ft, Nm)Normal LoadMaximum Load
FrontRearFrontRear
Full size tire225/45 R177.0J X 17230 (33)230 (33)230 (33)230 (33)
11~13
(79~94,
107~127)225/40 R187.5J X 18230 (33)230 (33)230 (33)230 (33)
Compact spare tireT125/80 D154.0T X 15420 (60)420 (60)420 (60)420 (60)
T125/80 D164.0T X 16420 (60)420 (60)420 (60)420 (60)
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect- ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
Tires get higher strain when driving at high speed than under normal condition,\
and can cause tire failure. Therefore, if you are driving at sustained high speed (over 100 mile/h or 160 km/h) with 225/40R18 sized
tires, add 5 psi to the standard tire pressure. However, do not exceed the maximum inflation pressure indi-
cated on the tire sidewall.
NOTICE
Page 456 of 478
8-6
Specifications, Consumer information and Reporting safety defects
V
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
Contact an authorized HYUNDAI dealer for more details.
ItemsGamma 1.6 T-GDINu 2.0 GDI
M/TDCTM/TA/T
Gross vehicle weight
lbs. (kg)4,034 (1,830)4,078 (1,850)3,924 (1,780)3,968 (1,800)
Luggage volume (SAE) cu ft (l)24.9 (705)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 17.63 (500)R-1234yf
Compressor lubricantoz. (cc) 3.88±0.35 (110±10)PA G
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission
