2018 Hyundai Creta display

3-122
Convenient features of your vehicle
I IN
NT
TE
ER
RI
IO
OR
R
F
FE
EA
AT
TU
UR
RE
ES
S

Digital clock (if equipped)Whenever the battery terminals or
related fuses are disconnected, you
must reset the time.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operate as follows:
• H (Hour)
Press the "H" button to advance the
time displayed by one hour.
• M (Minute)
Press the "M" button to advance the
time displayed by one minute.
• Display conversion
To change the 12 hour format to the
24 hour format, press the "H" and
"M" button simultaneously for more
than 4 seconds.
For example, if the "H" and "M" but-
ton is pressed when the time is 10:15
p.m., the display will change to
22:15.
Cigarette lighter (if equipped)
To use the cigarette lighter, the igni-
tion switch must be in the ACC or ON
position.
Push the cigarette lighter all the way
into its socket. When the element is
heated, the lighter will pop out to the
“ready” position.
We recommend that you use parts
for replacement from an authorized
HYUNDAI dealer. Do not adjust the clock while
driving. You may lose your steer-
ing control and cause severe
personal injury or accidents.
WARNING
OGS045124OGS045092L

4-9
Multimedia System
4
Feature of Your Audio
Head Unit
❈The actual features in the vehicle
may differ from the illustration.(1)RADIO
Plays Radio(FM/AM) mode.

the radio mode popup will be dis-
played or closed.
The radio mode popup will not be
displayed when [SETUP]button
[Display] [Mode popup] is turned
[Off].
(2)MEDIA
Plays Media(USB(iPod
®), Bluetooth®
(BT) Audio) mode.
Each time the button is pressed,
the media mode popup will be dis-
played or closed.
The media mode popup will not be
displayed when [SETUP]button
[Display] [Mode popup] is turned
[Off].
(3)PHONE
Moves to Phone Screen.
If Bluetooth
®is not connected, dis-
plays Bluetooth®Pair/Connection
screen.(4)SEEK/TRACK
When pressed quickly
Radio mode: Searches the previ-
ous/next available broadcast fre-
quency.
Media mode: Changes the track,
file or title.
When pressed and held (more than
1.0 seconds)
Radio mode: Frequency is con-
trolled by 1 step quickly. When the
button is released after pressing
and holding, searches the previ-
ous/next available broadcast fre-
quency.
Media mode: Rewinds or fast-for-
wards the song. (except
Bluetooth
®(BT) Audio)
(5)POWER/VOLknob
Power knob: Turns power On/Off
by pressing the knob.
Volume knob: Sets volume by turn-
ing the knob left/right.

4-10
Multimedia System

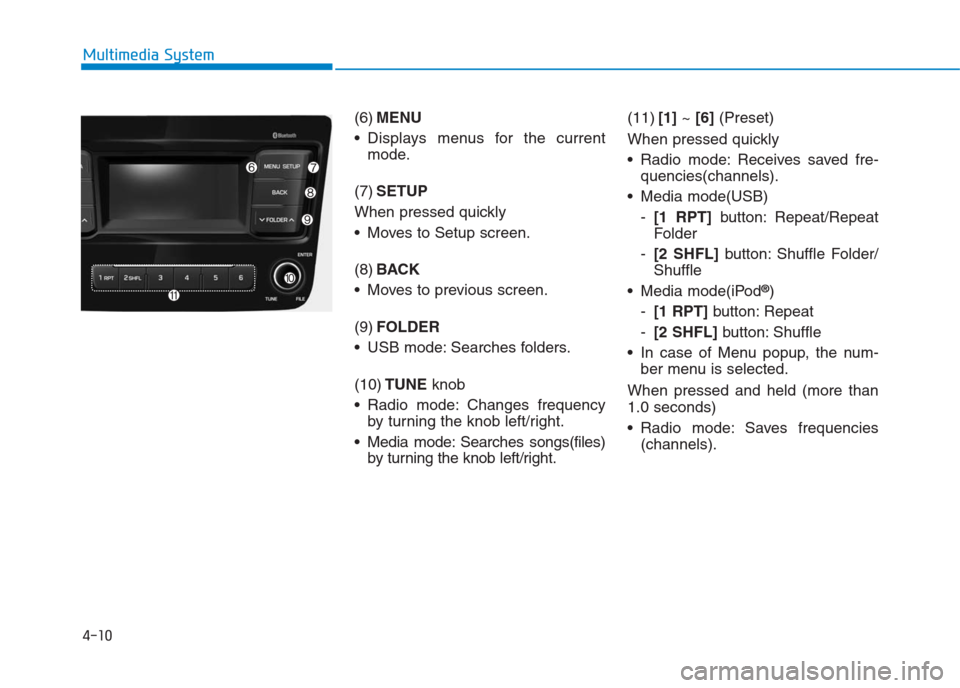

(6)MENU
Displays menus for the current
mode.
(7)SETUP
When pressed quickly
Moves to Setup screen.
(8)BACK
Moves to previous screen.
(9)FOLDER
USB mode: Searches folders.
(10)TUNEknob
Radio mode: Changes frequency
by turning the knob left/right.
Media mode: Searches songs(files)
by turning the knob left/right.(11)[1]~ [6](Preset)
When pressed quickly
Radio mode: Receives saved fre-
quencies(channels).
Media mode(USB)
-[1 RPT]button: Repeat/Repeat
Folder
-[2 SHFL]button: Shuffle Folder/
Shuffle
Media mode(iPod
®)
-[1 RPT]button: Repeat
-[2 SHFL]button: Shuffle
In case of Menu popup, the num-
ber menu is selected.
When pressed and held (more than
1.0 seconds)
Radio mode: Saves frequencies
(channels).

4-11
Multimedia System
4
Steering wheel remote control
(if equipped)
(Bluetooth®equipped model)
❈The actual features in the vehicle
may differ from the illustration.(1) MUTE
Mutes the audio. (It will be paused
in some media modes).
Mutes the microphone during a
call. (Bluetooth
®equipped model)
(2) MODE
Each time this is pressed, the
mode is changed sequentially.
If the media is not connected, the
corresponding modes will be dis-
abled.
Press and hold to turn the Audio
system on/off.
When power is off, press button to
turn power back on.
(3)VOLUME
Adjust the volume.(4) SEEK/TRACK
When pressed quickly
- Radio mode: Searches broadcast
frequencies saved to Presets.
- Media mode: Changes track, file
or title.
When pressed and held (more
than 1.0 seconds)
- Radio mode: Frequency is con-
trolled by 1 step quickly. When
the button is released after
pressing and holding, searches
broadcast frequencies.
- Media mode: Rewinds or fast-for-
wards the song. (except
Bluetooth
®(BT) Audio)
(5) CALL
When pressed quickly
- If not in Bluetooth
®Handsfree
mode or receiving a phone call.
First press: Automatically display
the most recently Dialed Call
number.
Second press: The most recently
Dialed Call number is dialed.
- Press in the incoming call
screen, answers the call.

4-12
Multimedia System
- Press in Bluetooth
®Handsfree
mode to switch to the waiting call.
When pressed and held (more
than 1.0 seconds)
- If not in Bluetooth
®Handsfree
mode or receiving a phone call,
the most recently Dialed Call
number is dialed.
- When pressed in Bluetooth
®
Handsfree mode to switch the
call to your cell phone.
- When pressed in cell phone
mode to switch to Bluetooth
®
Handsfree mode.
- If Bluetooth
®is not connected,
displays Bluetooth®Pair/
Connection screen.
(6) END
When pressed during a call, ends
the phone call.
When pressed in the incoming call
screen, rejects the call. Do not stare at the screen
while driving. Staring at the
screen for prolonged periods
of time could lead to traffic
accidents.
Do not disassemble, assem-
ble, or modify the audio sys-
tem. Such acts could result in
accidents, fire, or electric
shock.
Using the phone while driving
may lead to a lack of attention
of traffic conditions and
increase the likelihood of
accidents. Use the phone fea-
ture after parking the vehicle.
Exercise caution not to spill
water or introduce foreign
objects into the device. Such
acts could lead to smoke, fire,
or product malfunction.
(Continued)
WARNING(Continued)
Please refrain from use if the
screen is blank or no sound
can be heard as these signs
may indicate product malfunc-
tion. Continued use in such
conditions could lead to acci-
dents (fires, electric shock) or
product malfunctions.
Do not touch the antenna dur-
ing thunder or lightning
because such an act may
cause electric shock.
Do not stop or park in park-
ing-restricted areas to operate
the product. Such acts could
lead to traffic accidents.
Use the system with the vehicle
engine turned on. Prolonged
use with the ignition turned
on only could result in battery
discharge.

4-14
Multimedia System
Radio
Radio Mode
Change Mode: [RADIO]button
Plays Radio(FM/AM) mode.Each
time the button is pressed, the
radio mode popup will be displayed
or closed.
The radio mode popup will not be
displayed when [SETUP]button
[Display] [Mode popup] is turned
[Off].
Search Frequency: [SEEK/TRACK]
button
Searches the previous/next broad-
cast frequencies.
Shortly pressing the button:
Searches broadcast frequencies.
Frequency is controlled by 1 step
quickly. When the button is
released after pressing and hold-
ing, searches broadcast frequen-
cies.
Change Frequency: TUNEknob
Changes frequency by turning the
knob left/right. You can seek avail-
able frequencies manually.
Saved Frequency: [1] ~ [6](Preset)
buttons
Shortly pressing the button: Plays
the frequency saved in the corre-
sponding button.
Pressing and holding the button
(more than 1.0 seconds): Saves
the currently playing broadcast to
the selected button and sound a
BEEP.
FM/AM Mode (with RDS)FM/AM Mode
Displays Menu Popup when pressing
the [MENU]button.
Traffic announcement (for RDS
model)
TA(Traffic announcement) feature
On/Off.
Presets (for RDS model)
Displays saved presets.
Auto Store
Saves broadcasts with superior
reception to [1] ~ [6](Preset) buttons.
If no frequencies are received,
then the most recently received
frequency will be broadcast.

4-15
Multimedia System
4

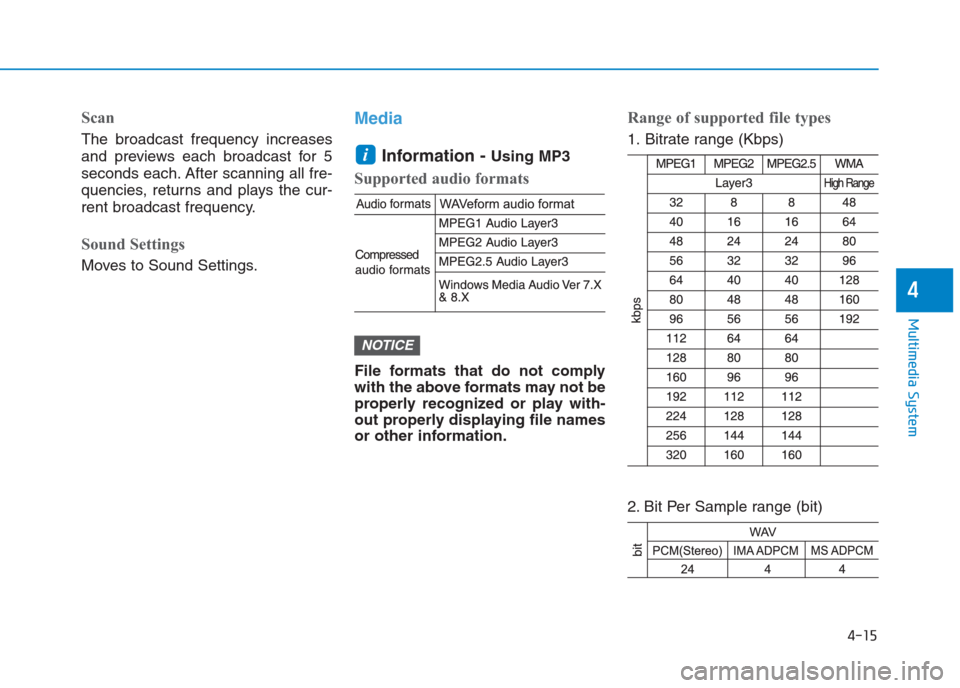

Scan
The broadcast frequency increases
and previews each broadcast for 5
seconds each. After scanning all fre-
quencies, returns and plays the cur-
rent broadcast frequency.
Sound Settings
Moves to Sound Settings.
Media
Information -
Using MP3
Supported audio formats
File formats that do not comply
with the above formats may not be
properly recognized or play with-
out properly displaying file names
or other information.
Range of supported file types
1. Bitrate range (Kbps)
2. Bit Per Sample range (bit)
NOTICE
i

4-16
Multimedia System
3. Sampling frequency (Hz)
For MP3/WMA compression files
and WAV file, differences in sound
quality will occur depending on the
bitrate. (Higher sound quality can
be experienced with higher
bitrates.)
This device only recognizes files
with MP3/WMA/WAV extensions.
Other file extensions may not be
properly recognized.
4. Maximum number of recognized
folders and files
Folder: 1,000 folders for USB
File: 5,000 files for USB
5. Text Display (Based on Unicode)
Filenames: Maximum 40 English
characters
Foldernames: Maximum 40 English
charactersUsing the scroll feature allows you
to see the entire name of files with
names that are too long to be dis-
played at once.
Language Support (Unicode Support)
Korean: 2,604 characters
English: 94 characters
Common Chinese characters: 4,888
characters
Special symbols: 986 characters
Japanese/Simplified Chinese char-
acters are not supported.
Information
- Using the USB Device
• Connect the USB device after turn-
ing on the engine. The USB device
may become damaged if it is already
connected when the ignition is
turned on. The USB device may not
operate properly if the car ignition
is turned on or off with the USB
device connected.
• Be careful for static electricity when
connecting/disconnecting USB
devices.
• Encoded MP3 Players will not be
recognized when connected as an
external device.
• When connecting an external USB
device, the vehicle's audio system
may not recognize the USB depend-
ing on what firmware is used by USB
device or what files are on the USB.
• Only products formatted with
byte/sectors under 64Kbyte will be
recognized.
• This device recognizes USB devices
formatted in FAT 12/16/32 file for-
mats. This device does not recognize
files in NTFS file format.
(Continued)
i
NOTICE
NOTICE
