2018 HONDA PILOT Owner's Manual (in English)

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Oil Pressure
Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator Comes
On P. 654
Malfunction
Indicator Lamp
●Comes on when you set the
power mode to ON, and goes off
either when the engine starts or
after several seconds if the
engine did not start. If “readiness
codes” have not been set, it
blinks five times before it goes
off.
●Comes on if there is a problem
with the emissions control
systems.
●Blinks when a misfire in the
engine’s cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 673●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the engine for 10 minutes or more, and wait
for it to cool down. Then, take your vehicle
to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 655
Charging System
Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on when the battery is
not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce electricity consumption.
2 If the Charging System Indicator Comes
On P. 654
18 PILOT-31TG76200.book 79 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator●Indicates the current gear
selection.2Shifting P. 495, 497—
M (sequential
mode) Indicator/
Sequential Mode
Gear Selection
Indicator
*
●Comes on when the manual
sequential shift mode is applied.
2 Sequential Mode P. 503—
Transmission
Indicator●Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden starts
and acceleration and have the vehicle
checked by a dealer immediately.Automatic transmission models with
shift lever
* Not available on all models
18 PILOT-31TG76200.book 80 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
Indicator
●The indicated current gear selection
blinks if there is a problem with the
transmission system.
●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may light for
several seconds, and go off.
●When all the gear positions light,
immediately stop your vehicle in a safe
place.
●Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.
●The indicated current gear selection
or all the gear positions blink if there
is a problem with the transmission
system, and the vehicle no longer
moves.
●Immediately stop in a safe place.
2Emergency Towing P. 663●Have your vehicle checked by a dealer.
●The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
●The engine can be activated as a
temporary measure.
2 If the Transmission Indicator Blinks
along with the Warning Message*
P. 657
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
Automatic transmission models with
electronic gear selector
Automatic transmission models with
electronic gear selector
Automatic transmission models with
electronic gear selector
Automatic transmission models with
electronic gear selector
* Not available on all models
18 PILOT-31TG76200.book 81 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
●If the front passenger is not
wearing a seat belt, the indicator
comes on about a few seconds
later.
●Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes off
when you and the front passenger fasten their
seat belts.
●Stays on after you or the front passenger
has fastened the seat belt - A detection
error may have occurred in the sensor. Have
your vehicle checked by a dealer.
2 Seat Belt Reminder P. 38
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 2.5
U.S. gal./9.5 Liter left).
●Blinks if there is a problem with the
fuel gauge.
●Comes on - Refuel your vehicle as soon as
possible.
●Blinks - Have your vehicle checked by a dealer.
18 PILOT-31TG76200.book 82 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator on,
your vehicle still has normal braking ability
but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 557
Supplemental
Restraint System
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if a problem with any
of the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not come on
at all - Have your vehicle checked by a
dealer.
18 PILOT-31TG76200.book 83 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

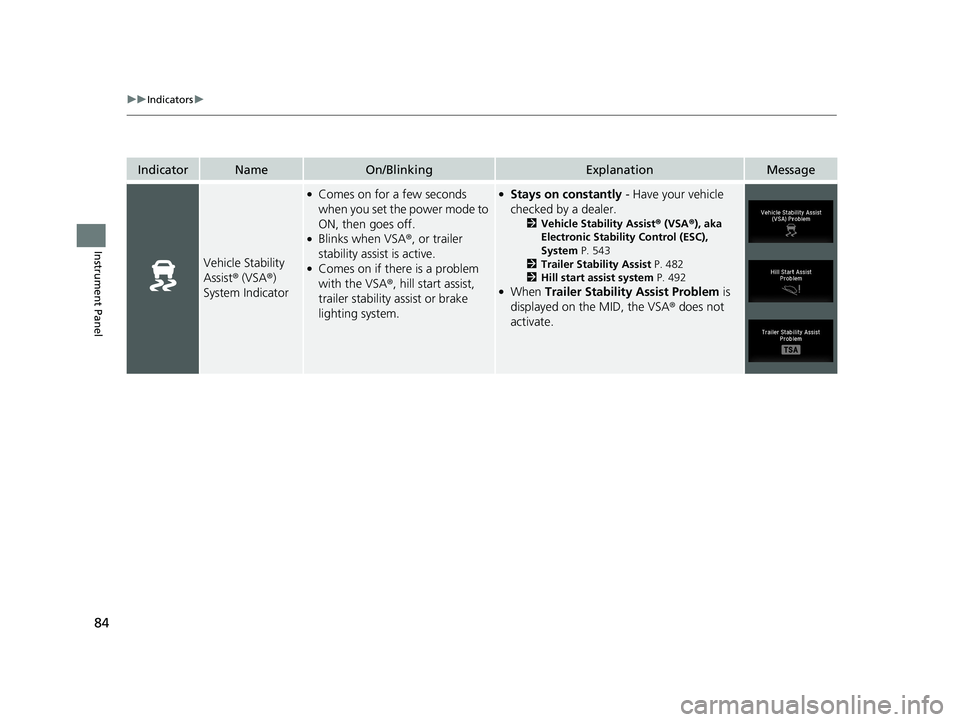

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
Assist® (VSA ®)
System Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Blinks when VSA ®, or trailer
stability assist is active.
●Comes on if there is a problem
with the VSA ®, hill start assist,
trailer stability assist or brake
lighting system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability Assist ® (VSA ®), aka
Electronic Stability Control (ESC),
System P. 543
2 Trailer Stability Assist P. 482
2 Hill start assist system P. 492
●When Trailer Stability Assist Problem is
displayed on the MID, the VSA ® does not
activate.
18 PILOT-31TG76200.book 84 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
Assist® (VSA ®) OFF
Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
——
●Comes on when VSA ® OFF switch
is pressed.●Appears when Normal or Snow Mode is
selected.
2 VSA ® On and Off P. 544
●Comes on when Mud/Sand mode
is selected by pressing Intelligent
Traction Management System
switch.
●Appears when Mud Mode is selected.
2Intelligent Traction Management*
P. 511
●Appears when Sand Mode is selected.
2 Intelligent Traction Management*
P. 511
●Comes on when VSA ® OFF switch
is pressed.
●Appears when Mud or Sand Mode is
selected.
2 VSA ® On and Off P. 544
AWD models
AWD models
* Not available on all models
18 PILOT-31TG76200.book 85 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Power
Steering (EPS)
System Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come on
at all - Have your vehicle checked by a
dealer.
2If the Electric Power Steering (EPS)
System Indicator Comes On P. 656
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if the tire pressure of
any of the tires becomes
significantly low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS with Tire Fill
Assist, or when a compact spare
tire
* is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pres sures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted
with a compact spare, get your regular tire
repaired or replaced and put back on your
vehicle as soon as you can.
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blinks along with all turn signals if
you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2 Front Turn Signal/Parking* and Fog*
Light Bulbs P. 606
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
* Not available on all models
