2018 HONDA HR-V display

Contents

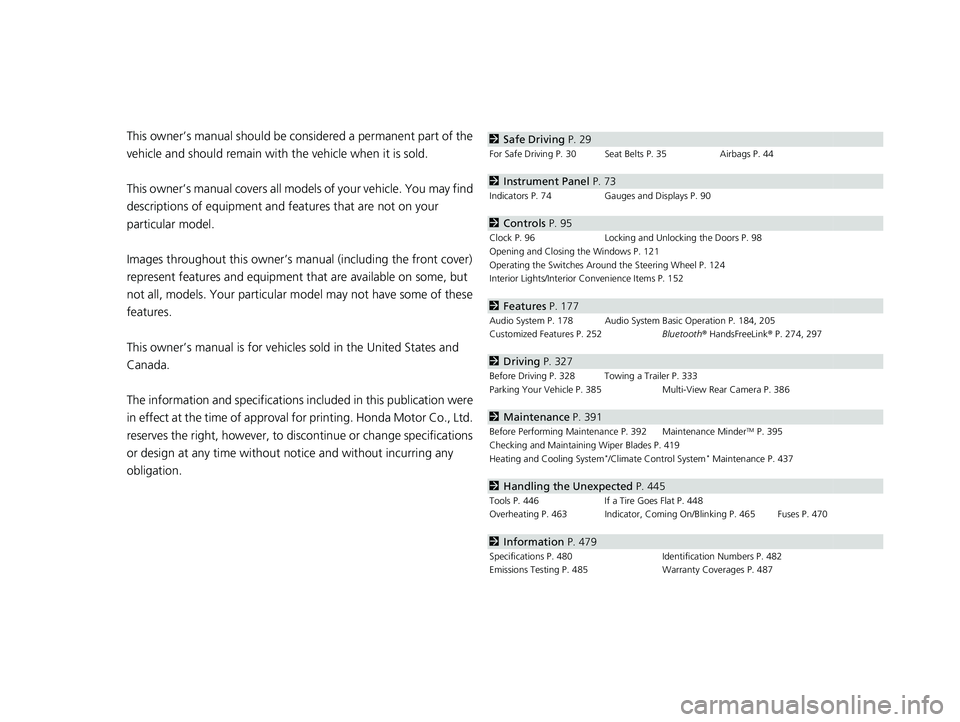

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 29
For Safe Driving P. 30 Seat Belts P. 35 Airbags P. 44
2Instrument Panel P. 73
Indicators P. 74 Gauges and Displays P. 90
2Controls P. 95
Clock P. 96 Locking and Unlocking the Doors P. 98
Opening and Closing the Windows P. 121
Operating the Switches Around the Steering Wheel P. 124
Interior Lights/Interior Convenience Items P. 152
2 Features P. 177
Audio System P. 178 Audio System Basic Operation P. 184, 205
Customized Features P. 252 Bluetooth® HandsFreeLink ® P. 274, 297
2 Driving P. 327
Before Driving P. 328 Towing a Trailer P. 333
Parking Your Vehicle P. 385 Multi-View Rear Camera P. 386
2Maintenance P. 391
Before Performing Maintenance P. 392 Maintenance MinderTM P. 395
Checking and Maintaining Wiper Blades P. 419
Heating and Cooling System
*/Climate Control System* Maintenance P. 437
2 Handling the Unexpected P. 445
Tools P. 446 If a Tire Goes Flat P. 448
Overheating P. 463 Indicator, Coming On/Blinking P. 465 Fuses P. 470
2 Information P. 479
Specifications P. 480 Identification Numbers P. 482
Emissions Testing P. 485 Warranty Coverages P. 487
18 HR-V-31T7A6200.book 2 ページ ２０１７年６月３０日　金曜日　午後１時２３分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❙ENGINE START/STOP Button*1 (P125)
❙Steering Wheel Adjustments (P139)
❙Hazard Warning Button
❙Ignition Switch* (P124)
❙Tire Pressure Monitoring System (TPMS) Button* (P374)
❙ (Vehicle Stability Assist (VSA ®) System OFF) Button (P369)
❙Heated Windshield Button* (P138)
❙Lane Departure Warning (LDW) Button* (P366)
❙Forward Collision Warning (FCW) Button* (P363)
❙ECON Button* (P357)
❙System Indicators (P74)
❙Gauges (P90)
❙Information Display (P91)
❙Audio/Information Screen (P185, 206)
❙Audio System (P178)
❙Navigation System*
() See the Navigation System Manual
❙Heating and Cooling System*
(P163)
❙Climate Control System* (P167)
❙Rear Window Defogger (P137)
❙Heated Mirror Icon* (P137)
18 HR-V-31T7A6200.book 4 ページ ２０１７年６月３０日　金曜日　午後１時２３分

5
Quick Reference Guide
❙Wipers/Washers (P134)
❙Paddle Shifter (Shift Up)* (P353)
❙ (Display) Button* (P206)
❙Paddle Shifter (Shift Down)* (P 353)
❙Audio Remote Control Buttons (P182)
❙Headlights/Turn Signals (P129)
❙Fog Lights* (P132)
❙LaneWatchTM * (P370)
❙ (Select/Reset) Knob (P91)
❙Brightness Control (P136)
❙Cruise Control Buttons (P358)
❙Horn (Press an area around .)
❙Bluetooth® HandsFreeLink ® System
(P274, 297)
❙Voice Control Buttons (P274, 297)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
* Not available on all models
18 HR-V-31T7A6200.book 5 ページ ２０１７年６月３０日　金曜日　午後１時２３分

11
Quick Reference Guide
Instrument Panel (P73)
Lights Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Anti-lock Brake System
(ABS) IndicatorVehicle Stability Assist
(VSA®) System Indicator
VSA® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN IndicatorSupplemental Restraint
System Indicator
Starter System
Indicator*
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever Position Indicator
*
Low Fuel Indicator
Gauges (P90)/Information Display (P91)/System Indicators (P74)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)
Low Temperature
Indicator (Blue)
System Indicators
System Indicators
Low Tire Pressure/TPMS
Indicator
U.S. models only
Brake System Indicator
(Red)
CRUISE CONTROL
Indicator
System Indicators
Charging System
Indicator
U.S. U.S.
Canada
Smart Entry System
Indicator*
Washer Level Indicator*
ECON Mode
Indicator*
Maintenance Minder
Indicator
Fog Light Indicator*
Canada
Brake System Indicator
(Amber)
Canada U.S.
M
(7-speed manual shift mode)
Indicator/Shift Indicator*
Information Display
Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
Electric Parking Brake
System Indicator
Electric Parking Brake
IndicatorU.S.
Canada
All-Wheel Drive ( AWD)
System Indicator*
Forward Collision
Warning (FCW)
Indicator
*
Lane Departure
Warning (LDW)
Indicator
*
Brake Depressing
Indicator
Continuously variable
transmission models
Brake Depressing
IndicatorManual transmission models
* Not available on all models
18 HR-V-31T7A6200.book 11 ページ ２０１７年６月３０日　金曜日　午後１時２３分

12
Quick Reference Guide
Controls (P95)
Clock (P96)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the information display is
automatically updated along with the audio
system’s clock display.
Models with navigation system
Models without navigation system
Clock
aSelect the (HOME) icon, then select
Settings.
bSelect System , Clock, then Clock
Adjustment .
cTouch the / icon to adjust the
numbers up or down.
dSelect OK.
Models with display audio system
VOL
HOME
MENU
BACK
34
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
18 HR-V-31T7A6200.book 12 ページ ２０１７年６月３０日　金曜日　午後１時２３分

20
Quick Reference Guide
(P205)Models with display audio system
VOL
HOMEMENU
BACK
(Day/Night) Button
CD Slot (CD Eject) Button
Audio/Information Screen
VOL (Volume) Icons
(Back) Icon
(Power) Button
(Menu) Icon
(Home) Icon
18 HR-V-31T7A6200.book 20 ページ ２０１７年６月３０日　金曜日　午後１時２３分

21
Quick Reference Guide
Driving (P327)
Depress the brake pedal and press
the release button to move out of
(P.
Manual Transmission* (P354)
Continuously Variable Transmission*
(P348, 350)
● Shift to
(P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
On models with paddle shifters,
7-speed mode can be used
temporarily. Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Models without paddle shifters
Low●Used to further increase engine braking●Used when going up or down hills
Models without paddle shifters
Drive (S)
7-speed manual shift mode can
be used.
Models with paddle shifters
Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
7-Speed Manual Shift Mode* (P352)
● Allows you to manually shift the transmission up or
down without removing yo ur hands from the steering
wheel.
When the shift lever is in (S● Pulling a paddle shifter changes the mode from
continuously variable trans mission to 7-speed manual
shift mode.
● The M indicator and the selected speed number are
displayed in the shift indicator.
When the shift lever is in (D● Pulling a paddle shifter temporarily changes the mode
from continuously variable transmission to 7-speed
manual shift mode. The selected speed number is
displayed in the shift indicator.
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter ( M Indicator
Models with
paddle shiftersModels without
paddle shifters
Shift Lever
Release
Button
Shift Indicator
* Not available on all models
18 HR-V-31T7A6200.book 21 ページ ２０１７年６月３０日　金曜日　午後１時２３分

73
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 74
Information Display Warning and Information Messages ...................... 87
Gauges and Displays Gauges .............................................. 90
Information Display............................ 91
18 HR-V-31T7A6200.book 73 ページ ２０１７年６月３０日　金曜日　午後１時２３分
