2018 HONDA HR-V display

87
uuIndicators uInformation Display Warning and Information Messages
Continued
Instrument Panel
Information Display Warning and Information Messages
The following messages appear only on the information display.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2Check Fuel Cap Message P. 466
●Appears when there is a problem with the sensor on
the battery.●Stays on constantly - Have your vehicle checked
by a dealer.
18 HR-V-31T7A6200.book 87 ページ ２０１７年６月３０日　金曜日　午後１時２３分

88
uuIndicators uInformation Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Push the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Move the shift lever to (P.
●Appears when the power mode is in ACCESSORY.
—
●Appears when the steering wheel is locked.
●Move the steering wheel left and right while
pressing the ENGINE START/STOP button at the
same time.
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote
back inside the vehicle and close the door.
●Appears when the smart entry remote’s battery
becomes weak.●Replace the battery as soon as possible.
2 Replacing the Button Battery P. 435
Models with smart entry system
Canadian models with continuously variable transmission
U.S. models with continuously variable transmission
U.S. models with manual transmission
Canadian models
18 HR-V-31T7A6200.book 88 ページ ２０１７年６月３０日　金曜日　午後１時２３分

89
uuIndicators uInformation Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the warning distance setting has
been changed.
2 To change vehicle distance and to turn the
system on and off P. 363
Models with FCW
18 HR-V-31T7A6200.book 89 ページ ２０１７年６月３０日　金曜日　午後１時２３分

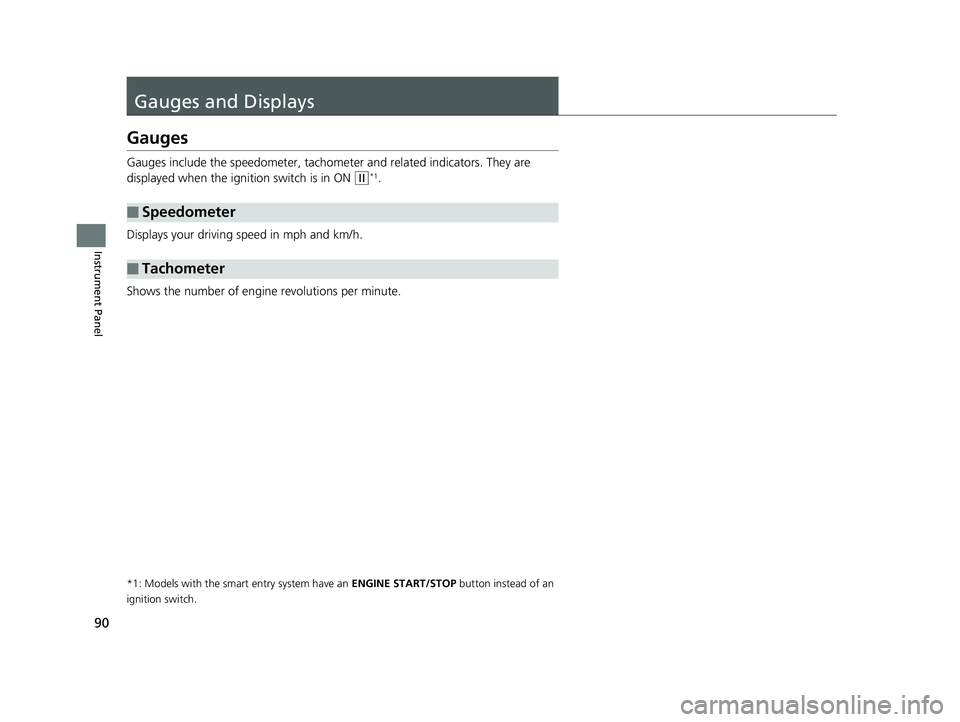

90
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer and related indicators. They are
displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph and km/h.
Shows the number of engine revolutions per minute.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
18 HR-V-31T7A6200.book 90 ページ ２０１７年６月３０日　金曜日　午後１時２３分

91
uuGauges and Displays uInformation Display
Continued
Instrument Panel
Information Display
The information display shows the fuel gauge, odometer, trip meter, engine oil life
and maintenance service item codes, and other gauges.
Press the (select/reset) knob to change the display.
Each time you press the (select/reset) knob, the information display changes as follows:
■Switching the Display
1Switching the Display
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Models with display audio system
Instant Fuel Economy
Clock
Odometer
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Range
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Average Fuel Economy A
Trip Meter A
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Average Fuel Economy B
Trip Meter B
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Engine Oil Life
Fuel Gauge
Select/Reset Knob
18 HR-V-31T7A6200.book 91 ページ ２０１７年６月３０日　金曜日　午後１時２３分

uuGauges and Displays uInformation Display
92
Instrument Panel
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the total number of miles (U.S.) or ki lometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. TRIP A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel econom y of your trips in the past.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
■Instant Fuel Economy
■Odometer
■Trip Meter
■Range
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
18 HR-V-31T7A6200.book 92 ページ ２０１７年６月３０日　金曜日　午後１時２３分

Continued93
uuGauges and Displays uInformation Display
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON
(w*1.
2. Press and hold the (Select/Reset) knob for 10 seconds or more while the
outside temperature is show n on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F (U .S.) or -3°C to +3°C (Canada).
3. Release the knob when the right adjustment amount is shown.
u The adjustment is complete.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 395
Displays the amount of fuel left in the fuel tank.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature
■Engine Oil Life and Maintenance Items
■Fuel Gauge
1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
When the engine oil life is shown on the information
display, you cannot adjust the outside temperature.
Push the knob to select the other display.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
18 HR-V-31T7A6200.book 93 ページ ２０１７年６月３０日　金曜日　午後１時２３分

94
uuGauges and Displays uInformation Display
Instrument Panel
The center ring illumination can be changed to a color of your choice. With the
ignition switch in the ACCESSORY
(q or LOCK (0*1 position and with the meter
ring illuminated, press the select/reset knob. Each time the knob is pressed, the
colors change in the following order:
White  Blue  Purple  Pink  Red  Amber  Yellow
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Changing Ring Color
Select/Reset Knob
