2018 HONDA CLARITY ELECTRIC automatic transmission fluid

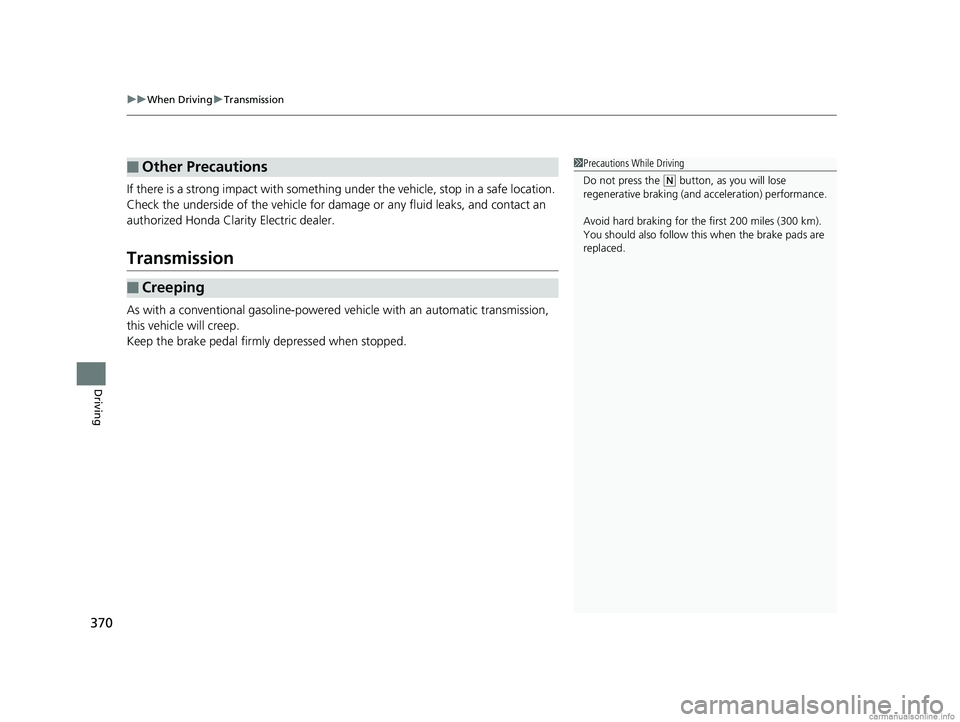

uuWhen Driving uTransmission
370
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for da mage or any fluid leaks, and contact an
authorized Honda Clar ity Electric dealer.
Transmission
As with a conventional gasoline-powered vehicle with an automatic transmission,
this vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
■Other Precautions
■Creeping
1Precautions While Driving
Do not press the
(N button, as you will lose
regenerative braking (and ac celeration) performance.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
18 CLARITY ELECTRIC CSS-31TRV6100.book 370 ページ ２０１８年２月５日　月曜日　午後１２時０分

468

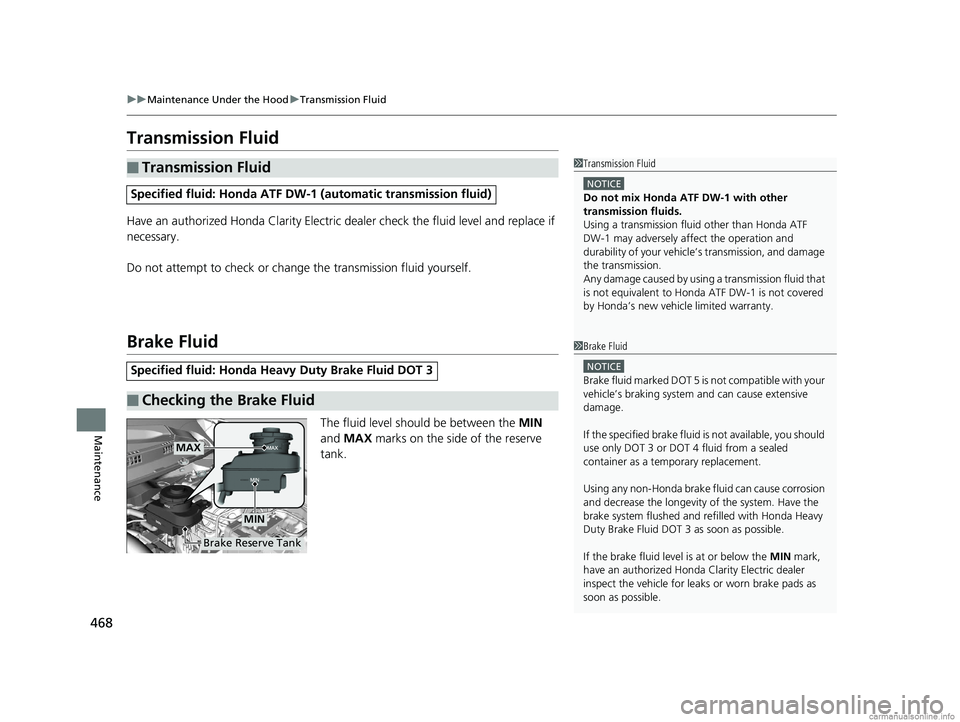

uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have an authorized Honda Clarity Electric dealer check the fluid level and replace if
necessary.
Do not attempt to check or change the transmission fluid yourself.
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
■Transmission Fluid
Specified fluid: Honda ATF DW-1 (automatic transmission fluid)
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehicle limited warranty.
1 Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have an authorized Honda Clarity Electric dealer
inspect the vehicle for leaks or worn brake pads as
soon as possible.
Brake Reserve Tank
MAX
MIN
18 CLARITY ELECTRIC CSS-31TRV6100.book 468 ページ ２０１８年２月５日　月曜日　午後１２時０分

537

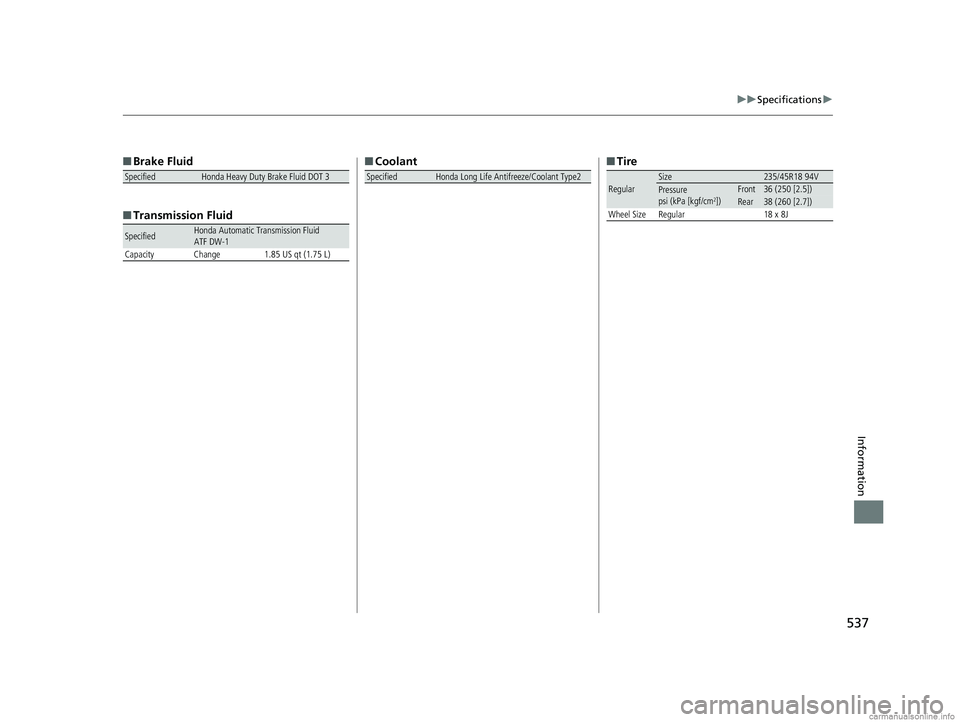

uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 1.85 US qt (1.75 L)
■ Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type2
■Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])Front36 (250 [2.5])Rear38 (260 [2.7])
Wheel Size Regular 18 x 8J
18 CLARITY ELECTRIC CSS-31TRV6100.book 537 ページ ２０１８年２月５日　月曜日　午後１２時０分

550
Index
Information............................................... 535
Instant Energy Consumption ................... 123
Instrument Panel ........................................ 81
Interior Lights ........................................... 176
Interior Rearview Mirror .......................... 167
Inverter Coolant ........................................ 467
Adding to the Reserve Tank ..................... 467
Overheating............................................. 517
iPod ............................................................ 245
J
Jacking Points ........................................... 510
Jump Starting ............................................ 514
K
Key Number Tag ....................................... 132
Keyless Lockout Prevention ..................... 139
Keys ........................................................... 131
Lockout Prevention .................................. 139
Number Tag ............................................ 132
Rear Door Won’t Open ............................ 142
Remote Transmitter ................................. 137
Types and Functions ................................ 131
L
Lane Keeping Assist System (LKAS) ......... 404
LaneWatchTM............................................. 418
Language (HFL) ......................................... 327
LATCH (Child Seats) .................................... 72 Lights
................................................. 156, 470
Automatic ............................................... 157
Bulb Replacement ................................... 470
Daytime Running Lights........................... 159
High Beam Indicator .................................. 94
Interior .................................................... 176
Light Switches ......................................... 156
Lights On Indicator .................................... 94
Turn Signals ............................................ 155
Load Limits ................................................ 363
Locking/Unlocking .................................... 131
Auto Door Locking/Unlocking.................. 143
Childproof Door Locks............................. 142
From Inside ............................................. 140
From Outside .......................................... 133
Keys ........................................................ 131
Using a Key ............................................. 138
Lockout Prevention System ..................... 139
Low Battery Charge (12-Volt) .................. 518
Low Smart Entry Remote Signal Strength .................................................. 132
Lower Anchors ............................................ 72
Luggage (Maximum Load Limit) ............. 363
M
Maintenance............................................. 457
12-Volt Battery ........................................ 484
Brake Fluid .............................................. 468
Cleaning ................................................. 488
Climate Control System ........................... 487 Coolant .................................................. 467
Maintenance Minder
TM............................ 461
Precautions ............................................. 458
Remote Transmitter ................................ 486
Replacing Light Bulbs .............................. 470
Safety ..................................................... 459
Service Items ........................................... 463
Tires........................................................ 475
Transmission Fluid ................................... 468
Under the Hood ...................................... 465
Making Good Use of Your Honda Electric
Vehicle ...................................................... 12
Map Lights ................................................ 177
Maximum Load Limit ............................... 363
Meters, Gauges ........................................ 116
Mirrors ...................................................... 167
Adjusting ................................................ 167
Door ....................................................... 168
Exterior ................................................... 168
Interior Rearview ..................................... 167
Modifications (and Accessories) .............. 494
Motor ........................................................ 538
Coolant .................................................. 467
Jump Starting ......................................... 514
MP3 ........................................................... 254
Multi-View Rear Camera ......................... 438
N
Numbers (Identification)......................... 538
