2018 FORD FOCUS RS Owners Manual

UNIQUE FEATURES
Powertrain
•2.3L EcoBoost engine.
•High-capacity intercooler.
•High-flow, dual-mode exhaust system.
•Enhanced torque vectoring control.
•All-wheel drive.
•Limited-slip differential.
52018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingAt a GlanceE215060

Chassis
•Brembo front brake calipers.
•Launch control.
•Drive modes.
•Dual-mode dampers.
Exterior
•Radiator grille.
•Underbody shield.
•Diffuser.
•Spoiler.
•Light-weight aluminum or forgedaluminum wheels.
•Michelin Pilot Super Sport or MichelinPilot Sport Cup 2 tires.
Interior
•Performance shift indicator.
•Sony 10-speaker audio system.
62018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingAt a Glance

GAUGES
Oil temperature gauge.A
Turbocharger boost gauge.B
Oil pressure gauge.C
Oil Temperature Gauge
If the needle enters the red section, theengine is overheating. Reduce enginespeed as soon as safely possible to allowthe engine to cool. If you continue tooperate the engine at high engine speedswith the needle in the red section, theengine speed reduces automatically toprevent engine damage.
Turbocharger Boost Gauge
Indicates the added intake pressureprovided by the turbocharger.
Oil Pressure Gauge
Oil pressure varies with engine speed. Thepressure rises as engine speed rises anddrops as engine speed drops.
If the needle enters the red section awarning lamp illuminates and a messageappears in the information display. Stopyour vehicle as soon as it is safe to do soand switch the engine off. Check theengine oil level.
WARNING LAMPS AND
INDICATORS
Performance Shift Indicator
It illuminates when thepowertrain reaches the optimumupshift point. It flashes when theengine is close to hitting the engine speedlimiter.
72018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingInstrument ClusterE215771 E218767

GENERAL INFORMATION
Launch Control
The system configures the chassis andpowertrain systems to deliver the fastest
possible acceleration when launching froma standing start.
Note: When you switch the feature on, itis only active once. You must switch thefeature on each time it is required.
To switch the feature on, do the following:
Note:Your vehicle must be completely stationary.
ActionStep
Fully press the clutch pedal and shift the gearshift lever to first gear.1
Access the following menus using the information display control.2
Expand the menu and then scroll to the followingmenu item.Settings3
Expand the menu and then scroll to the followingmenu item.Driver Assist4
Check the box to switch the feature on.Launch Control5
Fully press the accelerator pedal. Engine speed automatically limits to 5000RPM.6
Quickly release the clutch pedal when ready to launch.7
Note: Only use launch control when the front wheels are in the straight ahead position.Make sure there are no objects in front of your vehicle.
The system does not operate in any of thefollowing conditions:
•The transmission is in reverse (R).
•The engine has not reached normaloperating temperature.
INFORMATION MESSAGES
Message Indicator
The message indicatorilluminates to supplement somemessages.
The indicator is red or amber dependingon the severity of the condition and itremains on until the condition is resolved.
A system-specific symbol with a messageindicator may supplement somemessages.
82018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingInformation Displays

All-Wheel Drive
Action and DescriptionMessage
Displays when the system has been automatically disabledto protect itself. This is caused by operating the vehicle witha severely mismatched tire installed, if the system is over-heating or if there is an issue with another vehicle systempreventing AWD operation. Overheating is most likely to occurif the vehicle is operated in severe conditions, for exampletrack use, or if there is excessive wheel slip, for example yourvehicle become stuck in mud.
AWD OFF
The system resumes normal function and clears this messageafter:
•You switch the ignition off and on and drive a shortdistance with the correct wheels and tires installed.
•The system is allowed to cool.
•Other vehicle system issues are resolved.
Displays in conjunction with an amber Information icon if thesystem is not operating correctly and defaults to front-wheeldrive only. If the warning remains on or continues appear,have your vehicle checked as soon as possible.
AWD Malfunction ServiceRequired
Displays when the rear drive unit lubrication requires changing.This message may appear if the vehicle is used for extended
periods of extreme driving, for example track use.*
AWD System Oil ChangeDue
*The rear drive unit does not require any normal scheduled maintenance. The systemelectronically monitors the rear drive unit and notifies you of required service by displayingthe message in the information display. The lubricant is more likely to require changingif you use your vehicle for extended periods of extreme driving, for example track use. Donot check or change the lubricant unless the rear drive unit shows signs of leakage or themessage displays. If the rear drive unit is submerged in water or to reset the message,have your vehicle checked as soon as possible.
Electronic Stability Control
Action and DescriptionMessage
Displays when you switch the system off.Electronic StabilityControl Off
92018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingInformation Displays

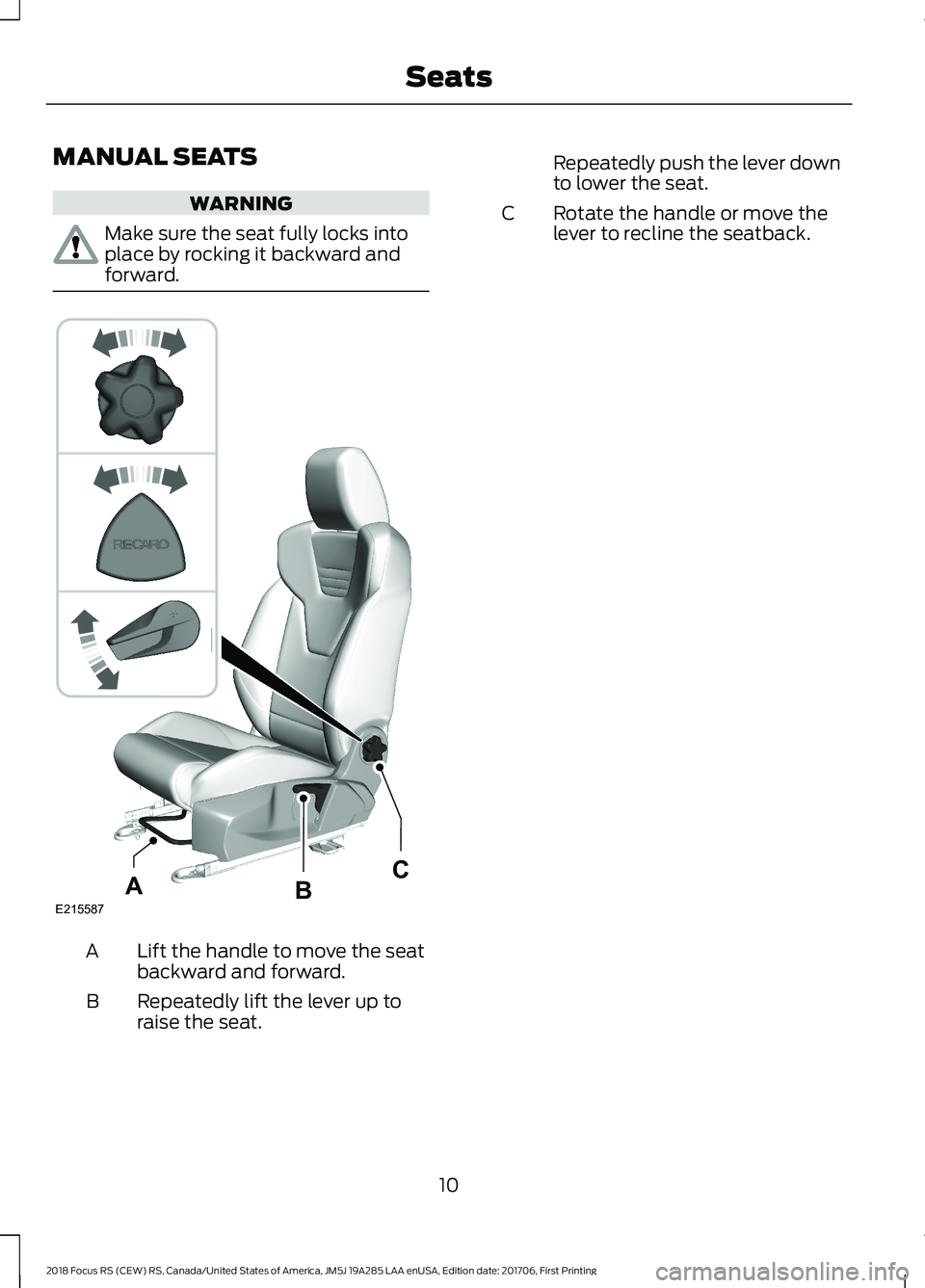

MANUAL SEATS
WARNING
Make sure the seat fully locks intoplace by rocking it backward andforward.
Lift the handle to move the seatbackward and forward.A
Repeatedly lift the lever up toraise the seat.B
Repeatedly push the lever downto lower the seat.
Rotate the handle or move thelever to recline the seatback.C
102018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingSeatsE215587BCA

FUEL QUALITY
Choosing the Right Fuel
Use only premium unleaded gasoline witha minimum pump (R+M)/2 octane ratingof 91. For optimal performance, usepremium unleaded gasoline with an octanerating of 93 or higher.
The use of the correct fuel is an importantpart of the proper maintenance of yourvehicle, and a condition of the vehicleWarranty. For this vehicle, the use ofgasoline with an octane level of 91 orhigher is required. The use of gasoline withan octane rating lower than 91 willinvalidate the vehicle Warranty. It candegrade vehicle performance and lead tosevere mechanical damage.
Note:Use of any fuel other than thoserecommended can impair the emissioncontrol system and cause a loss of vehicleperformance.
Do not use:
•Diesel fuel.
•Fuels containing kerosene or paraffin.
•Fuel containing more than 15% ethanolor E85 fuel.
•Fuels containing methanol.
•Fuels containing metallic-basedadditives, including manganese-basedcompounds.
•Fuels containing the octane boosteradditive, methylcyclopentadienylmanganese tricarbonyl (MMT).
•Leaded fuel (using leaded fuel isprohibited by law).
The use of fuels with metallic compoundssuch as methylcyclopentadienylmanganese tricarbonyl (commonly knownas MMT), which is a manganese-basedfuel additive, will impair engineperformance and affect the emissioncontrol system.
Do not be concerned if the enginesometimes knocks lightly. However, if itknocks heavily under most drivingconditions while you are using fuel with therecommended octane rating, contact anauthorized dealer to prevent any enginedamage.
112018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingFuel and RefuelingE185193

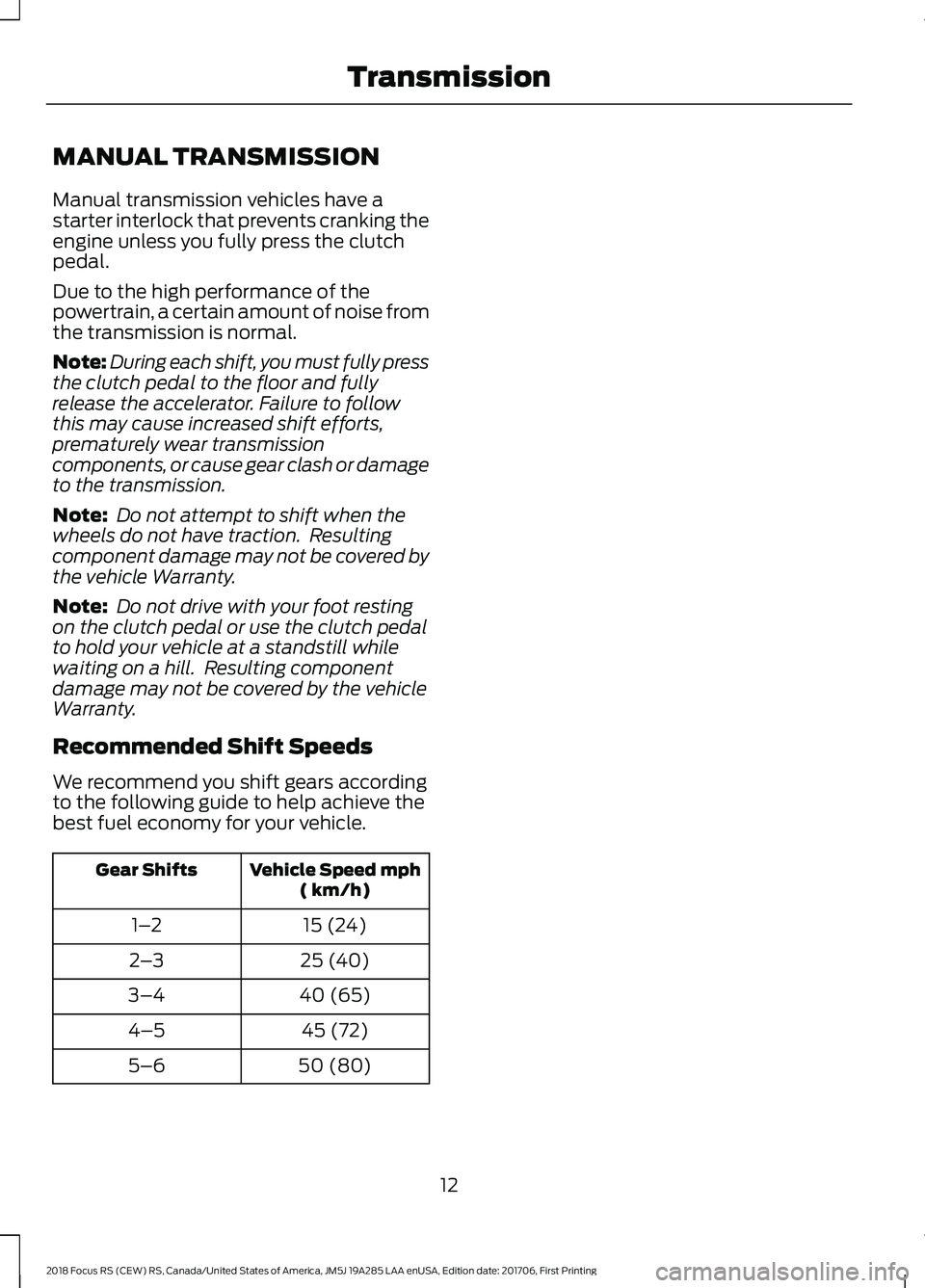

MANUAL TRANSMISSION
Manual transmission vehicles have astarter interlock that prevents cranking theengine unless you fully press the clutchpedal.
Due to the high performance of thepowertrain, a certain amount of noise fromthe transmission is normal.
Note:During each shift, you must fully pressthe clutch pedal to the floor and fullyrelease the accelerator. Failure to followthis may cause increased shift efforts,prematurely wear transmissioncomponents, or cause gear clash or damageto the transmission.
Note: Do not attempt to shift when thewheels do not have traction. Resultingcomponent damage may not be covered bythe vehicle Warranty.
Note: Do not drive with your foot restingon the clutch pedal or use the clutch pedalto hold your vehicle at a standstill whilewaiting on a hill. Resulting componentdamage may not be covered by the vehicleWarranty.
Recommended Shift Speeds
We recommend you shift gears accordingto the following guide to help achieve thebest fuel economy for your vehicle.
Vehicle Speed mph( km/h)Gear Shifts
15 (24)1–2
25 (40)2–3
40 (65)3–4
45 (72)4–5
50 (80)5–6
122018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingTransmission
