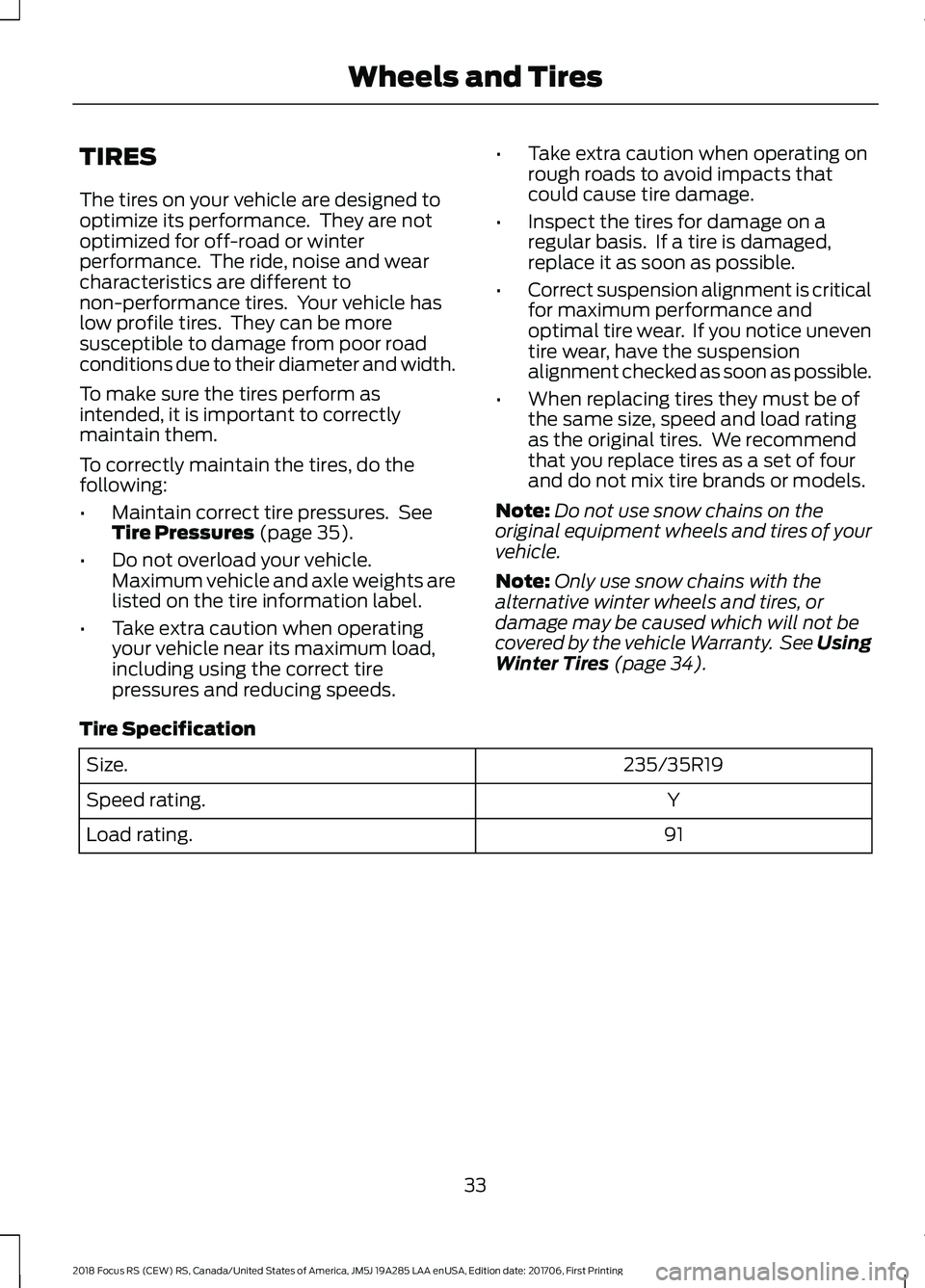

TIRES
The tires on your vehicle are designed tooptimize its performance. They are notoptimized for off-road or winterperformance. The ride, noise and wearcharacteristics are different tonon-performance tires. Your vehicle haslow profile tires. They can be moresusceptible to damage from poor roadconditions due to their diameter and width.
To make sure the tires perform asintended, it is important to correctlymaintain them.
To correctly maintain the tires, do thefollowing:
•Maintain correct tire pressures. SeeTire Pressures (page 35).
•Do not overload your vehicle.Maximum vehicle and axle weights arelisted on the tire information label.
•Take extra caution when operatingyour vehicle near its maximum load,including using the correct tirepressures and reducing speeds.
•Take extra caution when operating onrough roads to avoid impacts thatcould cause tire damage.
•Inspect the tires for damage on aregular basis. If a tire is damaged,replace it as soon as possible.
•Correct suspension alignment is criticalfor maximum performance andoptimal tire wear. If you notice uneventire wear, have the suspensionalignment checked as soon as possible.
•When replacing tires they must be ofthe same size, speed and load ratingas the original tires. We recommendthat you replace tires as a set of fourand do not mix tire brands or models.
Note:Do not use snow chains on theoriginal equipment wheels and tires of yourvehicle.
Note:Only use snow chains with thealternative winter wheels and tires, ordamage may be caused which will not becovered by the vehicle Warranty. See UsingWinter Tires (page 34).
Tire Specification
235/35R19Size.
YSpeed rating.
91Load rating.
332018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingWheels and Tires
STEERING SPECIFICATIONS
Wheel Alignment
SpecificationDimension Description
0.20° ±0.20°Front wheel - Total Toe.
0.30° ±0.20°Rear wheel - Total Toe.
Turning Circle
SpecificationDimension Description
39.4 ft (12 m)Minimum turning circle.
392018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingCapacities and Specifications
