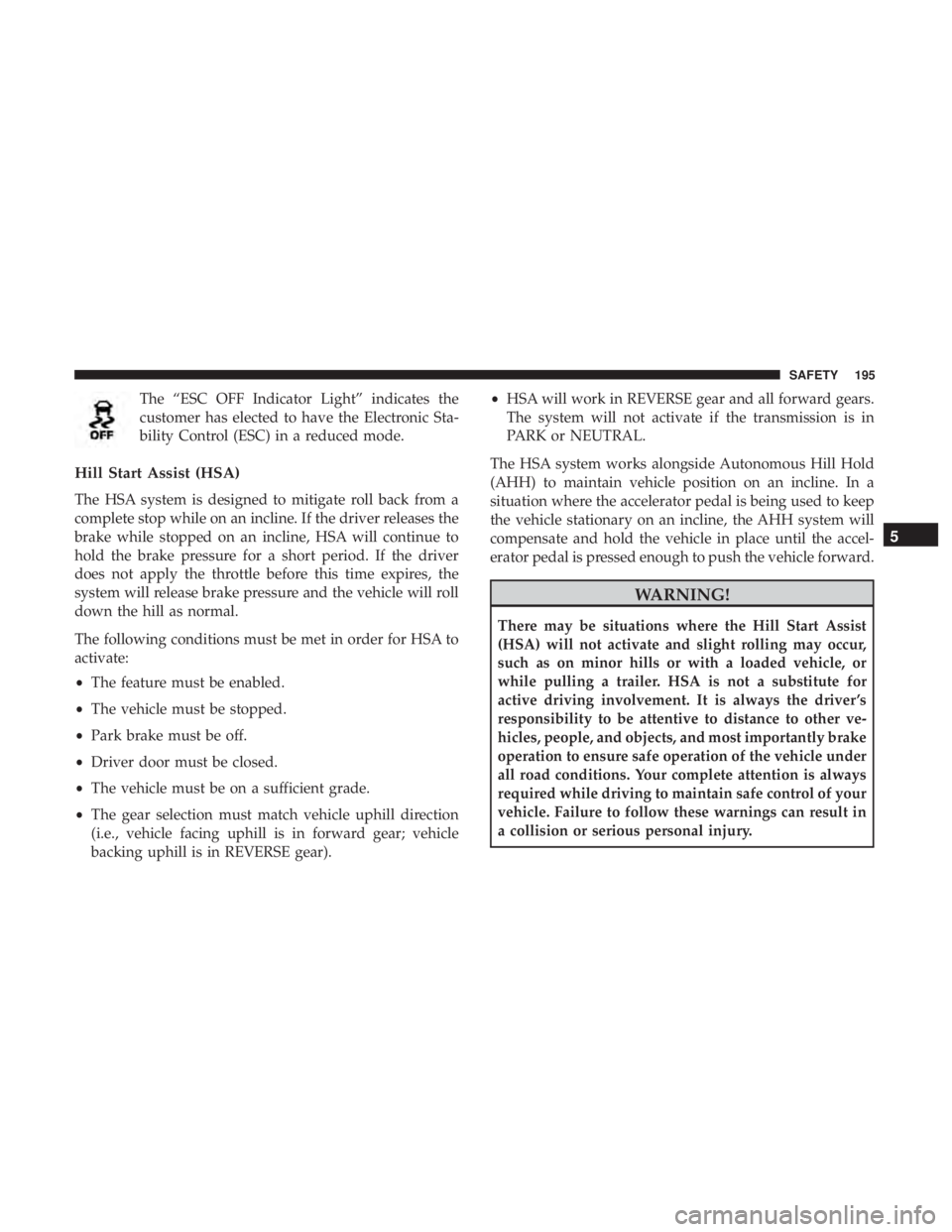

The “ESC OFF Indicator Light” indicates the
customer has elected to have the Electronic Sta-
bility Control (ESC) in a reduced mode.
Hill Start Assist (HSA)
The HSA system is designed to mitigate roll back from a
complete stop while on an incline. If the driver releases the
brake while stopped on an incline, HSA will continue to
hold the brake pressure for a short period. If the driver
does not apply the throttle before this time expires, the
system will release brake pressure and the vehicle will roll
down the hill as normal.
The following conditions must be met in order for HSA to
activate:
•The feature must be enabled.
• The vehicle must be stopped.
• Park brake must be off.
• Driver door must be closed.
• The vehicle must be on a sufficient grade.
• The gear selection must match vehicle uphill direction
(i.e., vehicle facing uphill is in forward gear; vehicle
backing uphill is in REVERSE gear). •
HSA will work in REVERSE gear and all forward gears.
The system will not activate if the transmission is in
PARK or NEUTRAL.
The HSA system works alongside Autonomous Hill Hold
(AHH) to maintain vehicle position on an incline. In a
situation where the accelerator pedal is being used to keep
the vehicle stationary on an incline, the AHH system will
compensate and hold the vehicle in place until the accel-
erator pedal is pressed enough to push the vehicle forward.
WARNING!
There may be situations where the Hill Start Assist
(HSA) will not activate and slight rolling may occur,
such as on minor hills or with a loaded vehicle, or
while pulling a trailer. HSA is not a substitute for
active driving involvement. It is always the driver ’s
responsibility to be attentive to distance to other ve-
hicles, people, and objects, and most importantly brake
operation to ensure safe operation of the vehicle under
all road conditions. Your complete attention is always
required while driving to maintain safe control of your
vehicle. Failure to follow these warnings can result in
a collision or serious personal injury.
5
SAFETY 195

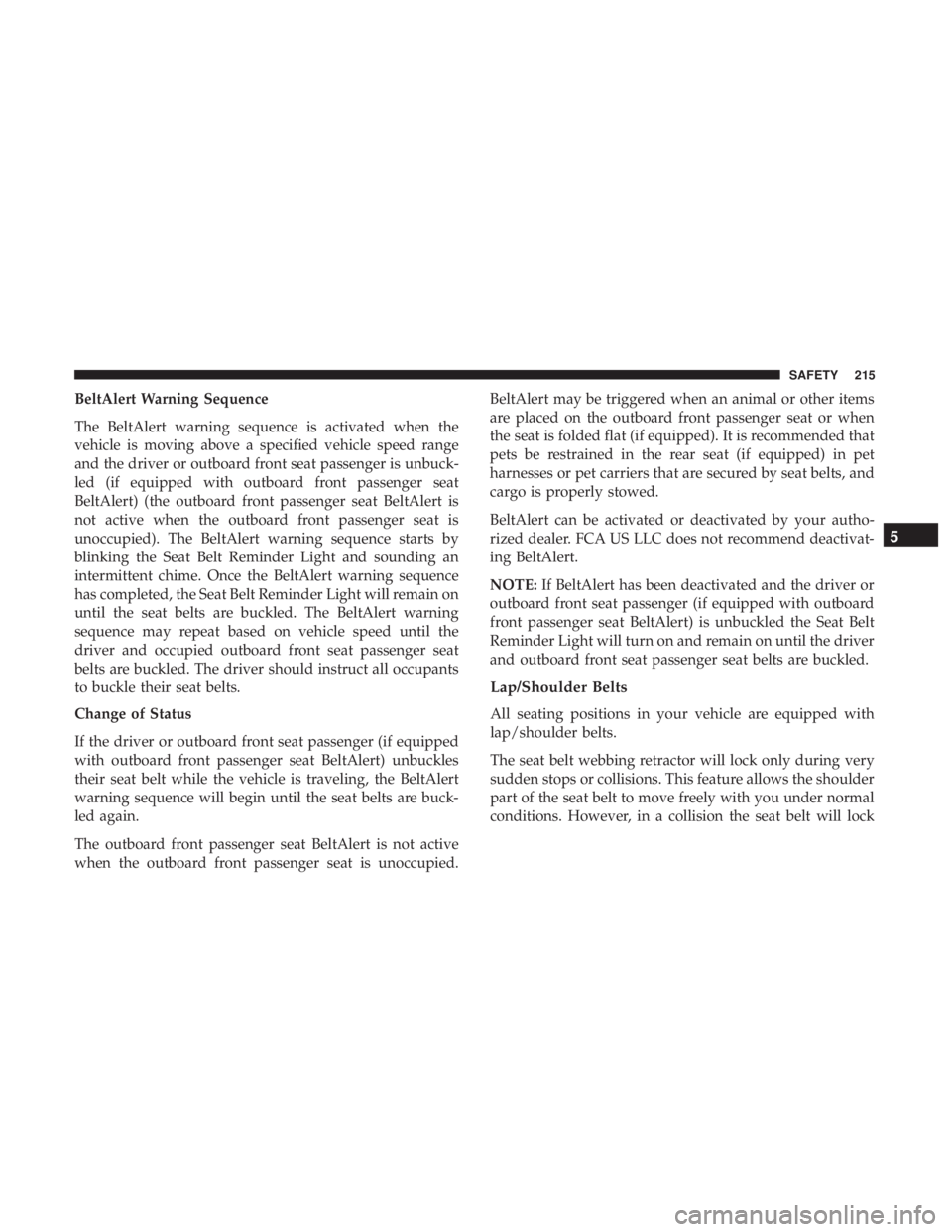

BeltAlert Warning Sequence
The BeltAlert warning sequence is activated when the
vehicle is moving above a specified vehicle speed range
and the driver or outboard front seat passenger is unbuck-
led (if equipped with outboard front passenger seat
BeltAlert) (the outboard front passenger seat BeltAlert is
not active when the outboard front passenger seat is
unoccupied). The BeltAlert warning sequence starts by
blinking the Seat Belt Reminder Light and sounding an
intermittent chime. Once the BeltAlert warning sequence
has completed, the Seat Belt Reminder Light will remain on
until the seat belts are buckled. The BeltAlert warning
sequence may repeat based on vehicle speed until the
driver and occupied outboard front seat passenger seat
belts are buckled. The driver should instruct all occupants
to buckle their seat belts.
Change of Status
If the driver or outboard front seat passenger (if equipped
with outboard front passenger seat BeltAlert) unbuckles
their seat belt while the vehicle is traveling, the BeltAlert
warning sequence will begin until the seat belts are buck-
led again.
The outboard front passenger seat BeltAlert is not active
when the outboard front passenger seat is unoccupied.BeltAlert may be triggered when an animal or other items
are placed on the outboard front passenger seat or when
the seat is folded flat (if equipped). It is recommended that
pets be restrained in the rear seat (if equipped) in pet
harnesses or pet carriers that are secured by seat belts, and
cargo is properly stowed.
BeltAlert can be activated or deactivated by your autho-
rized dealer. FCA US LLC does not recommend deactivat-
ing BeltAlert.
NOTE:
If BeltAlert has been deactivated and the driver or
outboard front seat passenger (if equipped with outboard
front passenger seat BeltAlert) is unbuckled the Seat Belt
Reminder Light will turn on and remain on until the driver
and outboard front seat passenger seat belts are buckled.
Lap/Shoulder Belts
All seating positions in your vehicle are equipped with
lap/shoulder belts.
The seat belt webbing retractor will lock only during very
sudden stops or collisions. This feature allows the shoulder
part of the seat belt to move freely with you under normal
conditions. However, in a collision the seat belt will lock
5
SAFETY 215

NOTE:
•Air bag covers may not be obvious in the interior trim,
but they will open during air bag deployment.
• After any collision, the vehicle should be taken to an
authorized dealer immediately.
Enhanced Accident Response System
In the event of an impact, if the communication network
remains intact, and the power remains intact, depending
on the nature of the event, the ORC will determine whether
to have the Enhanced Accident Response System perform
the following functions:
• Cut off fuel to the engine (If Equipped)
• Cut off battery power to the electric motor (If Equipped)
• Flash hazard lights as long as the battery has power
•
Turn on the interior lights, which remain on as long as the
battery has power or for 15 minutes from the intervention
of the Enhanced Accident Response System.
• Unlock the power door locks.
Your vehicle may also be designed to perform any of these
other functions in response to the Enhanced Accident
Response System: •
Turn off the Fuel Filter Heater, Turn off the HVAC
Blower Motor, Close the HVAC Circulation Door
• Cut off battery power to the:
• Engine
• Electric Motor (if equipped)
• Electric power steering
• Brake booster
• Electric park brake
• Automatic transmission gear selector
• Horn
• Front wiper
• Headlamp washer pump
NOTE: After an accident, remember to cycle the ignition to
the STOP (OFF/LOCK) position and remove the key from
the ignition switch to avoid draining the battery. Carefully
check the vehicle for fuel leaks in the engine compartment
and on the ground near the engine compartment and fuel
tank before resetting the system and starting the engine. If
there are no fuel leaks or damage to the vehicle electrical
devices (e.g. headlights) after an accident, reset the system
by following the procedure described below.
246 SAFETY

STARTING AND OPERATING
CONTENTS
STARTING THE VEHICLE .................278
▫ Normal Starting ....................... .278
▫ Cold Weather Operation ..................279
▫ After Starting ......................... .279
▫ To Turn Off The Vehicle Using ENGINE
START/STOP Button ....................280
 ENGINE BREAK-IN RECOMMENDATIONS . . . .281
 PARK BRAKE ......................... .281
▫ Electric Park Brake (EPB) .................281
 AUTOMATIC TRANSMISSION ..............286
▫ Ignition Park Interlock ...................287
▫ Brake/Transmission Shift Interlock System . . . .287
▫ Hybrid Transmission ....................288
▫ Gear Ranges ......................... .289
ACTIVE NOISE CANCELLATION ............293
 POWER STEERING ..................... .293
 SPEED CONTROL — IF EQUIPPED ..........294
▫ To Activate .......................... .295
▫ To Set A Desired Speed ...................295
▫ To Vary The Speed Setting ................295
▫ To Accelerate For Passing .................296
▫ To Resume Speed ..................... .296
▫ To Deactivate ........................ .297
 ADAPTIVE CRUISE CONTROL (ACC) —
IF EQUIPPED ......................... .297
▫ Adaptive Cruise Control (ACC) Operation .....299
▫ Activating Adaptive Cruise Control (ACC) .....299
▫ To Activate/Deactivate ...................300
6

▫To Set A Desired ACC Speed ...............300
▫ To Cancel ........................... .301
▫ ToTurnOff.......................... .301
▫ To Resume .......................... .301
▫ To Vary The Speed Setting ................302
▫ Setting The Following Distance In ACC .......304
▫ Overtake Aid ......................... .306
▫ ACC Operation At Stop ..................306
▫ Adaptive Cruise Control (ACC) Menu ........307
▫ Display Warnings And Maintenance .........308
▫ Precautions While Driving With ACC .........310
▫ General Information .....................313
▫ Normal (Fixed Speed) Cruise Control Mode . . . .313
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ......................... .316
▫ ParkSense Sensors ..................... .318
▫ ParkSense Visual Alert ...................318 ▫
ParkSense Display ..................... .318
▫ Enabling And Disabling ParkSense ..........322
▫ Service The ParkSense Rear Park Assist System. .322
▫ Cleaning The ParkSense System .............323
▫ ParkSense System Usage Precautions .........323
 PARKSENSE FRONT AND REAR PARK ASSIST —
IF EQUIPPED ......................... .324
▫ ParkSense Sensors ..................... .326
▫ ParkSense Visual Alert ...................327
▫ ParkSense Display ..................... .327
▫ Enabling And Disabling ParkSense ..........333
▫ Service

The ParkSense Park Assist System .....333
▫ Cleaning The ParkSense System .............334
▫ ParkSense System Usage Precautions .........334
 PARKSENSE ACTIVE PARK ASSIST SYSTEM —
IF EQUIPPED ......................... .336
▫ Enabling And Disabling The ParkSense Active
Park Assist System ..................... .337
276 STARTING AND OPERATING

STARTING THE VEHICLE
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•When exiting the vehicle, always remove the key fob
from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death. Request Propulsion System Active (PSA) or “Vehicle is
Ready to Drive” mode with the gear selector in the PARK
position. Apply the brake before shifting to any driving
range.
NOTE:
In case the ignition switch does not change with the
push of a button, the key fob may have a low or dead
battery. In this situation, a back up method can be used to
operate the ignition switch. Put the nose side of the key fob
(side opposite of the Emergency Key) against the ENGINE
START/STOP button and push to operate the ignition
switch.
Normal Starting
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
Achieving Vehicle Is Ready To Drive Mode Using The
ENGINE START / STOP Button.
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pushing the ENGINE START/STOP button once.
3. The vehicle will go into drive ready mode (Vehicle is Ready to Drive is indicated on the cluster), which may
278 STARTING AND OPERATING

include the start of the engine depending on conditions
such as battery state of charge and engine temperature.
4. If you wish to terminate Vehicle is Ready to Drive mode, push the button again.
ENGINE START/STOP Button Functions — With Driv-
er ’s Foot OFF The Brake Pedal (In PARK Or NEUTRAL
Position)
The ENGINE START/STOP button operates similar to an
ignition switch by providing three positions: OFF, ACC
and RUN. To change the ignition mode without starting
the vehicle (to power certain accessories), follow these
steps:
1. Starting with the ignition in the OFF mode.
2. Push the ENGINE START/STOP button once, without brake pedal being pressed, to place the ignition in the
ACC mode (instrument cluster will display “ACC”).
3. Push the ENGINE START/STOP button a second time, without brake pedal being pressed, to place the ignition
in the RUN mode (instrument cluster will display
“Ignition or Accessory On”). NOTE:
•The vehicle is not able to be driven in the “Ignition or
Accessory On” mode, see “Achieving Vehicle Is Ready
To Drive Mode Using the ENGINE START / STOP
Button” previously defined in this section for further
information.
• The rotary gear selector will turn but only PARK and
NEUTRAL are accessible in the “Ignition or Accessory
On” mode.
4. Push the ENGINE START/STOP button a third time, without brake pedal being pressed, to return the igni-
tion to the OFF mode (instrument cluster will display
“OFF”).
Cold Weather Operation
If the outside ambient temperature is 5°F (-15°C) or below,
the instrument cluster will request the vehicle to be
plugged in to provide conditioning of the vehicle high
voltage battery.
After Starting
To optimize energy efficiency, the vehicle will automati-
cally control engine operation.
6
STARTING AND OPERATING 279

To Turn Off The Vehicle Using ENGINE
START/STOP Button
1. Place the gear selector in PARK, then push and releasethe ENGINE START/STOP button.
2. The ignition switch will return to the OFF position.
3. If the gear selector is not in PARK, with vehicle speed less than 5 mph (8 km/h), when the ENGINE START/
STOP button is pushed, the instrument cluster display
will display a “Vehicle Not In Park” message, and the
vehicle will remain running.
4. If the gear selector is not in PARK, with vehicle speed greater than 5 mph (8 km/h), when the ENGINE
START/STOP button is pushed continuously for at least
two seconds (or three short pushes in a row) the vehicle
ignition mode will exit Drive Readymode and enter
Accessory mode. Never leave a vehicle out of the
PARK position, or it could roll. NOTE:
•
This vehicle is equipped with an automatic shutdown
feature. If the vehicle is left in a “READY” state (vehicle
running) with the shifter in “PARK” for one hour, the
vehicle will automatically turn itself off.
• The vehicle provides automatic notification, using a
three Horn Chirp Alert, cluster chiming, and a cluster
message (Key Fob has Left the Vehicle) if the vehicle
was not turned OFF (still Ready to Drive) and a valid
FOB for the vehicle is not detected within the passenger
cabin, following the opening and closing of any passen-
ger compartment door (requires all doors to be closed
before the FOB check will occur). These automatic alerts
are to remind the driver to turn OFF the vehicle before
leaving it, as well as, to let the driver know that the
vehicle’s FOB may have been unintentionally removed
from the vehicle by an exiting passenger. After provid-
ing the horn chirp alert, additional auto chirps will be
inhibited until the shifter has been moved out of Park or
ignition cycled.
280 STARTING AND OPERATING
