risk of damage to property. When cranking upthe vehicle jack, ensure that it is inserted in the jacking point next to the wheel housing.
WARNING
A vehicle that is raised on a vehicle jack may fall off of the jack if lateral forces are exerted on it.
There is a risk of injury and risk of damage to property. While the vehicle is raised, do not exjert lateral forces on the vehicle or pull abruptly
on the vehicle. Have a stuck wheel removed by
a dealerss service center or another qualified
service center or repair shop.
Securing
the
vehicle
against
rolling
General
information
The vehicle manufacturer recommends to addij
tionally secure the vehicle against rolling away
when changing a wheel.
On
a
level
surface

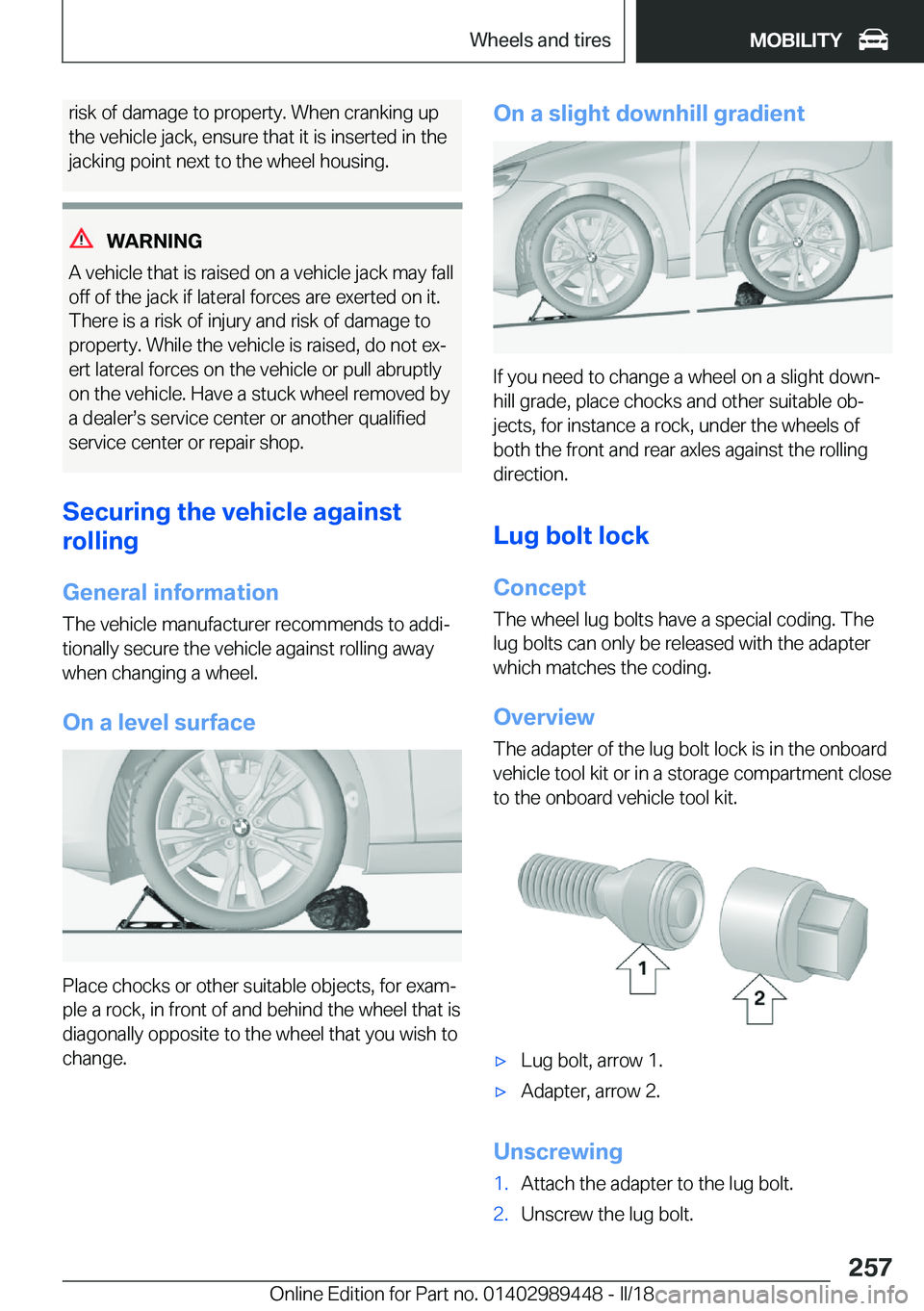

Place chocks or other suitable objects, for examj ple a rock, in front of and behind the wheel that is
diagonally opposite to the wheel that you wish to change.
On
a
slight
downhill
gradient
If you need to change a wheel on a slight downj
hill grade, place chocks and other suitable obj
jects, for instance a rock, under the wheels of
both the front and rear axles against the rolling
direction.
Lug
bolt
lock
Concept
The wheel lug bolts have a special coding. The lug bolts can only be released with the adapter
which matches the coding.
Overview The adapter of the lug bolt lock is in the onboard
vehicle tool kit or in a storage compartment close to the onboard vehicle tool kit.
'xLug bolt, arrow 1.'xAdapter, arrow 2.
Unscrewing
1.Attach the adapter to the lug bolt.2.Unscrew the lug bolt.Seite 257Wheels
and
tiresMOBILITY257
Online Edition for Part no. 01402989448 - II/18

3.Remove the adapter after unscrewing the lug
bolt.
Screwing
on
1.Attach the adapter to the lug bolt. If necesj
sary, turn the adapter until it fits on the lug
bolt.2.Screw on the lug bolt. The tightening torque is 140 Nm.3.Remove the adapter and stow it after screwj
ing on the lug bolt.
Preparing
the
vehicle
'xPark the vehicle on solid and non-slip ground at a safe distance from traffic.'xSwitch on the hazard warning system.'xSet the parking brake.'xEngage a gear or move the selector lever toposition P.'xAs soon as permitted by the traffic flow, have
all vehicle occupants get out of the vehicle and ensure that they remain outside the imj
mediate area in a safe place, such as behind a
guardrail.'xDepending on the vehicle equipment, get
wheel change tools and, if necessary, the
emergency wheel from the vehicle.'xIf necessary, set up a warning triangle or portj able hazard warning light at an appropriatedistance.'xSecure the vehicle additionally against rolling.'xLoosen the lug bolts a half turn.Jacking
points
for
the
vehicle
jack

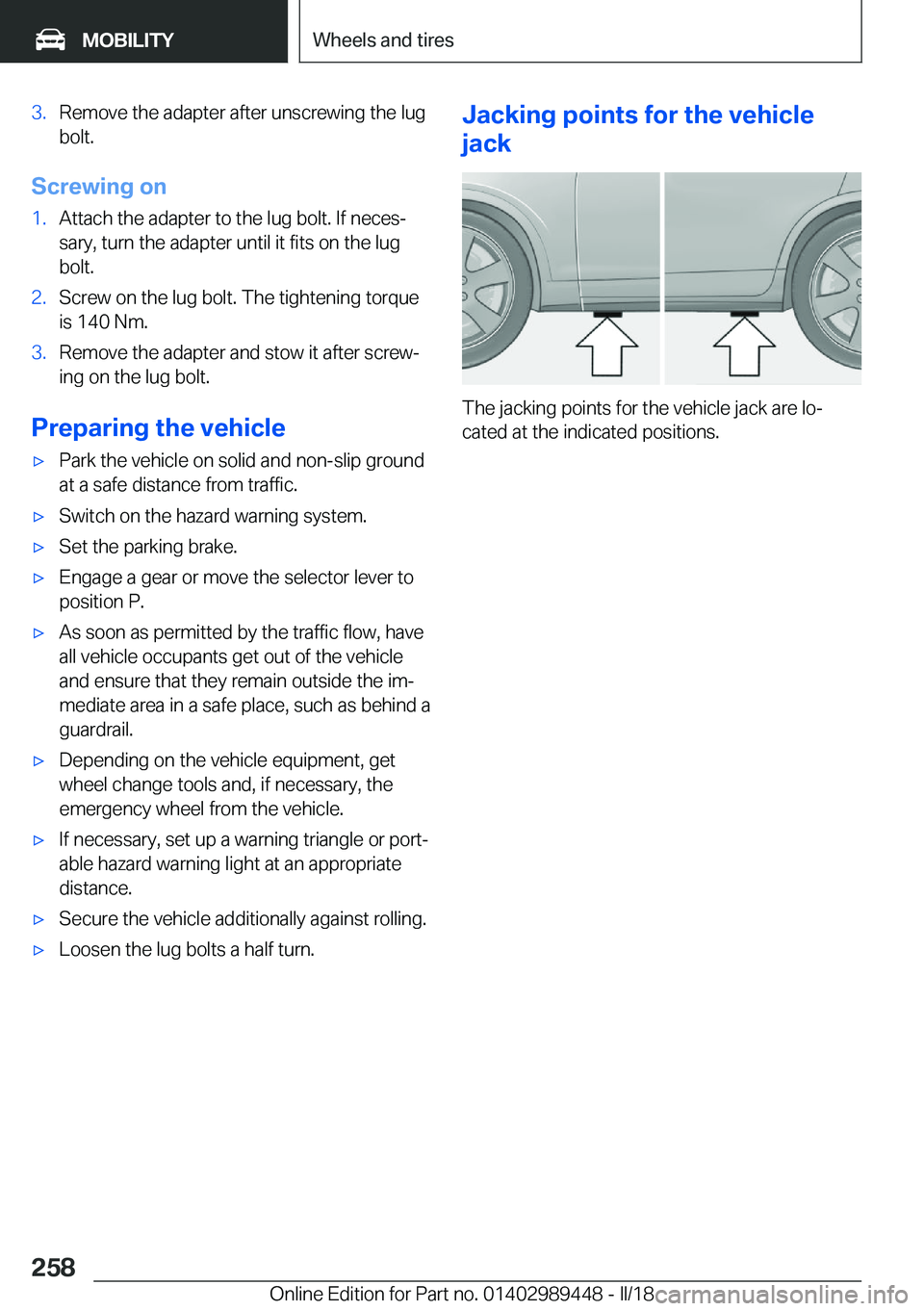

The jacking points for the vehicle jack are loj cated at the indicated positions.
Seite 258MOBILITYWheels
and
tires258
Online Edition for Part no. 01402989448 - II/18

Jacking
up
the
vehicle
WARNING
Hands and fingers can be jammed when using
the vehicle jack. There is a risk of injury. Comj
ply with the described hand position and do not change this position while using the vehicle
jack.

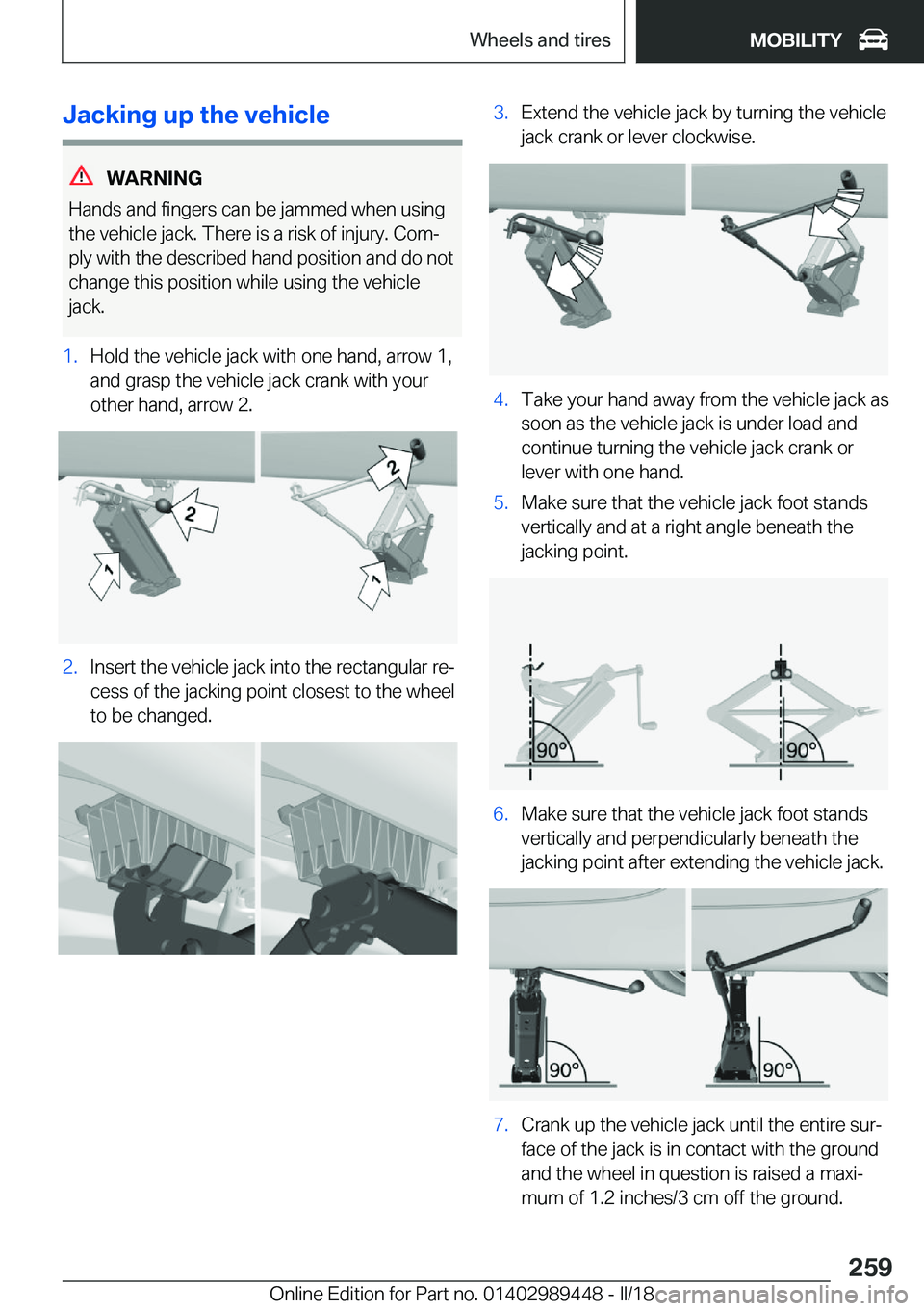

1.Hold the vehicle jack with one hand, arrow 1, and grasp the vehicle jack crank with your
other hand, arrow 2.2.Insert the vehicle jack into the rectangular rej cess of the jacking point closest to the wheel
to be changed.3.Extend the vehicle jack by turning the vehicle
jack crank or lever clockwise.4.Take your hand away from the vehicle jack as soon as the vehicle jack is under load andcontinue turning the vehicle jack crank orlever with one hand.5.Make sure that the vehicle jack foot standsvertically and at a right angle beneath the
jacking point.6.Make sure that the vehicle jack foot stands vertically and perpendicularly beneath the
jacking point after extending the vehicle jack.7.Crank up the vehicle jack until the entire surj face of the jack is in contact with the ground
and the wheel in question is raised a maxij mum of 1.2 inches/3 cm off the ground.Seite 259Wheels
and
tiresMOBILITY259
Online Edition for Part no. 01402989448 - II/18

Mounting
a
wheel

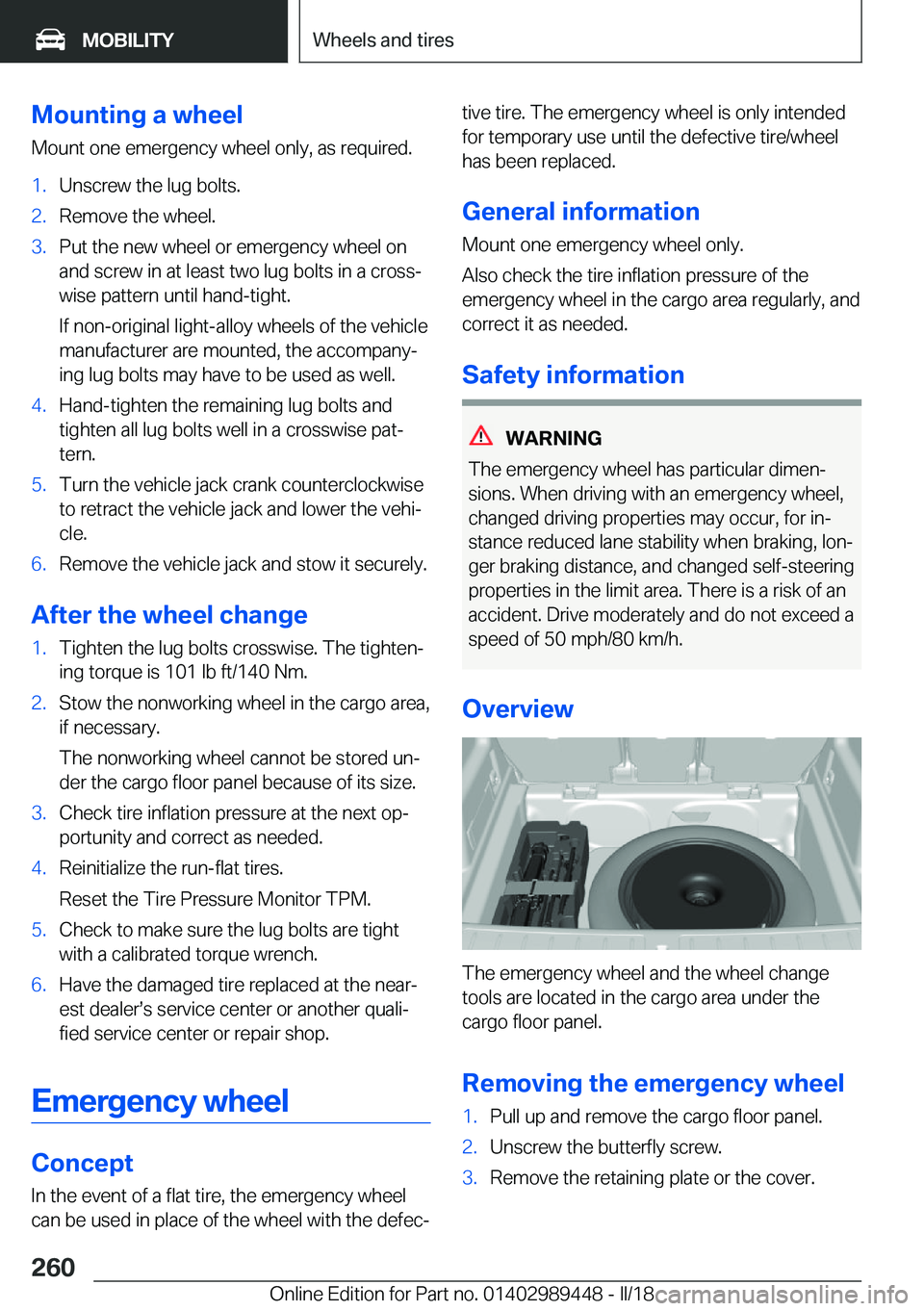

Mount one emergency wheel only, as required.1.Unscrew the lug bolts.2.Remove the wheel.3.Put the new wheel or emergency wheel on and screw in at least two lug bolts in a crossjwise pattern until hand-tight.
If non-original light-alloy wheels of the vehicle
manufacturer are mounted, the accompanyj
ing lug bolts may have to be used as well.4.Hand-tighten the remaining lug bolts and
tighten all lug bolts well in a crosswise patj tern.5.Turn the vehicle jack crank counterclockwise
to retract the vehicle jack and lower the vehij
cle.6.Remove the vehicle jack and stow it securely.
After
the
wheel
change
1.Tighten the lug bolts crosswise. The tightenj
ing torque is 101 lb ft/140 Nm.2.Stow the nonworking wheel in the cargo area,
if necessary.
The nonworking wheel cannot be stored unj
der the cargo floor panel because of its size.3.Check tire inflation pressure at the next opj
portunity and correct as needed.4.Reinitialize the run-flat tires.
Reset the Tire Pressure Monitor TPM.5.Check to make sure the lug bolts are tight
with a calibrated torque wrench.6.Have the damaged tire replaced at the nearj est dealerss service center or another qualij
fied service center or repair shop.
Emergency
wheel
Concept
In the event of a flat tire, the emergency wheel
can be used in place of the wheel with the defecj
tive tire. The emergency wheel is only intended
for temporary use until the defective tire/wheel has been replaced.
General
information Mount one emergency wheel only.
Also check the tire inflation pressure of the
emergency wheel in the cargo area regularly, and
correct it as needed.
Safety
information
WARNING
The emergency wheel has particular dimenj
sions. When driving with an emergency wheel,
changed driving properties may occur, for inj
stance reduced lane stability when braking, lonj ger braking distance, and changed self-steeringproperties in the limit area. There is a risk of an
accident. Drive moderately and do not exceed a speed of 50 mph/80 km/h.
Overview
The emergency wheel and the wheel changetools are located in the cargo area under thecargo floor panel.
Removing
the
emergency
wheel
1.Pull up and remove the cargo floor panel.2.Unscrew the butterfly screw.3.Remove the retaining plate or the cover.Seite 260MOBILITYWheels
and
tires260
Online Edition for Part no. 01402989448 - II/18

4.Where applicable, remove the holder and thetrailer hitch.5.Remove the jacking point and the tool holder
on the left next to the emergency wheel.6.Slide the emergency wheel to the left and rej
move it.
Inserting
the
emergency
wheel
1.Insert the emergency wheel on the left and

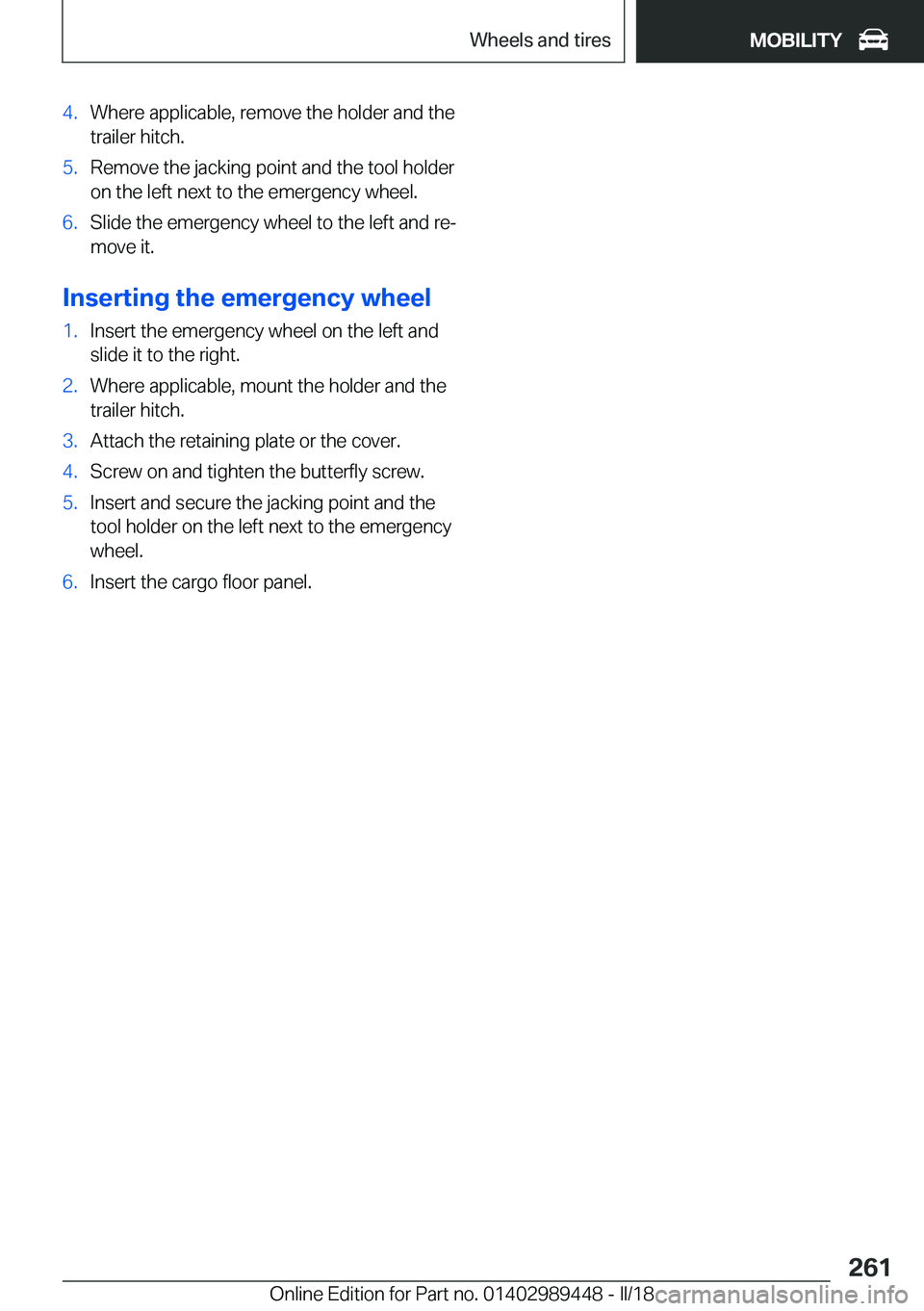

slide it to the right.2.Where applicable, mount the holder and the
trailer hitch.3.Attach the retaining plate or the cover.4.Screw on and tighten the butterfly screw.5.Insert and secure the jacking point and the tool holder on the left next to the emergency
wheel.6.Insert the cargo floor panel.Seite 261Wheels
and
tiresMOBILITY261
Online Edition for Part no. 01402989448 - II/18

Engine
compartmentVehicle
features
andoptions
This chapter describes all standard, country-spejcific and optional features offered with the series.
It also describes features that are not necessarily available in your vehicle, e. g., due to the selectedoptions or country versions. This also applies to
safety-related functions and systems. When usj
ing these functions and systems, the applicable laws and regulations must be observed.
Overview

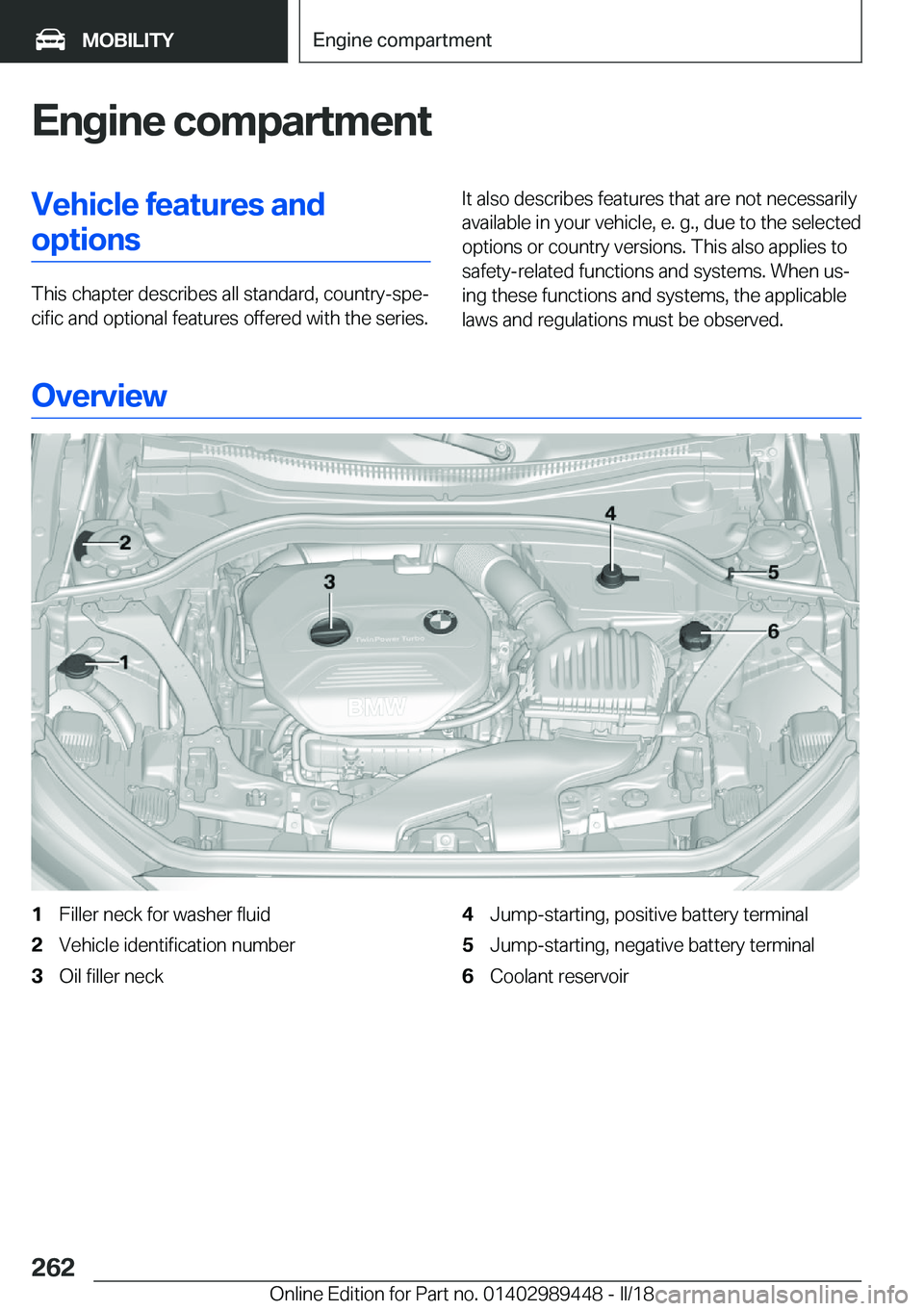

1Filler neck for washer fluid2Vehicle identification number3Oil filler neck4Jump-starting, positive battery terminal5Jump-starting, negative battery terminal6Coolant reservoirSeite 262MOBILITYEngine
compartment262
Online Edition for Part no. 01402989448 - II/18

Hood
Safety
information
WARNING
Improperly executed work in the engine comj partment can damage vehicle components and impair vehicle functions. There is a risk of perj
sonal and property damage. The manufacturer of your vehicle recommends that, in the effortto avoid such risks, work in the engine comj
partment be performed by a dealerss service
center or another qualified service center or rej
pair shop.
WARNING
The engine compartment accommodates movj
ing components. Certain components in the engine compartment can also move with the
vehicle switched off, for instance the radiator
fan. There is a risk of injury. Do not reach into the area of moving parts. Keep articles of clothj
ing and hair away from moving parts.
WARNING
There are protruding parts, for instance locking
hook, on the inside of the hood. There is a risk
of injury. If the hood is open, pay attention to protruding parts and keep clear of these areas.
WARNING
An incorrectly locked hood can open while drivj
ing and restrict visibility. There is a risk of an acj cident. Stop immediately and correctly close
the hood.
WARNING
Body parts can be jammed when opening and closing the hood. There is a risk of injury. Make
sure that the area of movement of the hood is
clear during opening and closing.
NOTE
Folded-away wipers can be jammed when the hood is opened. There is a risk of damage to
property. Make sure that the wipers with the
wiper blades mounted are folded down onto
the windshield before opening the hood.
NOTE
When the hood is closed, it must engage on both sides. Pressing again can damage the
hood. There is a risk of damage to property.
Open the hood again and then close it energetj
ically. Avoid pressing again.
Opening
the
hood

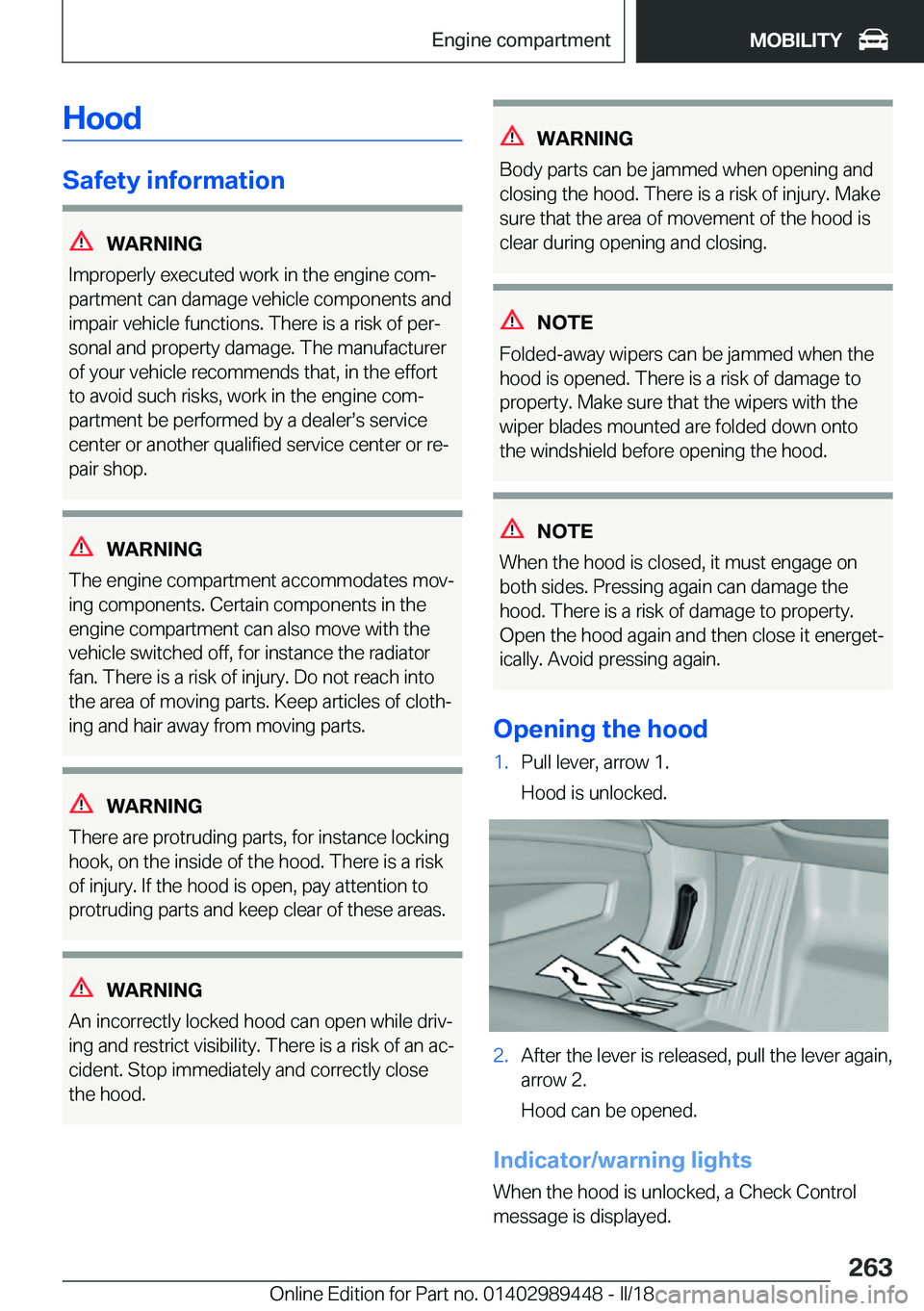

1.Pull lever, arrow 1.
Hood is unlocked.2.After the lever is released, pull the lever again, arrow 2.
Hood can be opened.
Indicator/warning
lights When the hood is unlocked, a Check Controlmessage is displayed.
Seite 263Engine
compartmentMOBILITY263
Online Edition for Part no. 01402989448 - II/18

Closing
the
hood

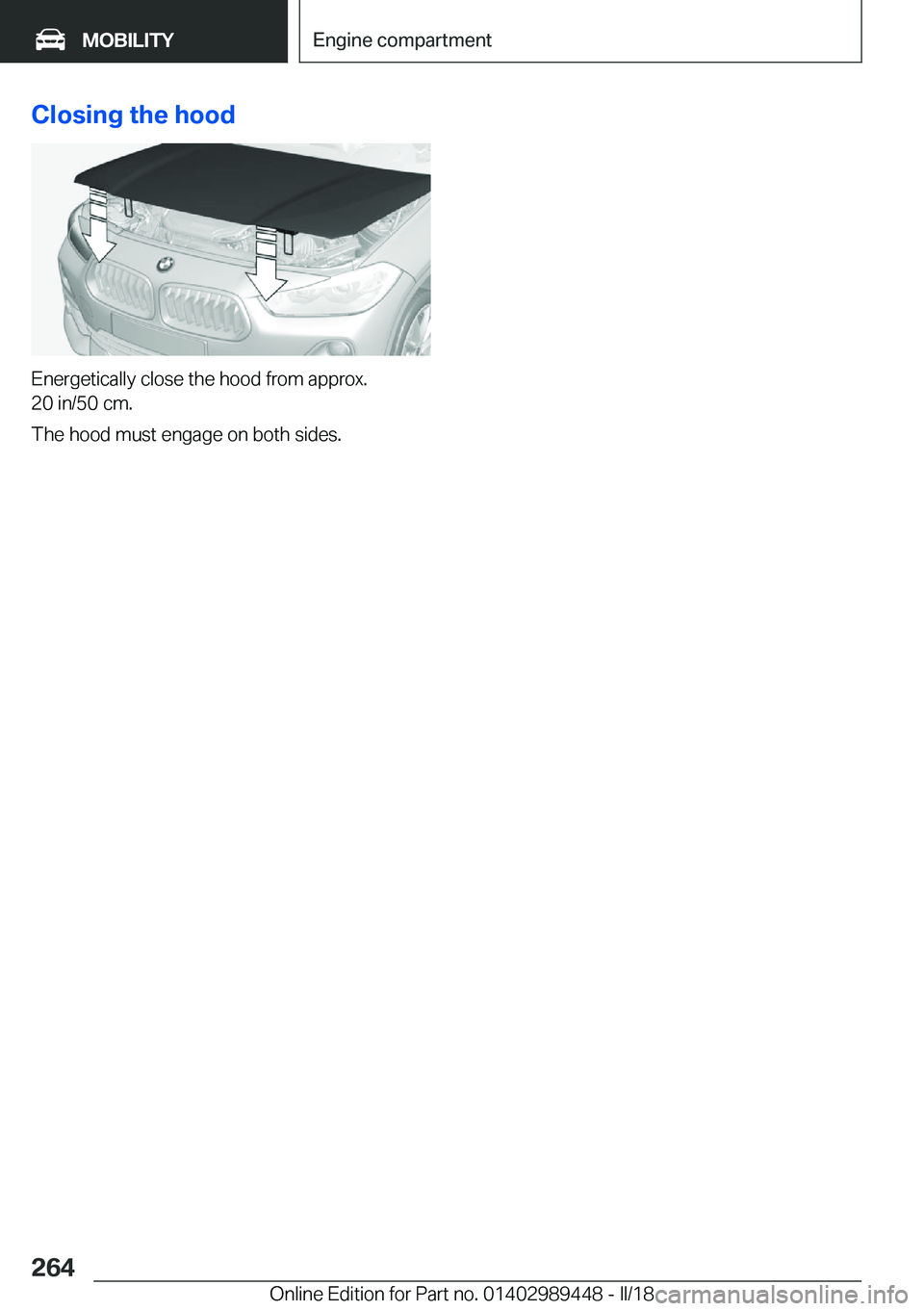

Energetically close the hood from approx.
20 in/50 cm.
The hood must engage on both sides.
