::r ' Refilling AdBlue using a bottle
Applies to: vehicles with selective catalytic reduction
.,. Remove the cap from the refill bottle ¢&, in
Preparation on page 315,
¢ @ in Preparation
on page 315.
.,. Position the bottle on the filler tube and turn
the bottle clockwise unti l it stops turning .
.,. Press lightly against the bottom of the bottle
to empty it. Continue pressing the bottom of
the bottle until it is empty or until fluid stops
flowing into the tank .
.,. Turn the bottle to the left without press ing on
the bottom .
.,. Remove the bottle and seal the filler neck
¢ page 317, Completing AdBlue refill .
({D Note
Onl y use refi ll bottles t hat are approved for
your veh icle. Using othe r systems can ca use
Ad Blue to leak.
(j) Tips
- You can obta in refi ll bottles from an autho r­
iz ed Audi dealer or author ized Audi Se rvice
Fac ility.
- A pe rm itted refill bott le conta ins approx i­
ma tely O.S gallons ( 1.9 lite rs) of Ad B lue.
Completing AdBlue refill
Applies to: vehicles with selective catalytic reduction
Closing th e fill er n eck
.,. Turn the Ad Blue cap to t he r igh t on the filler
tube unti l the cap clic ks into p lace ¢
A in
Preparation on page 315,
¢ @ in Pr eparation
on page 315 .
.,. Close the fuel filler door and then press on the
left side until it lat ches.
After filling
The vehicle must be driven so that the system
r e cognizes that the Ad Blue was refilled. This can
take sev era l minutes .
.,. If there was no Ad Blue left in the t ank and a
range of O mi (0 km) was shown in the display,
switch the ignition on for about 30 seconds be ­
fore starting the engine .
Check ing and F illing
(D Tips
Ad B lue in the tank can freeze at very low tem ­
peratures . If thi s happens, the system will
not detect that the Ad Blue was refilled and it
will continue to inform you of the low Ad B lue
l evel. The message turns off as soon as the
ta nk thaws out aga in .
Emissions control
systems
Catalytic converter
Applies to: vehicles with gasoline engines
T he veh icle may only be d riven w ith un leaded
gasol ine , otherwise the cata lyti c converte r will be
dest royed.
Never dr ive u ntil the ta nk is completely empty .
T he ir regu lar supply of fuel that resu lts from that
can cause eng ine misfires. Uncomb usted fue l will
en ter the exha ust system , which can cause over­
heating and damage to the cata lytic converter.
Di esel particulate filt er
Applies to: vehicles with diesel particulate filter
T he diesel part iculate filte r filte rs nearly all of
the soot pa rt icles out of the exhaus t. The filter
cleans itself a utomat ica lly unde r no rma l dr iving
cond it io ns. If the fi lter canno t be cleaned auto­
matically, for examp le if only s ho rt distances are
u su a lly driven, t he fi lter will become clogged
with soot.
Indicator light (diesel particulate filter )
Applies to: vehicles with diesel particulate filter
II Particulate filter: cl ean by driving . See own­
er 's manual
The diesel part icu late filter requ ires regenera­
t ion. To support the filter's self-cleaning func­
t ion:
Drive for approximately 15 minutes at 37 mph
(60 km/h) or above in the "S" selecto r leve r pos i­
t ion. Keep the engine speed at a minim um of
2,000 RPM . The temperat ure increase that will
r esul t from this ca n bu rn off the soot in the filter.
T he ind icator light will turn off when the cleaning
has completed successfully . .,.
317

Check ing and F illing
A ud i rec ommends
f;; Castrot //g{g{E{g ?r,w_:;-...7dri,'1AL
Audi rec ommends usi ng the Long Life high ­
perform ance eng ine oil from Aud i Genu ine
Part s.
Checking the engine oil level
The engine oil level can be checked in the Info·
tainment system
Observe the safety precautions¢ A in Working
in the engine compartment on page 319.
~ Park your vehicle on a level surface.
~ Shut the engine off when it is warm.
~ Switch only the ignition back on.
~ Wait approx imately two minutes.
~ Select in the Infota inment system: the I MENU I
button > Ve hicle > left contro l button > Ser vic e
& chec ks > Oil level.
~ Read the oi l level in the display . Add engi ne oil
if th e ba r in the oil leve l ind icator is j ust before
"min" ¢
page 323.
{U) Note
The engine o il leve l must not be unde r the
"min" marking, as this will increase the risk of
engine damage .
(D Tips
The oil level indicato r in the display is on ly an
informationa l display . If the o il level is too
low, a minimum oi l warning appears in the in ·
strument cluster. Add oi l and close the hood.
The current oil leve l is d isplayed in the Info­
tainment system the next time the ignition is
sw itched on.
(D Tips
The engine oil consumption may be up to
0.5 quart/600 m iles (0.5 liter/1,000 km), de­
pending on driving style and operating condi­
tions. Consumpt ion may be h igher during the
first 3,000 miles (5,000 km). Because of this, the engi ne oil level m ust be chec ked regular·
Ly. It is best to c hec k each t ime yo u refuel
your veh icle and before long dr ives.
322
- In order to prov ide e ffective lubrication and
cooling of interna l engine components, a ll
internal comb ustion engines consume acer ­
tain amount of oil. Oil consumption var ies
from engine to eng ine and may change sig­
nificantly over the life of the engine. Typi·
cally, eng ines with a specified break-in per i·
od consume mo re o il during the break-in pe·
r iod than they consume afte r oil cons ump·
t ion has s tabilized.
- Under no rma l co nd it ions, the rate of oil
c ons umption depends on the q ual ity and
vis cos ity of the oil, the RPM (revo lutions per
min ute) a t which the engine is operated, the
ambient temperature and road conditions .
Further factors are the amount of oi l di lu ­
t ion from water condensation or fuel resi­
due and the oxidation level of the oil. As any
eng ine is subject to wear as m ileage bu ilds
up, the oil consumption may increase over
t ime until replacement of worn components
may become necessa ry.
- With all these var iables comi ng into play,
no standard rate of o il consumption can be
established o r spe cified. There is no alter na­
t ive to c hec king the oil leve l reg ularly and
frequently.
- If you have the impress io n your e ng ine co n­
s u mes excessive amou nts of oi l, we recom ­
mend that yo u consult an authorized A udi
dea ler to have the cause of your concern
properly diagnosed . Keep in mind that the
acc urate measurement of o il cons umption
requires great care and may take some
t ime. An authorized Aud i dealer has instruc­
t ions about how to measure o il consump·
t ion accurate ly.
- You can find i nformat ion on engine oil and
eng ine oil capac it ies for the USA at
www.aud iusa.com/he lp/ma intenance, o r
for Canada at www.aud i.ca/ ca/web/en/
c u sterne r-area/ ca re -and-ma i nte na nee/ au di­
serv ice -sched u les. htm l, o r ca ll
800 -822 -2834 .

Checking and Filling
& WARNING
- A highly explosive mixture of gases can form
when charging batter ies . Only charge the
vehicle battery in well-vent ilated areas .
- A drained vehicle battery can freeze at tem­
peratures a round 32 QF (0 QC) . A frozen or
thawed veh icle battery must not be charged
and must not be used anymore. If ice fo rms,
the battery housing ca n crack and ba tte ry
electrolyte can lea k out, which increases the
risk of an explosion and chemi cal bu rns.
Contact an authorized Au di dea le r o r au­
tho rized Audi Serv ice Facility fo r more info r­
mation.
- Do not connect o r disconnect the ch arging
cable while charg ing because this increases
t h e risk of an exp losion.
(D Tips
- Only charge the vehicle battery through the
con nections in the engine compartment .
- Read a ll of t he manufacture r's ins tructions
for the charger befo re charg ing the vehicle
battery.
Windshield washer system
F ig. 26 8 Eng ine co mpa rtment: was her fluid reservo ir cap
The winds hield washer fluid reservoir O contains
the cleaning solution for the windshield and the
headlight washer system*
c> page 321, fig . 263.
The reservo ir capacity can be found in
c:;, page 375.
To reduce the r isk of lime sca le deposits o n the
spray nozzles, use clean water with low amounts
of calcium . Always add window cleane r to the wa-
328
te r. When the outside tempe ratures are cold, an
anti-freezing agent shou ld be added to the water
so that it does not freeze.
(D Note
- The concentration o f anti -freezing agent
must be adjusted to the ve hicle operating
conditions in the respective cl imate. A con­
centration that is too high can lead to vehi­
cle damage.
- Never add radiator anti-freeze or other addi­ tives to the washer fluid.
- Do not use a glass cleaner t hat contains
paint so lvents, because t his could damage
the paint.
Service interval display
The service interval display detects when your ve­
hicle is due for service .
Checking service intervals
You can check the remaining d istance or t ime un­
ti l the next oi l change or next inspection in the
Infotainment system.
.,. Select in the Infotainment system : the
I MENU I
button > Veh icle > left cont rol button > Se rvi ce
& checks > Service inter vals .
Resetting the indicator
An a utho rized Audi deal er or author ized Audi
Se rvice Facility wi ll reset the service interval dis ­
play after performing se rvice .
If you have changed the o il yourself, yo u must re­
set the o il change interval.
.,. Select in the Infotainment system: thel
MENU !
button > Vehicle > left cont rol button > S ervice
& checks > Service intervals > Reset oil change
interval.
I f an o il cha nge or inspection is due, you can ac­
cess i t in the I nfot ainment system . T he display
works in two s tages :
-Service reminder : after a certa in distance is
dr iven, a message appea rs in the instrument

Cl a:, ...... N
" N ...... 0
0
::r ' cluster display every time the ignition is switch ­
ed on . The remaining distance and time is
displayed br iefly.
- Service due : if your vehicle has reached a serv­
ice interval, a message appears briefly after
switching the ignition on.
({;D) Note
-Only reset the oil change indicator if the oil
was changed .
- Following the service intervals is critical to
maintaining t he service life and va lue of
your vehicle, especia lly the engine . Even if
the mileage on the vehicle is low, do not ex­
ceed the time for the next service.
Checking and Filling
329

Wheels
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly . Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
If the tire pressure monitoring indicator
appears
Applies to: vehicles with Tire Pressure Monitoring System in­
dic ato r
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Using the ABS sensors, the tire pressure monitor ­
ing system compares the tire tread circumfer­
ence and vibration characteristics of the individu­
al tires . If the pressure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light
RI] and a message.
If only one tire is affected , the location of that
tire will be indicated.
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
348
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle ~
page 349. The tire pressure moni­
toring system only monitors the tire pressure you have stored. Refer to the tire pressure label for
the recommended tire pressure for your vehicle
~ page 340, fig . 272.
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if:
- the tire pressure in one or more tires is too low
- the tires have structural damage
- the tire was replaced or the tire pressure was
changed and it was not stored
~ page 349
- tires that are only partially used are replaced
with new tires
Indicator lights
RI] -loss of pressure in at least one tire~,& .
Check the tires and replace or repair if necessary.
Check/correct the pressures of all four tires and
store the pressure again in the Infotainment sys­
tem
~ page 349.
m (Tire Pressure Monitoring System) Tire
pressure: malfunction! See owner's manual.
If
m appears after switching the ignition on or
while driving and the
RI] indicator light in the in­
strument cluster blinks for approximately one
minute and then stays on, there is system mal­
function. Try to store the correct tire pressures
~ page 349. In some cases, you must drive for
several minutes after storing the pressures until
the indicator light turns off . If the indicator light
does turn off or turns on again after a short peri­
od of time, drive to an authorized Audi dealer or
authorized Audi Service Facility immediately to
have the malfunction corrected.
& WARNING
- If the tire pressure indicator appears in the
display, reduce your speed immediately and
avoid any hard steering or braking maneu­
vers. Stop as soon as possible and check the
tires and their pressure.

Cl a:, ...... N
" N ...... 0
0
::r ' Care and cleaning

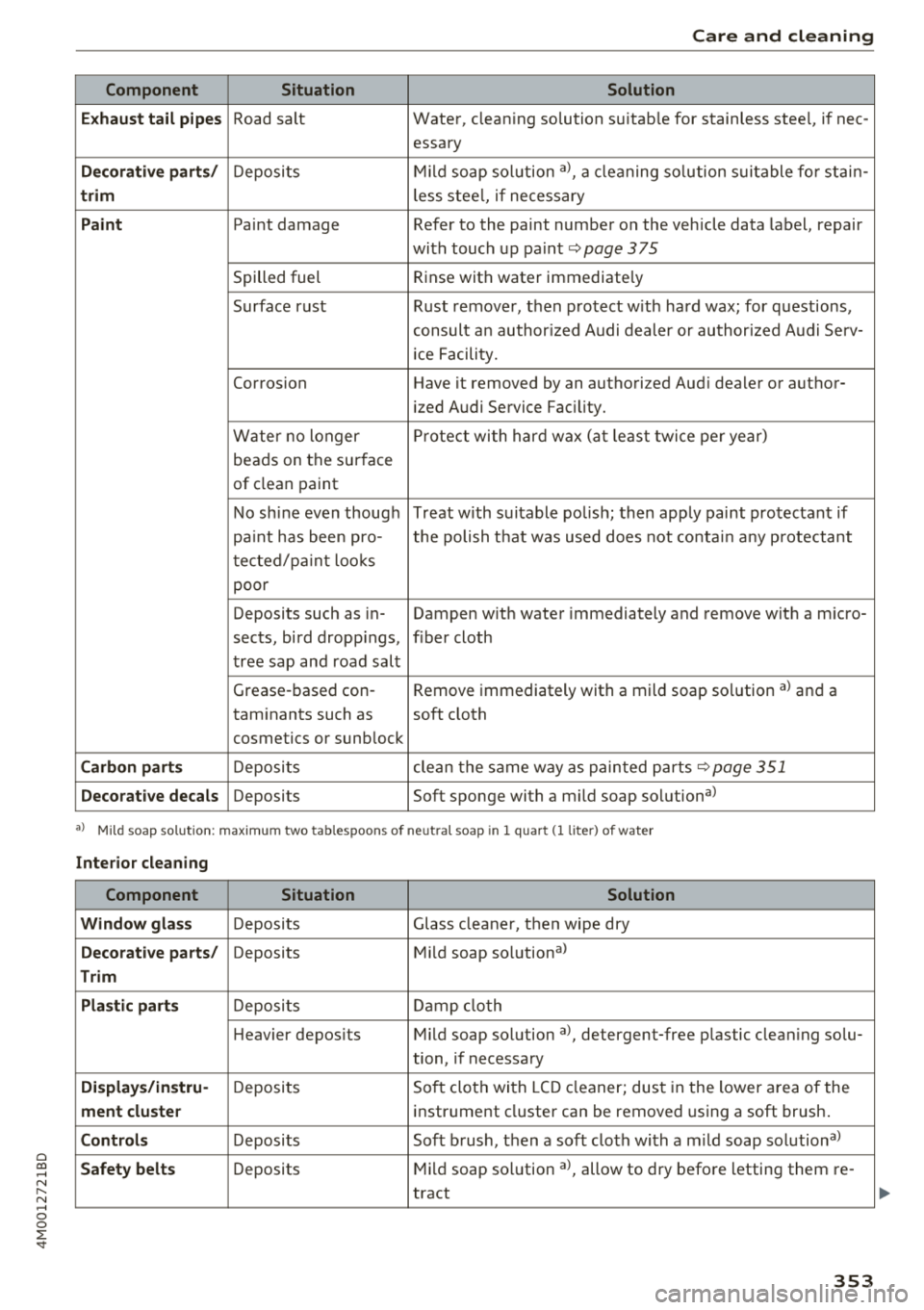

Component Situation Solution
Exhaust tail pipes
Road salt Water, cleaning solution suitab le for stainless steel, if nee -
essary
Decorative parts/ Deposits Mild
soap solution a>, a cleaning solution suitable for stain-
trim less steel, if necessary
Paint Paint damage Refer to the paint number on the vehicle data label, repair
with touch up paint
r:=;, page 375
Spilled fuel Rinse
with water immediate ly
Surface rust Rust remover, then protect with hard wax; for questions,
consult an author ized Audi dealer or author ized Audi Serv-
ic e Facility.
Corrosion Have it removed by an authorized Aud i dealer or author-
ized Audi Service Fac ility.
Water no longer Protect
with hard wax (at least twice per year)
beads on the surface
of clean paint
No shine even though Treat with suitable polish; then apply paint protectant if
pa int has been pro- the polish t hat was used does not contain any protectant
tected/paint looks
poor
Deposits such as in- Dampen w ith water immediately and remove with a m icro-
sects, bird dropp ings, f iber cloth
tree sap and road salt
Grease-based con- Remove immediately with a mild soap solution a) and a
taminants such as soft cloth
cosmetics or sunb lock
Carbon parts Deposits clean the same way as painted parts r:=;,page 351
Decorative decals Deposits Soft sponge with a mild soap solutiona>
•> Mi ld soap solution: maximu m two tab lespoons of ne utral soap in 1 quar t (1 lite r) of water
Interior cleaning
Component Situation Solution
Window glass
Deposits Glass cleaner, then wipe dry
Decorative parts/ Deposits Mild soap solutional
Trim
Plastic parts
Deposits Damp cloth
H eavier depos its Mild soap solution a>, detergent-free p lastic clean ing solu-
tion, if necessary
Displays/instru-Deposits Soft cloth with LCD cleaner; dust in the lower area of the
ment cluster instrument cluster can be removed using a soft brush.
Controls Deposits Soft brush, then a soft cloth with a m ild soap solutiona>
Safety belts Deposits Mild
soap solution a>, allow to dry before letting them re -
tract
353

Cl a:, ...... N
" N ...... 0
0
::r ' avoid scratches, move the scraper only in
one direction and not back and forth.
- N ever remove snow or ice from door win­
dows and mirrors using warm or hot water
because this could cause cracks to form .
- To avoid damage to the rear w indow de ­
fogger, do not apply any stickers on the
heating wires on the inside of the window .
-Deco rati ve parts /trim
- Never use chrome care or cleaning prod-
ucts.
- Paint
-To red uce the risk of scratches, the vehicle
must be free of dirt and dus t before pol­
ishing or waxing .
- To preven t pa int damage, do not pol ish or
wax the ve hicle in direct sunlight.
- To red uce the risk of pa int damage, do not
polish away rust spots.
- Remove cosmetics and sunscreen immedi­
a tely- these could damage the pa int.
- Displa ys/ instrument cluster
- Make sure that the instrument cluster is
switched off and has cooled off before
cleaning it.
- Displays, the instrument cluster and the
trim surrounding it must not be cleaned
w ith dry clean ing methods because they
cou ld become scratched.
- Make sure no fluids enter the spaces be­
tween the instrument cluster and the
trim, because that could cause damage.
- Controls
- Make sure that no fluids enter the con-
trols, because this could cause damage.
- Safety belt s
-Do not remove the safety belts to clean
them .
- N ever clean safety belts or their compo­
nents chemically or with corrosive fl uids
or so lvents and never allow sharp objects
to come into contact with the safety belts.
Th is could cause damage to the belt web­
bing.
- If there is damage to the webbing, the
connect ions, the retractors or the buckles,
Care and cleaning
have them replaced by an authorized Aud i
dealer or authorized Audi Service Facility .
-Te xtile s/artificial leather / Alcantara
- Never treat art ificial leather/A lcantara
with leather care products, solvents, floor
polish, shoe polish, spot remove or s imilar
p roducts.
- Have a spec ialist remove stubborn stains
to prevent damage .
- Never use steam cleaners, brushes, hard
sponges, etc. when cleaning.
- Do not turn on the seat heating" to dry the
seat .
- Objects w ith sharp edges, such as zippers
or rivets on clothing or be lts, can cause
damage to the surface .
- Open hook and loop fasteners, for exam­
ple on clothing, can damage seat covers .
Make sure hook and loop fasteners are
closed .
-Natural l eath er
- Neve r trea t leathe r wi th solvents, floor
polish, shoe polish, spot remover or sim i­
lar products .
- Obje cts w ith sharp edges, such as zippe rs
or rivets on clothing or be lts, can cause
damage to the surface .
- Neve r use steam cleaners, brushes, hard
sponges, etc. when cleaning .
- Do not turn on the seat heating" to dry the
seat.
- To he lp prevent the leather from fad ing,
do not leave the vehicle in direct sunlight
for long periods of time . If leaving the ve­
hicle parked for long periods of time, you
should cover the leather to protect it from
d irect sunlight.
(D Tips
- Insects are easier to remove from paint that
has been freshly waxed.
- Regular waxing can prevent rust spots from
forming.
355

a co ...... N r--. N ...... 0
0
:E ' Fuse assignment - Driver's side of the
cockpit
Fig . 28 6 Driver s ide cockp it : fuse panel wit h plastic bracket
Fuse panel
No . Equipment
2 Telephone
4 Head- up display
5 Aud i m usic interface, USB charging port
6 Front climate co ntro l system contro ls
7 Steer ing column lock
8 Infotainment sys tem display
9 Instrument cluste r
10 Infotainment unit
1 1 Light switch
12 Steerin g column electronics
14 Infotainmen t sys tem
1 5 Powe r steering co lumn adjustment
16 Steeri ng whee l heating
Fuses and bulbs
Fuse assignment - Left side of the luggage
compartment
F ig. 28 7 Le ft s ide of the l uggage co mpart ment : fuse pa nel
wi th plastic cl ip
Fuse panel @ (black)
No . Equipment
s Air s usp ension
6 A utomat ic t ransmiss io n
8 Rear seat heat ing
9 T ail ligh ts
10 Left safety belt tensioner
11 C en tral locki ng sys tem
12 Electric luggage compartment lid
Fuse panel @ (red)
No. Equipment
1 Rear blower control
2 Sound -amplifier
3 Ad Blue heat ing
4 Rear cl imate co ntro l system contro l pane l
s Traile r hitc h (right lig ht)
7 Tra ile r hi tc h
8 Tra ile r hitc h (left light)
9 Tra ile r hitc h (soc ket)
10 Sport different ia l
367
...
