2018 Alfa Romeo Giulia Owner's Manual

ENGINE
2.9L V6 Engine
CycleFo
ur
Number and position of cylinders 6/V
Piston bore and stroke (mm) 86.5 × 82
Total displacement (cm³) 2891
Compression ratio 9.3:1
Maximum power (SAE) (kW) 375
Maximum power (SAE) (HP) 505
Corresponding engine speed (rpm) 6500
Maximum torque (SAE) (Nm) 600
Maximum torque (SAE) (ft. lb) 443
Corresponding engine speed (rpm) 2500
Fuel 87 Octane Minimum, 91 Recommended, ethanol percentage
is 0–15%.
231

POWER SUPPLY
Power supply
2.9L V6 Engine Phased
sequential electronic injection with knock control and variable
intake valve actuation
232
TECHNICAL SPECIFICATIONS

TRANSMISSION
ModelTransmissionTraction
2.9L V6 Engine Eight
forward gears plus reverseRear
233

BRAKES
ModelFront brakesRear brakesParking brake
2.9L V6 Engine Disc
or
Carbon
Ceramic discDisc
or
Carbon Ceramic disc Electric
Caution!
Water, ice and salt spread on the roads may deposit on the brake discs, reducing braking efficiency the first time the brakes are applied.
To obtain the maximum efficiency of the braking system, a bedding-in period of about 300 miles (500 km) is needed: during this period it is
better to avoid sharp, repeated and prolonged braking.
234
TECHNICAL SPECIFICATIONS

SUSPENSION
ModelFrontRear
2.9L V6 Engine Independent
wheel double-wishbone
suspension Independent wheel with multilink system
235

STEERINGSYSTEM
Model Curb-to-curb turning circleType
2.9L V6 Engine 37.10
ft (11.30 m)Rack and pinion with electric power
steering
236
TECHNICAL SPECIFICATIONS

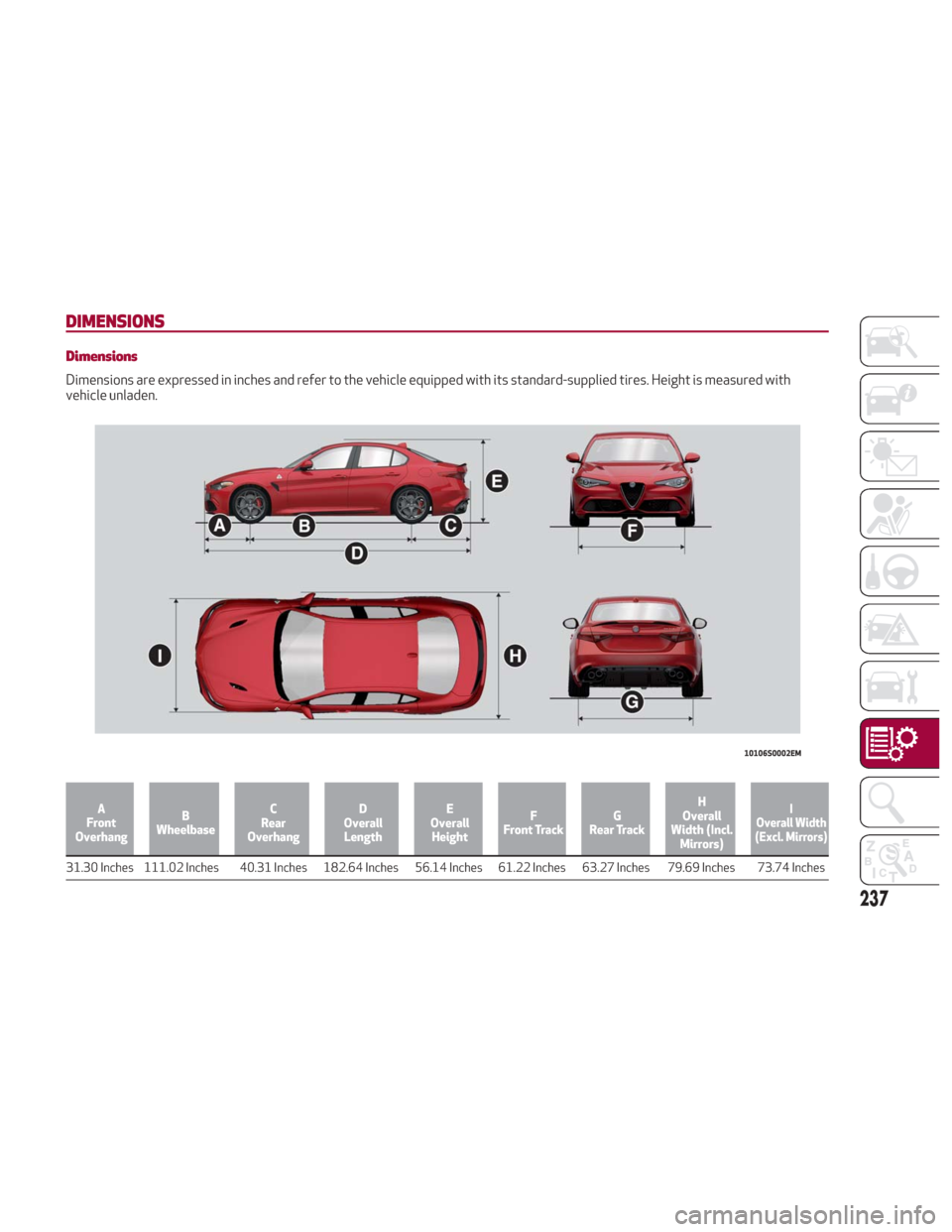

DIMENSIONS
Dimensions
Dimensions are expressed in inches and refer to the vehicle equipped with its standard-supplied tires. Height is measured with
vehicle unladen.
A
Front
Overhang B
Wheelbase C
Rear
Overhang D
Overall Length E
Overall Height F
Front Track G
Rear Track H
Overall
Width (Incl. Mirrors) IOverall Width
(Excl. Mirrors)
31.30 Inches 111.02 Inches 40.31 Inches 182.64 Inches 56.14 Inches 61.22 Inches 63.27 Inches 79.69 Inches 73.74 Inches
10106S0002EM
237

WEIGHTS
Weights (lbs)2.9 V6 Engine
Unladen weight (with all fluids, fuel tank filled to 90% and
without
optional equipment) 3810
Payload including the driver
(*)905
Maximum permitted loads
(**)155
– front axle 2260
– rear axle 2646
– total 4774
(*) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
238
TECHNICAL SPECIFICATIONS
