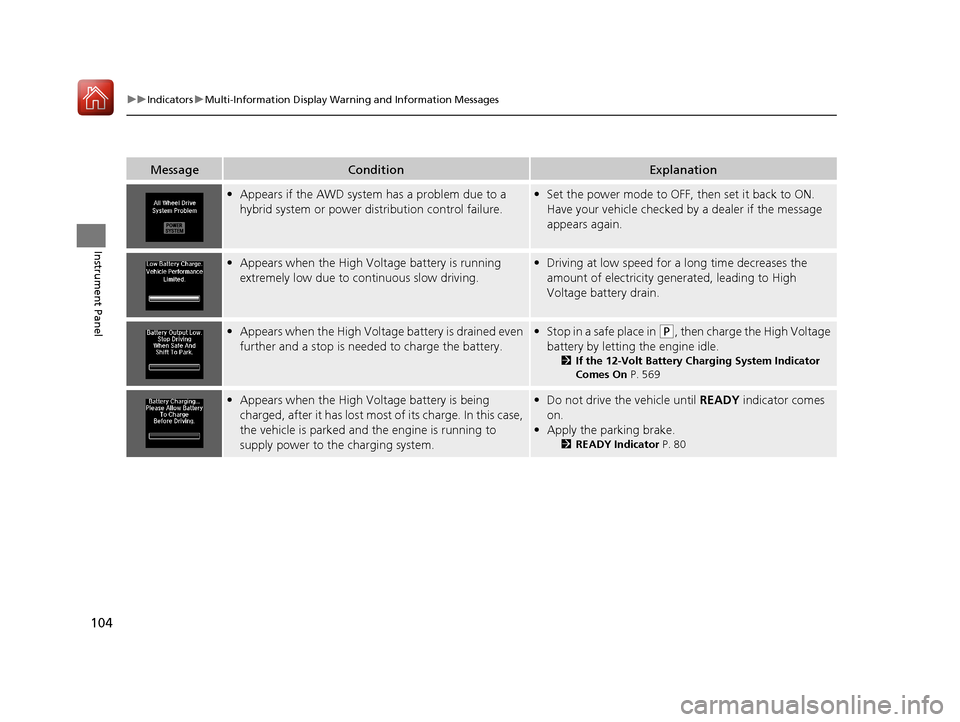

Page 105 of 609
104
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if the AWD system has a problem due to a
hybrid system or power distribution control failure.•Set the power mode to OFF, then set it back to ON.
Have your vehicle checked by a dealer if the message
appears again.
• Appears when the High Voltage battery is running
extremely low due to continuous slow driving.•Driving at low speed for a long time decreases the
amount of electricity generated, leading to High
Voltage battery drain.
•Appears when the High Voltage battery is drained even
further and a stop is needed to charge the battery.•Stop in a safe place in (P, then charge the High Voltage
battery by letting the engine idle.
2 If the 12-Volt Battery Charging System Indicator
Comes On P. 569
•Appears when the High Voltage battery is being
charged, after it has lost most of its charge. In this case,
the vehicle is parked and the engine is running to
supply power to th e charging system.•Do not drive the vehicle until READY indicator comes
on.
• Apply the parking brake.
2 READY Indicator P. 80
18 ACURA RLX E-AWD-31TY36400.book 104 ページ ２０１７年７月２０日 木曜日 午後６時 ８分
Page 106 of 609
105
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Flashes when the system sens es a likely collision with a
vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 460
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when ACC with LSF has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+ /SET/– switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when the vehicle in front of you starts moving
while your vehicle is stopped automatically by ACC with
LSF.●Either press the RES/+/SET/– switch, or depress the
accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with LSF
is in operation.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when pressing the RES/+/SET/– switch down
while the distance between yo ur vehicle and the vehicle
ahead of you is too close.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
18 ACURA RLX E-AWD-31TY36400.book 105 ページ ２０１７年７月２０日 木曜日 午後６時 ８分
Page 107 of 609
106
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the driver’s seat belt is unfastened while
your vehicle is automatica lly stopped by ACC with LSF.•ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when pressing the RES/+/SET/– switch down
while the driver’s seat belt is unfastened.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
•Appears when the transmission is put into any position
other than
(D while ACC with LSF is in operation.
• ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
•Appears when pressing the RES/+/SET/– switch down
while the transmiss ion is not in
(D.
•ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
18 ACURA RLX E-AWD-31TY36400.book 106 ページ ２０１７年７月２０日 木曜日 午後６時 ８分
Page 108 of 609
107
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.• ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
•Appears when pressing the RES/+/SET/– switch down
while the vehicle is stopped on a very steep slope.•ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
•Appears when the vehicle speed slows down to 25 mph
(40 km/h) and the vehicle ahead of you goes out of the
ACC with LSF range while ACC wi th LSF is in operation.•ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
18 ACURA RLX E-AWD-31TY36400.book 107 ページ ２０１７年７月２０日 木曜日 午後６時 ８分
Page 109 of 609
108
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when pressing the RES/+/SET/– switch down
while the parking brake is applied.• ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
2 Parking Brake P. 452
•Appears when the parking brake is applied
automatically while ACC wi th LSF is in operation.•ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
2 Parking Brake P. 452
•Appears when pressing the RES/+/SET/– switch down
while the vehicle is movi ng and the brake pedal is
depressed.• ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
•Appears if ACC with LSF is canceled while your vehicle
is automatically stopped by ACC with LSF.•Immediately depress the brake pedal.
18 ACURA RLX E-AWD-31TY36400.book 108 ページ ２０１７年７月２０日 木曜日 午後６時 ８分
Page 110 of 609
109
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 423
●Appears when the vehicle is driving out of a detected
line.
-The steering wheel vibrates ra pidly when the vehicle is
drifting out of a detected line.
- The steering wheel vibrates ra pidly when the vehicle is
drifting out of a detected line. The system also steers
the vehicle to help you remain within your driving lane.
●Keep the vehicle within the lane you are driving.
2Road Departure Mitigation (RDM) System P. 418●You can change the setting for the road departure
mitigation system. Narrow, Normal, Wide, and
Warning Only can be selected.
2Customized Features P. 297
●Appears when the vehicle is likely to drive out of a
detected line.
- The system steers the vehicle to help you remain
within your driving lane.
—
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal , or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow
18 ACURA RLX E-AWD-31TY36400.book 109 ページ ２０１７年７月２０日 木曜日 午後６時 ８分
Page 111 of 609
110
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•If you are providing little or no steering input, the
indicator blinks and a beeper sounds.•Operate the steering wheel to resume the LKAS.
•Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LK AS cancels automatically
and a beeper sounds.
u Traffic jam assist also canc els if it is experiencing a
problem.• If any other system indicators come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2Indicators P. 76
•Appears when you unlock and open the driver’s door
while the power system is on by two-way keyless access
remote.
2 Remote Engine Start with Vehicle Feedback P. 382
18 ACURA RLX E-AWD-31TY36400.book 110 ページ ２０１７年７月２０日 木曜日 午後６時 ８分
Page 112 of 609
111
uuIndicators uMulti-Information Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
• Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
• May appear when driving in bad weather (rain, snow,
fog, etc.)• When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 460
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
2 Road Departure Mitigation (RDM) System P. 418
2 Traffic Jam Assist P. 430
•Appears if the temperature inside the camera is too
high.• Use the climate control sy stem to cool down the
camera.
2 Front Sensor Camera P. 402
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 460
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
2 Lane Keeping Assist System (LKAS) P. 423
2 Road Departure Mitigation (RDM) System P. 418
2 Traffic Jam Assist P. 430
•Appears when the area around the camera is blocked
by dirt, mud, etc.
• May appear when driving in bad weather (rain, snow,
fog, etc.)• Stop your vehicle in a safe place, and wipe it off with a
soft cloth.
2 Front Sensor Camera P. 402
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 460
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
2 Lane Keeping Assist System (LKAS) P. 423
2 Road Departure Mitigation (RDM) System P. 418
2 Traffic Jam Assist P. 430
18 ACURA RLX E-AWD-31TY36400.book 111 ページ ２０１７年７月２０日 木曜日 午後６時 ８分
