Visual Index
6
Quick Reference Guide❙Power Window Switches (P 149)
❙Driver’s Front Airbag (P 48)
❙Trunk Opener (P 143)
❙Hood Release Handle (P 503)
❙Passenger’s Front Airbag (P 48)
❙Glove Box (P 184)
❙Driver’s Knee Airbag (P 52)
❙Door Mirror Controls (P 173)
❙Power Door Lock Master Switch (P 141)
❙Passenger’s Side Interior Fuse
Box
(P 579)
❙Accessory Power Socket (P 190)
❙Memory Buttons (P 170)
❙SET Button (P 170)
❙Rearview Mirror (P 172)
❙Accessory Power Socket (P 190)
❙Driver’s Side Interior Fuse Boxes (P 577)
❙Electric Parking Brake Switch
(P 452)
❙Automatic Brake Hold Button
(P 456)
❙SPORT Button (P 395)
❙Shift Button
Electronic Gear Selector (P 387)
❙USB Port (P 213)
❙Auxiliary Input Jack (P 213)
❙Fuel Fill Door Release Button (P 491)
18 ACURA RLX E-AWD-31TY36400.book 6 ページ ２０１７年７月２０日　木曜日　午後６時８分

564
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood.1.Open the fuse box cover on your vehicle’s
12-volt battery positive + terminal.
2. Connect the first jump er cable to your
vehicle’s 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u If you use a booster battery, only use a
12-volt booster battery.
u When using an automotive battery
charger, select a charging voltage lower
than 15-volts. Check the charger manual
for the proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cable clips so that they do
not come off when the engine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
Booster Battery
18 ACURA RLX E-AWD-31TY36400.book 564 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

574
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
There are four fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reserve tank.
Push the tabs to open the box.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1IG1A ACG FR15 A
2IG1A MISS SOL110 A
3−−
4− −
5SMART7.5 A
6 IG1B ECU FR 7.5 A
7IG1B OP FR7.5 A
8 IGP2 15 A
9DBW15 A
10 IGP 15 A
11IG Coil15 A
12 ACM 20 A
13Headlight Washer*(30 A)
14 Interior Lights 10 A
15Back Up Radio10 A
16 Back Up 10 A
17AFP10 A
18 Front Washer 15 A
19Stop7.5 A
20 Right Headlight High Beam 10 A
21Trunk10 A
22 Small 15 A
23Front Fog Lights*(7.5 A)
24 Left Headlight High Beam 10 A
25IMA Motor15 A
26 Right Headlight Low Beam 15 A
27Left Headlight Low Beam15 A
28 IGP2 Sub 7.5 A
29Power Rear Sunshade*(20 A)
30 Heated Windshield 20 A
31Wiper30 A
Circuit ProtectedAmps
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 574 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

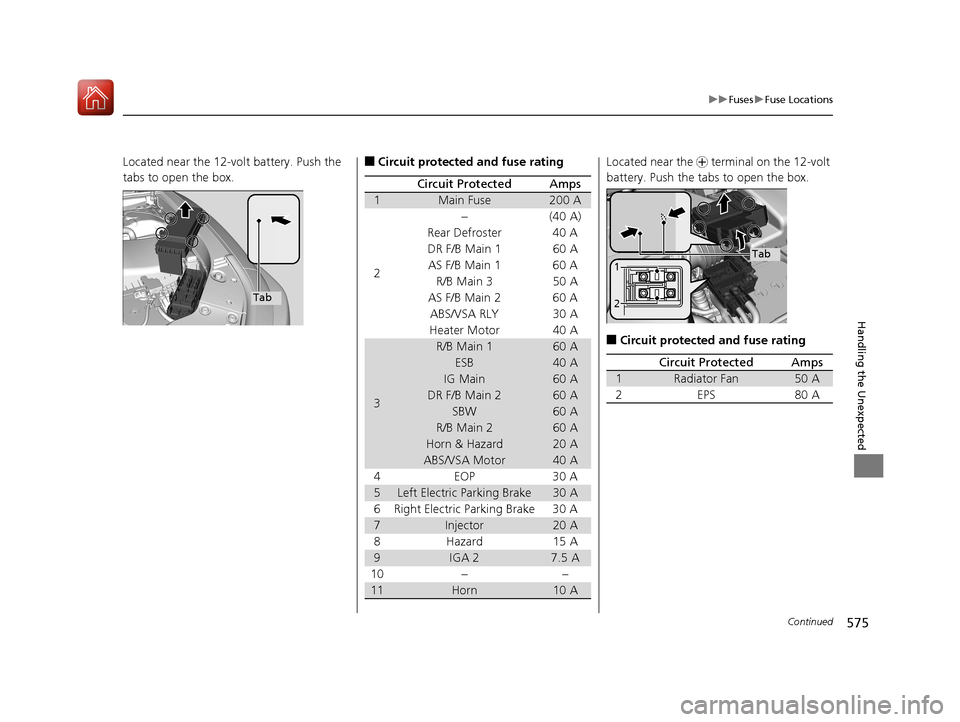

575
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located near the 12-volt battery. Push the
tabs to open the box.
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse200 A
2
−(40 A)
Rear Defroster 40 A DR F/B Main 1 60 AAS F/B Main 1 60 A R/B Main 3 50 A
AS F/B Main 2 60 A ABS/VSA RLY 30 A
Heater Motor 40 A
3
R/B Main 160 A
ESB40 A
IG Main60 A
DR F/B Main 260 A
SBW60 A
R/B Main 260 A
Horn & Hazard20 A
ABS/VSA Motor40 A
4EOP 30A
5Left Electric Parking Brake30 A
6 Right Electric Parking Brake 30 A
7Injector20 A
8 Hazard 15 A
9IGA 27.5 A
10 − −
11Horn10 A
Located near the + terminal on the 12-volt
battery. Push the tabs to open the box.
■Circuit protected and fuse rating
1
2Tab
Circuit ProtectedAmps
1Radiator Fan50 A
2EPS80 A
18 ACURA RLX E-AWD-31TY36400.book 575 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

576
uuFuses uFuse Locations
Handling the Unexpected
Located inside the left side of the front
bumper. Use the following procedure to
reach the box.
1. Turn the steering wheel all the way to the
right.
2. Remove the holding clips (A) and (B) by
inserting a flat-tip sc rewdriver and lifting
the center pins up.
u Make sure to reinstall the clips after
inspecting the fuses.
u To reinstall the clips, insert them with
the center pins raised, and push until
they are flat.
Inner Fender
Clip (A)
Clips
(B)
Clip (A)
Clip (B)


3.Pull the inner fender back.
4. Pull the lock tab to the direction shown in
the image and pull out the fuse box.
Lock Tab
18 ACURA RLX E-AWD-31TY36400.book 576 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

577
uuFuses uFuse Locations
Continued
Handling the Unexpected
Push the tabs to remove the cover.
■Circuit protected and fuse rating
Tab
Circuit ProtectedAmps
1HCA 120 A
2TCU30 A
3HCA 220 A
4STRG MOVE 120 A
5−−
6−−
There are two fuse boxes in the driver's side.
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Driver’s Side Door Lock10 A
2Passenger’s Side Door Lock10 A
3Driver’s Door Lock10 A
4Driver’s Side Door Unlock10 A
5Passenger’s Side Door
Unlock10 A
6Driver’s Door Unlock10 A
7Door Lock20 A
8−−
9Power System 110 A
10IG1 DR17.5 A
11Meter10 A
12Passenger’s Side Fuse Box20 A
13ACCESSORY7.5 A
14−−
15Driver’s Power Seat Sliding20 A
16Moonroof20 A
17Rear Driver’s Side Power Window20 A
18STRG MOVE 220 A
19Driver’s Power Window20 A
20Power System 215 A
21Fuel Pump20 A
22Power System 27.5 A
23Starter Cut7.5 A
24IG1 DR27.5 A
18 ACURA RLX E-AWD-31TY36400.book 577 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

578
uuFuses uFuse Locations
Handling the Unexpected
Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1. Pry on the lower edge of the panel using
a flat-tip screwdriver.
25Start DIAG7.5 A
26Air Conditioning7.5 A
27Daytime Running Lights7.5 A
28ACC Key Lock7.5 A
29Driver’s Lumbar Support7.5 A
30SMART10 A
31−−
32Driver’s Power Seat
Reclining20 A
33Left e-pretensioner(20 A)
34IG1 Box30 A
Circuit ProtectedAmps
Outer Panel
uWrap the flat-tip screwdriver with a
cloth to prevent scratches.
2. Pull the outer panel towards you, then
remove it. Fuse locations are shown on the image
below.
Locate the fuse in question by the fuse
number in the image and chart.
■Circuit protected
and fuse rating
3
12
Fuse Box
Circuit ProtectedAmps
1IG Main 230 A
2ST MG30 A
3IG Main 130 A
18 ACURA RLX E-AWD-31TY36400.book 578 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

579
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Front Seat Heaters/AVS*20 A
3Rear Passenger’s Side
Power Window20 A
4Front Passenger’s Lumbar Support7.5 A
5Daytime Running Lights7.5 A
6A/C Water Pump10 A
7Passenger’s Power Seat Sliding20 A
8Passenger’s Power Seat
Reclining20 A
9Rear Seat Heaters20 A
10−−
11Fly Start15 A
12Accessory Power Socket
(Console Compartment)20 A
13Accessory Power Socket (Center Pocket)20 A
14AS ECU7.5 A
15Glove Box7.5 A
16−−
17−−
18Front Passenger’s Power
Window20 A
19SRS110 A
*1:Models without surround view camera system
*2:Models with surround view camera system
20ABS/VSA7.5 A
21BATT ECU7.5 A
22e-pretensioner7.5 A
23−−
24SRS27.5 A
25Illumination7.5 A
26Right e-pretensioner20 A
27Heated Steering Wheel10 A
28Audio AMP30 A*1
40 A*2
Circuit ProtectedAmps
* Not available on all models
