2018 Acura RLX HYBRID display

uuIf a Tire Goes Flat uChanging a Flat Tire
560
Handling the Unexpected
1. Place the flat tire face down in the spare tire
well.
2. Wrap the spacer cone and spare tire wing
bolt with cloth or paper, and store them in
the spare tire well.
3. Store the jack and tools in the tool case.
Place the tool case and the trunk floor lid on
the flat tire.
4. Close the trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-informati on display, but this is normal.
If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
■Storing the Flat Tire1 Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer Cone
Wing Bolt
■TPMS and the Spare Tire1TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
18 ACURA RLX E-AWD-31TY36400.book 560 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

561
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the multi-information display, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or multi-
information display
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Multi-Information Display Warning and
Information Messages P. 94
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2POWER Button Operating Range P. 152
2If the Keyless Access Remote Battery is
Weak P. 562
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission system indicator blinks and Transmission
Problem Apply Parking Brake When Parked message
appears.The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator Blinks
along with the Warning Message P. 573
Check the brightness
of the interior lights. The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check al l fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 580
Check the gear
position.The transmission is not in (P.Change the gear position to (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 87
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 564
18 ACURA RLX E-AWD-31TY36400.book 561 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

562
uuPower System Won’t Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, and the POWER button flashes, the
READY indicator does not come on. Turn on the power system as follows:
1.Touch the center of the POWER button
with the A logo on the keyless access
remote while the POWER button is
flashing. The buttons on the keyless access
remote should be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u If you do not depress the pedal, the
mode will change to ACCESSORY.
18 ACURA RLX E-AWD-31TY36400.book 562 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

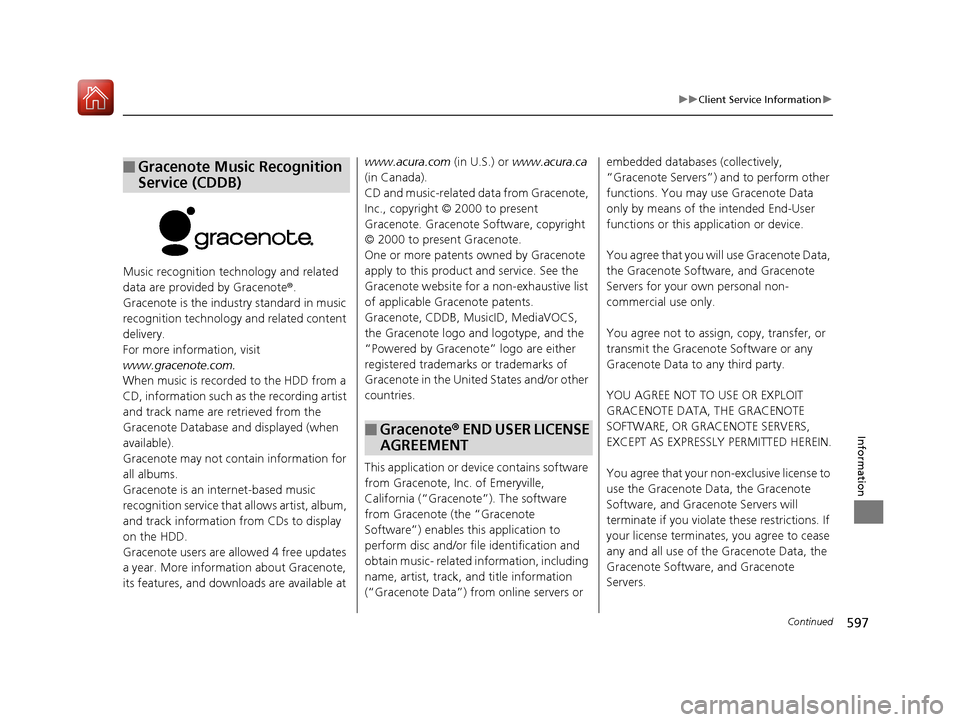

597
uuClient Service Information u
Continued
Information
Music recognition technology and related
data are provided by Gracenote ®.
Gracenote is the indus try standard in music
recognition technology and related content
delivery.
For more information, visit
www.gracenote.com.
When music is recorded to the HDD from a
CD, information such as the recording artist
and track name are retrieved from the
Gracenote Database and displayed (when
available).
Gracenote may not contain information for
all albums.
Gracenote is an in ternet-based music
recognition service that allows artist, album,
and track information from CDs to display
on the HDD.
Gracenote users are allowed 4 free updates
a year. More information about Gracenote,
its features, and downloads are available at
■Gracenote Music Recognition
Service (CDDB)www.acura.com (in U.S.) or www.acura.ca
(in Canada).
CD and music-related data from Gracenote,
Inc., copyright © 2000 to present
Gracenote. Gracenote Software, copyright
© 2000 to present Gracenote.
One or more patents owned by Gracenote
apply to this produc t and service. See the
Gracenote website for a non-exhaustive list
of applicable Gracenote patents.
Gracenote, CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype, and the
“Powered by Gracenote” logo are either
registered trademarks or trademarks of
Gracenote in the United States and/or other
countries.
This application or device contains software
from Gracenote, Inc. of Emeryville,
California (“Grace note”). The software
from Gracenote (the “Gracenote
Software”) enables this application to
perform disc and/or f ile identification and
obtain music- related information, including
name, artist, track, and title information
(“Gracenote Data”) from online servers or
■Gracenote ® END USER LICENSE
AGREEMENT
embedded databases (collectively,
“Gracenote Servers”) and to perform other
functions. You may use Gracenote Data
only by means of th e intended End-User
functions or this application or device.
You agree that you will use Gracenote Data,
the Gracenote Software, and Gracenote
Servers for your own personal non-
commercial use only.
You agree not to assign, copy, transfer, or
transmit the Gracenote Software or any
Gracenote Data to any third party.
YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your no n-exclusive license to
use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will
terminate if you violate these restrictions. If
your license terminates , you agree to cease
any and all use of the Gracenote Data, the
Gracenote Software, and Gracenote
Servers.
18 ACURA RLX E-AWD-31TY36400.book 597 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

601
Index
B
Battery12-Volt ................................................... 530
12-Volt Battery Charging System
Indicator ......................................... 81, 569
Charging (12-Volt Battery) ...................... 530
High Voltage........................................... 451
Jump Starting ......................................... 564
Maintenance (Checking the 12-Volt Battery) ................................................. 530
Maintenance (Replacing) ......................... 531
Battery Types .............................................. 12
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 445
Bluetooth ® Audio ..................................... 272
Bluetooth ® HandsFreeLink ®.................... 326
Booster Seats (For Children) ...................... 71
Brake System ............................................ 452
Anti-lock Brake System (ABS) .................. 458
Automatic Brake Hold ............................. 456
Brake Assist System................................. 459
Fluid ....................................................... 513
Foot Brake .............................................. 455
Parking Brake.......................................... 452
Brake System (Amber) Indicator ................................................... 79
Brake System (Red)
Indicator ........................................... 76, 570
Brightness Control (Head-Up Display) .... 167
Brightness Control (Instrument Panel) ... 166Bulb Replacement
.................................... 515
Back-Up Lights ........................................ 517
Brake/Taillight s and Rear Side Marker
Lights .................................................... 516
Door Outer Handle Ambient Lights .......... 517
Fog Lights ................................................ 515
Front Side Marker Lights .......................... 516
Front Turn Signal/Parking Lights ............... 515
Headlights ............................................... 515
High-Mount Brake Light .......................... 517
Rear License Plate Lights .......................... 517
Rear Turn Signal Lights ............................ 516
Side Turn Signal/Em ergency Indicator
Lights .................................................... 516
Taillights .................................................. 516
Bulb Specifications ................................... 586
C
CAMERA Button....................................... 481
Carbon Monoxide Gas ................................ 72
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 375, 377
CD Player ................................................... 245
Center Pocket ........................................... 188
Certification Label .................................... 588
Changing Bulbs ......................................... 515
Charging System Indicator ....................... 569
Child Safety ................................................. 60
Childproof Door Locks ............................. 141 Child Seat
.................................................... 60
Booster Seats ............................................ 71
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Larger Children ......................................... 70
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 141
Cleaning the Exterior ............................... 535
Cleaning the Interior ................................ 533
Client Service Information ....................... 596
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and
Windows ............................................... 207
Dust and Pollen Filter............................... 532
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 460
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 460
Compact Spare Tire (Optional) ........ 555, 587
Console Compartment ............................. 187
Controls ..................................................... 127
18 ACURA RLX E-AWD-31TY36400.book 601 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

602
Index
Coolant (Engine)....................................... 510
Adding to the Radiator ............................ 511
Adding to the Reserve Tank ..................... 510
High Temperature Indicator ....................... 85
Low Temperature Indicator ........................ 85
Overheating............................................. 567
Coolant (Inverter) ..................................... 512
Creeping (Dual Clutch Transmission) ....... 386
Cross Traffic Monitor ................................ 474
Cup Holders ............................................... 189
Customized Features ................................ 297
D
Daytime Running Lights ........................... 159
Dead Battery (12-Volt) ............................. 564
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 589
Dimming Headlights ............................................... 156
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 506
Directional Signals (Turn Signal) .............. 155
Door Mirrors ............................................. 173
Doors ......................................................... 129
Auto Door Locking .................................. 142
Auto Door Unlocking ............................... 142
Door Open Message .................................. 37
Keys ........................................................ 129 Locking/Unlocking the Doors from
the Inside ........................................ 18, 139
Locking/Unlocking the Doors from the Outside ........................................... 131
Lockout Prevention System ...................... 137
DOT Tire Quality Grading ........................ 524
Driver’s Knee Airbag .................................. 52
Driving ...................................................... 373
Braking ................................................... 452
Dual Clutch Transmission ........................ 386
Shifting Gear ........................................... 387
Turning on the Power.............................. 380
Driving Position Memory System ............ 169
Dual Clutch Transmission
Creeping ................................................. 386
Fluid ........................................................ 513
Kickdown ................................................ 386
Operating the Shift Button ................ 23, 389
Shifting ................................................... 387
Dust and Pollen Filter ............................... 532
E
Elapsed Time............................................. 117
Electric Parking Brake Indicator.................................................... 77
Electric Parking Brake System
Indicator............................................ 77, 571
Electric Power Steering (EPS) System Indicator............................................ 84, 571 Electronic Stability Control (ESC)
............ 441
Emergency ................................................ 581
Emissions Testing (Readiness Codes) ...... 591
Energy Efficiency ........................................ 12
Engine ....................................................... 588
Coolant .................................................. 510
Jump Starting ......................................... 564
Oil .......................................................... 505
Remote Engine Start ............................... 382
Engine Compartment Cover .................... 504
Engine Coolant ........................................ 510
Adding to the Radiator ........................... 511
Adding to the Reserve Tank .................... 510
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Overheating ............................................ 567
Engine Oil ................................................. 505
Adding ................................................... 507
Checking ................................................ 506
Displaying Oil Life ................................... 498
Low Oil Pressure Indicator ................. 76, 569
Recommended Engine Oil ....................... 505
e-pretensioners .......................................... 40
EPS (Electric Power Steering) System ........ 84
Exhaust Gas Hazard (Carbon Monoxide) .. 72
Expanded Rear Door Sunshades ............. 199
Exterior Care (Cleaning) .......................... 535
Exterior Mirrors ........................................ 173
18 ACURA RLX E-AWD-31TY36400.book 602 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

603
Index
F
Features.................................................... 211
Filters Dust and Pollen....................................... 532
Oil .......................................................... 508
Flat Tire ............................................. 543, 555
Floor Mats ................................................ 534
Fluids
Brake ...................................................... 513
Dual Clutch Transmission ........................ 513
Engine Coolant ....................................... 510
Inverter Coolant ...................................... 512
Windshield Washer ................................. 514
Foot Brake ................................................ 455
Front Airbags (SRS) .................................... 48
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................ 175, 178, 180
Adjusting ................................ 175, 178, 180
Front Sensor Camera ............................... 402
Fuel ..................................................... 25, 490
Economy................................................. 492
Gauge .................................................... 112
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 83
Range ..................................................... 117
Recommendation............................ 490, 586
Refueling ................................................ 490
Fuel Economy ........................................... 492
Fuel Fill Door ...................................... 25, 491 Fuses
.......................................................... 574
Inspecting and Changing ......................... 580
Locations ................................. 574, 577, 579
G
Gasoline (Fuel)
Economy ................................................. 492
Gauge ..................................................... 112
Information ............................................. 490
Instant Fuel Economy ............................... 117
Low Fuel Indicator ..................................... 83
Refueling ................................................. 490
Gauges ...................................................... 112
Gear Position Indicator ...................... 81, 389
Gear Shift Positions
Dual Clutch Transmission ......................... 387
Glass (care) ........................................ 533, 536
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 541
HandsFreeLink ® (HFL) ............................... 326
Auto Answer ........................................... 340
Automatic Import of Cellular Phonebook and
Call History ............................................ 342
Automatic Transferring ............................ 340
Displaying Messages ................................ 360
Editing User Name ................................... 339
HFL Buttons ............................................. 326 HFL Menus .............................................. 328
HFL Status Display ................................... 327
Limitations for Manual Operation ............ 327
Making a Call .......................................... 351
Options During a Call .............................. 357
Phone Setup............................................ 332
Phonebook Phonetic Modification ........... 346
Receiving a Call ....................................... 356
Receiving a Text/E-m
ail Message.............. 358
Ring Tone................................................ 341
Roadside Assistance ................................ 364
Selecting a Mail Account ......................... 359
Speed Dial ............................................... 343
To Create a Security PIN .......................... 338
To Set Up a Text/E-mail Message Option................................................... 337
Use Contact Photo .................................. 341
Hard Disk Drive (HDD) Audio .................. 248
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 156
Aiming .................................................... 515
Auto High-Beam ..................................... 160
Automatic Operation............................... 157
Dimming ................................................. 156
Operating................................................ 156
Head-Up Display ....................................... 119
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
Heaters (Seat) ........................... 195, 196, 197
18 ACURA RLX E-AWD-31TY36400.book 603 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

605
Index
L
Lane Keeping Assist System (LKAS)........ 423
Language (HFL) ........................................ 327
LATCH (Child Seats) ................................... 65
Lights ................................................ 156, 515
Automatic............................................... 157
Bulb Replacement ................................... 515
Daytime Running Lights .......................... 159
Fog Lights ............................................... 159
High Beam Indicator ................................. 87
Interior.................................................... 182
Light Switches......................................... 156
Lights On Indicator.................................... 87
Turn Signals ............................................ 155
Load Limits ............................................... 377
Locking/Unlocking ................................... 129
Auto Door Locking/Unlocking ................. 142
Childproof Door Locks ............................ 141
From Inside ............................................. 139
From Outside .......................................... 131
Keys........................................................ 129
Using a Key............................................. 137
Lockout Prevention System ..................... 137
Low Battery Charge (12-Volt) ................. 569
Low Fuel Indicator ..................................... 83
Low Keyless Access Remote Signal Strength .................................................. 130
Low Oil Pressure Indicator ................. 76, 569
Lower Anchors ........................................... 65
Luggage (Maximum Load Limit) ............. 377
Lumbar Support ....................................... 176
M
Maintenance............................................. 493
12-Volt Battery ........................................ 530
Brake Fluid .............................................. 513
Cleaning .................................................. 533
Climate Control System ........................... 532
Coolant ........................................... 510, 512
Maintenance Minder
TM............................ 497
Oil ........................................................... 506
Precautions .............................................. 494
Radiator .................................................. 511
Remote Transmitter ................................. 531
Replacing Light Bulbs ............................... 515
Safety ...................................................... 495
Service Items ........................................... 500
Tires ........................................................ 521
Transmission Fluid ................................... 513
Under the Hood ...................................... 502
Malfunction Indicator Lamp .............. 81, 570
Map Lights ................................................ 183
Maximum Load Limit ............................... 377
Meters, Gauges ......................................... 112
Mirrors ....................................................... 172
Adjusting ................................................. 172
Door........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 538
Moonroof .................................................. 151
MP3 ................................................... 245, 269
Multi-Information Display ....................... 114Multi-View Rear Camera
.......................... 478
N
Numbers (Identification).......................... 588
O
Odometer................................................. 116
Oil (Engine) ....................................... 505, 587
Adding .................................................... 507
Checking................................................. 506
Displaying Oil Life .................................... 498
Low Oil Pressure Indicator ................. 76, 569
Recommended Engine Oil ............... 505, 587
Viscosity .......................................... 505, 587
On Demand Multi-Use Display
TM............. 217
Open Source Licenses ............................... 296
Opening Trunk ...................................................... 583
Opening/Closing Hood....................................................... 503
Moonroof ............................................... 151
Power Windows ...................................... 149
Trunk ...................................................... 143
Operating the Switches Around the Steering
Wheel ...................................................... 152
Outside Temperature Display .................. 116
Overheating .............................................. 567
18 ACURA RLX E-AWD-31TY36400.book 605 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
