2018 Acura NSX Owner's Manual

424
uuCleaning uExterior Care
Maintenance
The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain. Dew condensation also may build up inside the lenses
when there is a significan t enough difference between the ambient and inside lens
temperatures (similar to vehicle windows fogging up in rainy conditions). These
conditions are natural processes, not stru ctural design problems in the exterior
lights.
Lens design characteristics may result in mo isture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by an authorized Acura
NSX dealer.
Keep the brake pads and rotors free of subs tances that are either abrasive or oil
based, as these substances can reduce braking power.
When driving in the presence of salt and/ or sand, briefly wash the rotor/pad surfaces
with low-pressure water, and then brake th e system dry to help maintain the brake
system’s performance.
Brake maintenance requires specialized kn owledge. We recommend maintenance
to be carried out by an au thorized Acura NSX dealer.
■Fogged Exterior Light Lenses
■Carbon Ceramic Brakes*
* Not available on all models
18 NSX-31T6N6100.book 424 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

425
uuCleaning uExterior Care
Maintenance

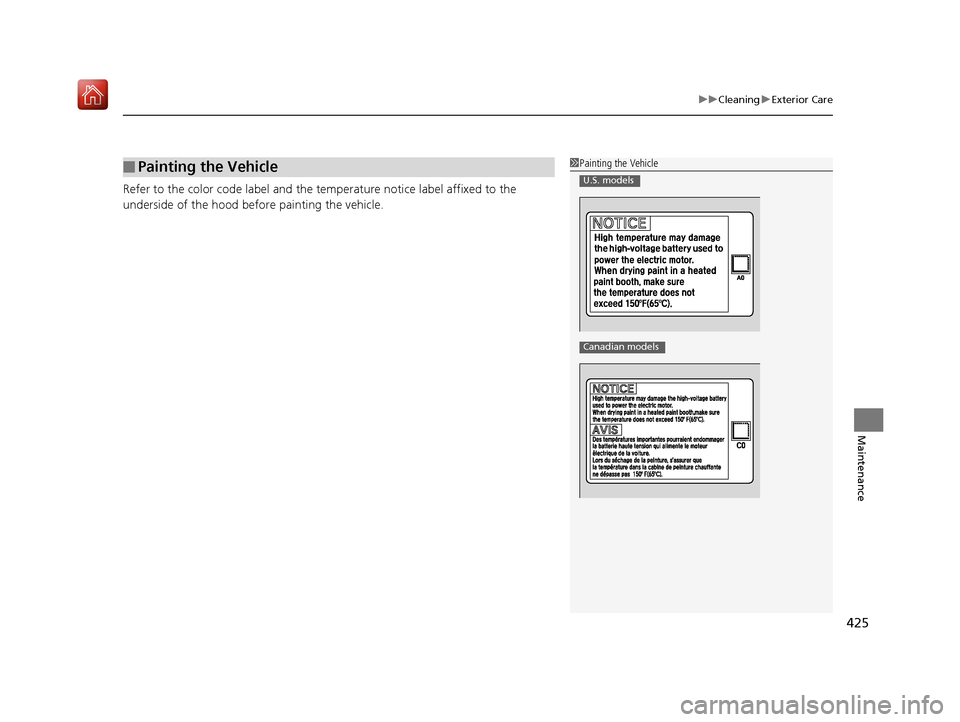

Refer to the color code label and the te mperature notice label affixed to the
underside of the hood before painting the vehicle.
■Painting the Vehicle1 Painting the Vehicle
U.S. models
Canadian models
18 NSX-31T6N6100.book 425 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

426
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshie ld. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any access ories over areas marked SRS AIRBAG, on the sides or
backs of the seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 457
•Before installing any electronic accessory, have the installer contact an authorized
Acura NSX dealer for assistance. If possibl e, have an authorized Acura NSX dealer
inspect the final installation.
1 Accessories and Modifications
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Acura high-voltage
battery assembly, or it s equivalent, in your
vehicle.
18 NSX-31T6N6100.book 426 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

427
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Acura pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, pr ovince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1 962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Acura has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical syst ems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle's high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Acura high-
voltage battery assembly. Genuine Acura high-voltage battery assemblies are
designed to work with your vehicle's hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have b een similarly designed, engineered and
manufactured, and installation of such assemb lies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.
18 NSX-31T6N6100.book 427 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

428
Maintenance
Storage
Vehicle Storage
If you need to park your vehicle for an extended period (more than one month),
there are several things you should do to prepare it for storage. This helps reduce
possible deterioration of vehicle components and overall condition, which allows
you to get the vehicle back on the road with minimal delay. These are:
• If possible, store your NSX in a garage or enclosed area.
• Fill the fuel tank completely.
• Change the engine oil and filter.
• Wash and dry the exterior completely.
• Clean the interior. Make sure the carpeti ng, floor mats, etc., are completely dry.
• Put the transmission in
(P.
Release the parking brake.
• Leave one window open slightly (if the vehicle is being stored indoors).
• To maintain the low-voltage 12-volt battery, connect it to an accessory battery
charger. For more information on how to maintain your 12-volt battery, consult
an authorized Acura NSX dealer.
2 Checking the 12-Volt Battery P. 417
•If the vehicle is to be stored for a longer period of time, it should be supported on
jack stands to raise the tires off the ground to prevent tire flat spotting.
2Handling of the Jack P. 444
•Support the front wiper blad e arms with a folded towel or rag so they do not
touch the windshield.
• Cover the vehicle with a “breathable” co ver, one made from a porous material
such as cotton. Nonporous materials (suc h as plastic sheeting) may trap moisture,
which can damage the paint.
• If possible, remove the vehicle from th e garage or enclosed area, remove
covering, and periodically run the engi ne until it reaches full operating
temperature (the cooling fa n cycles on and off twice).
Preferably, do this once a month.
18 NSX-31T6N6100.book 428 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

429
uuStorage uVehicle Storage
Maintenance
• To maintain the High Voltage battery, driv e your vehicle for more than 30 minutes
at least once every three months.
If road conditions are not suitable or de sirable for driving, the following alternate
procedure can be used to maintain the vehi cle's High Voltage battery if local idling
by-laws permit:
1. Remove the vehicle from the garage or enclosed area to prevent carbon
monoxide accumulation.
2 Carbon Monoxide Gas P. 67
2.Depress the brake pedal and press the ENGINE START/STOP button as you
normally would to start the vehicle.
3. Allow the vehicle to run for 30 minutes. Time spent at idle stop still counts as part
of this 30-minute run.
18 NSX-31T6N6100.book 429 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

430
18 NSX-31T6N6100.book 430 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

431
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 432
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 433
Handling of the Jack ........................ 444
Power System Won’t Start Checking the Procedure ................... 445
If the Keyless Access Remote Battery is Weak ............................................. 446
Emergency Power System Off........... 447
Jump Starting .................................... 448
Overheating How to Handle Overheating ............. 450 Indicator, Coming On/Blinking
If the 12-Volt Battery Charging System Indicator Comes On ....................... 452
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 452
If the Brake System Indicator (Red) Comes On ................................................. 453
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 453
If the Electric Parking Brake System Indicator Comes On ....................... 454 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 455
If the Transmission System Indicator Blinks along with the Warning Message... 456
If the Low Oil Level Symbol Appears.....456Fuses Fuse Locations ................................. 457
Inspecting and Changing Fuses ........ 461
Emergency Towing ........................... 462
When You Cannot Unlock the Fuel Fill Door ................................................. 463
When You Cannot Open the Hatch.....464RefuelingRefueling from a Portable Fuel Container .... 465
