2018 Acura NSX Owner's Manual

400
uuMaintenance Under the Hood and Hatch uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Refilling Window Washer Fluid
If the washer fluid is low, a message appears on the dr iver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Acura Heavy Duty Brake Fluid DOT 4
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 4 fluid from a sealed container as a
temporary replacement.
Using any non-Acura brake fl uid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 4 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have an authorized Acura NSX dealer inspect the
vehicle for leaks or worn brake pads as soon as
possible.
MINReserve Tank
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.
18 NSX-31T6N6100.book 400 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

401
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura NSX dealer inspect and replace
the light assembly.
Front Turn Signal/Parking Lights
Front turn signal/parking light s are LED type. Have an authorized Acura NSX dealer
inspect and replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights
Door mirror side turn lights are LED type . Have an authorized Acura NSX dealer
inspect and replace the light assembly.
Daytime Running Lights
Daytime running lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at an authorized Acura NS X dealer or by a qualified
technician.
18 NSX-31T6N6100.book 401 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

402
uuReplacing Light Bulbs uRear Turn Signal Lights
Maintenance
Rear Turn Signal Lights
Rear Turn Signal lights are LED type. Have an authorized Acur a NSX dealer inspect
and replace the light assembly.
Brake/Taillights
Brake/Taillights are LED type. Have an aut horized Acura NSX dealer inspect and
replace the light assembly.
Rear Side Marker Lights
Rear side marker lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
Taillights
Taillights are LED type. Have an authorized Acura NSX dealer inspect and replace the
light assembly.
Back-Up Lights
Back-up lights are LED type. Have an au thorized Acura NSX dealer inspect and
replace the light assembly.
18 NSX-31T6N6100.book 402 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

403
uuReplacing Light Bulbs uRear License Plate Lights
Maintenance

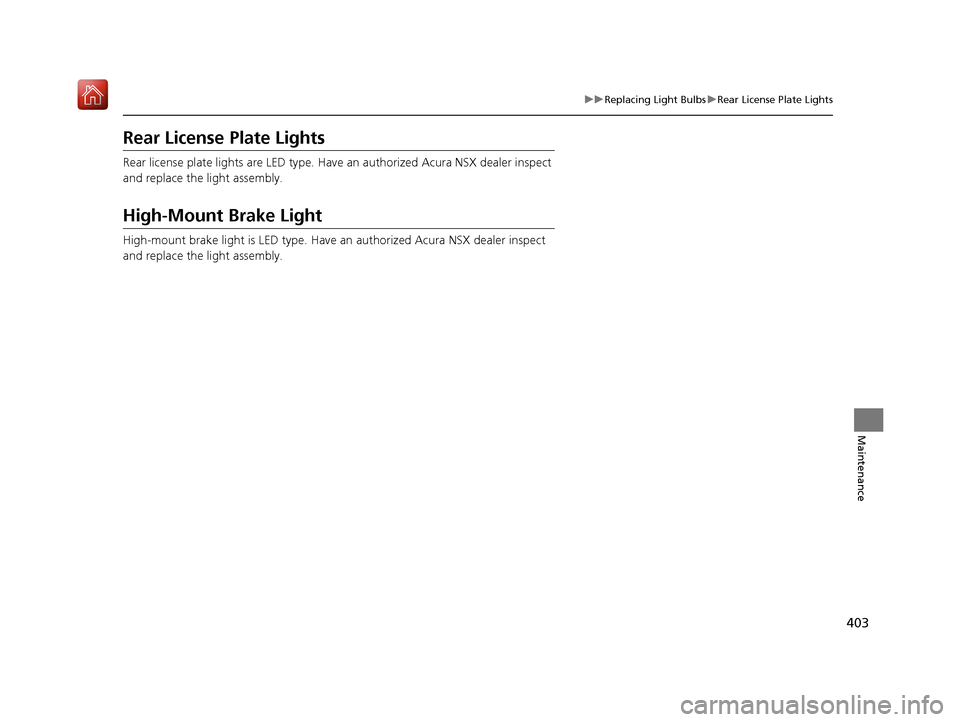

Rear License Plate Lights
Rear license plate lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
18 NSX-31T6N6100.book 403 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

404
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. While holding the wiper switch in the
MIST position, change the power mode to
VEHICLE OFF.
2. Wiper arms will move into service position.
3. Lift both wiper arms.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
18 NSX-31T6N6100.book 404 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

405
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Continued
Maintenance

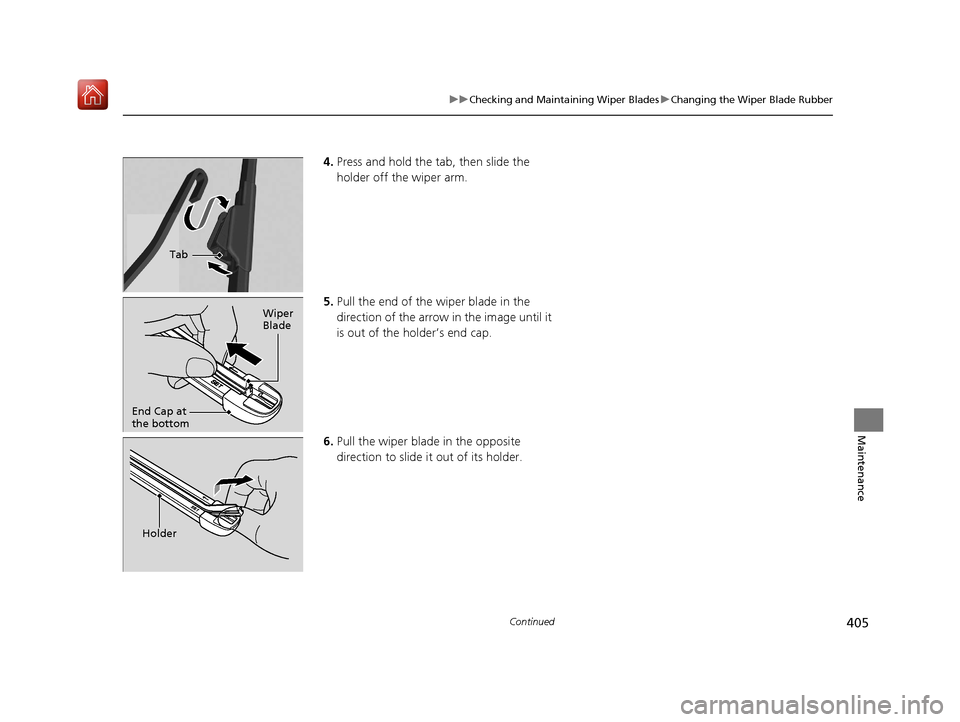

4. Press and hold the ta b, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of its holder.
Tab
Wiper
Blade
End Cap at
the bottom
Holder
18 NSX-31T6N6100.book 405 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

406
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance

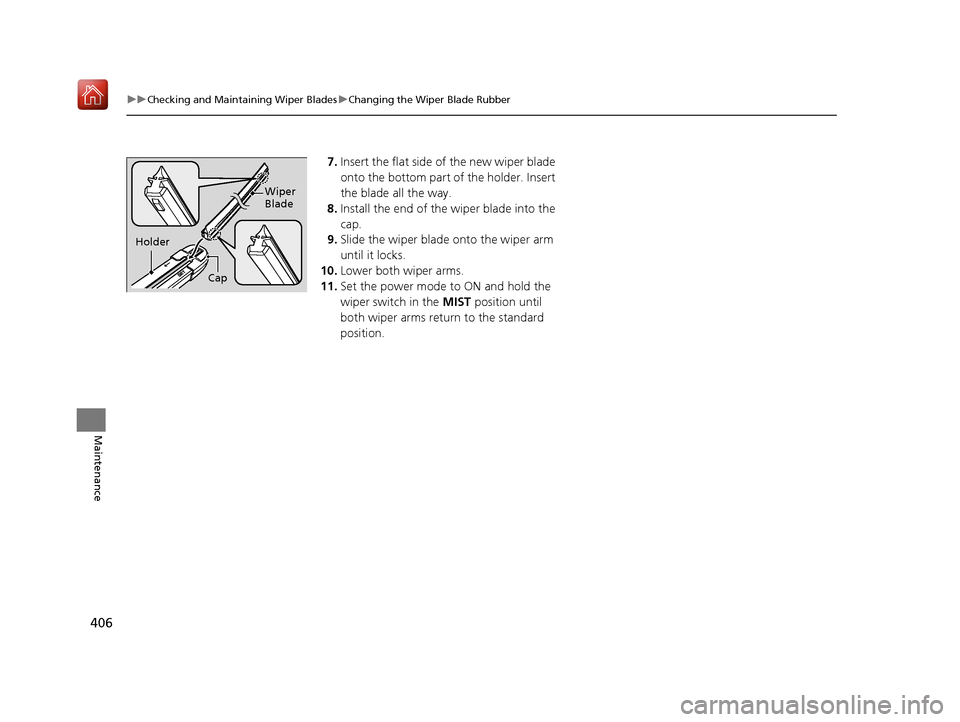

7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the wiper blade onto the wiper arm
until it locks.
10. Lower both wiper arms.
11. Set the power mode to ON and hold the
wiper switch in the MIST position until
both wiper arms return to the standard
position.
Cap Wiper
Blade
Holder
18 NSX-31T6N6100.book 406 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

407
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb labe l or specifications page for the specified
pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in all
tires. Even tires in good condition can lose 1
– 2 psi (10 – 20 kPa, 0.1 – 0.2 kgf/cm2) per
month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems. Look for:
• Bumps or bulges on the side or in the tr ead. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have an authorized Acura NSX dealer check the wheel
alignment.
• Excessive tread wear.
2 Wear Indicators P. 412
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4 – 6 psi (30 – 40 kPa, 0.3 – 0.4 kgf/cm
2) higher than
if checked when cold.
Have an authorized Acura NSX dealer check the tires
if you feel a consistent vi bration while driving. New
tires and any that have be en removed and reinstalled
should be properly balanced.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding tire inflation and
maintenance.
