2018 Acura NSX Owner's Manual

336
uuWhen Driving uIntegrated Dynamics System
Driving
Category QUIETSPORTSPORT+ TRACK
Information
DisplayDriver
Information
InterfaceMinimized and not
intrusive.Easy to read
information for every
day driving.Information for more aggressive driving is added
(engine oil temp, SH-AWD ® system temp,
tachometer position prioritizes high engine
speed).
Chassis
Control Steering
Steering effort is balanced for city and highway
use. Increased steering effort for driver feedback.
Suspension
Damping Damping is set for balanced use in every day
driving. Damping is set for higher body control and
performance in a performance driving
environment.
Braking Feel settings are balanced for oper ation on all public road environments.Feel setting is
calibrated for high
temperature operation
on track.
VSA ® Balanced calibration for VSA
® and Traction control
in all environments. Enhanced control for
Agile Handling Assist,
VSA
®, and Traction
Control during
performance driving. Track oriented control
allowing increased
freedom for the driver.
18 NSX-31T6N6100.book 336 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

337
uuWhen Driving uIntegrated Dynamics System
Continued
Driving
Category QUIETSPORTSPORT+ TRACK
Powertrain
Control
Powertrain
Start-upEV operation is
prioritized, starts
quietly.Powerful start-up sound.
Powertrain
SoundMinimum sound for
quiet driving.Balanced sound for city
and highway use.Emotional sound for
increased feedback.Maximum sound for
driving on race track
with helmet on.
Hybrid
Battery
ManagementEfficiency and smooth
quiet operation are
prioritized.Balanced management
for response and
efficiency.Maximum electric assist
for acceleration.Battery charge is
managed to give
consistent lap time
during track use.
Hybrid
Battery A/C
CoolingBattery A/C cooling is
not used in this mode.Battery A/C cooling is active however cabin
cooling is prioritized.Battery A/C cooling is
active and may
compromise cabin
cooling.
EV OperationAvailableAvailableNot availableNot available
Driving Force
CharacterEase of force
modulation for
comfortable operation.Balanced tuning of
drive force request for
all driving scenarios.Maximum response.Linear response for
ease of cornering line
control.
DCT Shift
Map/
ResponseComfortable/low
engine speed priority.Balanced tuning for all
driving scenarios.Quick downshifts on
request, lower gears
are held for maximum
response.Gears are held to
maximize performance
on track. Shifts are very
fast.
SH-AWD®Quiet and comfortable
operation.Balanced setting for
secure every day use in
any condition.Traction and response
are prioritized for
performance on
winding roads.Settings are optimized
for dry surface, high
cornering load with
neutral handling
attitude.
18 NSX-31T6N6100.book 337 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

338
uuWhen Driving uIntegrated Dynamics System
Driving
QUIET mode prioritizes quiet and relaxed
driving. The powertrain prioritizes EV
operation, quiet sound, and low engine speed
in all driving situatio ns including start-up.
• The engine speed is limited to 4,000rpm.
• The vehicle speed is limited to
approximately 120 mph (193 km/h).
SPORT mode gives the driver an everyday
New Sports eXperience. The dynamic systems
function to balance sport and touring driving
performance.
■QUIET Mode
■SPORT Mode
18 NSX-31T6N6100.book 338 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

339
uuWhen Driving uIntegrated Dynamics System
Driving
SPORT+ mode optimizes dynamic response
from all powertrain and chassis systems -
perfect for your favorite winding road.
• EV operation is elimin ated while operating
in SPORT+ .
TRACK mode gives maximum, consistent
performance from dynamic systems during
track day lapping sessions. Hybrid battery
charge is maintained for consistent
performance.
• VSA ® OFF indicator is illuminated in TRACK
mode indicating reduced stability control.
This allows more body side slip and wheel
spin before VSA ® begins to operate.
• Integrated Dynamics switch must be turned
and held to the right for several seconds to
engage TRACK mode.
■SPORT+ Mode
■TRACK Mode1TRACK Mode
Before choosing the TRACK mode, carefully read the
information about high performance driving.
2 High-Performance Driving P. 315
During TRACK mode, the climate control system may
weaken its function to pr ioritize cooling the High
Voltage battery.
18 NSX-31T6N6100.book 339 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

340
uuWhen Driving uLaunch Control
Driving
Launch Control
Your vehicle controls the engine and transmission response to maximize
acceleration from standstill.
1.Use the Integrated Dynamics System mode
switch to set the Integrated Dynamics
System mode to TRACK.
2Integrated Dynamics System P. 335
2.Depress the brake pedal firmly and change
the gear position to .
3. Release the parking brake.
1Launch Control
Do not use this system when driving on wet or
slippery surfaces as you may lose control of the
vehicle.
The system puts a tremend ous load on the engine
and transmission. Frequent use of this system may
lead to reduced vehicle life.
The system does not function when:
•VSA ® is off.
•The vehicle is not at standstill.
•The gear position is not in .•A gear other than 1st gear is selected when the
system is in manual mode.
•The parking brake is applied.•The vehicle is facing uphill or downhill on a steep
slope.
•The transmission temperatur e is too cold or too
hot.
•There is a problem with a vehicle system.
3WARNING
Using this system on public roads that are
used by other vehicles and pedestrians can
result in a collision involving serious injury
or death.
D/M
D/M
18 NSX-31T6N6100.book 340 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

341
uuWhen Driving uLaunch Control
Driving
4. While keeping the brake pedal firmly
depressed, depress the accelerator pedal all
the way, beyond the point when the
transmission downshifts.
5. When Launch Mode Ready is displayed in
the driver information interface, release the
brake pedal at once.
6. To cancel launch mode, take your foot off
the accelerator pedal. Launch Mode
Cancelled is displayed in the driver
information interface.
18 NSX-31T6N6100.book 341 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

342
uuWhen Driving uCruise Control
Driving
Cruise Control
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open roads where you can travel at a
constant speed with little acceleration or deceleration.1Cruise Control
It may not be possible to maintain a constant speed
when driving uphill or downhill.
When not using cruise control:
Turn off cruise control by pressing the CRUISE
button.
3WARNING
Improper use of the cruise control can lead
to a crash.
Use cruise control only when traveling on
open highways in good weather.When to use
■Gear positions for cruise control:
In D (Drive) or M (Manual)Always keep sufficient distance
between you and the vehicle in
front of you.
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
■Integrated Dynamics System
modes for cruise control: QUIET,
SPORT , SPORT+ mode
How to useCRUISE MAIN is on in
the instrument panel.
Cruise control is ready to
use.
■Press the CRUISE button on
the steering wheel.
18 NSX-31T6N6100.book 342 ページ ２０１７年１０月２７日　金曜日　午後１時３９分

343
uuWhen Driving uCruise Control
Continued
Driving

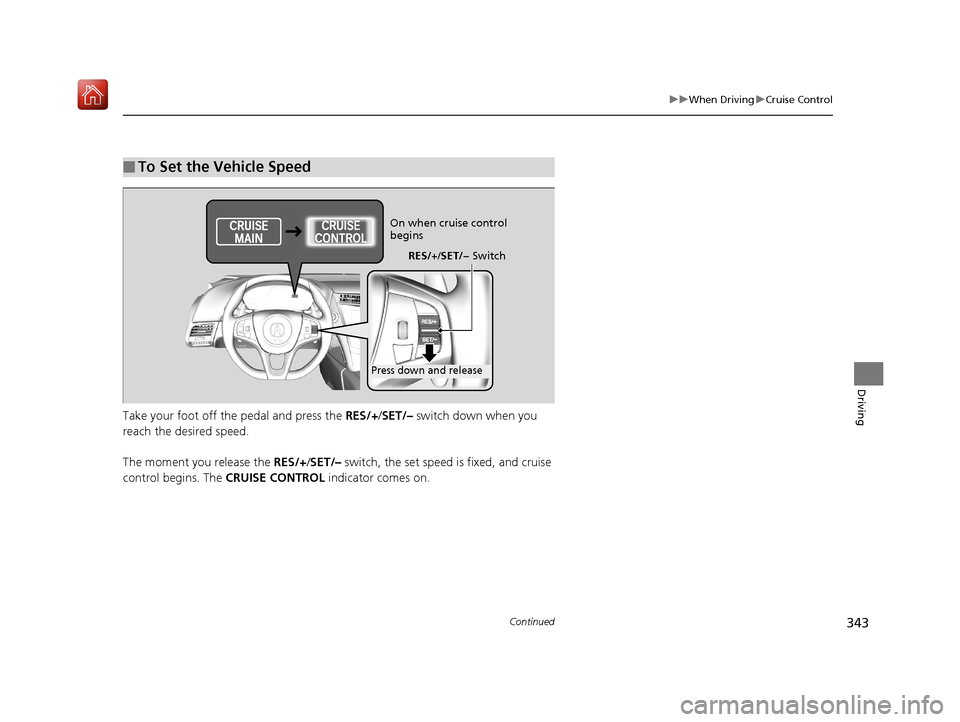

Take your foot off the pedal and press the RES/+/SET/– switch down when you
reach the desired speed.
The moment you release the RES/+/SET/– switch, the set speed is fixed, and cruise
control begins. The CRUISE CONTROL indicator comes on.
■To Set the Vehicle Speed
On when cruise control
begins
RES/+ /SET/− Switch
Press down and release
18 NSX-31T6N6100.book 343 ページ ２０１７年１０月２７日　金曜日　午後１時３９分
