2017 YAMAHA MT09 TRACER Owners Manual

OWNER’S MANUAL
MT09TRA
2PP-28199-E3
q Read this manual carefully before operating this vehicle.

EAU70071
Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
Date of issue:
Signature of Responsible Person:April 28, 2016
Product: IMMOBILIZER
Model: 1RC-00
Supplied by
YAMAHA MOTOR ELECTRONICS
CO.,LTD.
1450-6 Mori, Mori-machi Shuchi-gun
Shizuoka 437-0292 Japan
EN 60950-1: 2006 + Amd.11:2009 + Amd.1:2010 +
Amd.12: 2011 + Amd.2:2013
EN 62479: 2010
Hiroshi Kamiiizaka
GENERAL MANAGER
QUALITY ASSURANCE DIV. 97/24/EC from 17.06.1997
EN 300 330-1 V1.8.1
EN 300 330-2 V1.6.1
Technical Construction File held by
YAMAHA MOTOR ELECTRONICS
CO.,LTD.
1450-6 Mori, Mori-machi Shuchi-gun
Shizuoka 437-0292 Japan
R&TTE Directive
(Article 3.1(a) Safety)
R&TTE Directive
(Article 3.1(b) EMC)
R&TTE Directive
(Article 3.2 Spectrum)

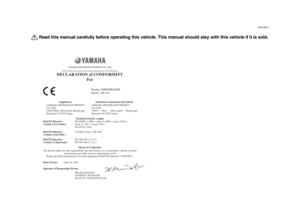

DECLARATION of CONFORMITY For
YAMAHA MOTOR ELECTRONICS CO., LTD.1450-6, Mori, Mori-machi, Shuchi-gun, Shizuoka-ken, 437-0292 Japan
Standard used for comply
Means of Conformity
We declare under our sole responsibility that the Product (s) is confor\
mity with the essential requirements and other relevant requirements of the
Radio and Telecommunication Terminal Equipment (R&TTE) Directive (1999/5/EC).

Introduction
EAU10103
Welcome to the Yamaha world of motorcycling!
As the owner of the MT09TRA, you are benefiting from Yamaha’s vast experience and newest technology regarding the de-
sign and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your MT09TRA. The Owner’s Manual
does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
Yamaha continually seeks advancements in pr oduct design and quality. Therefore, while this manual contains the most cur-
rent product information available at the time of printing, there may be minor discrepancies between your motorcycle and this
manual. If there is any question concerning this manual, please consult a Yamaha dealer.
WARNING
EWA10032
Please read this manual carefully and completely before operating this motorcycle.
2PP-9-E3.book 1 ページ ２０１６年９月１３日　火曜日　午前９時７分

Important manual information
EAU10134
Particularly important information is distinguished in this manual by the following notations:
*Product and specifications are subject to change without notice.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation wh
ich, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP
2PP-9-E3.book 1 ページ ２０１６年９月１３日　火曜日　午前９時７分

Important manual information
EAU10201
MT09TRA
OWNER’S MANUAL
©2016 by Yamaha Motor Co., Ltd. 1st edition, August 2016All rights reserved.
Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd.
is expressly prohibited. Printed in Japan.
2PP-9-E3.book 2 ページ ２０１６年９月１３日　火曜日　午前９時７分

Table of contentsSafety information........................... 1-1
Description ....................................... 2-1
Left view ......................................... 2-1
Right view ....................................... 2-2
Controls and instruments................ 2-3
Instrument and co ntrol functions... 3-1
Immobilizer system ..... .................... 3-1
Main switch/steering lock................ 3-2
Indicator lights and warning
lights ............................................ 3-4
Multi-function meter unit ................. 3-6
D-mode (drive mode).................... 3-17
Handlebar switches ...................... 3-18
Clutch lever................................... 3-20
Shift pedal..... ............................ .... 3-20
Brake lever ................................... 3-20
Brake pedal .................................. 3-21
ABS .............................................. 3-21
Traction control syst em ................ 3-22
Fuel tank cap ................................ 3-24
Fuel............................................... 3-25
Fuel tank overflow hose................ 3-27
Catalytic converter ........................ 3-27

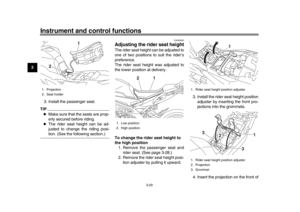

Seats ............................................ 3-28
Adjusting the rider seat height ...... 3-29
Helmet holder ............................... 3-31
Storage compartment ................... 3-32
Windshield .................................... 3-32
Adjusting the headlight beams ..... 3-33 Handlebar position ...................... 3-33
Adjusting the front fork ................. 3-33
Adjusting the shock absorber
assembly................................... 3-35
Luggage strap holders . ................ 3-36
Sidestand ..................................... 3-37
Ignition circuit cut- off system ........ 3-37
Auxiliary DC jack .......................... 3-39
Auxiliary DC connector................. 3-39
For your safety – pre-operation
checks .............................................. 4-1
Operation and important riding
points ................................................ 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
Periodic maintenance and
adjustment ....................................... 6-1
Owner’s tool kit............................... 6-2
Periodic maintenance chart for the emission control system ....... 6-3
General maintenance and
lubrication chart .......................... 6-5

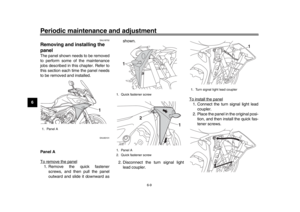

Removing and installing the panel ........................................... 6-9 Checking the spark plugs ............ 6-10
Canister ....................................... 6-11
Engine oil and oil filt
er cartridge... 6-11
Coolant ........................................ 6-14
Air filter element ........................... 6-17
Checking the engine idling speed............ ............................ 6-17
Checking the throttle grip free
play ........................................... 6-17
Valve clearance ........................... 6-18
Tires ............................................. 6-18
Cast wheels ................................. 6-20
Adjusting the clutch lever free play ........................................... 6-21
Checking the brake lever free play ........................................... 6-21
Brake light switches ..................... 6-22
Checking the front and rear brake pads................................ 6-22
Checking the brake fluid level ...... 6-23
Changing the brake fluid .............. 6-24
Drive chain slack.......................... 6-25
Cleaning and lubricating the
drive chain ................................ 6-26
Checking and lubricating the
cables ....................................... 6-27
Checking and lubricating the throttle grip and cable ............... 6-27
Checking and lubricating the brake and shift pedals .............. 6-282PP-9-E3.book 1 ページ ２０１６年９月１３日　火曜日　午前９時７分

Table of contents
Checking and lubricating the brake and clutch levers ............. 6-28
Checking and lubricating the centerstand and sidestand ........ 6-29
Lubricating the swingarm pivots ... 6-30
Checking the front fork ................. 6-30
Checking the steering . .................. 6-31
Checking the wheel bearings ....... 6-31
Battery .......................................... 6-31

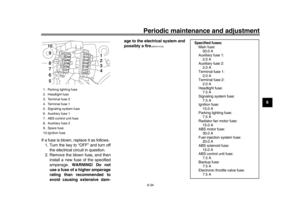

Replacing the fuses ...................... 6-33
Headlights ..... ............................. .. 6-35
Auxiliary lights ........ ...................... 6-35
Brake/tail light ............................... 6-36
Replacing a turn signal light
bulb ........................................... 6-36
Replacing the license plate light bulb ........................................... 6-37
Troubleshooting............................ 6-37
Troubleshooting charts ................. 6-39
Motorcycle care and storage .......... 7-1
Matte color caution ......................... 7-1
Care................................................ 7-1
Storage ........................................... 7-4
Specifications .................................. 8-1
Consumer information .................... 9-1
Identification numbers .................... 9-1
Diagnostic connector ... ................... 9-2
Vehicle data recording.................... 9-2 Index
............................................... 10-1
2PP-9-E3.book 2 ページ ２０１６年９月１３日　火曜日　午前９時７分

1-1
1
2
3
4
5
6
7
8
9
10
11
12
Safety information
EAU1028B
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:
Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.

Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.

Obtain qualified training in safe
and proper riding techniques.

Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.

Never operate a motorcycle with-
out proper training or instruction. Take a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized motorcycle dealer to find out
about the training courses nearest
you.
Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 4-1
for a list of pre-operation checks.

This motorcycle is designed to car-
ry the operator and a passenger.

The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
Wear a brightly colored jacket. Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
Never maintain a motorcycle without proper knowledge. Con-
tact an authorized motorcycle
dealer to inform you on basic
motorcycle maintenance. Cer-
tain maintenance can only be
carried out by certified staff.

Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent motorcycle license.
Make sure that you are qualifiedand that you only lend your mo-
torcycle to other qualified opera-
tors.
Know your skills and limits. Staying within your limits may
help you to avoid an accident.
We recommend that you prac-
2PP-9-E3.book 1 ページ ２０１６年９月１３日　火曜日　午前９時７分
