2017 VOLVO XC90 Owner´s Manual

SPECIFICATIONS
}}
* Option/accessory.535
Dimensions
The following table lists your vehicle's most important dimensions.
Dimension In.
(mm)
A Ground clearance (curb weight + 2 people) A8.9 (227)
B Wheelbase 117.5 (2984) C Length 194.9 (4950)
D Load length, floor, seat- back down 80.3 (2040)
49.6 (1260) BDimension
In.
(mm)
E Load length, floor 48.0 (1220)C
21.8 ( 554) D
F Height 69.9 (1776)
G Load height 32.1 (816)Dimension In.
(mm)
H Track, front (models with- out pneumatic suspen- sion) 65.9 (1673)
E
65.6 (1665) F
Track, front (models withpneumatic suspension) 66.0 (1676)
E
65.7 (1668) F

||
SPECIFICATIONS
536
DimensionIn.
(mm)
I Track, rear (models with- out pneumatic suspen- sion) 65.8 (1675)
E
66.1 (1667) F
Track, rear (models withpneumatic suspension) 66.1 (1679)
E
65.8 (1671) F
J Load width, floor 46.9 (1192)
K Width 75.7 (1923)G
76.0 (1931) H
77.1 (1958) I
L Width incl. door mirrors (folded out) 84.3 (2140)
M Width incl. door mirrors (folded in) 79.1 (2008)
A
Varies slightly depending on tire size, chassis options, etc.
B From the second row of seats in 7-seat models *.
C 5-seat model
D 7-seat model
E Models with 20, 21 and 22 in. wheels.
F Models with 18 and 19 in. wheels.
G Chassis width.
H Width on models with 18 and 19 in. wheels.
I Width on models with 20, 21 and 22 in. wheels.
Related information
• Weights (p. 537)

SPECIFICATIONS
}}
537

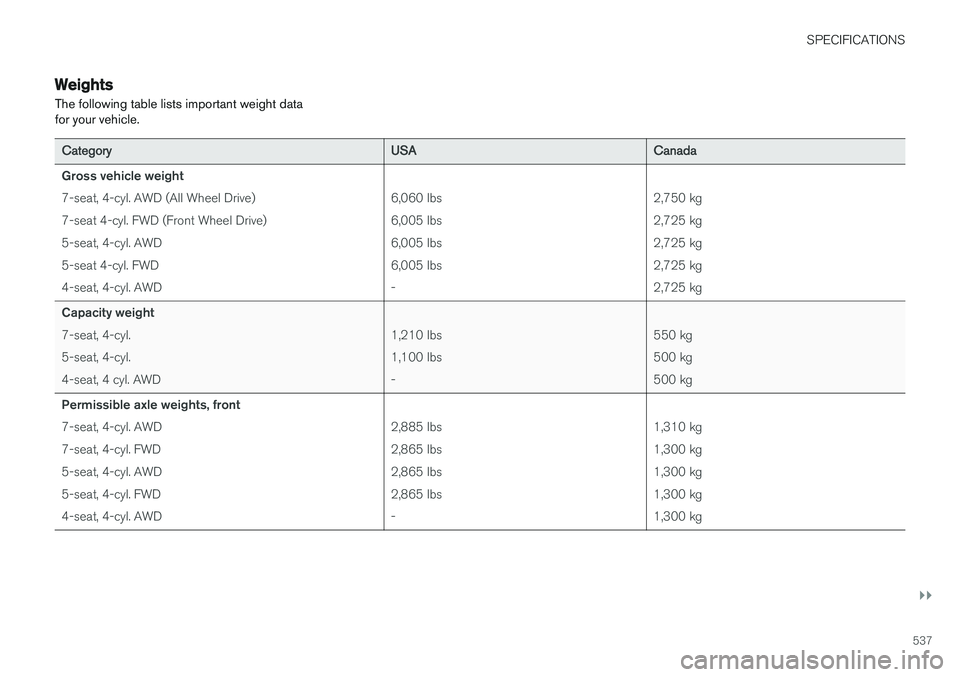

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 7-seat, 4-cyl. AWD (All Wheel Drive) 7-seat 4-cyl. FWD (Front Wheel Drive)5-seat, 4-cyl. AWD5-seat 4-cyl. FWD4-seat, 4-cyl. AWD 6,060 lbs6,005 lbs6,005 lbs6,005 lbs-2,750 kg2,725 kg2,725 kg2,725 kg2,725 kg
Capacity weight 7-seat, 4-cyl. 5-seat, 4-cyl.4-seat, 4 cyl. AWD 1,210 lbs1,100 lbs-550 kg500 kg500 kg
Permissible axle weights, front 7-seat, 4-cyl. AWD 7-seat, 4-cyl. FWD5-seat, 4-cyl. AWD5-seat, 4-cyl. FWD4-seat, 4-cyl. AWD 2,885 lbs2,865 lbs2,865 lbs2,865 lbs-1,310 kg1,300 kg1,300 kg1,300 kg1,300 kg

||
SPECIFICATIONS
538
CategoryUSACanada
Permissible axle weights, rear 7-seat, 4-cyl. AWD 7-seat, 4-cyl. FWD5-seat, 4-cyl. AWD5-seat, 4-cyl. FWD4-seat, 4-cyl. AWD 3,280 lbs3,280 lbs3,280 lbs3,280 lbs-1,490 kg1,490 kg1,490 kg1,490 kg1,470 kg
Curb weight 7-seat, 4-cyl. 5-seat, 4-cyl.4-seat, 4 cyl. 4,370 - 4,680 lbs4,290 - 4,530 lbs-1,980 - 2,130 kg1,940 - 2,060 kg2,130 - 2,140 kg
Max. roof load 220 lbs
100 kg

SPECIFICATIONS
539
CategoryUSACanada
Max. trailer weights Without brakes: 1,650 lbs With brakes (AWD): 5,000 lbsWith brakes (FWD): 4,000 lbsWithout brakes: 750 kgWith brakes (AWD): 2,250 kgWith brakes (FWD): 1,800 kg
Max. tongue weight AWD: 500 lbsFWD: 400 lbsAWD: 225 kgFWD: 180 kg
CAUTION
•
When loading the vehicle, the maximum gross vehicle weight and permissible axleweights may not be exceeded.
• The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).

SPECIFICATIONS
* Option/accessory.
540
Air conditioning refrigerant
The air conditioning system in your car contains a CFC-free refrigerant.
A/C decal
R134a decal
Refrigerant
Weight Type
1.7 lbs (775 g)
2.2 lbs (1000 g) on models with A/C for the third row of seats *R134a
WARNING
The air conditioning system contains R134a refrigerant under pressure. Service andrepairs may only be carried out by a trainedand qualified Volvo service technician.
Compressor oil
Volume
Type
2.0 fl. oz. (60 ml)
2.7 fl. oz. (80 ml) on models with A/C for the third row of seats *PAG SP- A2
EvaporatorThe A/C system' s evaporator may never be repaired or replaced with a previously used evap-orator. A new evaporator must be certified andmarked according to SAE J2842.
Related information
•
Climate system service (p. 487)
Brake fluid specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel. Topping up or replacing brake fluid should only be done by a trained and qualified Volvo servicetechnician.
Specification: Volvo Original Dot 4 class 6 or
equivalent
Related information
• Engine compartment overview (p. 515)

SPECIFICATIONS
541
Coolant specifications
Coolant specifications.
Specification: Coolant with corrosion inhibitor mixed with water (50/50 mix), see packaging. Consult a Volvo retailer if you are uncertain.Different types of coolant should not be mixed to help avoid health risks.

SPECIFICATIONS
542
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Not all engines listed here are available in allmarkets.
Specification
T6 AWD
Engine designation B4204T27
Output (kW/rps) 235/95
Output (hp/rpm) 316/5700
Torque (Nm/rps) 400/37–90
Torque (ft. lbs./rpm) 295/2,200–5,400
No. of cylinders 4
Specification T6
Engine designation B4204T23
Output (kW/rps) 187/92
Output (hp/rpm) 250/5,500
Torque (Nm/rps) 350/25–80
Torque (ft. lbs./rpm) 258/1,500-4,800
No. of cylinders 4
