2017 TOYOTA TACOMA traction control

5328-2. Steps to take in an emergency
(U.S.A. only)

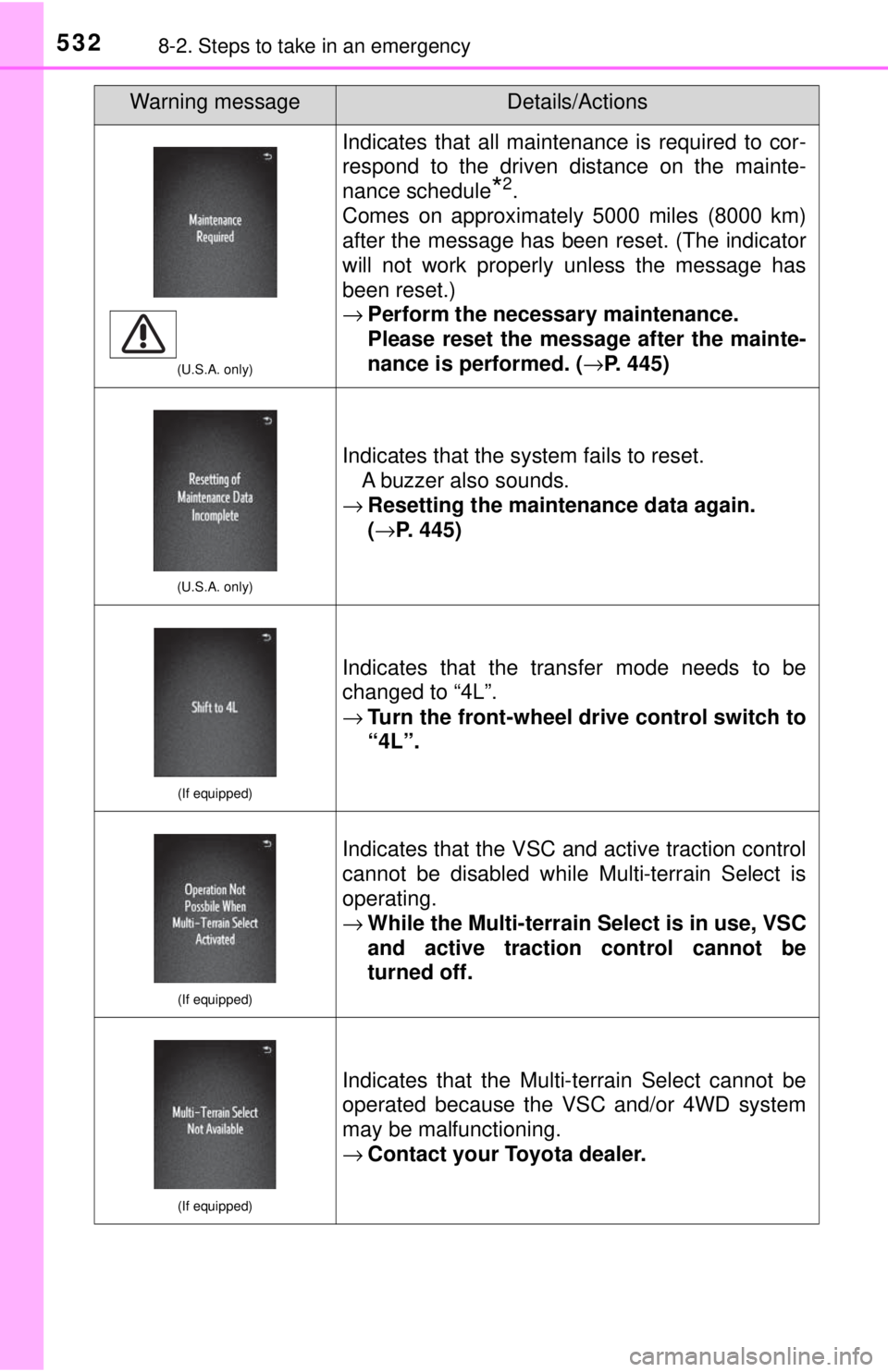

Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*2.
Comes on approximately 5000 miles (8000 km)
after the message has been reset. (The indicator
will not work properly unless the message has
been reset.)
→ Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. ( →P. 445)
(U.S.A. only)
Indicates that the system fails to reset.
A buzzer also sounds.
→ Resetting the maintenance data again.
(→P. 445)
(If equipped)
Indicates that the transfer mode needs to be
changed to “4L”.
→ Turn the front-wheel dr ive control switch to
“4L”.
(If equipped)
Indicates that the VSC and active traction control
cannot be disabled while Multi-terrain Select is
operating.
→ While the Multi-terrain Select is in use, VSC
and active traction control cannot be
turned off.
(If equipped)
Indicates that the Multi-terrain Select cannot be
operated because the VSC and/or 4WD system
may be malfunctioning.
→Contact your Toyota dealer.
Warning messageDetails/Actions

5338-2. Steps to take in an emergency
8
When trouble arises
*1: The buzzer sounds when Multi-terrain Select or active traction control isequipped.
*2: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
■Conditions that the tire pressure warning system may not function
properly (vehicles with the tire pressure warning system)
→ P. 4 7 2
■Warning buzzer
→P. 520
(If equipped)
Indicates that the Multi-terrain Select is canceled
while in use.
A buzzer also sounds.
→ Use the Multi-terrain Select under the
proper operating conditions. ( →P. 258)
(If equipped)
Indicates that the Multi-terrain Select cannot be
operated because Crawl Control is operating.
→Turn Crawl Control off. (→P. 262)
Warning messageDetails/Actions

5538-2. Steps to take in an emergency
8
When trouble arises
WARNING
■When using the temporary spare tire
●Remember that the temporary spare tire provided is specifically
designed for use with your vehicle. Do not use your temporary spare
tire on another vehicle.
●Do not use more than one temporary spare tires simultaneously.
●Replace the temporary spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●VSC
●TRAC
●AUTO LSD
●Hill-start assist control (if equipped)
●Cruise control (if equipped)
●Active traction contro l system (if equipped)
●Multi Terrain ABS (if equipped)
●Multi-terrain Select (if equipped)
●Crawl Control (if equipped)
●Navigation system (if equipped)
Also, not only can the following system not be utilized fully, but it may
even negatively affect the drive-train components:
●4WD system
■Speed limit when using the temporary spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a temporary
spare tire is installed on the vehicle.
The temporary spare tire is not designed for driving at high speeds. Fail-
ure to observe this precaution may lead to an accident causing death or
serious injury.

565
8
When trouble arises
8-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission) or N (manual transmission).
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material to help provide traction
under the rear wheels.
Restart the engine.
Shift the shift lever to D or R (automatic transmission), or 1 or R
(manual transmission) and releas e the parking brake. Then, while
exercising caution, depre ss the accelerator pedal.
■When it is difficult to free the vehicle
Press to turn off TRAC.
Turn off TRAC/active traction control system (if equipped) and/or VSC if these
functions are hampering your attempts to free the vehicle. ( →P. 268, 269)
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever (vehic les with an automatic transmission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
1
2
3
4
5

5889-1. Specifications
This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answe r any questions you may have as
you read this information.
■DOT quality grades
All passenger vehicle tires must c onform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found
where applicable on the tire sidewall between tread shoulder and
maximum section width.
For example: Treadwear 200 Traction AA Temperature A
■Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 wo uld wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tire s depends upon the actual condi-
tions of their use. Performance may differ significantly from the norm
due to variations in driving habits, service practices and differences
in road characteristics and climate.
■Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditio ns on specified government test
surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
Uniform Tire Quality Grading
