4917-3. Do-it-yourself maintenance
7
Maintenance and care
Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 580)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your Toy-
ota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement

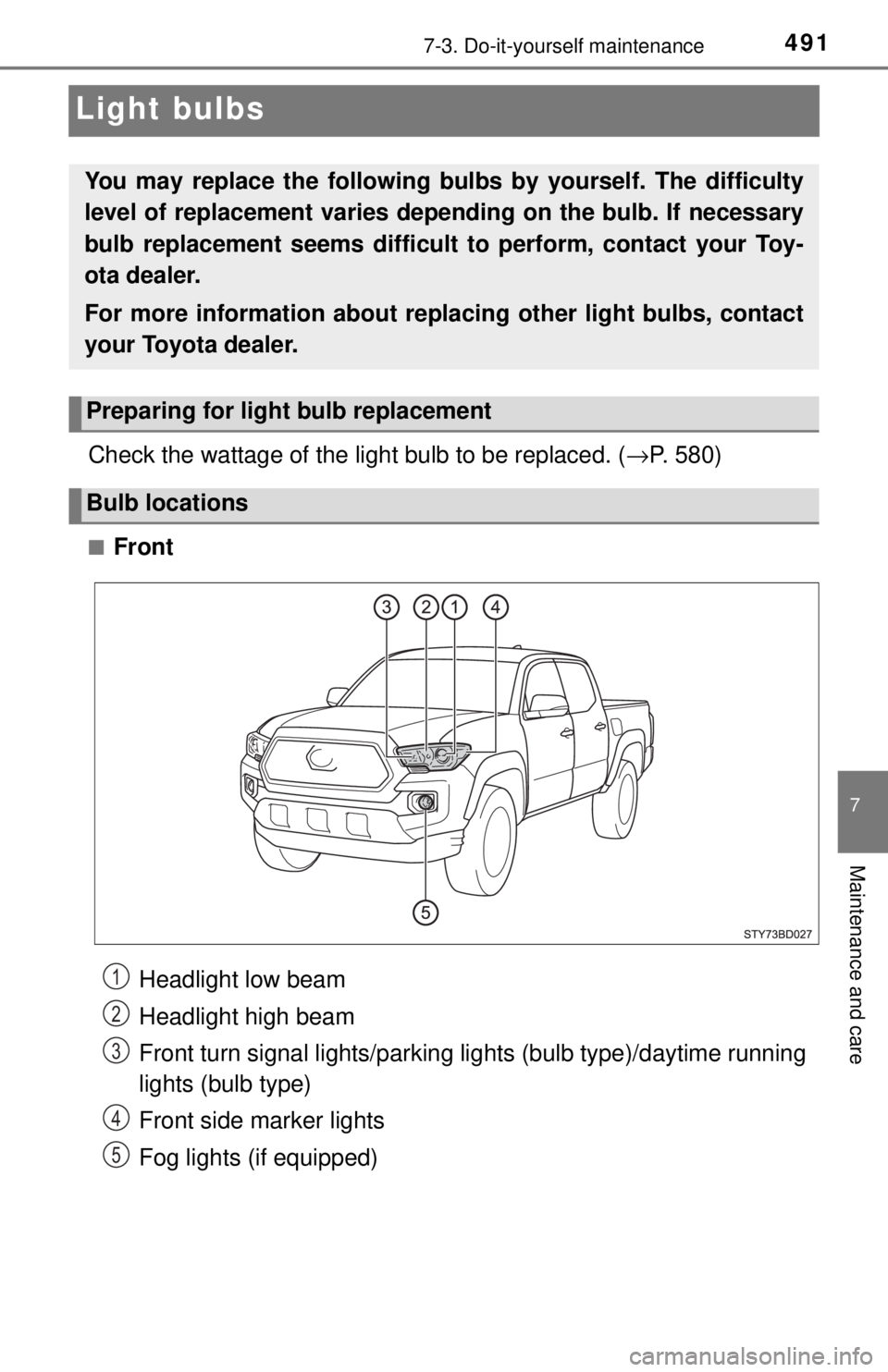

Bulb locations
Headlight low beam
Headlight high beam
Front turn signal lights/parking li ghts (bulb type)/daytime running
lights (bulb type)
Front side marker lights
Fog lights (if equipped)1
2
3
4
5

4977-3. Do-it-yourself maintenance
7
Maintenance and care

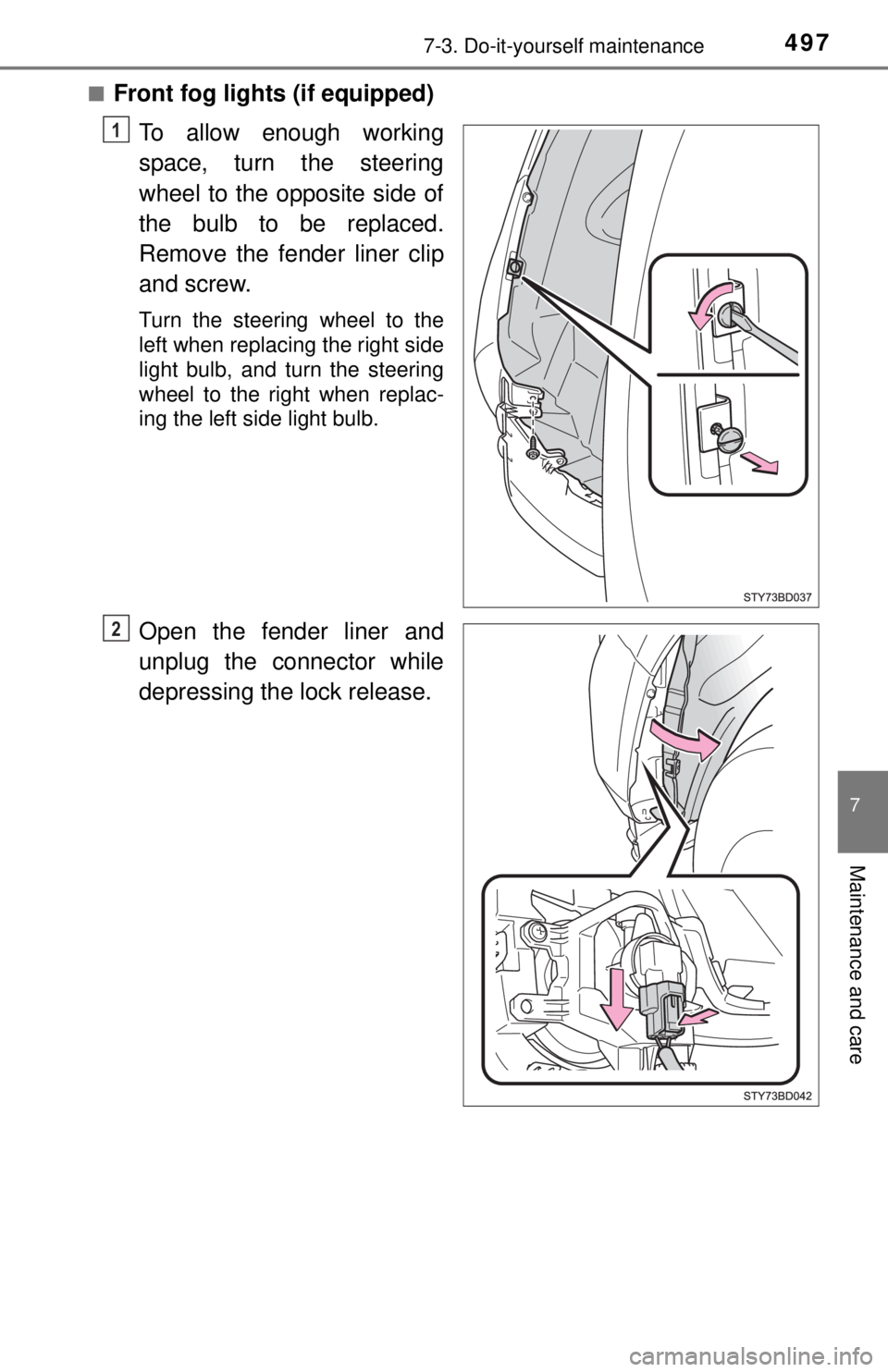

■Front fog lights (if equipped)To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the fender liner clip
and screw.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
Open the fender liner and
unplug the connector while
depressing the lock release.
1
2

4987-3. Do-it-yourself maintenance

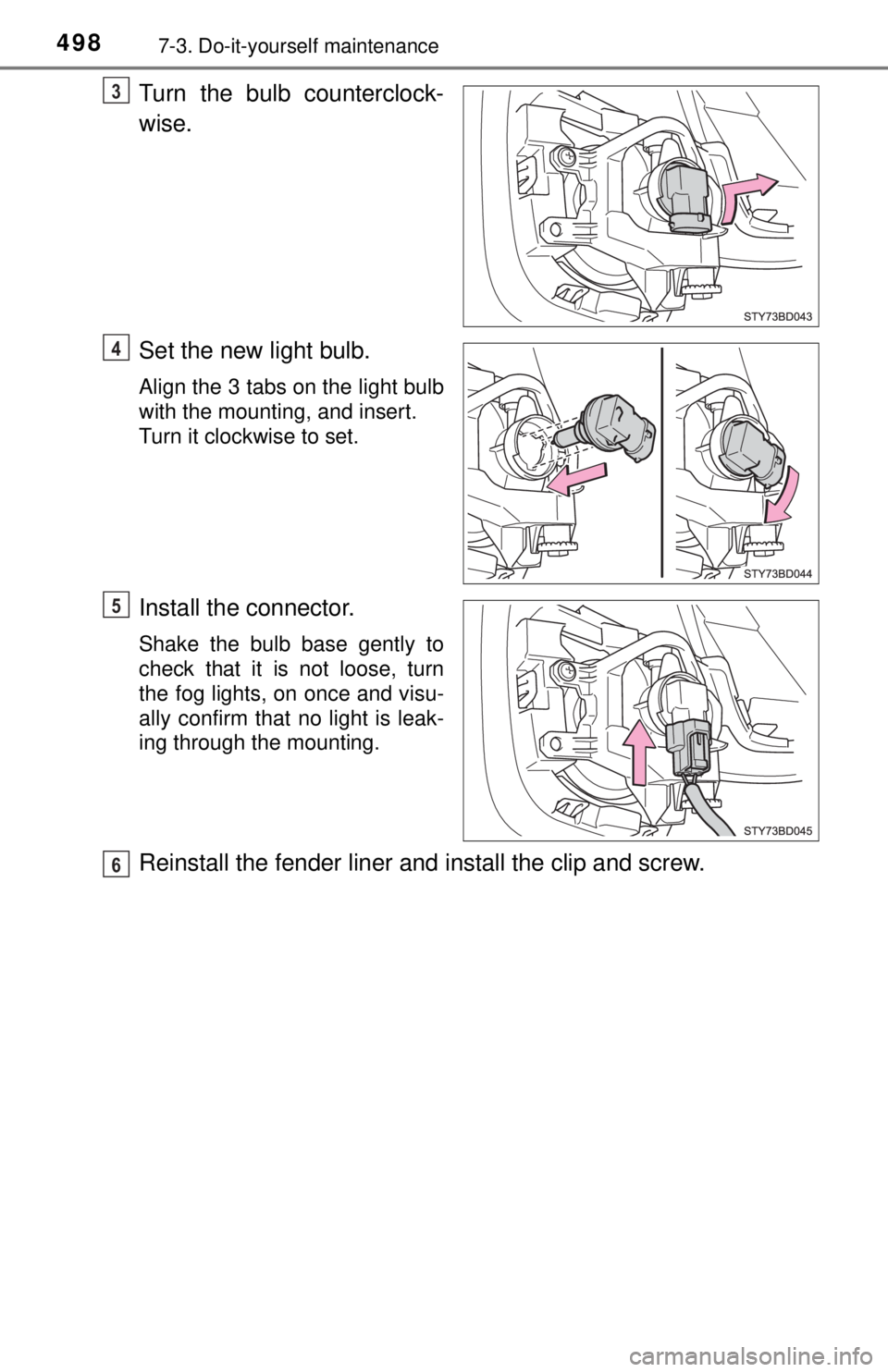

Turn the bulb counterclock-
wise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the fog lights, on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and install the clip and screw.
3
4
5
6

5027-3. Do-it-yourself maintenance
■LED Lights
The side turn signal lights (if equipped), parking lights (LED type)\
, daytime
running light (LED type) and, high mounted stoplight (vehicles with cargo
lamp) consist of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Toyota lamps are vented to all surrounding environmental conditions and m\
ay
experience temporary condensation build-up that is visible from outside \
of the
lamp. Condensation and fogging does not indicate a malfunction of the lamp
assembly. It is normal for condensation to improve and disappear after time
and normal driving use. Visible pools of water or large droplets are a sign of a
lamp in which the seal has malfunctioned. If this is the case or condensation
and fogging remain after long periods of time, contact your Toyota dealer for
more information.
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the lights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble the bulb, bulb base, electrical wir-
ing, or subcomponents.
Doing so could result in electric shock and serious injury.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

5809-1. Specifications
*1: If equipped
*2: Bulb type only
*3: Parking lights/daytime running lights are LED type
*4: Vehicles without a cargo lamp
A: H11 halogen bulbs
B: H9 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (amber) E: Wedge base bulbs (clear)F: Double end bulbs
Light bulbs
Light BulbsBulb No.WTy p e
Exterior Headlights
Low beam
High beam H11
H9 55
65 A
B
Front fog lights
*1
Normal type
Wide angle type H16
H11 19
55C
A
Front side marker lights W5W 5 E
Front turn signal lights/
parking lights
*2/
daytime running lights
*27442NA 28/8 D
Front turn signal lights
*3WY21W 21 D
Stop/tail/rear side marker
lights 7443 21/5 E
Tail/rear turn signal/rear
side marker lights 7443 21/5 E
Back-up lights W16W 16 E
License plate lights W5W 5 E
High mounted stoplight
*4168 5 E
Interior Vanity lights
*17065 5 F
Front personal/interior
lights W5W 5 E
Rear interior light — 8 F
