4-2. Driving procedures
Turn signal lever
Right turn
Left turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
■Turn signals can be operated when
The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
Operating instructions
1
2
3
4

518
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
■Front
Vehicles without daytime running lights or with bulb type daytime
running lights
Vehicles with LED type daytime running lights
Bulb locations
Headlight high beam and day-
time running lights (if equipped)
Headlight low beam
(halogen bulb) Fog light (if equipped)
Front turn signal/parking and
front side marker lights1
2
3
4
Front turn signal light
Headlight high beam
Fog light
Headlight low beam
(halogen bulb)
Front side marker light1
2
3
4
5

SIENNA_OM_OM08007U_(U)
5197-3. Do-it-yourself maintenance
7
Maintenance and care

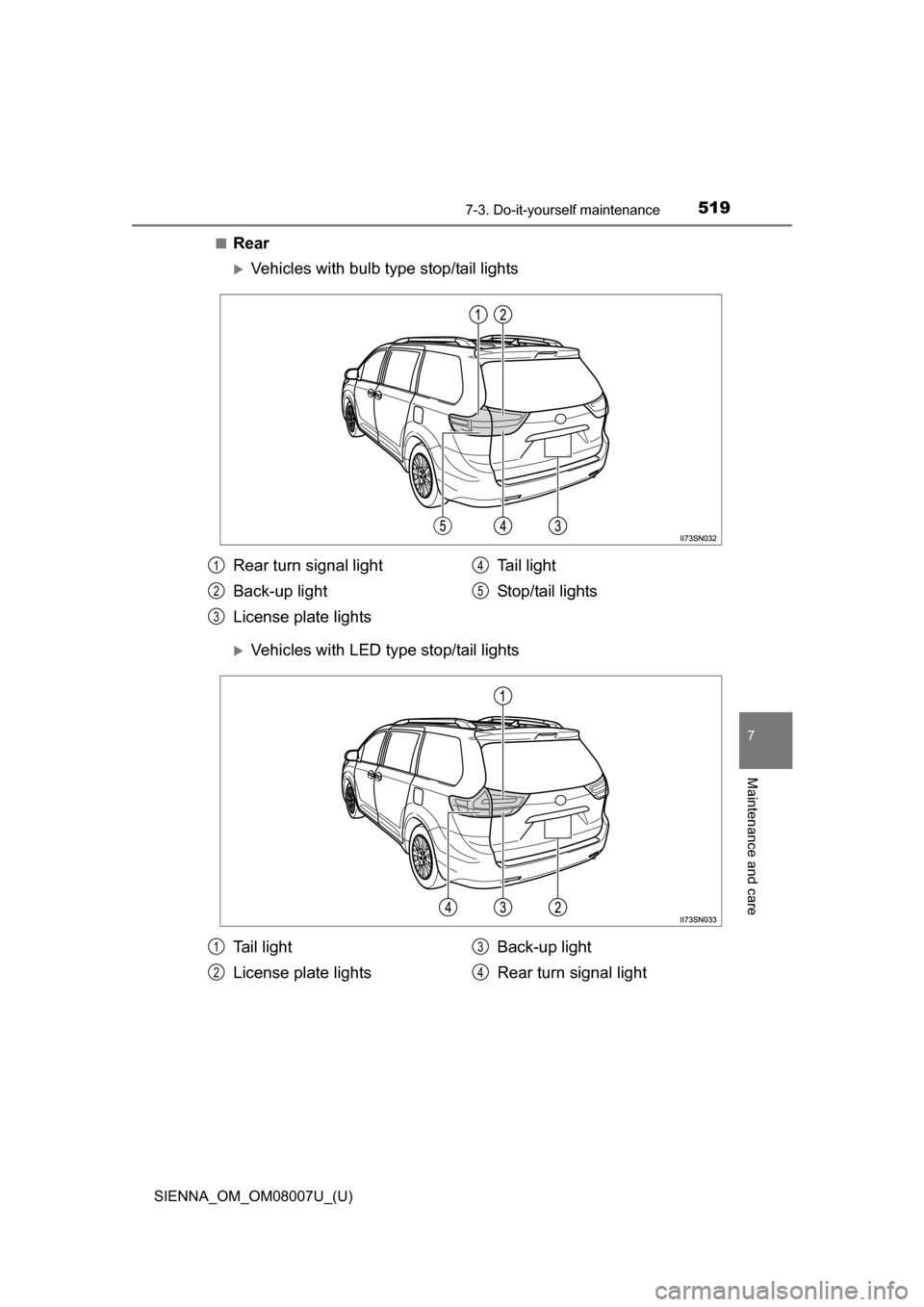

■Rear
Vehicles with bulb type stop/tail lights
Vehicles with LED type stop/tail lights
Rear turn signal light
Back-up light
License plate lightsTail light
Stop/tail lights1
2
3
4
5
Tail light
License plate lights
Back-up light
Rear turn signal light1
2
3
4

SIENNA_OM_OM08007U_(U)
5257-3. Do-it-yourself maintenance
7
Maintenance and care
■Front turn signal/parking and front side marker lights (vehicles
without daytime running lights or with bulb type daytime run-
ning lights)
For left side only:
Open the fuse box cover. ( P. 514)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

526
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
■Front turn signal lights (vehicles with LED type daytime run-
ning lights)For left side only:
Open the fuse box cover. ( P. 514)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

528
SIENNA_OM_OM08007U_(U)
7-3. Do-it-yourself maintenance
■Rear turn signal lights (vehicles with LED type stop/tail lights)Remove the securing bolts
and remove the unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

SIENNA_OM_OM08007U_(U)
5297-3. Do-it-yourself maintenance
7
Maintenance and care
■Rear turn signal lights and stop/tail lights (vehicles with bulb
type stop/tail lights)
Remove the securing bolts
and remove the unit.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.Rear turn signal lights
Stop/tail lights
Remove the light bulb. Rear turn signal lights
Stop/tail lights
1
2
3
1
2
4
1
2
