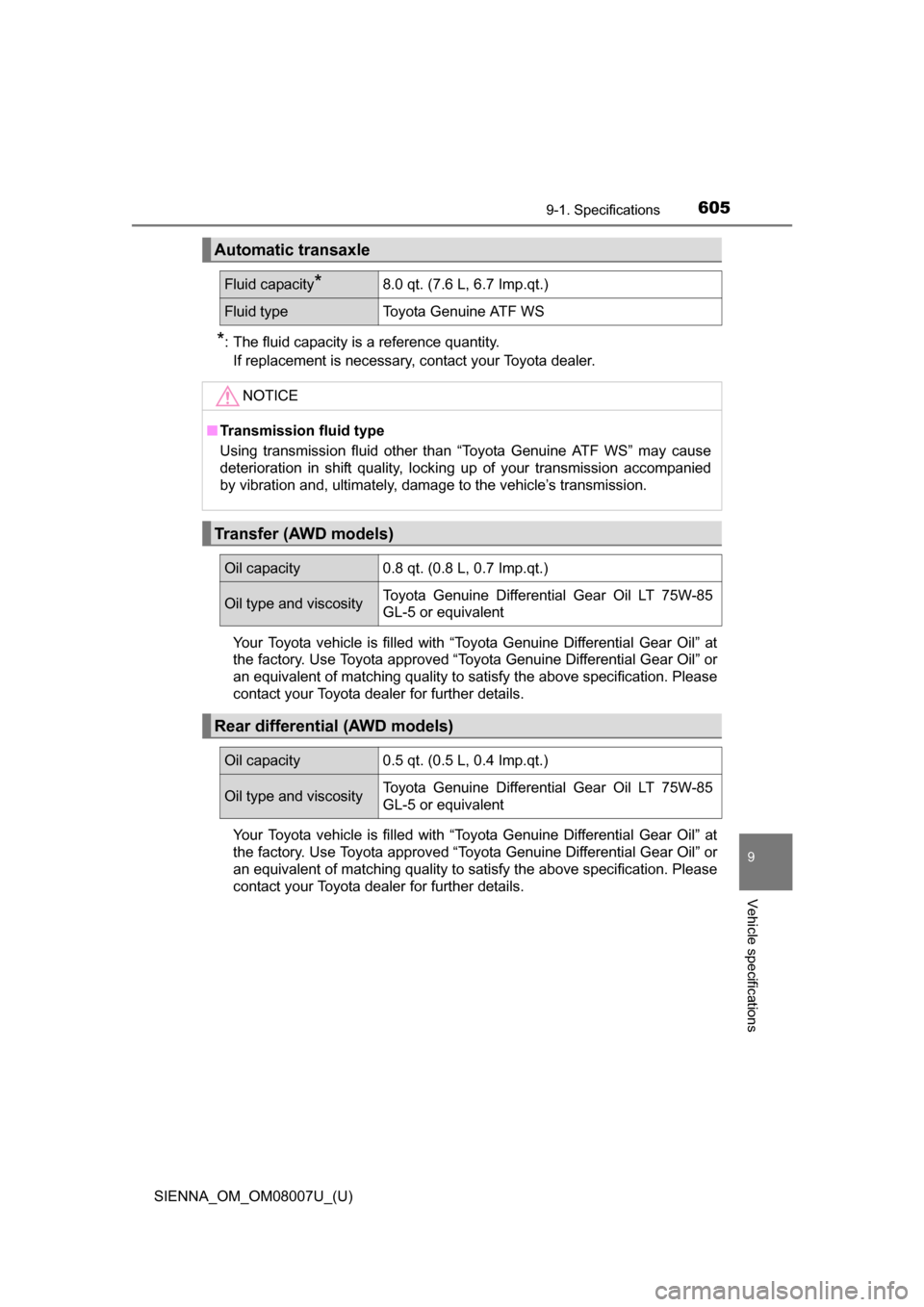

SIENNA_OM_OM08007U_(U)
6059-1. Specifications
9
Vehicle specifications
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Toyota dealer.
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
Automatic transaxle
Fluid capacity*8.0 qt. (7.6 L, 6.7 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration and, ultimately, damage to the vehicle’s transmission.
Transfer (AWD models)
Oil capacity 0.8 qt. (0.8 L, 0.7 Imp.qt.)
Oil type and viscosityToyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Rear differential (AWD models)
Oil capacity
0.5 qt. (0.5 L, 0.4 Imp.qt.)
Oil type and viscosityToyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
