5598-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Indicates that the engine coolant temperature is
too highA buzzer also sounds.
 P. 594
Indicates a malfunction in the vehicle’s charging
system.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer. Continuing
to drive the vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice A buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
 If the windshield wipers are on, turn them
off or set them to a mode other than AUTO
or high speed wiper operation.
Warning messageDetails/Actions

5618-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Indicates that engine oil level is lowThis message may appear if the vehicle is
stopped on a slope. Move the vehicle to a level
surface and check to see if the message disap-
pears.
A buzzer also sounds.
 Check the level of engine oil, and add or
replace if necessary.
Indicates abnormal engine oil pressure A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
(AWD models)
Indicates a malfunction in the Active Torque
Control 4WD system A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Vehicles without a smart key system:
Indicates that the engine switch is turned to the
“LOCK” position, the key is removed and the
driver’s door is opened while the lights are turned
on.
Vehicles with a smart key system:
Indicates that the engine switch is turned off and
the driver’s door is opened while the lights are
turned on. A buzzer also sounds.
 Turn the lights off.
Warning messageDetails/Actions
(Flashes)

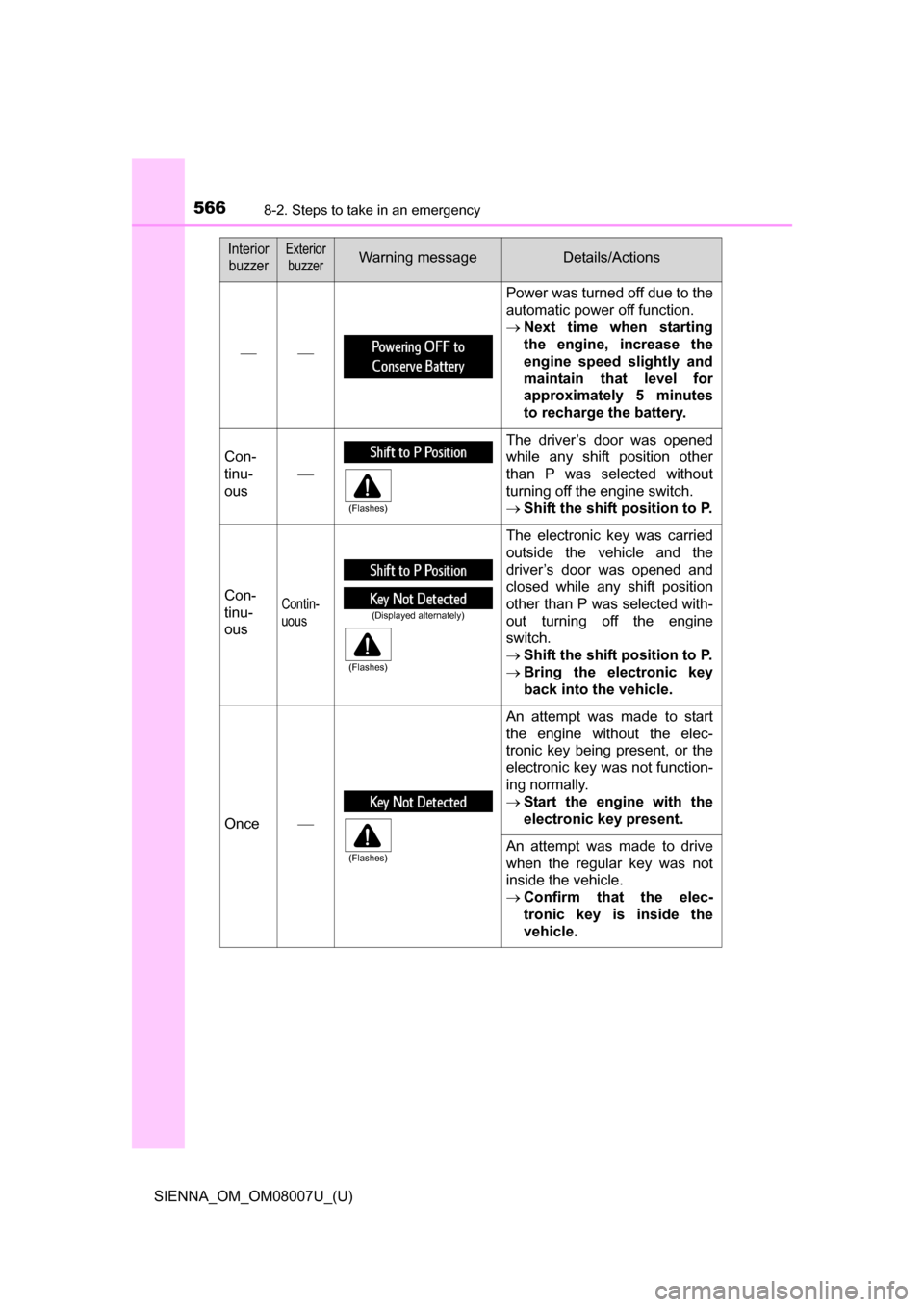

5668-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
InteriorbuzzerExterior buzzerWarning messageDetails/Actions

Power was turned off due to the
automatic power off function.
 Next time when starting
the engine, increase the
engine speed slightly and
maintain that level for
approximately 5 minutes
to recharge the battery.
Con-
tinu-
ous  The driver’s door was opened
while any shift position other
than P was selected without
turning off the engine switch.

Shift the shift position to P.
Con-
tinu-
ousContin-
uous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while any shift position
other than P was selected with-
out turning off the engine
switch.
Shift the shift position to P.
 Bring the electronic key
back into the vehicle.
Once  An attempt was made to start
the engine without the elec-
tronic key being present, or the
electronic key was not function-
ing normally.

Start the engine with the
electronic key present.
An attempt was made to drive
when the regular key was not
inside the vehicle.
 Confirm that the elec-
tronic key is inside the
vehicle.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

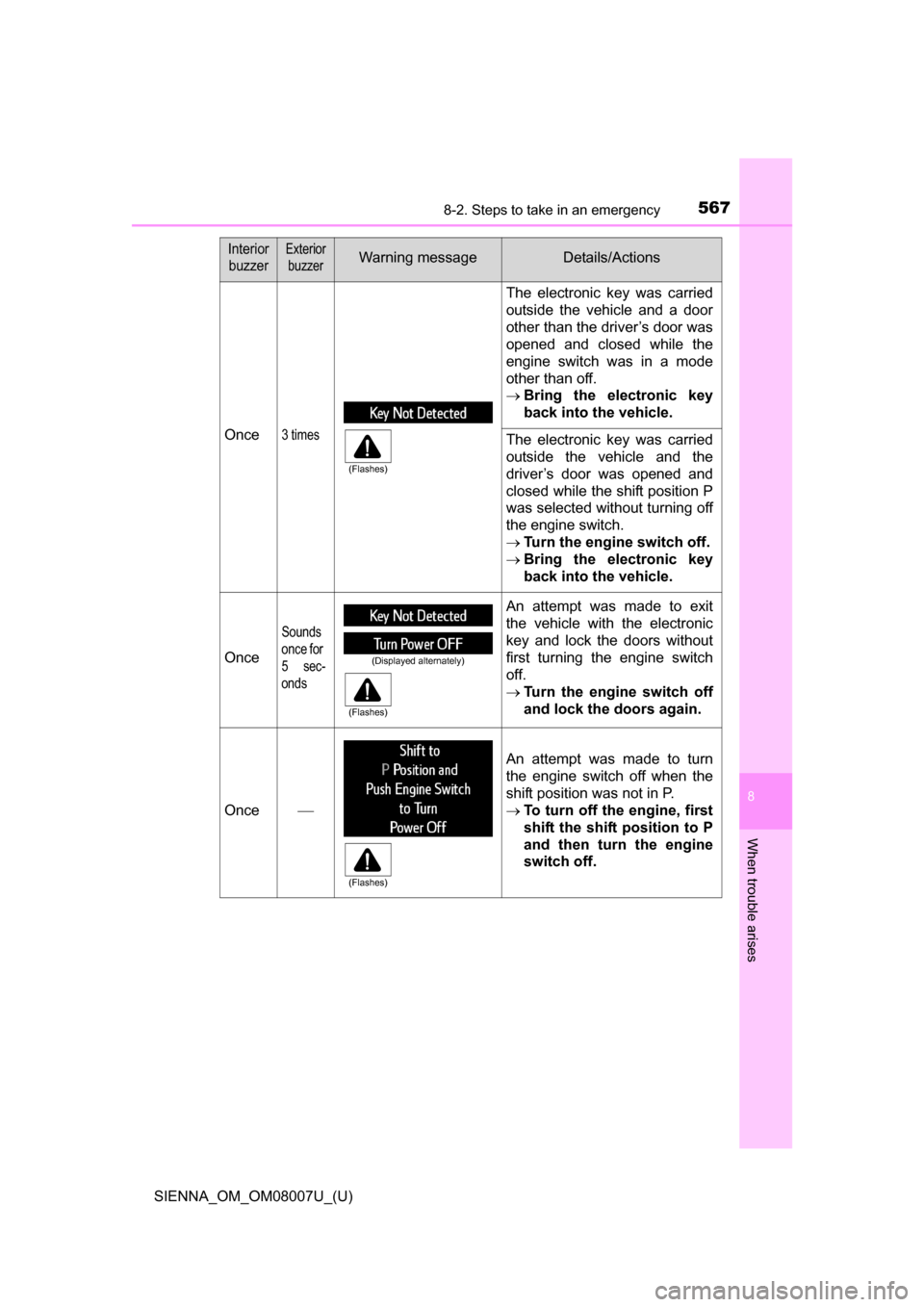

5678-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
Once3 times
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
engine switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while the shift position P
was selected without turning off
the engine switch.
Turn the engine switch off.
 Bring the electronic key
back into the vehicle.
Once
Sounds
once for
5 sec-
onds
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off.
Turn the engine switch off
and lock the doors again.
Once
An attempt was made to turn
the engine switch off when the
shift position was not in P.
To turn off the engine, first
shift the shift position to P
and then turn the engine
switch off.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

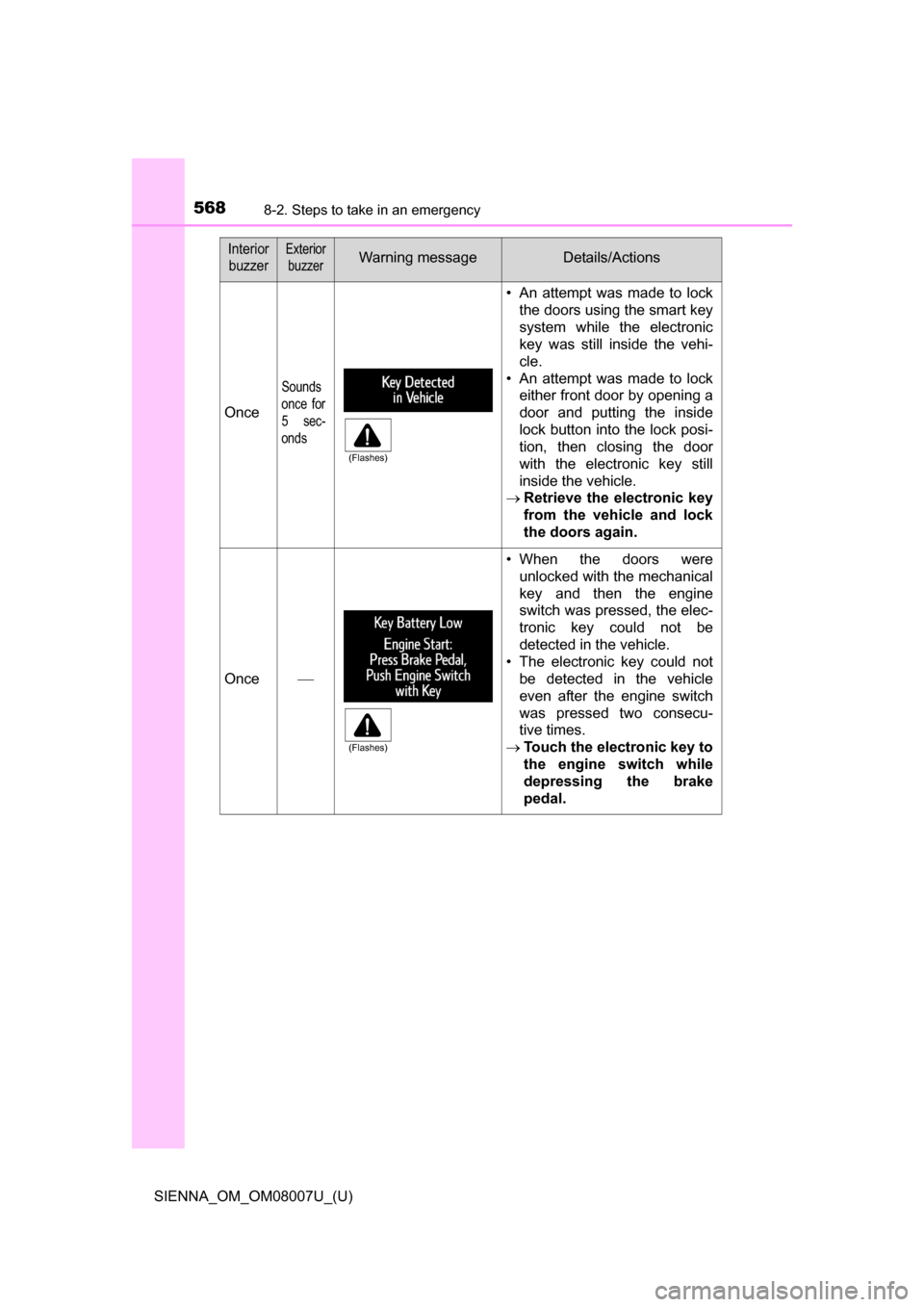

5688-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
Once
Sounds
once for
5 sec-
onds
• An attempt was made to lockthe doors using the smart key
system while the electronic
key was still inside the vehi-
cle.
• An attempt was made to lock either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door
with the electronic key still
inside the vehicle.
 Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
• When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
 Touch the electronic key to
the engine switch while
depressing the brake
pedal.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

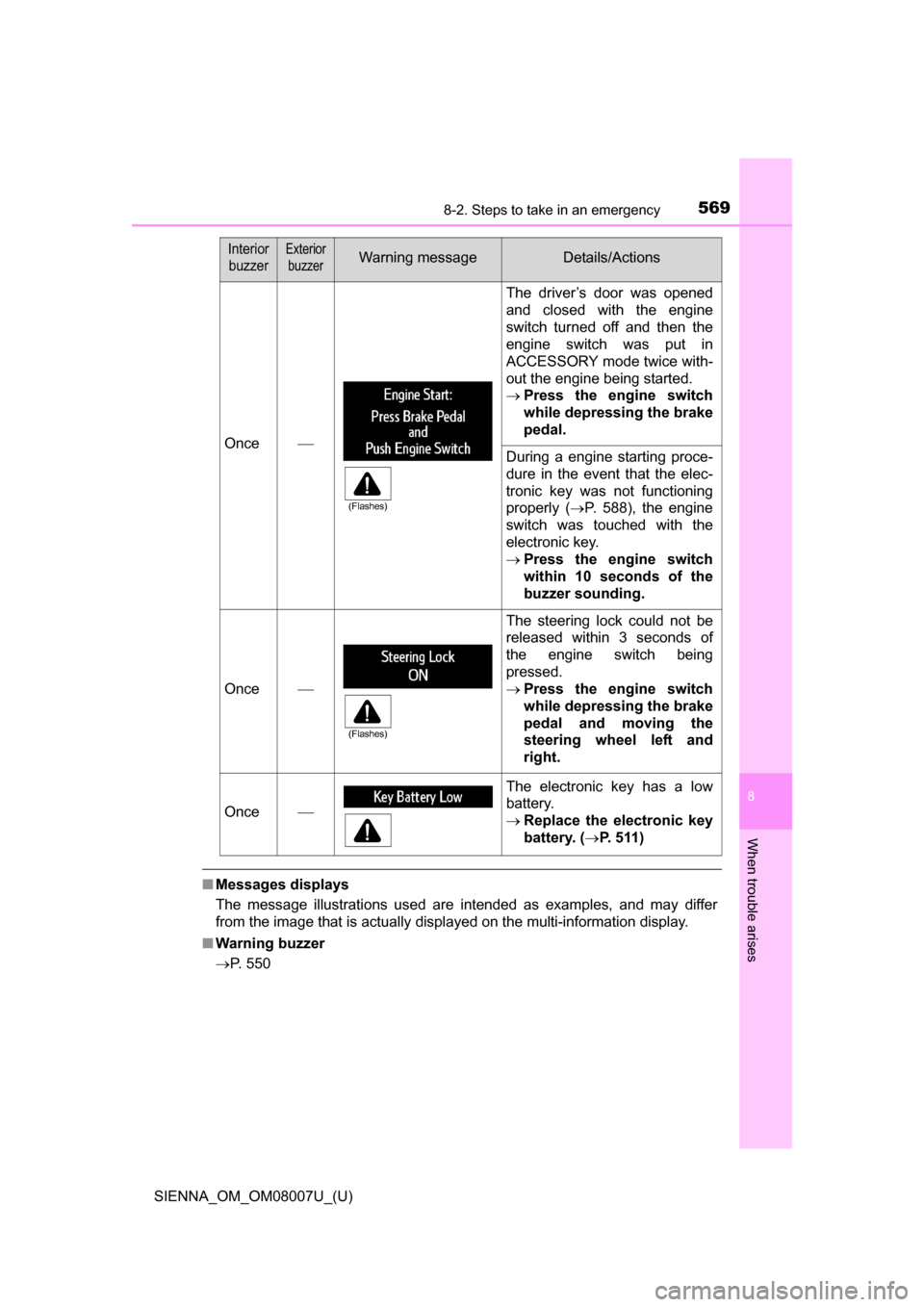

5698-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
8
When trouble arises
■Messages displays
The message illustrations used are intended as examples, and may differ
from the image that is actually displayed on the multi-information display.
■ Warning buzzer
P. 550
Once
The driver’s door was opened
and closed with the engine
switch turned off and then the
engine switch was put in
ACCESSORY mode twice with-
out the engine being started.
 Press the engine switch
while depressing the brake
pedal.
During a engine starting proce-
dure in the event that the elec-
tronic key was not functioning
properly ( P. 588), the engine
switch was touched with the
electronic key.
 Press the engine switch
within 10 seconds of the
buzzer sounding.
Once
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
Press the engine switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. ( P. 511)
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

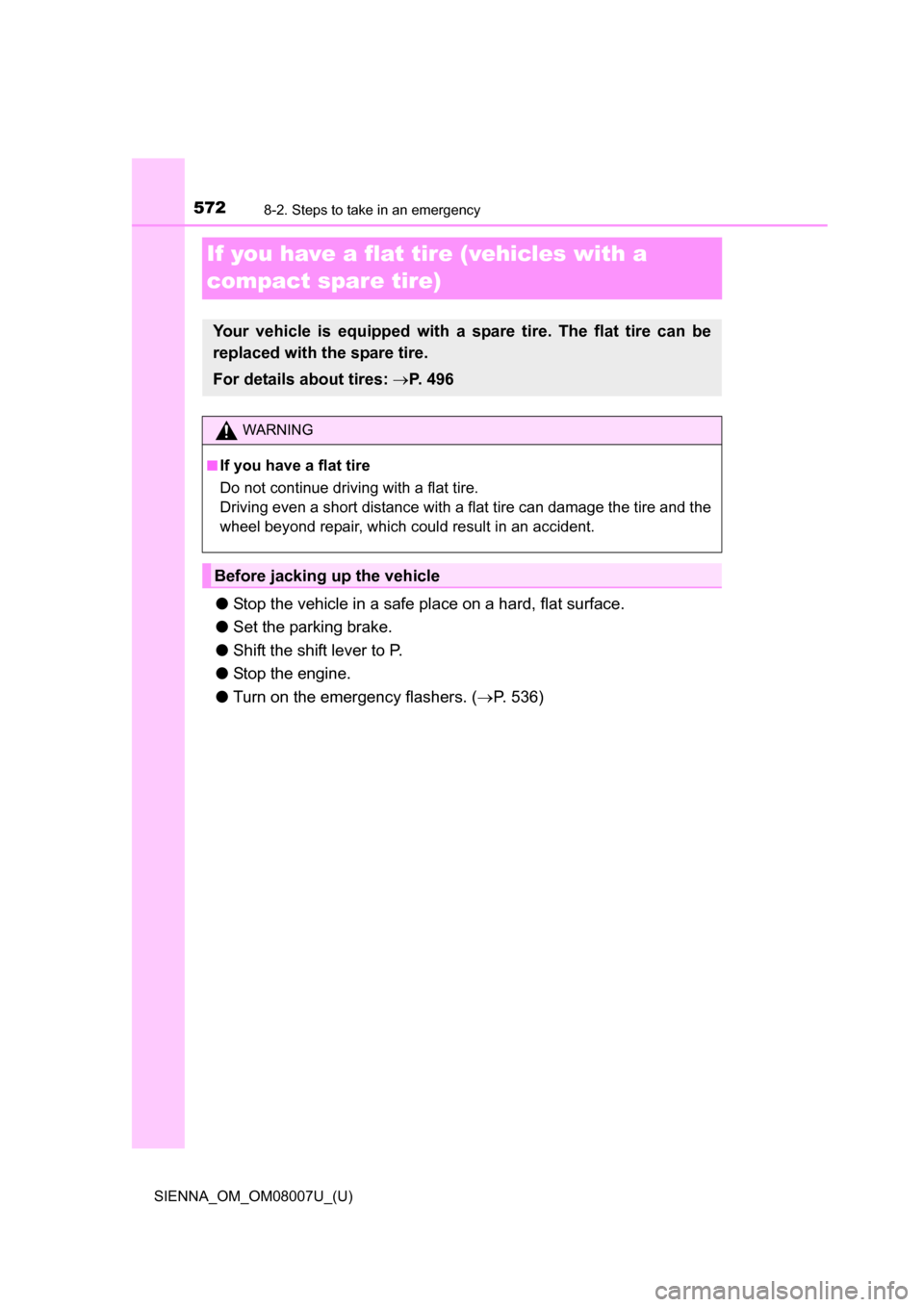

572
SIENNA_OM_OM08007U_(U)
8-2. Steps to take in an emergency
If you have a flat tire (vehicles with a
compact spare tire)
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. ( P. 536)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 9 6
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a fl at tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle

5748-2. Steps to take in an emergency
SIENNA_OM_OM08007U_(U)
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire. Do not use it on other vehicles , and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body und er the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make su re that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
