2017 TOYOTA PRIUS PRIME lock

PRIUS PRIME_OM_OM47A88U_(U)
912-1. Plug-in hybrid system
2
Plug-in hybrid system
There are air intake vents on both
sides of the rear seatback for the
purpose of cooling the hybrid bat-
tery (traction battery). If the vents
become blocked, the hybrid bat-
tery (traction battery) may over-
heat, leading to a reduction in
hybrid battery (traction battery)
output.
When a certain level of impact is detected by the impact sensor, the
emergency shut off syst em blocks off the high voltage current and
stops the fuel pump to minimize the risk of electrocution and fuel leak-
age. If the emergency shut off syst em activates, your vehicle will not
restart. To restart the hybrid system, contact your Toyota dealer.
A message is automatically displa yed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions.
Hybrid battery (traction battery) air vents
Emergency shut off system
Hybrid warning message

96
PRIUS PRIME_OM_OM47A88U_(U)
2-1. Plug-in hybrid system
NOTICE
■Hybrid battery (traction battery) air vents
● Make sure not to block the air intake vent with anything, such as a seat
cover, plastic cover, or luggage. The hybrid battery (traction battery) may
overheat and be damaged.
● When dust etc. has accumulated in the air intake vent, clean it with a vac-
uum cleaner to prevent the vent from clogging.
● Do not wet or allow foreign substances to enter the air vents as this may
cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.
● A filter is installed to the air intake vent. When the filter remains noticeably
dirty even after cleaning the air intake vent, filter cleaning or replacement
is recommended. When cleaning the filter, refer to P. 562.
■ Notice about fuel
● For plug-in hybrid vehicles, fuel may remain in the tank for a long time and
undergo changes in quality depending on the how the vehicle is used.
Refuel at least 5.3 gal.(20 L, 4.4 Imp.gal.) of fuel every 12 months (refuel a
total of at least 5.3 gal. [20 L, 4.4 Imp.gal.] over a 12-month period), as this
may affect components of the fuel system or the gasoline engine.
● If the vehicle has not been refueled for a certain amount of time and it is
possible that the quality of the fuel remaining in the tank has changed, “No
new fuel has been added recently. Please refuel” is displayed on the multi-
information display when the power switch is turned to ON mode. If the
message is displayed, refuel the vehicle immediately.

102
PRIUS PRIME_OM_OM47A88U_(U)
2-2. Charging
Charging equipment
*: If equipped
This vehicle features equipment for connecting to an external
power source.
Charging equipment and names
Charging inlet
Charging inlet light
Charging port lid
(→ P. 103, 114)
Charging indicator ( →P. 106)
Charging connector lock
switch
* ( → P. 117) Hybrid battery (traction bat-
tery) status indicator
(
→ P. 104)
Charging cable ( →P. 107)
Charging port
1
2
3
4
5
6
7
8

PRIUS PRIME_OM_OM47A88U_(U)
1032-2. Charging
2
Plug-in hybrid system
■Opening the charging port lid
Vehicles without smart lid &
connector locking system:
Press the center of the rear
edge of the charging port lid.
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
Vehicles with smart lid & con-
nector locking system:
Press the center of the rear
edge of the charging port lid
with the doors unlocked.
Push and take your hand away to slightly open the charging port lid.
Then open the lid fully by hand.
While the doors are locked, only the charging port lid can be unlocked
by carrying an electronic key and pressing the charging port lid.
( →P. 114)
■
Closing the charging port lid
Close the charging port lid and
press the center of the rear
edge of the charging port lid.
Vehicles with smart lid & con-
nector locking system: • When the doors are locked with the smart key system,
wireless remote control or
door lock switch, the charging
port lid is also locked.
(→P. 267, 269)
• If the charging port lid is closed with the doors locked,
the charging port lid locks.
Opening and closing the charging port lid

PRIUS PRIME_OM_OM47A88U_(U)
1052-2. Charging
2
Plug-in hybrid system
■Except during charging
The hybrid battery (traction battery) status indicators illuminate
*1
while the charging port lid is open and any of the followings are per-
formed.
●When an electronic key is carried near the effective range
*2, 3
( → P. 279)
● When the doors are unlocked
*1: The indicators illuminate for a maximum of approximately 15 seconds.
*2: Excluding the effective range of the charging port lid.
*3: Vehicles with smart lid & connector locking system only
■When the hybrid battery (tract ion battery) is fully charged
When the charging cable is connected, all 3 hybrid battery (traction battery)
status indicators illuminate to inform the user that the hybrid battery (traction
battery) is fully charged.
*
*
: If the push lifter ( →P. 142) is pushed in, the hybrid battery (traction battery)
status indicators may flash.
Charging status of the hybrid battery
(traction battery)Hybrid battery (traction battery) status indicator
Small amountIlluminatedNot illuminatedNot illuminated
Medium amountIlluminatedIlluminatedNot illuminated
Large amountIlluminatedIlluminatedIlluminated
123

113
PRIUS PRIME_OM_OM47A88U_(U)
2-2. Charging
2
Plug-in hybrid system

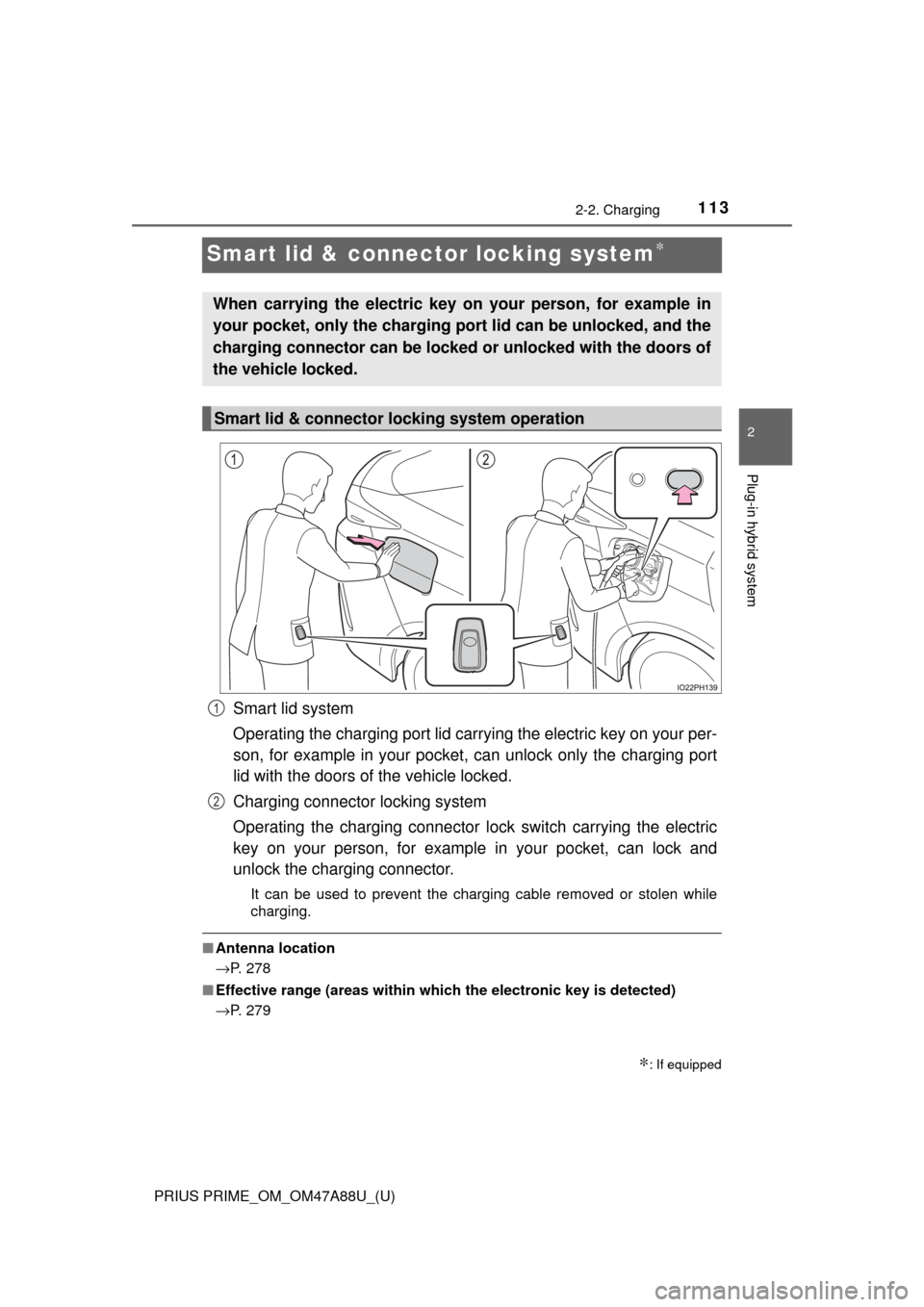

Smart lid & connector locking system∗
Smart lid system
Operating the charging port lid carrying the electric key on your per-
son, for example in your pocket, can unlock only the charging port
lid with the doors of the vehicle locked.
Charging connector locking system
Operating the charging connector lo ck switch carrying the electric
key on your person, for example in your pocket, can lock and
unlock the charging connector.
It can be used to prevent the charging cable removed or stolen while
charging.
■ Antenna location
→P. 278
■ Effective range (areas within whic h the electronic key is detected)
→P. 279
∗: If equipped
When carrying the electric key on your person, for example in
your pocket, only the charging por t lid can be unlocked, and the
charging connector can be locked or unlocked with the doors of
the vehicle locked.
Smart lid & connector locking system operation
1
2

114
PRIUS PRIME_OM_OM47A88U_(U)
2-2. Charging
■Unlocking the charging port lid
Pressing the center of the rear
edge of the charging port lid
carrying the electric key on your
person, for example in your
pocket, can unlock the charging
port lid.
Push and take your hand away
to slightly open the charging port
lid.
■
Locking the charging port lid Close the charging port lid
and press the center of the
rear edge of the charging
port lid.
Locking the doors using the smart key system or wireless remote
control. ( →P. 267, 268)
The charging port lid will be locked.
If the charging port lid is closed with the doors locked, the charging port
lid locks.
Using the smart lid system
1
2

PRIUS PRIME_OM_OM47A88U_(U)
1152-2. Charging
2
Plug-in hybrid system
■Charging port lid
If the rear edge of the charging port lid is pressed when the doors are locked
and you are not carrying the electric key, the charging port lid opens slightly,
but remains locked. Carry an electronic key or unlock the doors, and then
press the charging port lid twice to open it.
■ If the smart key system has been deactivated in a customized setting
The smart lid & connector locking system will also be deactivated. If the smart
key system has been deactivated in a customized setting, the charging port
lid can be locked and unlocked by performing the following procedures.
●Locking the charging port lid
Close the charging port lid. ( →P. 114)
Locking the doors using the wireless remote control or door lock switch.
( → P. 268, 269)
The charging port lid can be locked if the step and is performed in
reverse.
● Unlocking the charging port lid
Unlocking the doors using the wireless remote control or door lock
switch. ( →P. 268, 269)
Open the charging port lid. ( →P. 114)
1
2
12
1
2
