2017 TOYOTA PRIUS PRIME lock

6768-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47A88U_(U)

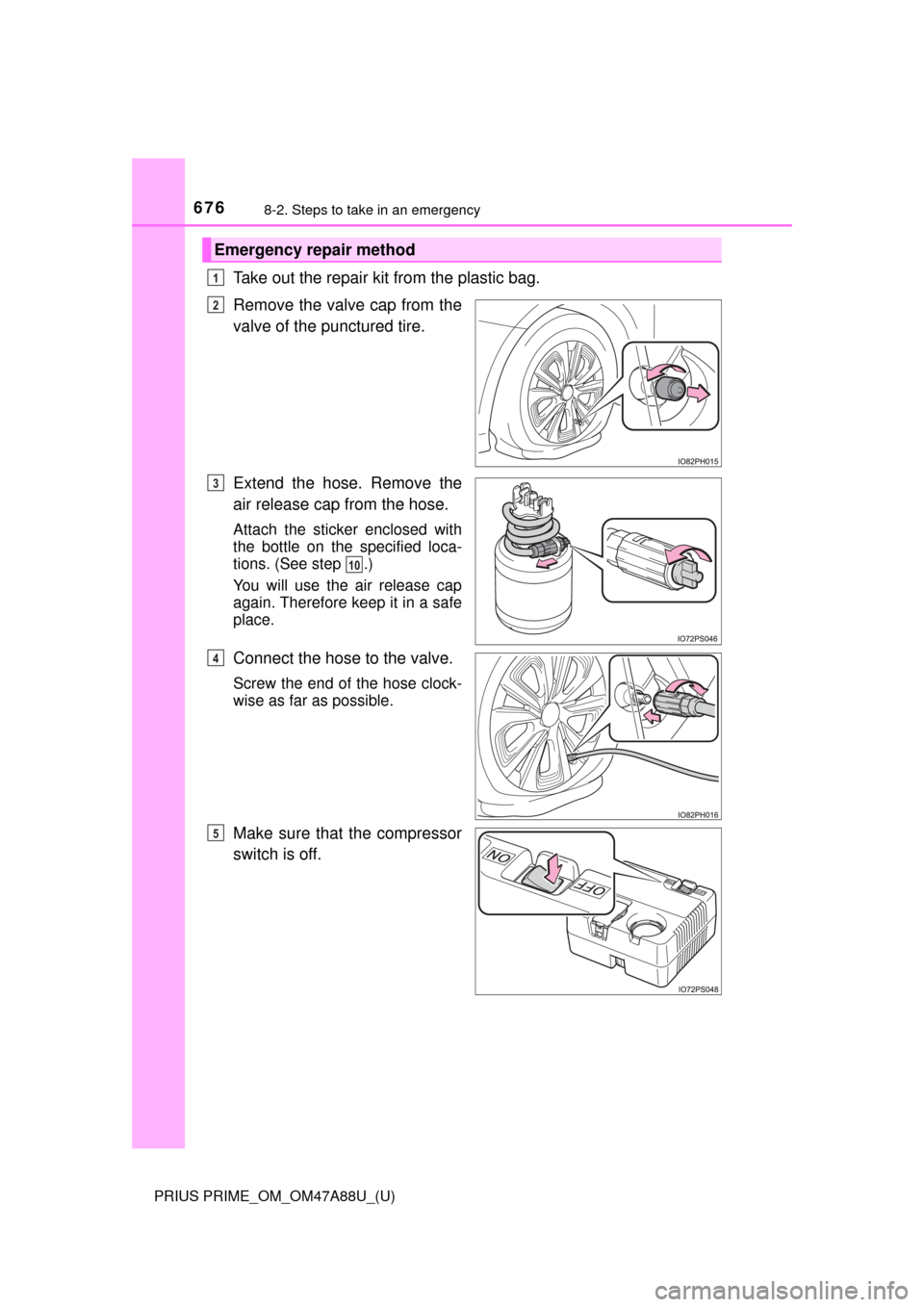

Take out the repair kit from the plastic bag.
Remove the valve cap from the
valve of the punctured tire.
Extend the hose. Remove the
air release cap from the hose.
Attach the sticker enclosed with
the bottle on the specified loca-
tions. (See step .)
You will use the air release cap
again. Therefore keep it in a safe
place.
Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
Make sure that the compressor
switch is off.
Emergency repair method
1
2
3
10
4
5

690
PRIUS PRIME_OM_OM47A88U_(U)
8-2. Steps to take in an emergency
If the electronic key does not operate
properly
Use the mechanical key (→P. 263) in order to perform the following
operations:
Locks all the doors
Closes the windows
(turn and hold)
*
Unlocks the door
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 3 seconds
unlocks the other doors.
Opens the windows
(turn and hold)
*
*
: These settings must be customized at your Toyota dealer. ( →P. 732)
If communication between the electronic key and vehicle is
interrupted ( →P. 281) or the electronic key cannot be used
because the battery is depleted, the smart key system and
wireless remote control cannot be used. In such cases, the
doors can be opened and the hybrid system can be started by
following the procedure below.
Locking and unlocking the doors
1
2
3
4

6928-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47A88U_(U)■
Locking the charging port lid
Close the charging port lid. ( →P. 103)
Lock the doors using the mechanical key. ( →P. 690)
The charging port lid can be locked if the step and is performed in
reverse.
■
Unlocking the charging port lid
Unlock the doors using the mechanical key. ( →P. 690)
Open the charging port lid. ( →P. 103)
*: Vehicles with smart lid & connector locking system only
■
Locking the charging connector Unlock the doors using the mechanical key. ( →P. 690)
Open the charging port lid. ( →P. 103)
Insert the charging connector into the charging inlet. ( →P. 137)
Push the charging connector lock switch. ( →P. 138)
The charging connector will be locked.
■
Unlocking the charging port lid
Unlock the doors using the mechanical key. ( →P. 690)
Push the charging connector lock switch. ( →P. 140)
The charging connector will be unlocked.
*: Vehicles with smart lid & connector locking system only
Locking and unlocking the charging port lid*
Locking and unlocking the charging connector*
1
2
12
1
2
1
2
3
4
1
2

6978-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47A88U_(U)
8
When trouble arises
■When recharging or repl acing the 12-volt battery
● In some cases, it may not be possible to unlock the doors using the smart
key system when the 12-volt battery is discharged. Use the wireless remote
control or the mechanical key to lock or unlock the doors.
● The hybrid system may not start on the first attempt after the 12-volt battery
has recharged but will start normally after the second attempt. This is not a
malfunction.
● Vehicles with smart lid & connector locking system:
It may be impossible to unlock the charging port lid or locking and unlocking
the charging connector immediately after the 12-volt battery is reconnected.
In this case, carry the electronic key on your person and operate the
charging port lid or charging connector lock switch again.
● The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected, the system will return to the mode it was in before the
12-volt battery was discharged. Before disconnecting the 12-volt battery,
turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt bat-
tery discharged, be especially careful when reconnecting the 12-volt battery.
● If the 12-volt battery discharges while the shift position is in P, it may not be
possible to shift the shift position to other positions. In this case, the vehicle
cannot be towed without lifting both front wheels because the front whee\
ls
will be locked. ( →P. 646)
■ When exchanging the 12-volt battery
●Use a 12-volt battery that conforms to European regulations.
● Use a 12-volt battery that the case size is same as the previous one (LN1),
20 hour rate capacity (20HR) is equivalent (45Ah) or greater, and perfor-
mance rating (CCA) is equivalent (295A) or greater.
• If the sizes differ, the 12-volt battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-
cle is not used is a short time, the 12-volt battery may discharge and the
hybrid system may not be able to start.
● For details, consult your Toyota dealer.

710
PRIUS PRIME_OM_OM47A88U_(U)
9-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17 × 3.48 in. (80.5 × 88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearanceAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.4 gal. (43 L, 9.5 Imp.gal.)

PRIUS PRIME_OM_OM47A88U_(U)
7159-1. Specifications
9
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Toyota dealer.
Electrical system (12-volt battery)
Open voltage at 68 °F (20 °C):
12.0 V or higher
If the voltage is lower than the standard
value, charge the 12-volt battery.
(Voltage is checked 30 seconds after the
hybrid system and all lights are turned off.)
Charging rates5 A max.
Transmission
Fluid capacity*3.9 qt. (3.7 L, 3.3 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

PRIUS PRIME_OM_OM47A88U_(U)
7359-2. Customization
9
Vehicle specifications
■HUD (Head-up display)* (→ P. 238)
*: If equipped
■
Door lock ( →P. 267, 690)
■Smart key system and wireless remote control ( →P. 268, 278)
FunctionDefault
settingCustomized setting
Route guidance*OnOffO––
123
FunctionDefault settingCustomized setting
Automatic door lockingShift position linkedSpeed linked–OO
Off–OO
Automatic door unlockingShift position linkedDriver’s door linked–OO
Off–OO
Unlocking using a mechanical
key
Driver’s door unlocked in
first step, all
doors
unlocked in
second step
All doors
unlocked in first step
––O
123
FunctionDefault settingCustomized setting
Operation signal (buzzer) 5Off
–OO
1 to 7
Operation signal (emergency
flashers) On
Off – O O
Time elapsed before the auto-
matic door lock function is
activated if a door is not
opened after being unlocked
60 seconds
Off
–OO30 seconds
120 seconds
Open door reminder buzzer
(when locking the vehicle)OnOff––O
123

736
PRIUS PRIME_OM_OM47A88U_(U)
9-2. Customization
■Smart key system (→P. 278)
*: This function can also be changed using the wireless remote control.
(→P. 271)
■
Wireless remote control ( →P. 268)
FunctionDefault
settingCustomized setting
Smart door unlocking*Driver’s doorAll the doors–OO
Smart key systemOnOff––O
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle
2 seconds
Off
––O1.5 seconds
2.5 seconds
Number of consecutive door
lock operations2 timesAs many as
desired––O
123
FunctionDefault settingCustomized setting
Unlocking operation
Driver’s door unlocked in
first step, all
doors
unlocked in
second step
All doors
unlocked in first step
–OO
Wireless remote control On Off – – O
Locking operation when door
opened On Off – – O
123
