2017 TOYOTA PRIUS PRIME immobilizer

TABLE OF CONTENTS2
PRIUS PRIME_OM_OM47A88U_(U)For your information....................... 8
Reading this manual .................... 14
How to search .............................. 15
Pictorial index .............................. 16
1-1. For safe use
Before driving ...................... 26
For safety drive ................... 28
Seat belts ............................ 30
SRS airbags ........................ 36
Front passenger occupant classification system ......... 50
Exhaust gas precautions ..... 56
1-2. Child safety Riding with children ............. 57
Child restraint systems ........ 58
1-3. Theft deterrent system Immobilizer system ............. 75
2-1. Plug-in hybrid system Plug-in hybrid system features ............................. 78
Plug-in hybrid system precautions ....................... 90
Plug-in hybrid vehicle driving tips ......................... 97
EV driving range................ 100 2-2. Charging
Charging equipment .......... 102
Charging cable .................. 107
Smart lid & connector locking system ................. 113
Power sources that can be used................................. 122
Charging methods ............. 125
Charging tips ..................... 129
Things to know before charging........................... 131
How to charge ................... 136
Using the charging timer function ............................ 147
When normal charging cannot be carried out....... 170
3. Instrument cluster Combination meter ............ 180
Warning lights and indicators ......................... 188
Main display....................... 196
Multi-information display ............................. 205
Head-up display................. 238
Energy monitor/ consumption screen/
detail screen (vehicles
with 7-inch display) .......... 246
Energy monitor/ consumption screen/
detail screen (vehicles
with 11.6-inch display) ..... 252
1For safety and security
2Plug-in hybrid system
3Instrument cluster

25
PRIUS PRIME_OM_OM47A88U_(U)
For safety and security1
1-1. For safe useBefore driving ...................... 26
For safety drive ................... 28
Seat belts ............................ 30
SRS airbags ........................ 36
Front passenger occupant classification system ......... 50
Exhaust gas precautions..... 56
1-2. Child safety Riding with children ............. 57
Child restraint systems........ 58
1-3. Theft deterrent system Immobilizer system ............. 75

751-3. Theft deterrent system
PRIUS PRIME_OM_OM47A88U_(U)
1
For safety and security
Immobilizer system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key registered to the security
system (key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehi cle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle. This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

761-3. Theft deterrent system
PRIUS PRIME_OM_OM47A88U_(U)■
Certification for th e immobilizer system
For vehicles sold in the U.S.A. and Hawaii
For vehicles sold in Canada
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

PRIUS PRIME_OM_OM47A88U_(U)
2814-2. Opening, closing and locking the doors
4
Operation of each component
■Conditions affecting operation
The smart key system, wireless remote control and immobilizer system use
weak radio waves. In the following situations, the communication between\
the electronic key and the vehicle may be affected, preventing the smart key
system, wireless remote control and immobilizer system from operating prop-
erly. (Ways of coping: →P. 690)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless key (that emit radio waves) is being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-
nication devices
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices

PRIUS PRIME_OM_OM47A88U_(U)
3275-2. Driving procedures
5
Driving
■Conditions affecting operation
→P. 281
■ Note for the entry function
→P. 282
■ If the hybrid system does not start
●The immobilizer system may not have been deactivated. ( →P. 75)
Contact your Toyota dealer.
● The charging cable may be connected to the vehicle. (→ P. 132)
● If a message related to start-up is shown on the multi-information display,
read the message and follow the instructions.
■ If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even after perform-
ing the proper procedures for starting the vehicle, contact your Toyota dealer
immediately.
■ If the hybrid system is malfunctioning
→P. 663
■ If the electronic key battery is depleted
→P. 627
■ Operation of the power switch
●If the switch is not pressed shortly and firmly, the power switch mode may
not change or the hybrid system may not start.
● If attempting to restart the hybrid system immediately after turning the power
switch off, the hybrid system may not start in some cases. After turning the
power switch off, please wait a few seconds before restarting the hybrid sys-
tem.
■ Automatic P position selection function
→P. 333
■ When the shift control system malfunctions
When attempting to turn the power switch off while there is a malfunction in
the shift control system, the power switch mode may change to ACCES-
SORY mode. In this case, ACCESSORY mode may be turned off by applying
the parking brake and pressing the power sw itch again. If there is a malfunc-
tion in the system, have the vehicle inspected by your Toyota dealer immedi-
ately.

646
PRIUS PRIME_OM_OM47A88U_(U)
8-2. Steps to take in an emergency

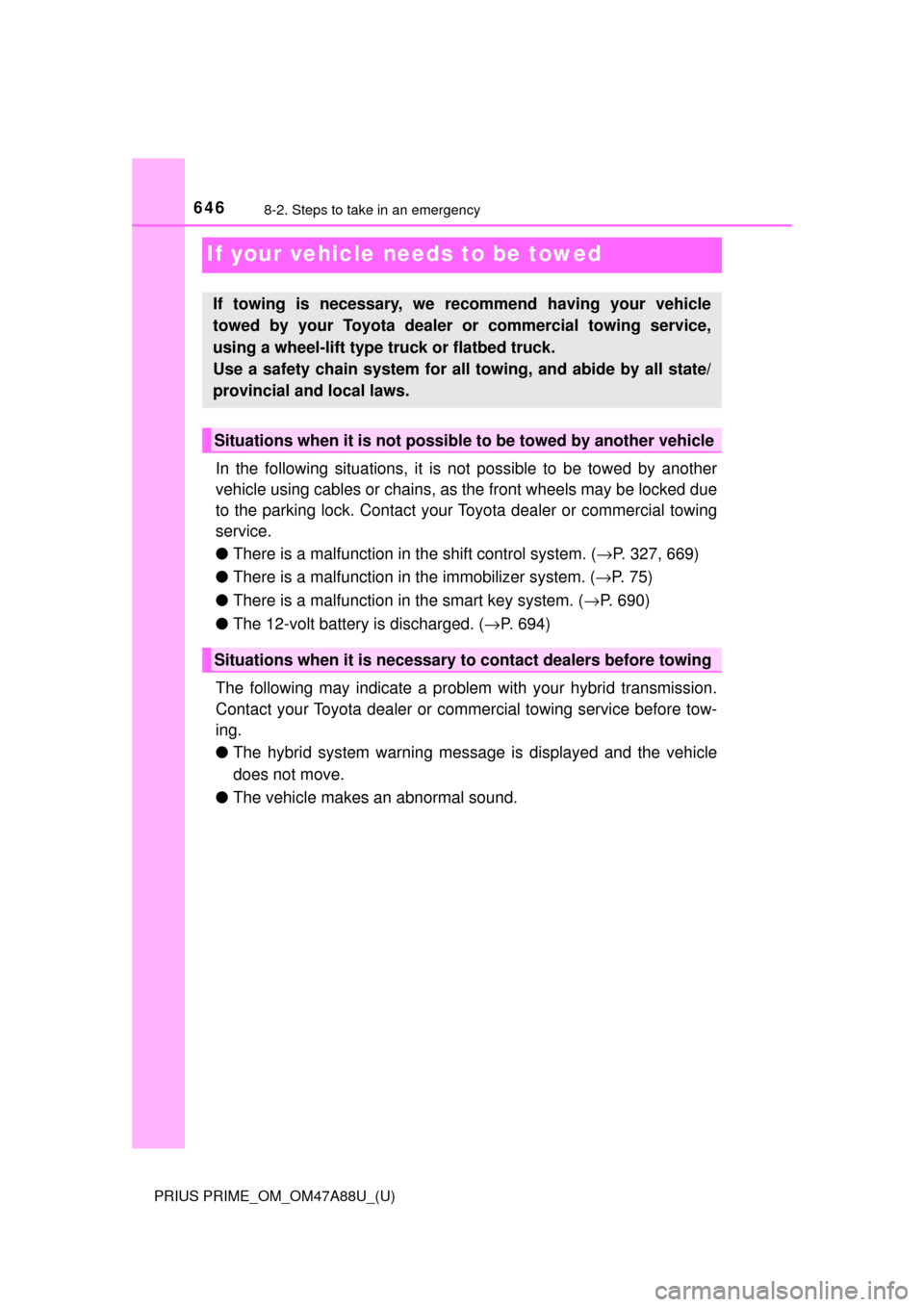

If your vehicle needs to be towed
In the following situations, it is not possible to be towed by another
vehicle using cables or chains, as the front wheels may be locked due
to the parking lock. Contact your Toyota dealer or commercial towing
service.
●There is a malfunction in the shift control system. ( →P. 327, 669)
● There is a malfunction in the immobilizer system. ( →P. 75)
● There is a malfunction in the smart key system. ( →P. 690)
● The 12-volt battery is discharged. ( →P. 694)
The following may indicate a problem with your hybrid transmission.
Contact your Toyota dealer or commercial towing service before tow-
ing.
● The hybrid system warning messa ge is displayed and the vehicle
does not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we re commend having your vehicle
towed by your Toyota dealer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is not possibl e to be towed by another vehicle
Situations when it is necessary to contact dealers before towing

688
PRIUS PRIME_OM_OM47A88U_(U)
8-2. Steps to take in an emergency
If the hybrid system will not start
One of the following may be the cause of the problem:
●The charging cable may be attached to the vehicle. ( →P. 136)
● The electronic key may not be functioning properly.
* (→ P. 690)
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( →P. 92)
● There may be a malfunction in the immobilizer system.
* (→ P. 7 5 )
● There may be a malfunction in the shift control system.
*
( → P. 327, 669)
● The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. How-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. (→ P. 689)
● There is a possibility that the temperature of the hybrid battery
(traction battery) is extremely low (approximately below -22°F
[-30°C]). ( →P. 92, 326)
*: It may not be possible to shift the shift position other than P.
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. ( →P. 694)
● The 12-volt battery terminal con nections may be loose or corroded.
( → P. 587)
Reasons for the hybrid system not starting vary depending on
the situation. Check the follo wing and perform the appropriate
procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. ( →P. 324)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
