2017 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

1372-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
■The charging environment
For safe charging, the following charging equipment and settings are recom-
mended.
●Rain-tight socket
When charging outdoors, connect the plug to a rain-tight socket, and ensure
that the plug remains waterproof while the plug is connected.
●Dedicated circuit
• To reduce the risk of fire, connect only to an at least 13A branch circuit
with an over-current protection.
• To reduce the risk of electric shock when working with the plug, connect
to a socket that has a Residual Current Circuit-Breaker (RCCB) installed.
●Remote switch
Allows the electricity from the socket to be interrupted by operating a switch,
thus allowing safe removal and insertion of the plug on rainy days.
■When your circuit breaker trips during charging
The upper limit of the charging current can be changed in the “Vehicle Set-
tings” settings on the multi-information display.
Press or of the meter control switches to select (Vehicle
Settings) in the screen, and then press .
Press or of the meter control switches to select “Charge Setting”,
and then press .
The “Charge Setting” screen will display.
Press or of the meter control switches to select “Charge Setting”,
and then press .
The “Charge Current” screen will display.
Press or of the meter control switches to select “8A”, and then
press .
The maximum charging current during charging will be restricted to 8A.
*
If the breaker still trips while charging, even after changing the upper limit of
the charging current, check if the connected power source meets the speci-
fied charging conditions. (P. 136)
*: Restricting the charging current will lengthen the charging time.
1
2
3
4

1382-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
WARNING
■Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock and/or damages may occur,
possibly resulting in death or serious injury.
● Connect to an AC 220 V - 240 V socket with a Residual Current Circuit-
Breaker (RCCB) and supplied by a circuit breaker in line with local regula-
tions. Use of an individual circuit provi ded with at least 13A is strongly rec-
ommended.
● Use of a block heater socket which fails to meet the requirements is pro-
hibited for charging.
● Make sure to connect the charging connector and charging inlet directly.
Do not connect a converting adaptor or extension cord between the
charging connector and charging inlet.
● Do not connect the charging cable to a
multi-socket adapter, multi-plugs, or
conversion plug.
● Connecting the charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Residual Current Circuit-
Breaker (RCCB).
● Do not connect to a power strip.

139
2
2-2. Charging
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
Charging methods
◆Charging from an external power source (P. 152)
This is a charging method used when charging from an AC socket
(220 V-240 V) with the charging cable equipped to the vehicle or
charging at a public charging station.
The charging start time (or departure time) and day can be set to carry
out charging using the timer at the desired date and time. (P. 163)
◆Using the hybrid battery (traction battery) charge mode
(P. 9 3 )
The plug-in hybrid system can be switched to hybrid battery (trac-
tion battery) charge mode to charge the hybrid battery (traction bat-
tery) using electricity generated by gasoline engine operation.
The maximum charge amount in the hybrid battery (traction battery)
charge mode is approximately 80% of the fully charged capacity for the
charging from an external power source.
◆Solar charging system (if equipped) (P. 175)
In certain conditions, when the vehicle is parked, the hybrid battery
(traction battery) can be charged by using electricity generated by
the solar panel equipped to the roof of the vehicle.
The maximum charge amount of the solar charging system is approxi-
mately 90% of the fully charged capacity for the charging from an exter-
nal power source. (This does not mean the battery can be fully charged
in one day.)
The following methods can be used to charge the hybrid battery
(traction battery).

1402-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
The time required to charge the hybrid battery (traction battery) differs
according to the charging voltage and charging current.
*1: The charging voltage may differ depending on the target region.
*2: This is the maximum value. Furthermore, the upper limit of the charging
current can be changed in the “Vehicle Settings” settings. (P. 137)
*3: The time required for charging to complete depends on conditions such as
the remaining charge of the hybrid battery (traction battery) and the outside
temperature.
Estimated charging time
Connected power
sourceCharging stationHome power source
Charging voltage*1AC 230 VAC 230 V
Charging current*216A10A
Estimated charging
time
*3Approximately 2 hoursApproximately 3 hours
10 minutes

1412-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
■Charging time may increase
In the following situations, charging time may become longer than normal:
●In very hot or very cold temperatures.
●The vehicle is consuming a lot of electricity, for example, when the head
light switch is on etc.
●There is a power outage during charging.
●There is an interruption in the electrical supply.
●There is a drop in the voltage of external power source.
●The charge in the 12-volt battery is low, for example due to the vehicle being
left unused for a long period of time.
●The maximum charging current is set to 8A through the “Vehicle Settings”
settings. (P. 137)
●When the “Traction Battery Heater” operates.
●When the “Traction Battery Cooler” is operated before charging. (if
equipped) (P. 142)
■Using a DC Charger
DC Chargers cannot be used with this vehicle.
This vehicle is equipped with several functions that are linked with
charging.
■“Traction Battery Heater”
When the outside temperature is low and the charging cable is con-
nected to the vehicle, this function automatically warms the hybrid
battery (traction battery) until it reaches or exceeds a certain tem-
perature.
●When the charging cable is removed from the vehicle or remains
connected to the vehicle for approximately 3 days, the system
automatically stops.
●When the charging timer is used (P. 163), this function will
operate according to the timer settings.
Charging-linked functions

1422-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)■
“Traction Battery Cooler” (if equipped)
When the hybrid battery (traction battery) is hot, this function pro-
tects it by using the vehicle air conditioning to cool it before
charging is carried out.
When the hybrid battery (trac-
tion battery) is above a certain
temperature and the power
switch is turned off, a check
screen is displayed on the
multi-information display that
indicates whether “Traction Bat-
tery Cooler” is implemented.
When “No” is selected, the hybrid battery (traction battery) cooling sys-
tem does not operate.
■“Traction Battery Heater”
●“Traction Battery Heater” may operate when charging is not being per-
formed.
●When “Traction Battery Heater” is operating, the charging indicator illumi-
nates.
●When “Traction Battery Heater” is operating during charging, the charging
time may be longer than normal.
●If the outside temperature becomes high while “Traction Battery Heater” is
operating, charging may complete earlier than the “Departure” time set.
(P. 163)
●“Traction Battery Heater” can be turned on and off in the “Vehicle Settings”
settings on the multi-information display. (P. 708)

1432-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)■“Traction Battery Cooler” (if equipped)
●When the hybrid battery (traction battery) is above a certain temperature
and the power switch is turned off, a check screen is displayed on the multi-
information display that indicates whether “Traction Battery Cooler” is imple-
mented. Approximately 5 minutes after selecting “Yes” on this screen, sys-
tem operation becomes possible.
●When charging starts, “Traction Battery Cooler” only operates if the hybrid
battery (traction battery) temperature is hot.
●The charging indicator is illuminated while “Traction Battery Cooler” is on
standby or operating.
●“Traction Battery Cooler” is implemented for a maximum of approximately
30 minutes. However, when the “Departure” time is set (P. 163) and there
is not sufficient time between the current time and the time that charging will
complete, “Traction Battery Cooler” operation time may become shorter.
●When there is a small amount of remaining charge in the hybrid battery
(traction battery), even if the hybrid battery (traction battery) is hot, “Traction
Battery Cooler” may not be implemented.
●When the following operations are performed while “Traction Battery Cooler”
is operating, the hybrid battery (traction battery) cooling operation stops.
• A door is opened
• The hood is opened
• The power switch is turned to any mode other than off
• The alarm operates (if equipped) (P. 8 1 )
• The shift position is changed to any position other than P
• The Remote Air Conditioning System is operated (P. 516)
• “Charge Now” is implemented (P. 171)
• The amount of remaining charge in the hybrid battery (traction battery) is
below a certain amount
●When the power switch is turned off, a check screen is displayed on the
multi-information display that indicates whether “Traction Battery Cooler” is
implemented. This check screen can be turned on and off in the “Meter Cus-
tomize” settings on the multi-information display (P. 245). However, when
the check screen is set to “Off”, “Traction Battery Cooler” is no longer oper-
ates.
●“Traction Battery Cooler” uses the power of the hybrid battery (traction bat-
tery) and external power source.
• While “Traction Battery Cooler” is operating, the amount of the remaining
charge of the hybrid battery (traction battery) increases and decreases in
a certain range, and does not increase as in normal charging.
• The operation of “Traction Battery Cooler” is recognized as charging by a
charging equipment. The charging equipment that calculates the fee
according to charging time causes a charging fee.

1442-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)

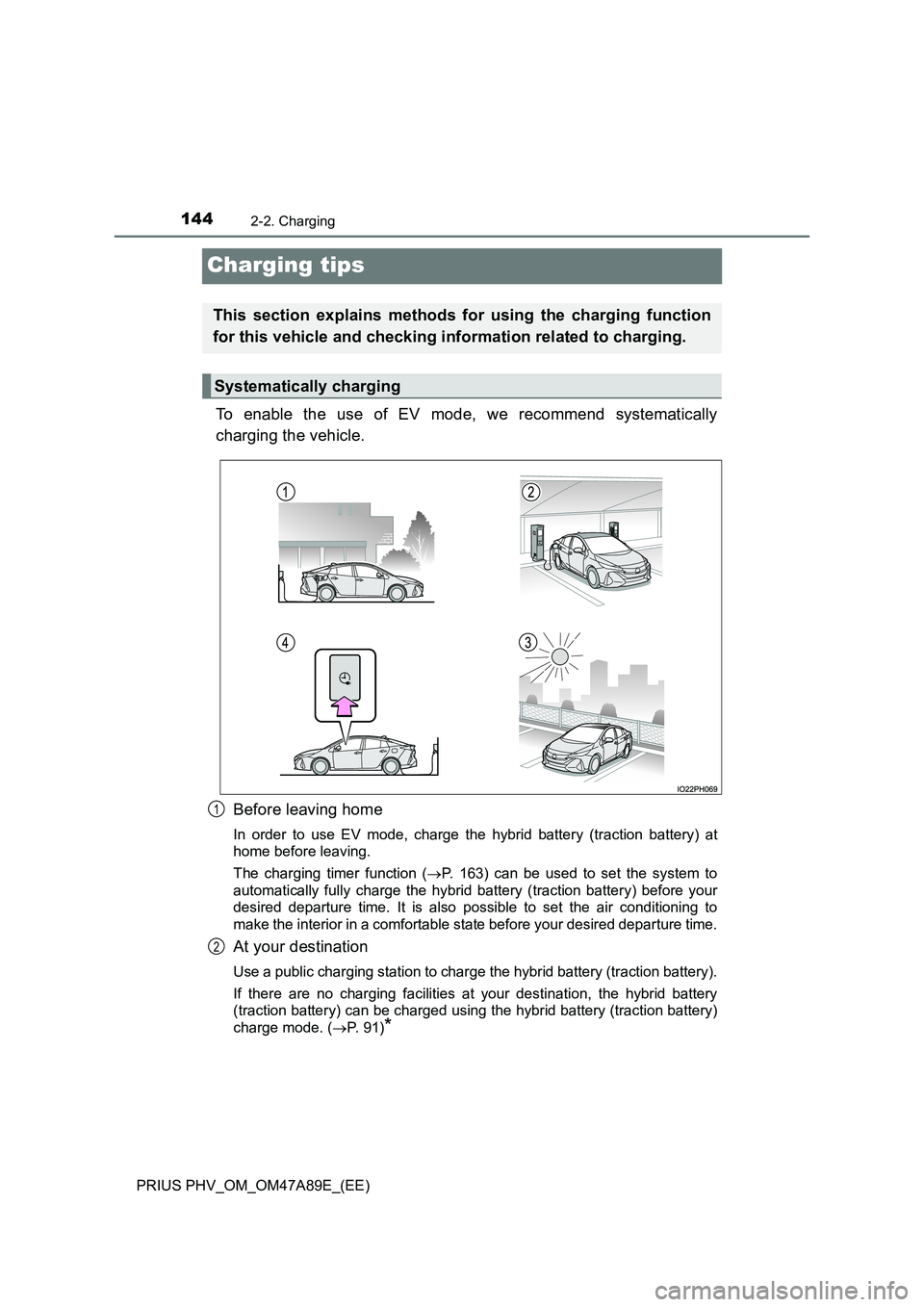

Charging tips
To enable the use of EV mode, we recommend systematically
charging the vehicle.
Before leaving home
In order to use EV mode, charge the hybrid battery (traction battery) at
home before leaving.
The charging timer function ( P. 163) can be used to set the system to
automatically fully charge the hybrid battery (traction battery) before your
desired departure time. It is also pos sible to set the air conditioning to
make the interior in a comfortable state before your desired departure time.
At your destination
Use a public charging station to charge the hybrid battery (traction battery).
If there are no charging facilities at your destination, the hybrid battery
(traction battery) can be charged using the hybrid battery (traction battery)
charge mode. ( P. 9 1 )*
This section explains methods for using the charging function
for this vehicle and checking information related to charging.
Systematically charging
1
2
