2017 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

1212-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)■
Indicator operation
3 indicators are used to indicate the following conditions.
Power indicator
Illuminates when electricity is
flowing to the CCID (Charging
Circuit Interrupting Device).
Charging indicator
Illuminates when charging is in
progress.
Error warning indicator
Flashes when there is an electri-
cal leakage or when a malfunc-
tion occurs in the CCID
(Charging Circuit Interrupting
Device).
■
When a malfunction occurs during charging
The indicators on the CCID (Charging Circuit Interrupting Device)
use a combination of different statuses (not illuminated, illuminated
or flashing) to inform the user of internal malfunctions.
When the error warning indicator is illuminated or flashing, temporarily
remove the plug from the socket and then reconnect it to check if the
error indicator turns off.
If the error warning indicator turns off, charging is now possible.
If it does not turn off, perform the correction procedure in the following
chart.
CCID (Charging Circuit Interrupting Device) indicator (Mode 2
charging cable)
1
2
3

1222-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
*1: When this occurs, charging is carried out without a limited charging current.
*2: When this occurs, charging is carried out with a limited charging current.
StatusPower
indicatorError
warning
indicator
Cause/Correction procedure
Charging
system errorNot
illuminatedNot
illuminated
or
illuminatedAn electrical leakage is
detected and charging is can-
celed, or there is a malfunction
in the charging cable.
Consult any authorized
Toyota dealer or repairer,
or another duly qualified
and equipped professional Illuminated Flashes
Plug
temperature
detection
malfunction
FlashesFlashes
There is a malfunction in the
plug temperature detection
part.
*1
Consult any authorized
Toyota dealer or repairer,
or another duly qualified
and equipped professional
Plug
temperature
increase
detection
FlashesNot
illuminated
An increase in the temperature
of the plug is detected due to an
improper connection between
the socket and plug.
*2
Check that the plug is
securely connected to the
socket.
Charging
cable life
span notice
IlluminatedFlashes
The number of charges using
the charging cable is nearing
the end of its usable life span.
Consult any authorized
Toyota dealer or repairer,
or another duly qualified
and equipped professional
Charging
cable life
span
IlluminatedIlluminated
The number of charges using
the charging cable has
exceeded its usable number of
charges.
Consult any authorized
Toyota dealer or repairer,
or another duly qualified
and equipped professional

1232-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
The plug-cord can be replaced using the following procedure.
Prepare the charging cable
( P. 118) and the replacement
plug-cord.
Pull out the release key.
Make sure that the pulled out
release key is not lost.
Remove the plug-cord connec-
tor cap.
Insert the release key into the
release slot of the CCID
(Charging Circuit Interrupting
Device).
Insert the release key in the direc-
tion shown in the illustration.
Replacing the plug-cord (Mode 2 charging cable) (if equipped)
1
2
3
4

1242-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
With the release key fully
inserted into the release slot of
the CCID (Charging Circuit
Interrupting Device), turn the
plug-cord connector nut of the
plug-cord to remove the cord.
After the plug-cord is removed,
remove the release key.
Align the protrusion of the CCID
(Charging Circuit Interrupting
Device), with the groove of the
plug-cord, insert the plug-cord
into the CCID (Charging Circuit
Interrupting Device), and then
turn the plug-cord connector
nut of the plug-cord to install it.
Turn the plug-cord connector nut of
the plug-cord in the opposite direc-
tion of removal until a click sound
is heard and the plug-cord is
secured.
Install the plug-cord connector cap and release key to the plug-cord
that has been removed.
Securely install the release key to the protection cap to prevent it from
being lost. Also, make sure that the release key does not fall out of the pro-
tection cap accidently.
Store the plug-cord in a safe, clean and dry place.
5
6
7

1252-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)

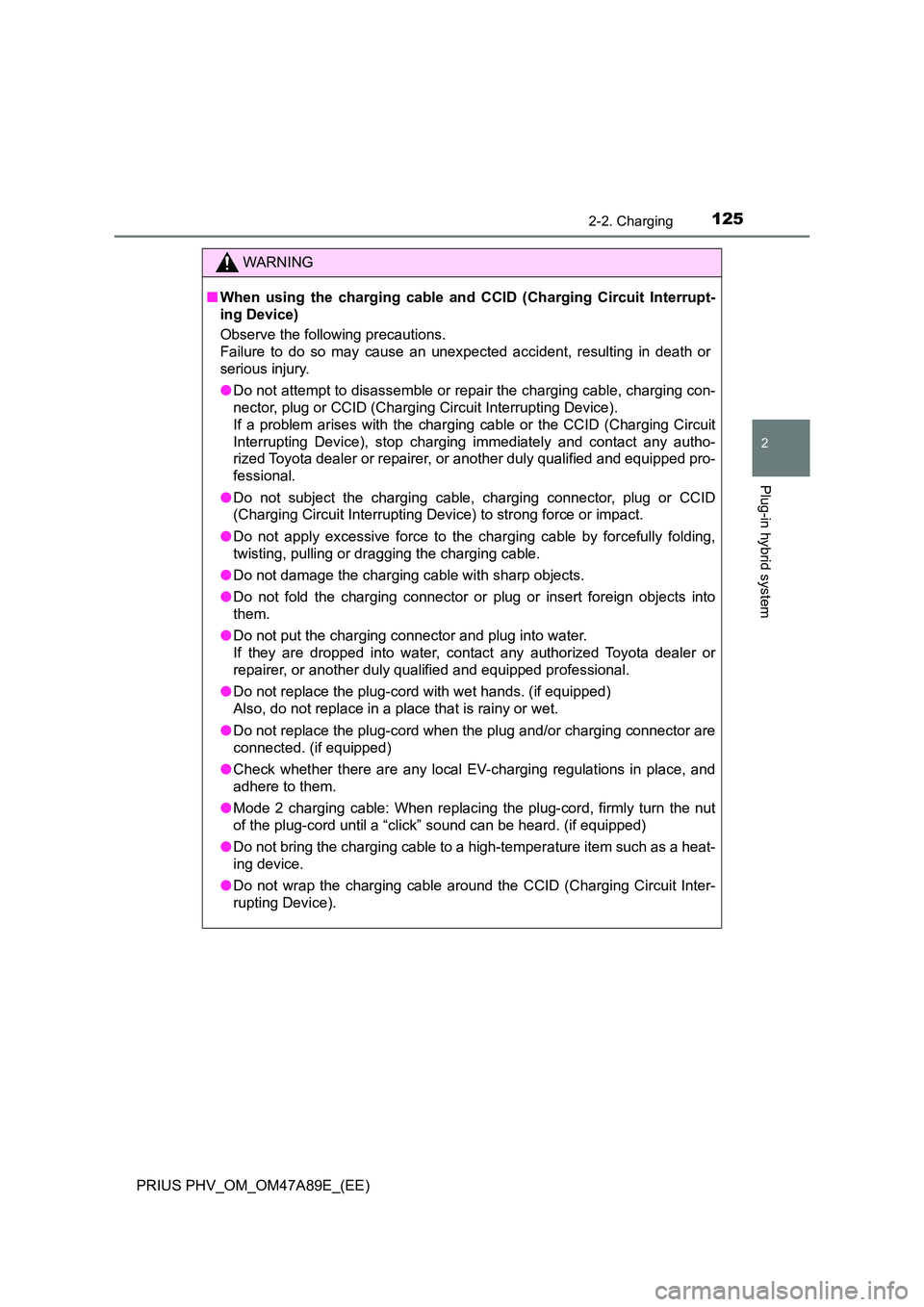

WARNING
■When using the charging cable and CCID (Charging Circuit Interrupt-
ing Device)
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● Do not attempt to disassemble or repair the charging cable, charging con-
nector, plug or CCID (Charging Circuit Interrupting Device).
If a problem arises with the chargi ng cable or the CCID (Charging Circuit
Interrupting Device), stop charging immediately and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
● Do not subject the charging cable, charging connector, plug or CCID
(Charging Circuit Interrupting Device) to strong force or impact.
● Do not apply excessive force to the charging cable by forcefully folding,
twisting, pulling or dragging the charging cable.
● Do not damage the charging cable with sharp objects.
● Do not fold the charging connector or plug or insert foreign objects into
them.
● Do not put the charging connector and plug into water.
If they are dropped into water, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● Do not replace the plug-cord with wet hands. (if equipped)
Also, do not replace in a place that is rainy or wet.
● Do not replace the plug-cord when the plug and/or charging connector are
connected. (if equipped)
● Check whether there are any local EV-charging regulations in place, and
adhere to them.
● Mode 2 charging cable: When replacing the plug-cord, firmly turn the nut
of the plug-cord until a “click” sound can be heard. (if equipped)
● Do not bring the charging cable to a high-temperature item such as a heat-
ing device.
● Do not wrap the charging cable around the CCID (Charging Circuit Inter-
rupting Device).

1262-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)

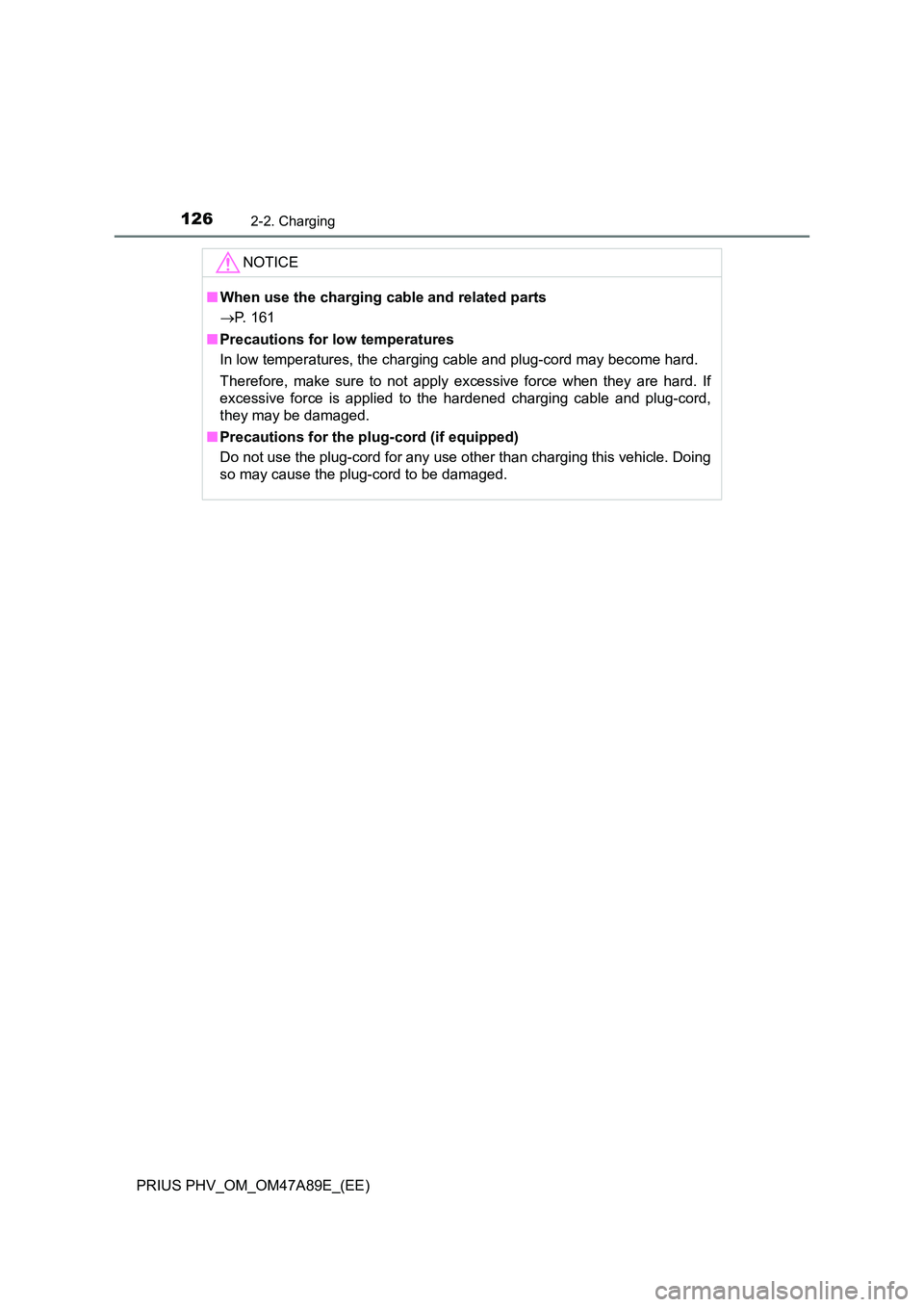

NOTICE
■When use the charging cable and related parts
 P. 161
■ Precautions for low temperatures
In low temperatures, the charging cable and plug-cord may become hard.
Therefore, make sure to not apply excessive force when they are hard. If
excessive force is applied to the hardened charging cable and plug-cord,
they may be damaged.
■ Precautions for the plug-cord (if equipped)
Do not use the plug-cord for any use other than charging this vehicle. Doing
so may cause the plug-cord to be damaged.

1272-2. Charging
2
Plug-in hybrid system
PRIUS PHV_OM_OM47A89E_(EE)
For safety, inspect the charging cable on a routine basis.
Inspecting and maintaining the charging cable
WARNING
■Routine inspection
Check the following points regularly.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● The charging cable, plug, charging connector, CCID (Charging Circuit
Interrupting Device) etc. have not been damaged
● The socket has not been damaged
● The plug can be securely inserted into the socket
● The plug does not get extremely hot during use
● The tip of the plug has not been deformed
● The plug is not dirtied by dust etc.
Remove the plug from the socket before inspecting it. If any abnormalities
are found in the charging cable as a result of the inspection, immediately
stop use and consult any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■ Maintaining the charging cable
When the charging cable is dirty, first remove the dirt with a hard, wringed
cloth, and then wipe the cable with a dry cloth.
However, never wash it with water. If the charging cable is washed with
water, fire or electric shock may oc cur during charging, possibly resulting in
death or serious injury.
■ When not using the charging cable for a long time
Remove the plug from the socket. Dust could accumulate on the plug or in
the socket, possibly causing overheating which could lead to a fire.
Also, keep the cable in a place free from moisture.

1282-2. Charging
PRIUS PHV_OM_OM47A89E_(EE)
Smart lid & connector locking system
Smart lid system
Operating the charging port lid carrying the electric key on your per-
son, for example in your pocket, can unlock only the charging port
lid with the doors of the vehicle locked.
Charging connector locking system
When the charging connector is inserted straight as far as possible,
it will automatically lock.
Carry an electronic key and press the charging connector lock
switch to unlock the charging connector.
It can be used to prevent the charging cable removed or stolen while
charging.
■ Antenna location
 P. 279
■ Effective range (areas within which the electronic key is detected)
 P. 280
When carrying the electric key on your person, for example in
your pocket, the charging port lid and the charging connector
can be locked or unlocked.
Smart lid & connector locking system operation
1
2
