2017 TOYOTA CAMRY check engine

FEATURES/OPERATIONS
45
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
Anti-lock Brake System warning1
Brake system warning1
ECO Driving Indicator1
Instrument cluster
2 If this light flashes, refer to “Cruise control” or “Dynamic Ra\
dar Cruise Control,” Section 4-5, 2017
Owner’s Manual.
3 If equipped.
1 If indicator does not turn off within a few seconds of starting the engi\
ne, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Master warning1,3
Low Tire Pressure Warning1,3
Driver seat belt reminder and/
or front passenger seat belt reminder (alarm will sound if speed is ove\
r 12 mph)
Low outside temperature indicator
Turn signal indicator
Headlight low/high beam indicators
Automatic high beam indicator3
Slip indicator1
Cruise control indicator/Cruise control SET indicator2
Dynamic radar cruise control indicator/
Dynamic radar cruise control SET indicator2,3
Vehicle Stability Control OFF indicator1
Pre-collison system warning1,3
Lane Departure Alert (LDA) warning3
Malfunction/Check Engine indicator1
Passenger Air Bag ON/OFF indicator1
Low Tire Pressure Warning1,3
Low fuel level warning
Theft deterrent/Engine
immobilizer system indicator
SRS airbag warning1
Electric power steering system warning1
Arrow direction indicates fuel
tank door position
OVERVIEW
Instrument symbols
Fuel gauge
Display change button
Odometer/Trip meter
SpeedometerTachometer
Engine coolant temperature display
Shift position/Shift range display
Instrument panel light control button
Outside temperature display
Service indicators and reminders
OVERVIEW
SAFETY AND EMERGENCY FEATURES

6

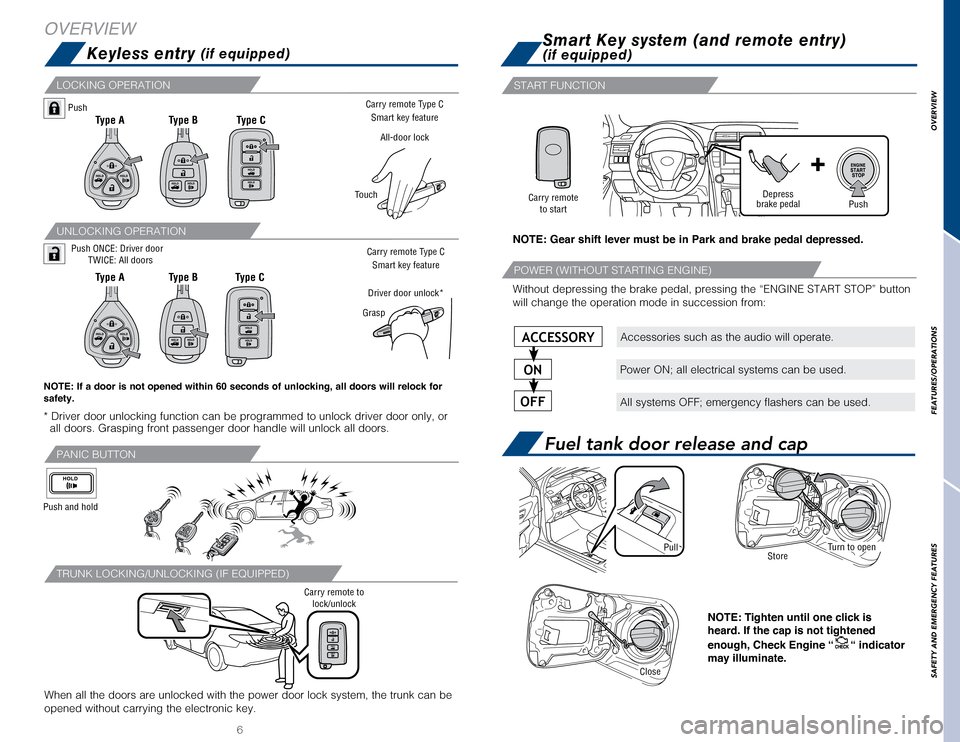

LOCKING OPERATION
When all the doors are unlocked with the power door lock system, the tru\
nk can be
opened without carrying the electronic key.
Carry remote to lock/unlock
TRUNK LOCKING/UNLOCKING (IF EQUIPPED)
UNLOCKING OPERATION
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors. Grasping front passenger door handle will unlock all doors.
7
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
button
will change the operation mode in succession from:
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Fuel tank door release and cap
Turn to open
StorePull
Keyless entry (if equipped)
Smart Key system (and remote entry)
(if equipped)
Push ONCE: Driver door
TWICE: All doors
Push
Close
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
“ indicator
may illuminate.
Type A
OVERVIEW
Type B Type B
Type CType C
Type A
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Depress
brake pedalPushCarry remote
to start
PANIC BUTTON
Push and hold
Accessories such as the audio will operate.
Power ON; all electrical systems can be used.
All systems OFF; emergency flashers can be used.
ACCESSORY
ON
OFF
Carry remote Type C
Smart key feature
All-door lock
Touch
Carry remote Type CSmart key feature
Grasp
Driver door unlock*
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
