2017 TOYOTA CAMRY Quick Reference Guide

QUICK REFERENCE GUIDE
0 0 5 0 5 Q R G17 C A M
Printed in
U.S.A. 10/16
16 - MKG - 09460
CAMRY
2 017CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
16-MKG-09460_QRGuide_Camry_1_0F_lm.indd 19/29/16 8:07 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel 8
Smart Key system (and remote entry)
1,2 7



Air Conditioning/heating 18-19
Audio 22
Auto lock/unlock
1,2 10
Automatic Transmission 10
Bottle holders/Cup holders 24
Blind Spot Monitor (BSM) 20
Clock 14
Cruise control 16
Dynamic Radar Cruise Control
(DRCC) 17
Garage door opener (HomeLink
®)3 16
Lights1 & turn signals 15
Lane Departure Alert (LDA) 25
Moon roof 12
Multi-Information Display (MID)
1 24
Parking brake 11
Power outlets-12V DC 14
Pre-Collision System (PCS) 25
Rear view monitor system 20
Seat adjustments-Front 13
Seat adjustments-Rear 13
Seats-Head restraints 12
1
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions\
and more information.3 HomeLink® is a registered trademark of Gentex Corporation.

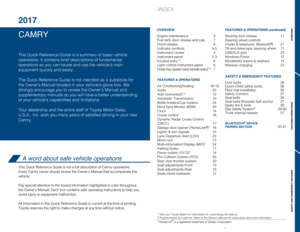

OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
CAMRY 2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your new
Camry.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Camry operations\
.
Every Camry owner should review the Owner’s Manual that accompanies t\
his
vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
Steering lock release 11
Steering wheel controls
(Audio & telephone: Bluetooth
®) 21
Tilt and telescopic steering wheel 11
USB/AUX port 23
Windows-Power 12
Windshield wipers & washers 14
Wireless charging 23
Door locks 26
Doors-Child safety locks 26
Floor mat installation 30
Safety Connect 27
Seat belts 26
Seat belts-Shoulder belt anchor 27
Spare tire & tools 28
Star Safety System
™ 29-30
Trunk internal release 27
BLUETOOTH® DEVICE
PAIRING SECTION 32-41

Steering wheel controls
FEATURES/OPERATIONS
23
Instrument panel
OVERVIEW
1 If equipped.2 For vehicles with Entune Premium Audio or Entune Audio Plus, refer to th\
e
“Navigation System Owner’s Manual” and “2017 Entune™ Audi\
o Quick
Reference Guide.”
Meter control switches
Air conditioning controls
Emergency flasher button
Wiper and washer controls
Seat heater controls1
Tire Pressure Monitoring (warning) System
(TPMS) reset switch1
Outside rearview mirror/
Rear window defogger button
Headlight and turn signal controls/
Headlight, turn signal and front DRL
(Daytime Running Light)
controls1
Lane Departure Alert (LDA) switch1
Blind Spot Monitor (BSM) main switch1
VSC OFF switch
Pre-Collison System (PCS) switch1
Tilt and telescopic
steering lock release
Key ignition1
“ENGINE START STOP” button (Smart Key)1Audio system1/
Navigation system1,2
Telephone controls2
Voice command button2
Dynamic Radar Cruise Control
(DRCC) Vehicle-to-vehicle
distance button
1
Cruise control
Paddle shift levers1
Steering wheel
audio controls2
See ‘Air conditioning/heating’ section
of this book for more details about your unit.
OVERVIEW
SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS
45
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
Anti-lock Brake System warning1
Brake system warning1
ECO Driving Indicator1
Instrument cluster
2 If this light flashes, refer to “Cruise control” or “Dynamic Ra\
dar Cruise Control,” Section 4-5, 2017
Owner’s Manual.
3 If equipped.
1 If indicator does not turn off within a few seconds of starting the engi\
ne, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Master warning1,3
Low Tire Pressure Warning1,3
Driver seat belt reminder and/
or front passenger seat belt reminder (alarm will sound if speed is ove\
r 12 mph)
Low outside temperature indicator
Turn signal indicator
Headlight low/high beam indicators
Automatic high beam indicator3
Slip indicator1
Cruise control indicator/Cruise control SET indicator2
Dynamic radar cruise control indicator/
Dynamic radar cruise control SET indicator2,3
Vehicle Stability Control OFF indicator1
Pre-collison system warning1,3
Lane Departure Alert (LDA) warning3
Malfunction/Check Engine indicator1
Passenger Air Bag ON/OFF indicator1
Low Tire Pressure Warning1,3
Low fuel level warning
Theft deterrent/Engine
immobilizer system indicator
SRS airbag warning1
Electric power steering system warning1
Arrow direction indicates fuel
tank door position
OVERVIEW
Instrument symbols
Fuel gauge
Display change button
Odometer/Trip meter
SpeedometerTachometer
Engine coolant temperature display
Shift position/Shift range display
Instrument panel light control button
Outside temperature display
Service indicators and reminders
OVERVIEW
SAFETY AND EMERGENCY FEATURES

6
LOCKING OPERATION
When all the doors are unlocked with the power door lock system, the tru\
nk can be
opened without carrying the electronic key.
Carry remote to lock/unlock
TRUNK LOCKING/UNLOCKING (IF EQUIPPED)
UNLOCKING OPERATION
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors. Grasping front passenger door handle will unlock all doors.
7
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
button
will change the operation mode in succession from:
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Fuel tank door release and cap
Turn to open
StorePull
Keyless entry (if equipped)
Smart Key system (and remote entry)
(if equipped)
Push ONCE: Driver door
TWICE: All doors
Push
Close
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
“ indicator
may illuminate.
Type A
OVERVIEW
Type B Type B
Type CType C
Type A
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Depress
brake pedalPushCarry remote
to start
PANIC BUTTON
Push and hold
Accessories such as the audio will operate.
Power ON; all electrical systems can be used.
All systems OFF; emergency flashers can be used.
ACCESSORY
ON
OFF
Carry remote Type C
Smart key feature
All-door lock
Touch
Carry remote Type CSmart key feature
Grasp
Driver door unlock*
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

89
Hood releaseEngine maintenance
Light control - Instrument panel
4-CYLINDER (2AR-FE) ENGINE
V6 (2GR-FE) ENGINE
Push to control brightness
OVERVIEW
Engine oil filler cap
Engine oil filler cap
Engine coolant reservoir
Engine coolant reservoir
Windshield washer fluid tank
Windshield washer fluid tank
Engine oil level dipstick
Engine oil level dipstick
Pull up latch
and raise hood
Pull
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

1011
* The “ENGINE START STOP”/ignition switch must be “ON” and t\
he brake pedal
depressed to shift from Park.
Auto lock/unlockSteering lock release
Tilt and telescopic steering wheel
Parking brake
Automatic door locks can be programmed to operate in four different mode\
s, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the ignition switch is set from “ON” to “ACC\
” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the “ENGINE START STOP” switch is set to OFF an\
d driver’s
door is opened.
Refer to the Owner’s Manual for more details.
Park*
Reverse
Neutral
Drive
N
“S” mode
+ (“S” mode)
- (“S” mode)
- (“S” mode)+ (“S” mode)
Paddle shift switches
(if equipped)Shift lever
Automatic transmission
FEATURES/OPERATIONS
“S” SEQUENTIAL MODE
Shift the shift lever to “S” position from “D” position.
+ : Upshifting

- : Downshifting
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Turn
Smart Key system Without Smart Key system
Push
Set: Depress
Release: Depress again
NOTE: Do not attempt to adjust while the vehicle is in motion. Hold wheel, push lever down, set angle and length, and return lever.
Lock release
lever Angle
Length
Turn
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

1213
Windows-PowerSeat adjustments-Front
Moon roof (if equipped)
Seats-Head restraints
Seat adjustments-Rear
(1)(2)
Fold down
FEATURES/OPERATIONS
Height crank
(driver side only) Seat position, cushion angle (driver
side only) and height (driver side only)
Lumbar support
(driver side only)Seatback angleSeat position
(forward/backward)
Pull
Up
Down
Driver side
Window lock switch
Automatic operation (driver’s and passenger’s side) Push the swi\
tch completely
down or pull it completely up and release to fully open or close. To sto\
p the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window\
remains
operable.
Push once to open; moon roof will automatically stop at the recommended \
position.
Push again to open completely.
Lock release button
SLIDING OPERATION TILTING OPERATION
Tilt
Close
OpenClose
Recommended driving position to
minimize wind noise.
Push once to open partway; again to open
completely.
Refer to the Owner’s Manual for more details.
Tip: To fold rear seats, the
release button is located in the
trunk.
* Power passenger seat equipped on some models, see Owner’s Manual fo\
r more
details.
POWER SEAT*
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
