Luggage compartment features
Cargo hooks are provided for
securing loose items.
Cargo hooks (if equipped)
WARNING
To avoid injury, always return the cargo hooks to their stowed positions
when not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 2 kg (4.4 lb.) on the grocery bag hook.

4986-3. Using the storage features
C-HR_HV_OM_Europe_OM10538E
Remove the deck board.
Auxiliary boxes (if equipped)
Ty pe AType B
Ty pe C

4996-3. Using the storage features
C-HR_HV_OM_Europe_OM10538E
6
Interior features
Ty pe A
Ty pe B
Turn the knob and open the lid.
Side auxiliary boxes

5006-3. Using the storage features
C-HR_HV_OM_Europe_OM10538E
■Open and secure the deck board (type D only)
First-aid kit storage space
Ty pe AType B
Ty pe CType D
The deck board can be secured while
raised, as shown in the illustration.

5016-3. Using the storage features
C-HR_HV_OM_Europe_OM10538E
6
Interior features
Ty pe A
Unhook the cords and return
the luggage cover to horizon-
tal position.
Pull it toward you and then lift
the luggage cover to remove
it.
Installation position
Confirm that the cover has
been securely installed to the
original position when install-
ing.
Removal position

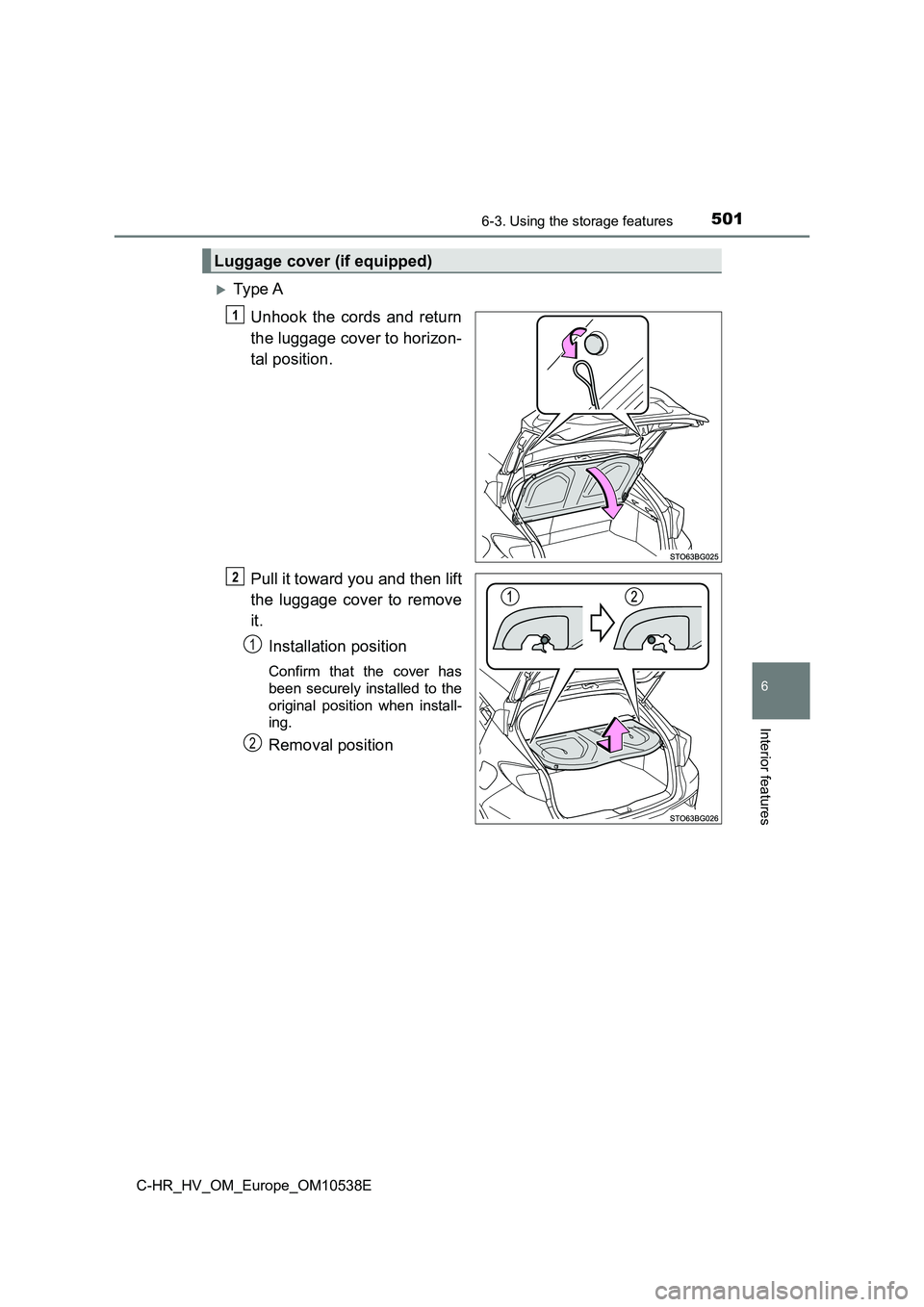

Luggage cover (if equipped)
1
2
1
2

5026-3. Using the storage features
C-HR_HV_OM_Europe_OM10538E
Ty pe B
■Removing the luggage cover
Unhook the cords.
Unhook the hook to the hook
brackets.
■Stowing the luggage cover
Hold the luggage cover with
both hands. Point your
thumbs in opposite direc-
tions.
1
2
1

5036-3. Using the storage features
C-HR_HV_OM_Europe_OM10538E
6
Interior features
Bend one side of the cover
towards you.
Twist the other side in the
opposite direction, as shown
in the illustration.
Make a small circle, then fold
it inward.
Make sure the three circles
are side by side.2
3
4
5

5046-3. Using the storage features
C-HR_HV_OM_Europe_OM10538E
Make sure the luggage cover
is properly folded.
6
WARNING
● Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
● Type B only: Be sure to properly fold the luggage cover. Otherwise it could
unexpectedly unfold, which may lead to serious injuries.
● Be sure to attach the cord correctly.
NOTICE
Do not apply too much force when folding the luggage cover. Doing so may
damage the luggage cover.
